Description
Technical Data:
Casting Material: AISI304 - DIN 1.4308/
AISI316 - DIN 1.4408
Production: S0181 - Pin - Forged
Swivel - Cast
Surface Treatment: “E.P.” (Electro polished) Note : Standard safety factor for working load
is 1/4 of breaking load

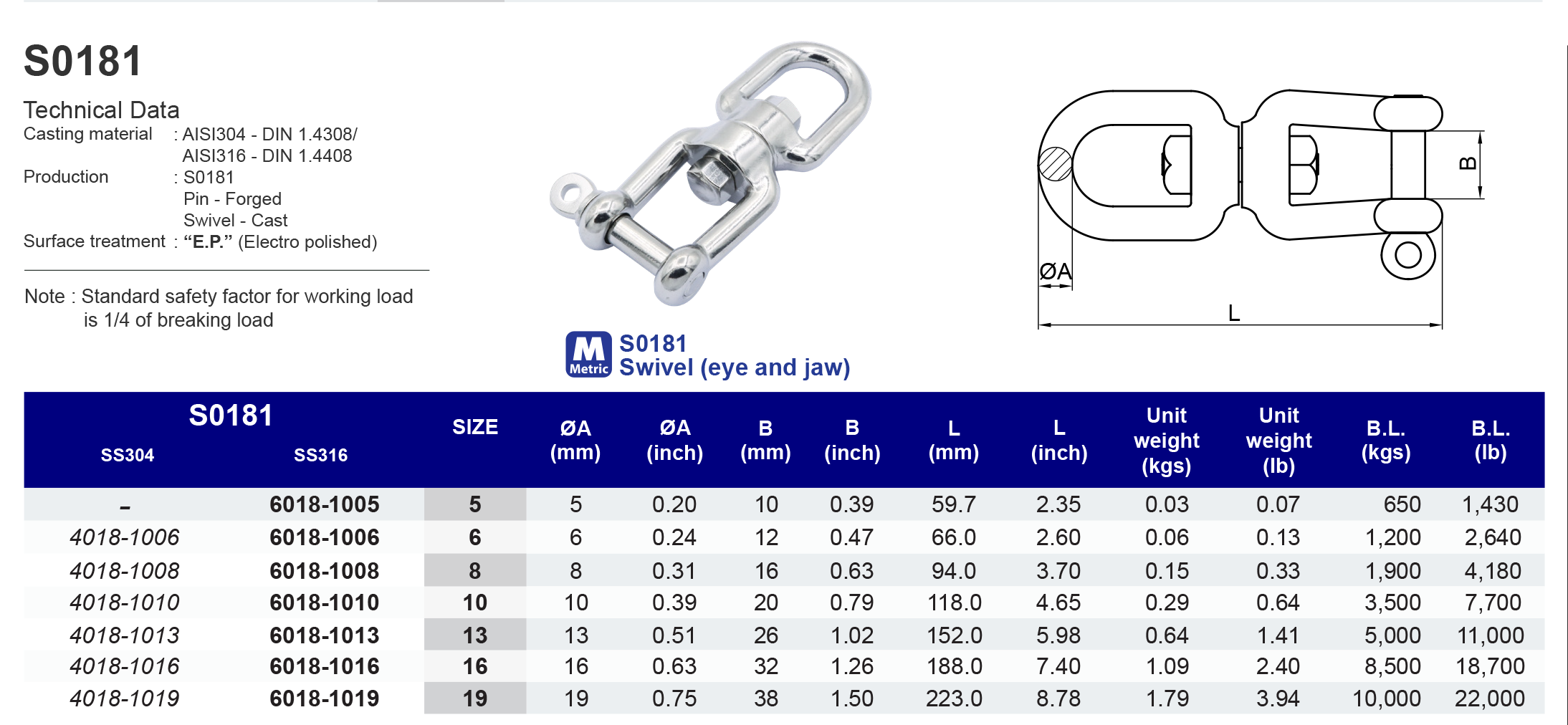

Model
S0181
Swivel (eye and jaw)
316 ss
| SS316 | Size | ØA (mm) | B (mm) | L (mm) | Unit weight (kgs) | B.L. (kgs) |
|---|---|---|---|---|---|---|
| 60181005 | 5 | 5 | 13 | 59.7 | 0.03 | 650 |
| 60181006 | 6 | 6 | 12 | 66 | 0.06 | 1,200 |
| 60181008 | 8 | 8 | 16 | 94 | 0.15 | 1,900 |
| 60181010 | 10 | 10 | 20 | 118 | 0.29 | 3,500 |
| 60181013 | 13 | 13 | 26 | 152 | 0.64 | 5,000 |
| 60181016 | 16 | 16 | 32 | 188 | 1.09 | 8,500 |
| 60181019 | 19 | 19 | 38 | 223 | 1.79 | 10,000 |
| SS316 | Size | ØA (inch) | B (inch) | L (inch) | Unit weight (lb) | B.L. (lb) |
|---|---|---|---|---|---|---|
| 60181005 | 3/16" | 0.20 | 0.51 | 2.35 | 0.07 | 1,430 |
| 60181006 | 1/4" | 0.24 | 0.47 | 2.60 | 0.13 | 2,640 |
| 60181008 | 5/16" | 0.31 | 0.63 | 3.70 | 0.33 | 4,180 |
| 60181010 | 3/8" | 0.39 | 0.79 | 4.65 | 0.64 | 7,700 |
| 60181013 | 1/2" | 0.51 | 1.02 | 5.98 | 1.41 | 11,000 |
| 60181016 | 5/8" | 0.63 | 1.26 | 7.40 | 2.40 | 18,700 |
| 60181019 | 3/4" | 0.75 | 1.50 | 8.78 | 3.94 | 22,000 |
