Description
Technical Data:
Forging material : AISI 316 - DIN 1.4401
Production : SF7801 - Stud - Forged
Surface Treatment :“M.F.” (Matte finished)
Note:

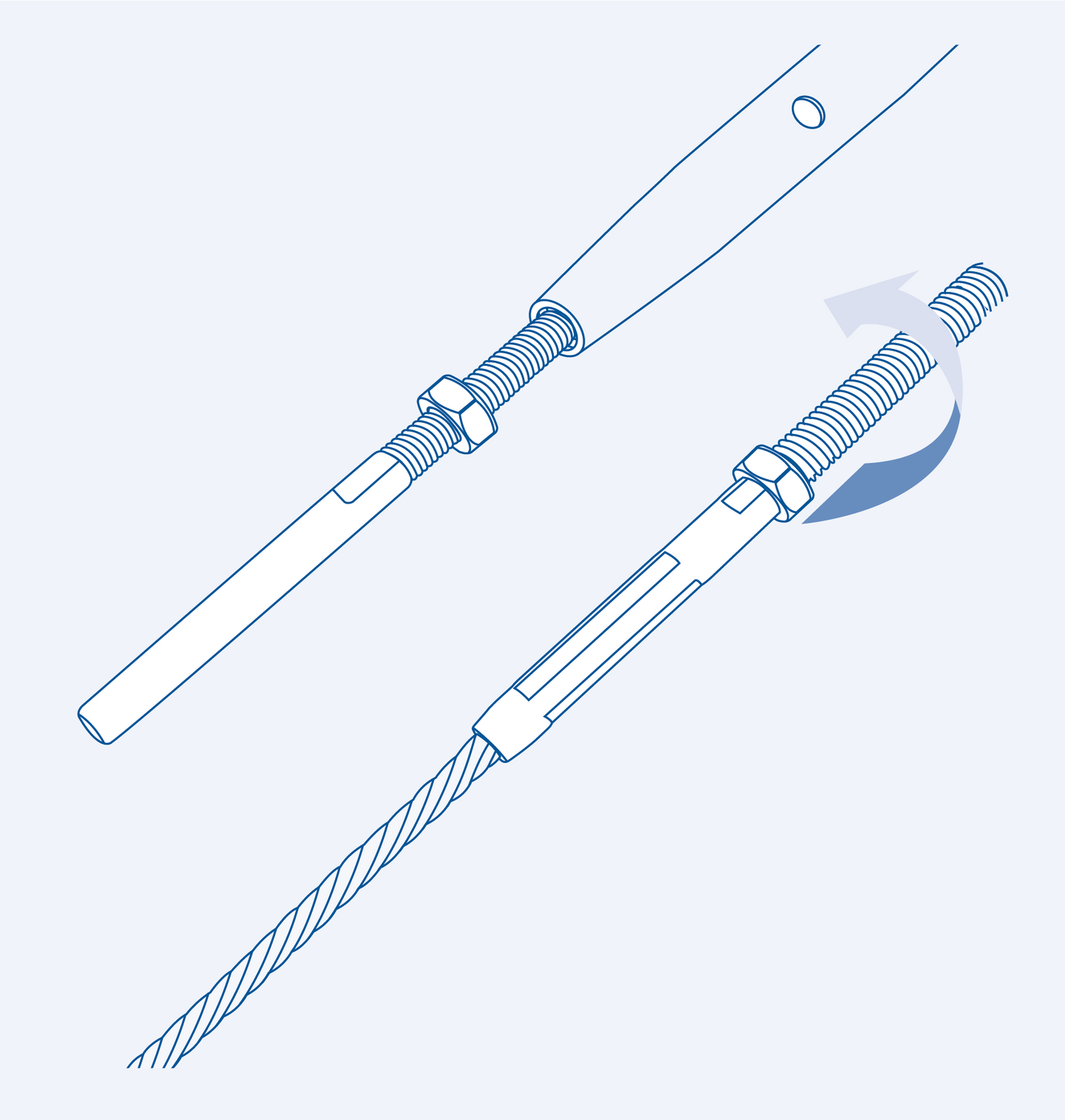

Standard terminals are the comon size used in assembly with other products such as turnbuckles.”
“Non-standard terminals are size which are rarely used incommon settings or product assemblies
Model
SF7801 (RH)

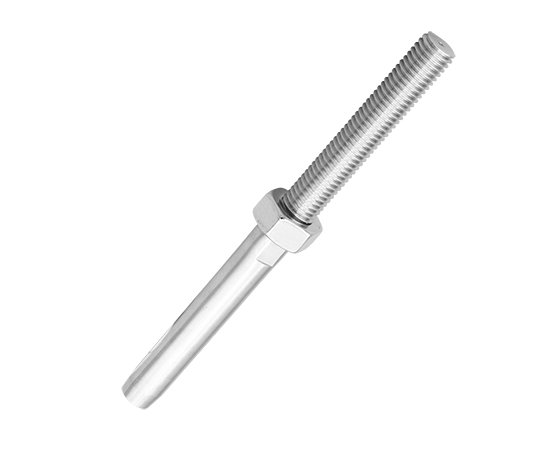

Right Threaded Stud Terminal
316 ss

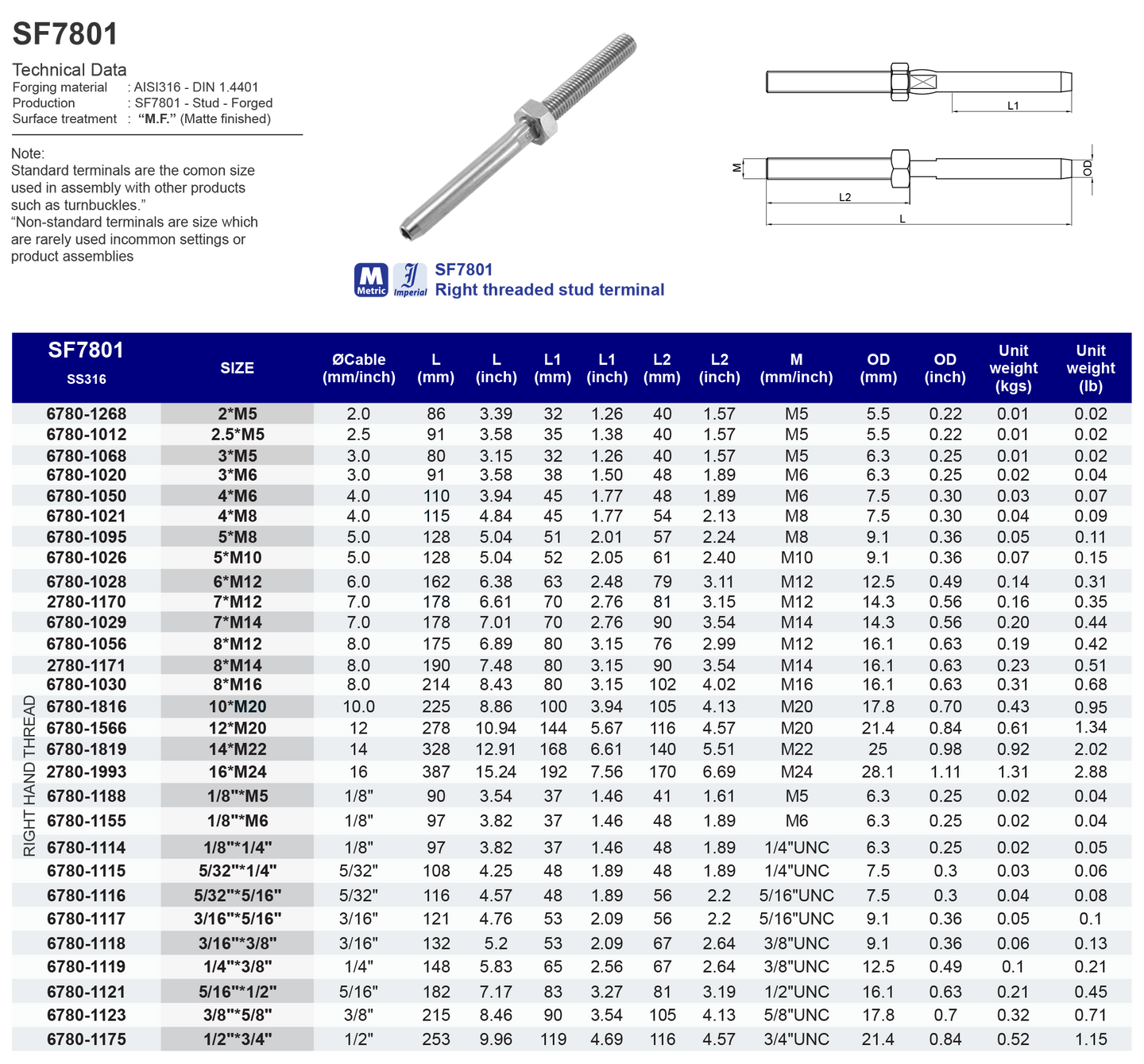

| SS316 | Size | ØCable (mm) | L (mm) | L1 (mm) | L2 (mm) | M (mm) | OD (mm) | Unit weight (kgs) |
|---|---|---|---|---|---|---|---|---|
| 67801268 | 2*M5 | 2 | 86 | 32 | 40 | M5 | 5.5 | 0.01 |
| 67801012 | 2.5*M5 | 2.5 | 91 | 35 | 40 | M5 | 5.5 | 0.01 |
| 67801068 | 3*M5 | 3 | 80 | 32 | 40 | M5 | 6.3 | 0.01 |
| 67801020 | 3*M6 | 3 | 91 | 38 | 48 | M6 | 6.3 | 0.02 |
| 67801050 | 4*M6 | 4 | 110 | 45 | 48 | M6 | 7.5 | 0.03 |
| 67801021 | 4*M8 | 4 | 115 | 45 | 54 | M8 | 7.5 | 0.04 |
| 67801095 | 5*M8 | 5 | 128 | 51 | 57 | M8 | 9.1 | 0.05 |
| 67801026 | 5*M10 | 5 | 128 | 52 | 61 | M10 | 9.1 | 0.07 |
| 67801028 | 6*M12 | 6 | 162 | 63 | 79 | M12 | 12.5 | 0.14 |
| 27801170 | 7*M12 | 7 | 178 | 70 | 81 | M12 | 14.3 | 0.16 |
| 67801029 | 7*M14 | 7 | 178 | 70 | 90 | M14 | 14.3 | 0.20 |
| 67801056 | 8*M12 | 8 | 175 | 80 | 76 | M12 | 16.1 | 0.19 |
| 27801171 | 8*M14 | 8 | 190 | 80 | 90 | M14 | 16.1 | 0.23 |
| 67801030 | 8*M16 | 8 | 214 | 80 | 102 | M16 | 16.1 | 0.31 |
| 67801816 | 10*M20 | 10 | 225 | 100 | 105 | M20 | 17.8 | 0.43 |
| 67801566 | 12*M20 | 12 | 278 | 144 | 116 | M20 | 21.4 | 0.61 |
| 67801819 | 14*M22 | 14 | 328 | 168 | 140 | M22 | 25.0 | 0.92 |
| 27801993 | 16*M24 | 16 | 387 | 192 | 170 | M24 | 28.1 | 1.31 |
| SS316 | Size | ØCable (inch) | L (inch) | L1 (inch) | L2 (inch) | M (mm/inch) | OD (inch) | Unit weight (lb) |
|---|---|---|---|---|---|---|---|---|
| 67801188 | 1/8"*M5 | 1/8" | 3.54 | 1.46 | 1.61 | M5 | 0.25 | 0.04 |
| 67801155 | 1/8"*M6 | 1/8" | 3.82 | 1.46 | 1.89 | M6 | 0.25 | 0.04 |
| 67801114 | 1/8"*1/4" | 1/8" | 3.82 | 1.46 | 1.89 | 1/4"UNC | 0.25 | 0.05 |
| 67801115 | 5/32"*1/4" | 5/32" | 4.25 | 1.89 | 1.89 | 1/4"UNC | 0.30 | 0.06 |
| 67801116 | 5/32"*5/16" | 5/32" | 4.57 | 1.89 | 2.20 | 5/16"UNC | 0.30 | 0.08 |
| 67801117 | 3/16"*5/16" | 3/16" | 4.76 | 2.09 | 2.20 | 5/16"UNC | 0.36 | 0.10 |
| 67801118 | 3/16"*3/8" | 3/16" | 5.20 | 2.09 | 2.64 | 3/8"UNC | 0.36 | 0.13 |
| 67801119 | 1/4"*3/8" | 1/4" | 5.83 | 2.56 | 2.64 | 3/8"UNC | 0.49 | 0.21 |
| 67801121 | 5/16"*1/2" | 5/16" | 7.17 | 3.27 | 3.19 | 1/2"UNC | 0.63 | 0.45 |
| 67801123 | 3/8"*5/8" | 3/8" | 8.46 | 3.54 | 4.13 | 5/8"UNC | 0.70 | 0.71 |
| 67801175 | 1/2"*3/4" | 1/2" | 9.96 | 4.69 | 4.57 | 3/4"UNC | 0.84 | 1.15 |
