Description
Technical Data:
Fork : Casting material : AISI316, EN 1.4408
Lock Nut : Casting material : AISI316, EN 1.4408
Pin : M6-M22 : Rod AISI316
: M24-M100 : Rod 17-4 PH
Surface treatment : “M.F.” (Matte finished) M16-M45
“G.F.” (Gloss finished) M56-M100
TAP : ST03.3-1, ST03.3-2
DATA SHEET DOWNLOAD

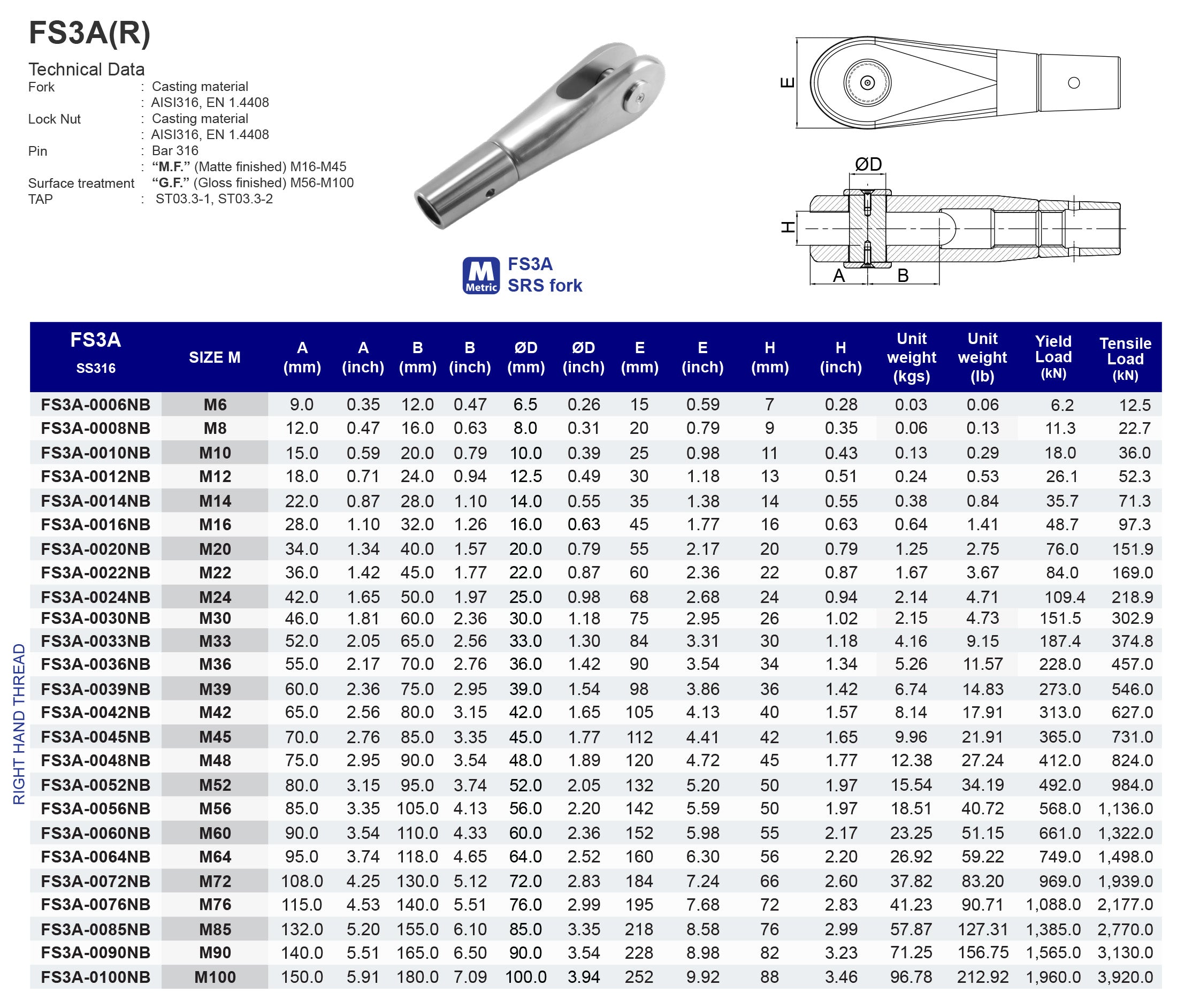

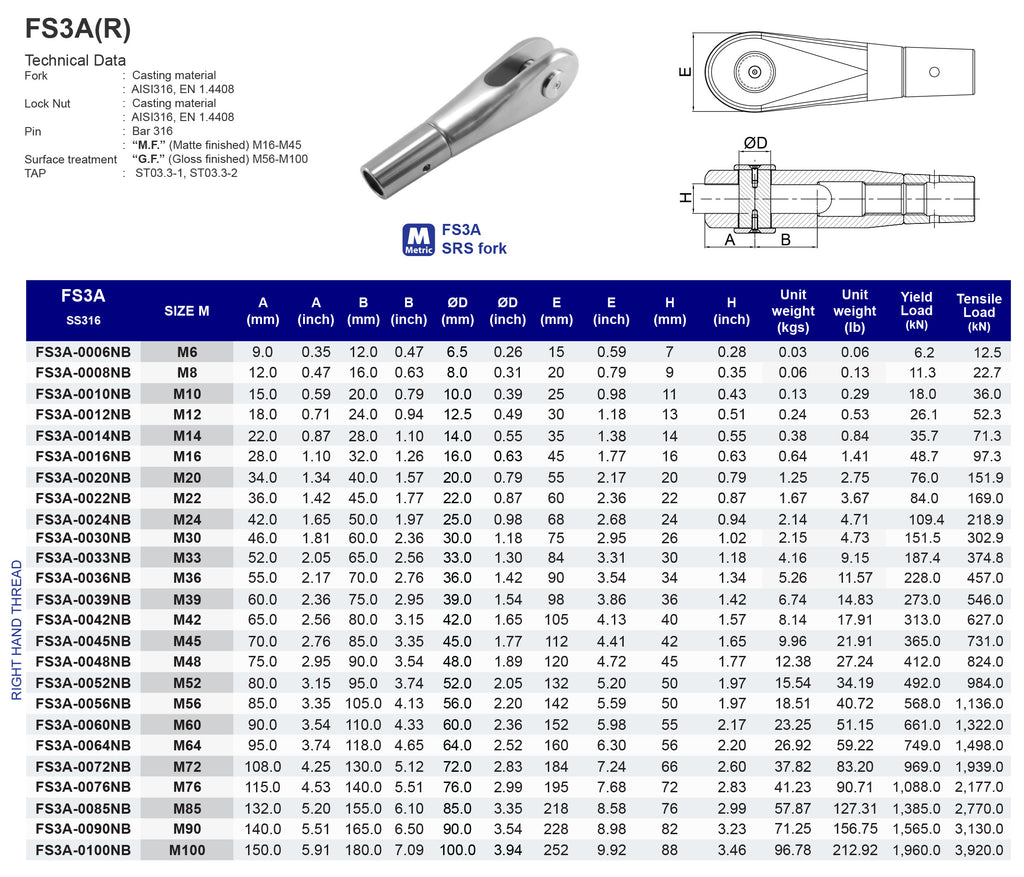

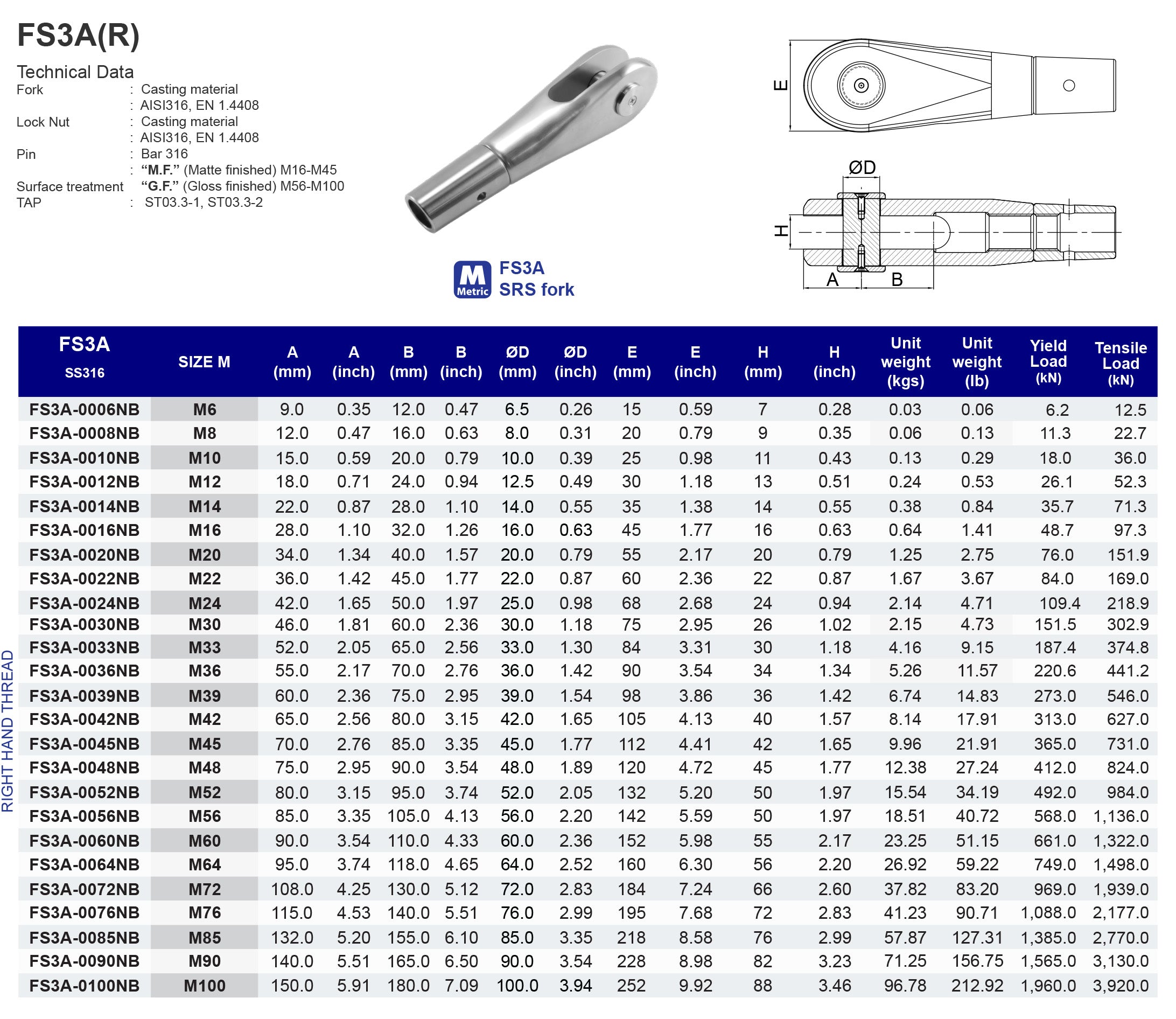

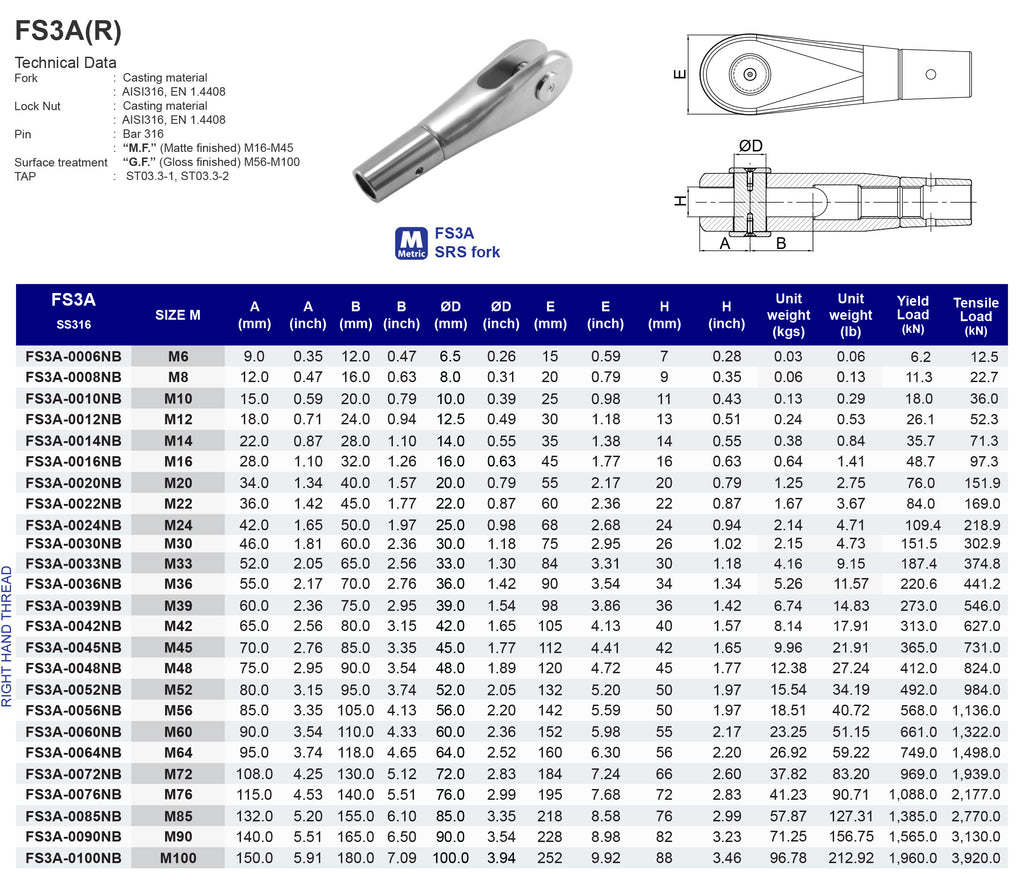

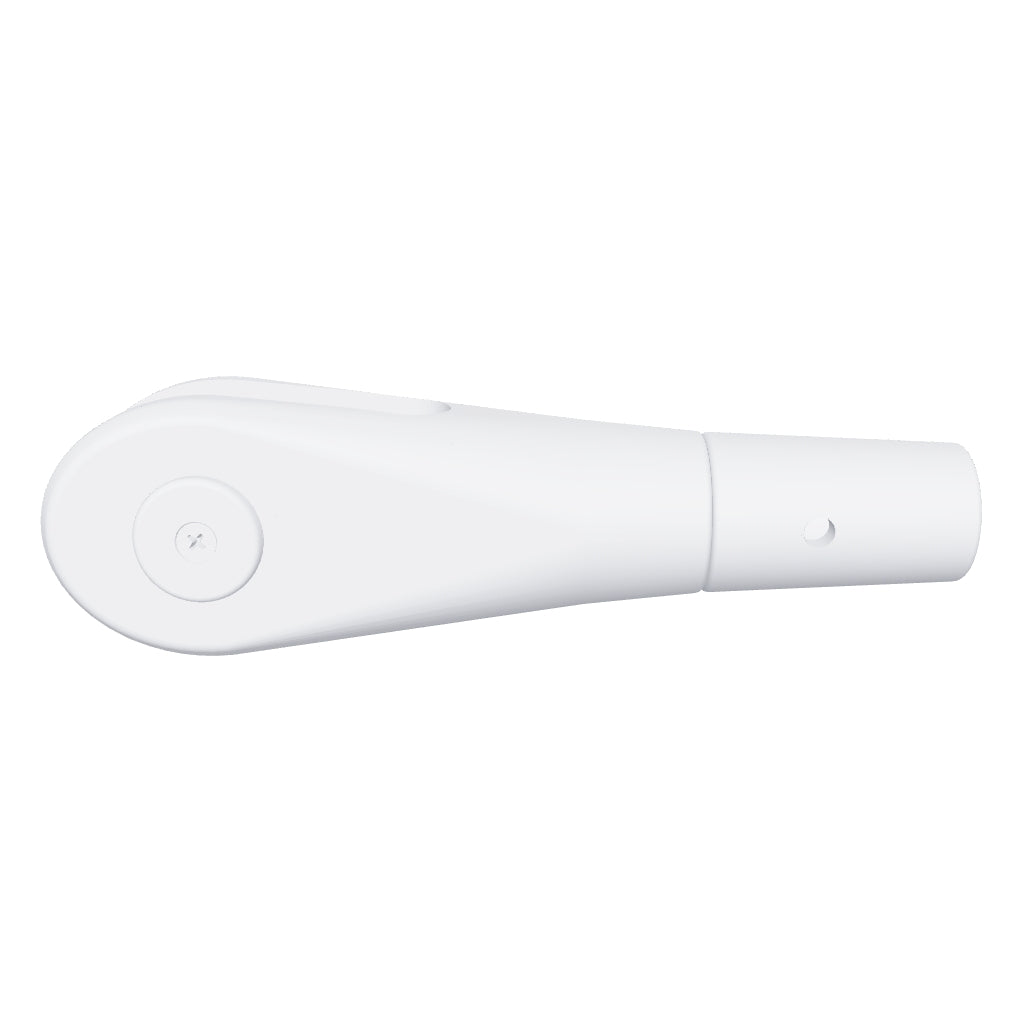

Model

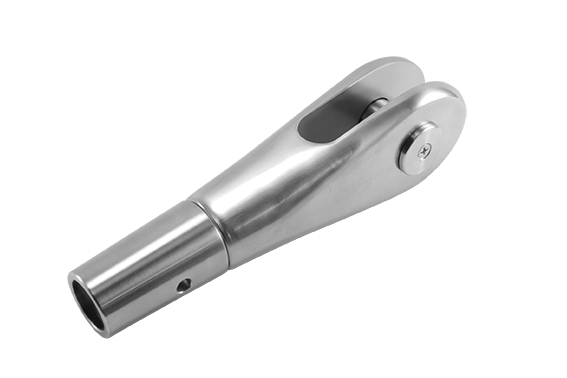

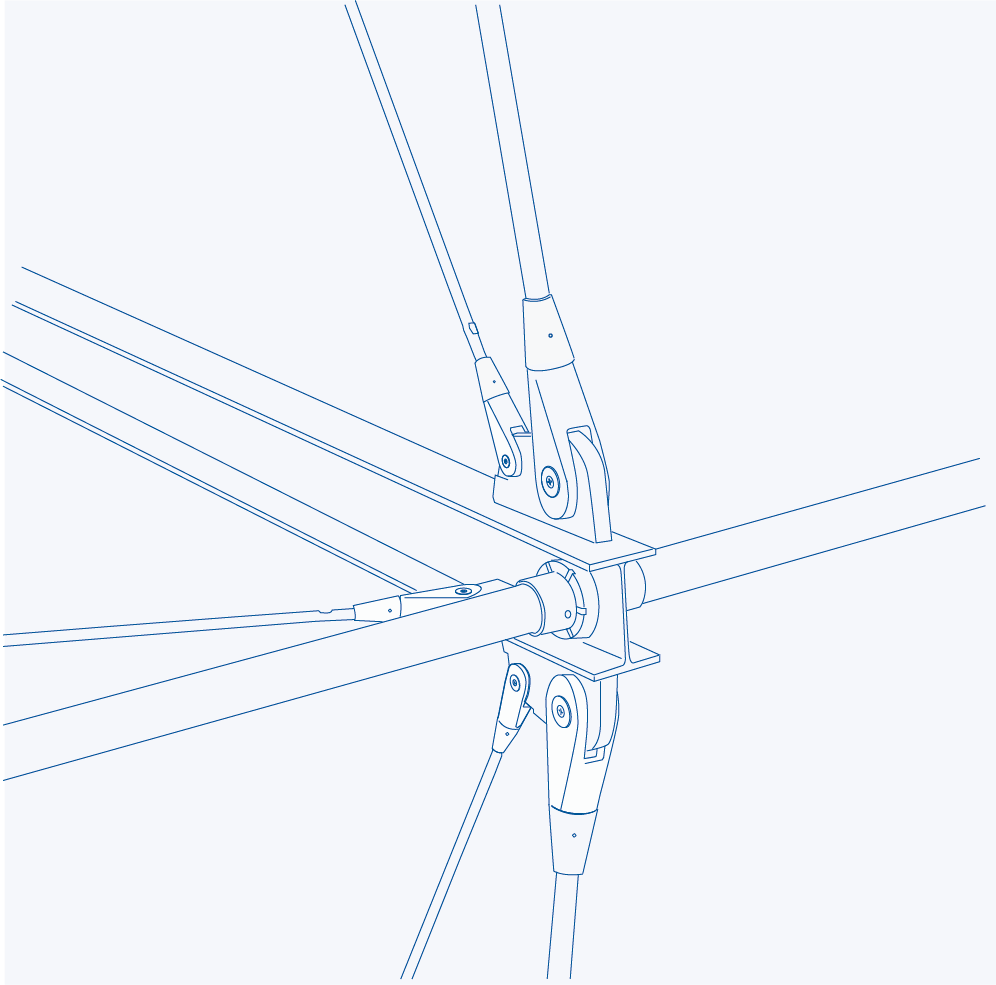

FS3A(R)
SRS Fork
316 ss
| SS316 | SIZE M (mm) | A (mm) | B (mm) | ØD (mm) | E (mm) | H (mm) | Unit weight (kgs) | Yield Load (kN) | Tensile Load (kN) |
|---|---|---|---|---|---|---|---|---|---|
| FS3A0006NB | M6 | 9.0 | 12.0 | 6.5 | 15 | 7 | 0.03 | 6.2 | 12.5 |
| FS3A0008NB | M8 | 12.0 | 16.0 | 8.0 | 20 | 9 | 0.06 | 11.3 | 22.7 |
| FS3A0010NB | M10 | 15.0 | 20.0 | 10.0 | 25 | 11 | 0.13 | 18.0 | 36.0 |
| FS3A0012NB | M12 | 18.0 | 30.5 | 12.5 | 30 | 13 | 0.24 | 26.1 | 52.3 |
| FS3A0014NB | M14 | 22.0 | 28.0 | 14.0 | 35 | 14 | 0.38 | 35.7 | 71.3 |
| FS3A0016NB | M16 | 28.0 | 32.0 | 16.0 | 45 | 16 | 0.64 | 44.0 | 87.0 |
| FS3A0020NB | M20 | 34.0 | 40.0 | 20.0 | 55 | 20 | 1.25 | 68.0 | 137.0 |
| FS3A0022NB | M22 | 36.0 | 45.0 | 22.0 | 60 | 22 | 1.67 | 84.0 | 169.0 |
| FS3A0024NB | M24 | 42.0 | 50.0 | 25.0 | 68 | 24 | 2.14 | 98.0 | 197.0 |
| FS3A0030NB | M30 | 46.0 | 60.0 | 30.0 | 75 | 26 | 2.15 | 157.0 | 314.0 |
| FS3A0033NB | M33 | 52.0 | 65.0 | 33.0 | 84 | 30 | 4.16 | 194.0 | 388.0 |
| FS3A0036NB | M36 | 55.0 | 70.0 | 36.0 | 90 | 34 | 5.26 | 228.0 | 457.0 |
| FS3A0039NB | M39 | 60.0 | 75.0 | 39.0 | 98 | 36 | 6.74 | 273.0 | 546.0 |
| FS3A0042NB | M42 | 65.0 | 80.0 | 42.0 | 105 | 40 | 8.14 | 313.0 | 627.0 |
| FS3A0045NB | M45 | 70.0 | 85.0 | 45.0 | 112 | 42 | 9.96 | 365.0 | 731.0 |
| FS3A0048NB | M48 | 75.0 | 90.0 | 48.0 | 120 | 45 | 12.38 | 412.0 | 824.0 |
| FS3A0052NB | M52 | 80.0 | 95.0 | 52.0 | 132 | 50 | 15.54 | 492.0 | 984.0 |
| FS3A0056NB | M56 | 85.0 | 105.0 | 56.0 | 142 | 50 | 18.51 | 568.0 | 1,136.0 |
| FS3A0060NB | M60 | 90.0 | 110.0 | 60.0 | 152 | 55 | 23.25 | 661.0 | 1,322.0 |
| FS3A0064NB | M64 | 95.0 | 118.0 | 64.0 | 160 | 56 | 26.92 | 749.0 | 1,498.0 |
| FS3A0072NB | M72 | 108.0 | 130.0 | 72.0 | 184 | 66 | 37.82 | 969.0 | 1,939.0 |
| FS3A0076NB | M76 | 115.0 | 140.0 | 76.0 | 195 | 72 | 41.23 | 1,088.0 | 2,177.0 |
| FS3A0085NB | M85 | 132.0 | 155.0 | 85.0 | 218 | 76 | 57.87 | 1,385.0 | 2,770.0 |
| FS3A0090NB | M90 | 140.0 | 165.0 | 90.0 | 228 | 82 | 71.25 | 1,565.0 | 3,130.0 |
| FS3A0100NB | M100 | 150.0 | 180.0 | 100.0 | 252 | 88 | 96.78 | 1,960.0 | 3,920.0 |
| SS316 | SIZE M (mm) | A (inch) | B (inch) | ØD (inch) | E (inch) | H (inch) | Unit weight (lb) | Tensile Load (kN) | Tensile Load (kN) |
|---|---|---|---|---|---|---|---|---|---|
| FS3A0006NB | M6 | 0.35 | 0.47 | 0.26 | 0.59 | 0.28 | 0.06 | 6.2 | 12.5 |
| FS3A0008NB | M8 | 0.47 | 0.63 | 0.31 | 0.79 | 0.35 | 0.13 | 11.3 | 22.7 |
| FS3A0010NB | M10 | 0.59 | 0.79 | 0.39 | 0.98 | 0.43 | 0.29 | 18.0 | 36.0 |
| FS3A0012NB | M12 | 0.71 | 1.20 | 0.49 | 1.18 | 0.51 | 0.53 | 26.1 | 52.3 |
| FS3A0014NB | M14 | 0.87 | 1.10 | 0.55 | 1.38 | 0.55 | 0.84 | 35.7 | 71.3 |
| FS3A0016NB | M16 | 1.10 | 1.26 | 0.63 | 1.77 | 0.63 | 1.41 | 44.0 | 87.0 |
| FS3A0020NB | M20 | 1.34 | 1.57 | 0.79 | 2.17 | 0.79 | 2.75 | 68.0 | 137.0 |
| FS3A0022NB | M22 | 1.42 | 1.77 | 0.87 | 2.36 | 0.87 | 3.67 | 84.0 | 169.0 |
| FS3A0024NB | M24 | 1.65 | 1.97 | 0.98 | 2.68 | 0.94 | 4.71 | 98.0 | 197.0 |
| FS3A0030NB | M30 | 1.81 | 2.36 | 1.18 | 2.95 | 1.02 | 4.73 | 157.0 | 314.0 |
| FS3A0033NB | M33 | 2.05 | 2.56 | 1.30 | 3.31 | 1.18 | 9.15 | 194.0 | 388.0 |
| FS3A0036NB | M36 | 2.17 | 2.76 | 1.42 | 3.54 | 1.34 | 11.57 | 228.0 | 457.0 |
| FS3A0039NB | M39 | 2.36 | 2.95 | 1.54 | 3.86 | 1.42 | 14.83 | 273.0 | 546.0 |
| FS3A0042NB | M42 | 2.56 | 3.15 | 1.65 | 4.13 | 1.57 | 17.91 | 313.0 | 627.0 |
| FS3A0045NB | M45 | 2.76 | 3.35 | 1.77 | 4.41 | 1.65 | 21.91 | 365.0 | 731.0 |
| FS3A0048NB | M48 | 2.95 | 3.54 | 1.89 | 4.72 | 1.77 | 27.24 | 412.0 | 824.0 |
| FS3A0052NB | M52 | 3.15 | 3.74 | 2.05 | 5.20 | 1.97 | 34.19 | 492.0 | 984.0 |
| FS3A0056NB | M56 | 3.35 | 4.13 | 2.20 | 5.59 | 1.97 | 40.72 | 568.0 | 1,136.0 |
| FS3A0060NB | M60 | 3.54 | 4.33 | 2.36 | 5.98 | 2.17 | 51.15 | 661.0 | 1,322.0 |
| FS3A0064NB | M64 | 3.74 | 4.65 | 2.52 | 6.30 | 2.20 | 59.22 | 749.0 | 1,498.0 |
| FS3A0072NB | M72 | 4.25 | 5.12 | 2.83 | 7.24 | 2.60 | 83.20 | 969.0 | 1,939.0 |
| FS3A0076NB | M76 | 4.53 | 5.51 | 2.99 | 7.68 | 2.83 | 90.71 | 1,088.0 | 2,177.0 |
| FS3A0085NB | M85 | 5.20 | 6.10 | 3.35 | 8.58 | 2.99 | 127.31 | 1,385.0 | 2,770.0 |
| FS3A0090NB | M90 | 5.51 | 6.50 | 3.54 | 8.98 | 3.23 | 156.75 | 1,565.0 | 3,130.0 |
| FS3A0100NB | M100 | 5.91 | 7.09 | 3.94 | 9.92 | 3.46 | 212.92 | 1,960.0 | 3,920.0 |
