Description
Technical Data:
Casting Material: AISI316 - DIN 1.4408
Surface Treatment: Electro Polished
Model
HSC12311
Wood post protector
316 ss
![Kinzi 316 Kinzi 316](https://cdn.shopify.com/s/files/1/0084/2475/1151/files/316-ss.png)

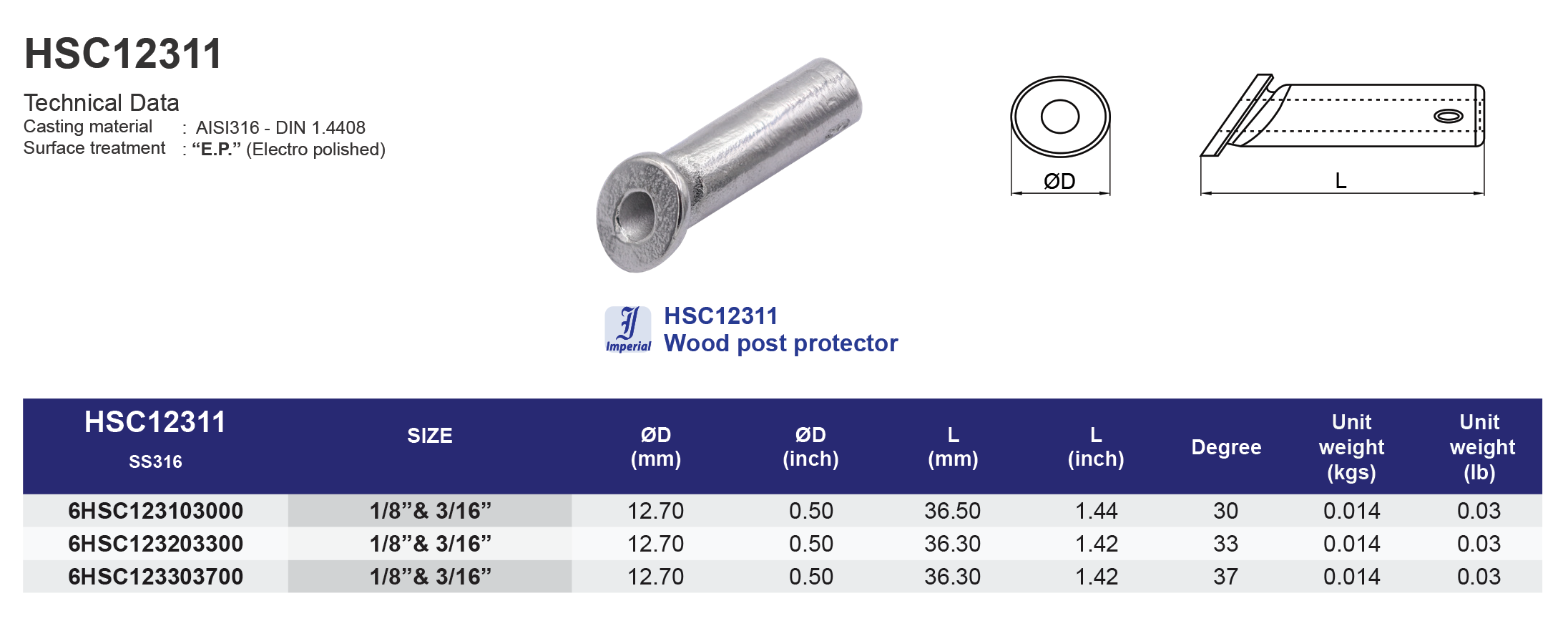

![HSC12311 drawing HSC12311drawing](https://cdn.shopify.com/s/files/1/0084/2475/1151/files/HSC12311_DiagramV1.png)

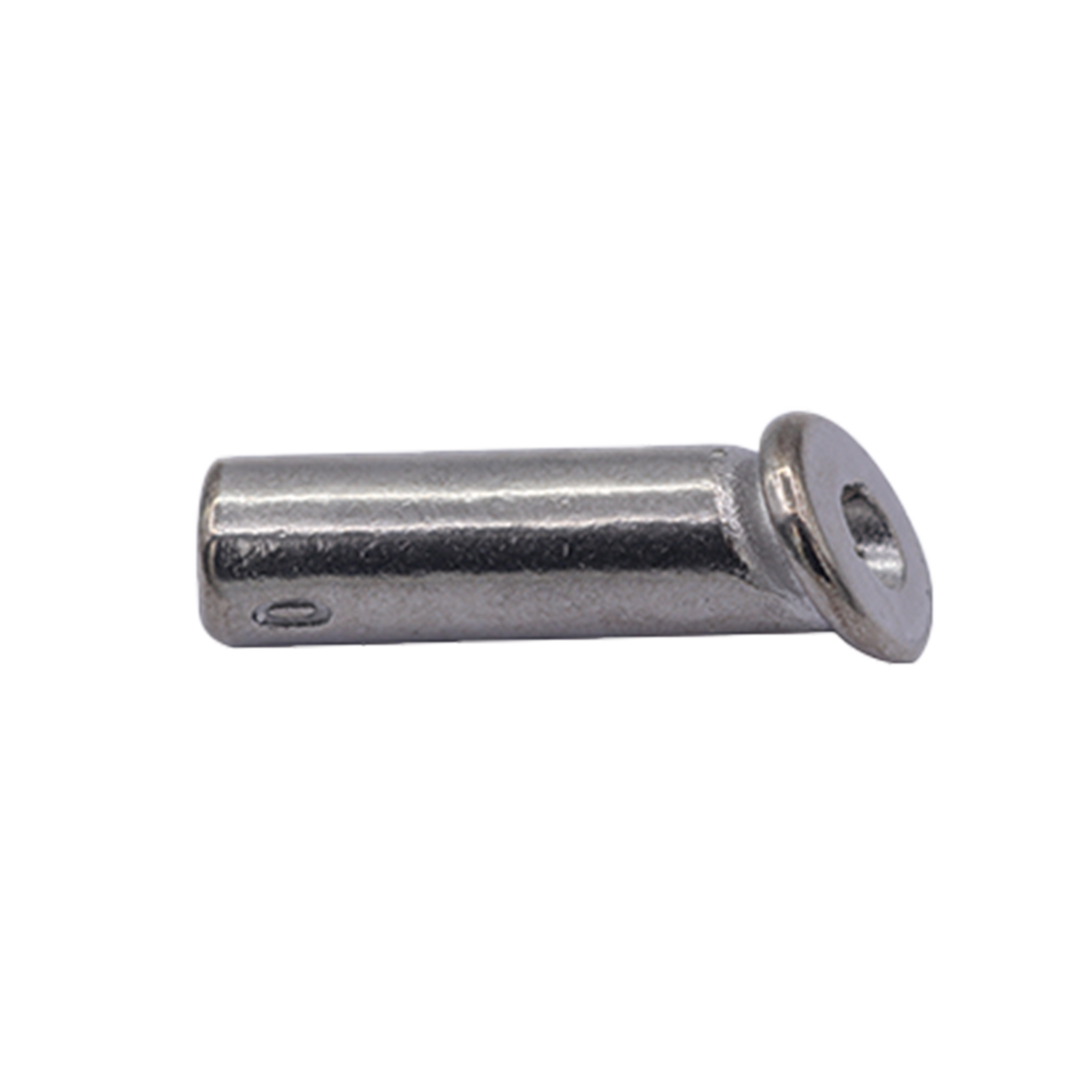

![HSC12311image HSC12311 image](https://cdn.shopify.com/s/files/1/0084/2475/1151/files/HSC12311_ImageV1.png)
SS316 | Size | ØD (mm) | L (mm) | Degree | Weight (kgs) |
---|---|---|---|---|---|
6HSC123103000 | 1/8"& 3/16" | 12.45 | 20.32 | 90 | 0.014 |
6HSC123203300 | 1/8"& 3/16" | 12.70 | 36.07 | 30 | 0.013 |
6HSC123303700 | 1/8"& 3/16" | 12.70 | 36.07 | 33 | 0.014 |
67500HSC52000 | 1/8"& 3/16" | 12.70 | 36.07 | 37 | 0.014 |
SS316 | Size | ØD (inch) | L (inch) | Degree | Weight (lb) |
---|---|---|---|---|---|
6HSC123103000 | 1/8"& 3/16" | 0.49 | 0.80 | 90 | 0.02 |
6HSC123203300 | 1/8"& 3/16" | 0.50 | 1.42 | 30 | 0.03 |
6HSC123303700 | 1/8"& 3/16" | 0.50 | 1.42 | 33 | 0.03 |
67500HSC52000 | 1/8"& 3/16" | 0.50 | 1.42 | 37 | 0.03 |
