Description
Technical Data:
Casting Material:
AISI304 - DIN 1.4308
AISI316 - DIN 1.4408
Forging Material:
AISI 304 - DIN 1.4301
AISI 316 - DIN 1.4401
Production:
Frame Cast
Eye Forged
Surface Treatment:
Electro Polished / Passivated

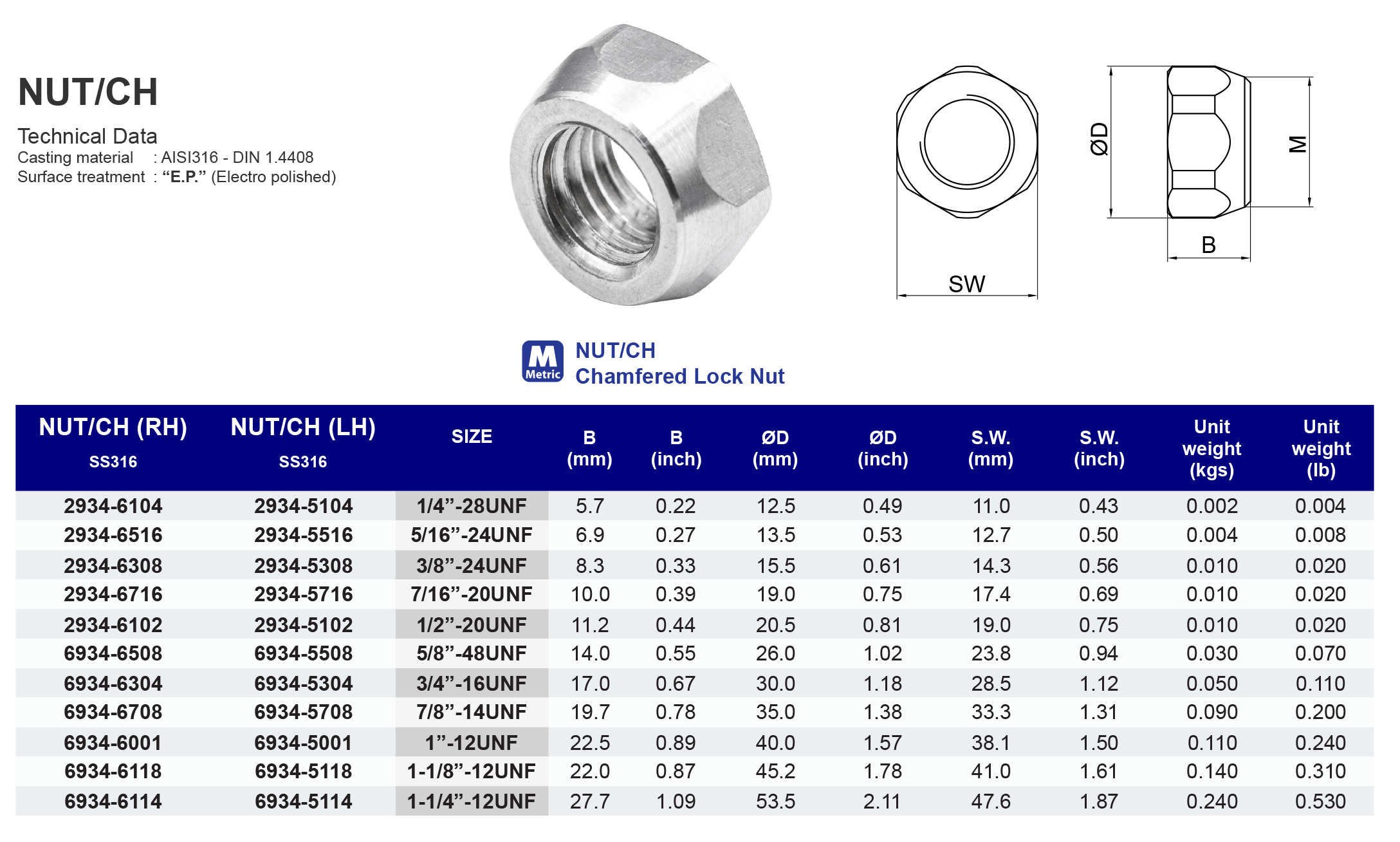

Model

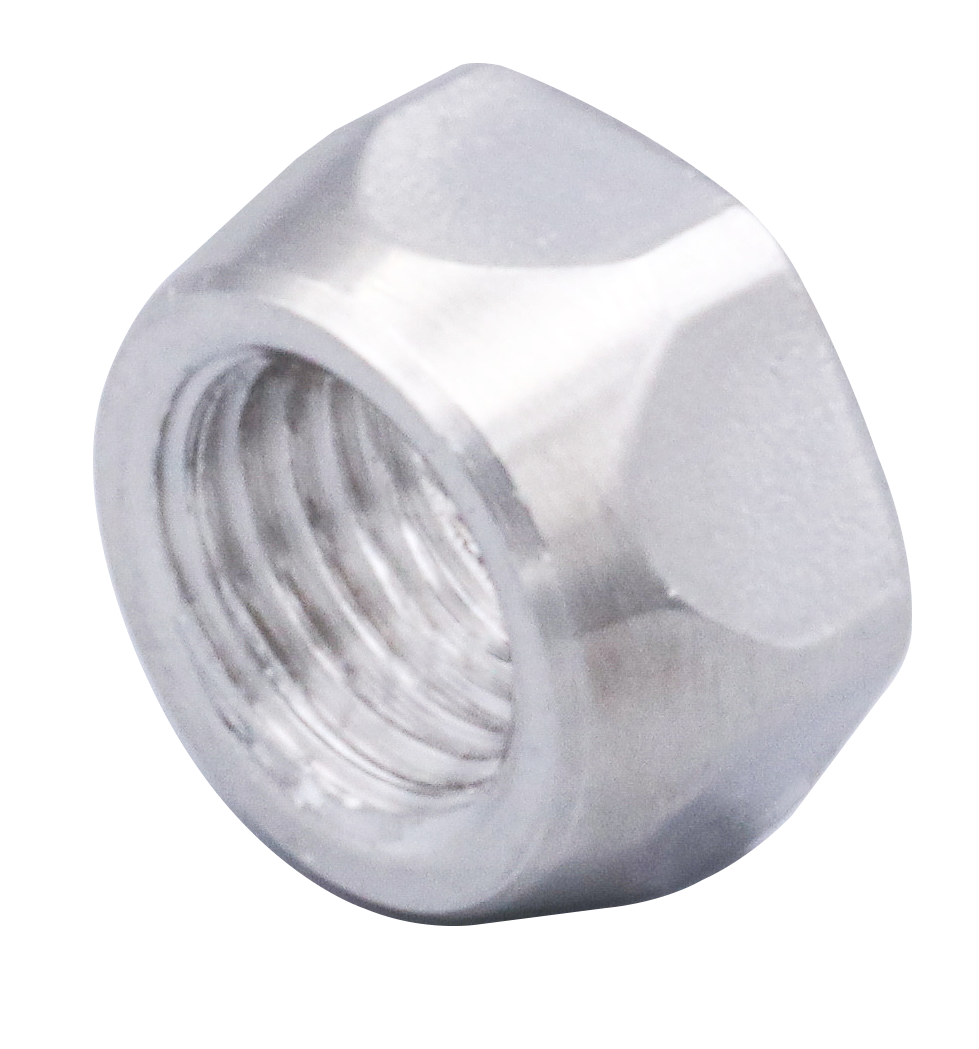

NUT-CH
Chamfered Lock Nut
316 ss
| SS316 (RH) | SS316 (LH) | Size | B(mm) | D(mm) | S.W.(mm) | Unit weight (kgs) |
|---|---|---|---|---|---|---|
| 29346104 | 29345104 | 1/4"-28UNF | 5.7 | 12.5 | 11.0 | 0.002 |
| 29346516 | 29345516 | 5/16"-24UNF | 6.7 | 13.5 | 12.7 | 0.004 |
| 29346308 | 29345308 | 3/8"-24UNF | 8.3 | 15.5 | 14.3 | 0.010 |
| 29346716 | 29345716 | 7/16"-20UNF | 10.0 | 19.0 | 17.4 | 0.010 |
| 29346102 | 29345102 | 1/2"-20UNF | 11.2 | 20.5 | 19.0 | 0.010 |
| 69346508 | 69345508 | 5/8"-48UNF | 14.0 | 26.0 | 23.8 | 0.030 |
| 69346304 | 69345304 | 3/4"-16UNF | 17.0 | 30.0 | 28.5 | 0.050 |
| 69346708 | 69345708 | 7/8"-14UNF | 19.7 | 35.0 | 33.3 | 0.090 |
| 69346001 | 69345001 | 1"-12UNF | 22.5 | 40.0 | 38.1 | 0.110 |
| 69346118 | 69345118 | 1-1/8"-12UNF | 22.0 | 45.2 | 41.0 | 0.140 |
| 69346114 | 69345114 | 1-1/4"-12UNF | 27.7 | 53.5 | 47.6 | 0.240 |
| SS316 (RH) | SS316 (LH) | Size | B(inch) | D(inch) | S.W.(inch) | Unit weight (Ib) |
|---|---|---|---|---|---|---|
| 29346104 | 29345104 | 1/4"-28UNF | 0.22 | 0.49 | 0.43 | 0.004 |
| 29346516 | 29345516 | 5/16"-24UNF | 0.26 | 0.53 | 0.50 | 0.008 |
| 29346308 | 29345308 | 3/8"-24UNF | 0.33 | 0.61 | 0.56 | 0.020 |
| 29346716 | 29345716 | 7/16"-20UNF | 0.39 | 0.75 | 0.69 | 0.020 |
| 29346102 | 29345102 | 1/2"-20UNF | 0.44 | 0.81 | 0.75 | 0.020 |
| 69346508 | 69345508 | 5/8"-48UNF | 0.55 | 1.02 | 0.94 | 0.070 |
| 69346304 | 69345304 | 3/4"-16UNF | 0.67 | 1.18 | 1.12 | 0.110 |
| 69346708 | 69345708 | 7/8"-14UNF | 0.78 | 1.38 | 1.31 | 0.200 |
| 69346001 | 69345001 | 1"-12UNF | 0.89 | 1.57 | 1.50 | 0.240 |
| 69346118 | 69345118 | 1-1/8"-12UNF | 0.87 | 1.78 | 1.61 | 0.310 |
| 69346114 | 69345114 | 1-1/4"-12UNF | 1.09 | 2.11 | 1.87 | 0.530 |
