Description
Technical Data:
Casting Material: AISI304 - DIN 1.4308
Production: S018 - Swivel - Cast
Surface Treatment: “E.P” (Electro polished)
Note : Standard safety factor for working load is 1/4 of breaking load
DATA SHEET DOWNLOAD

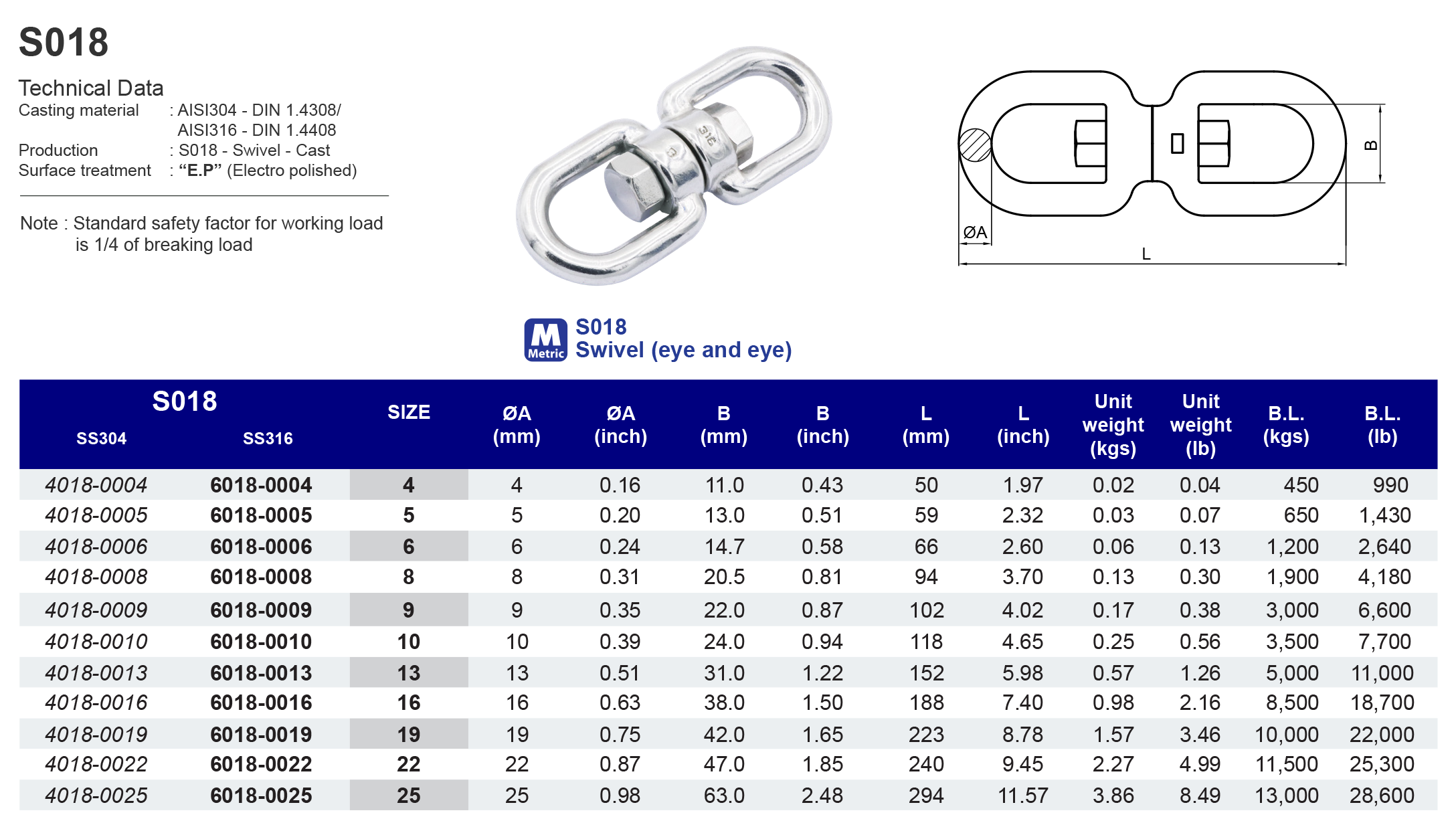

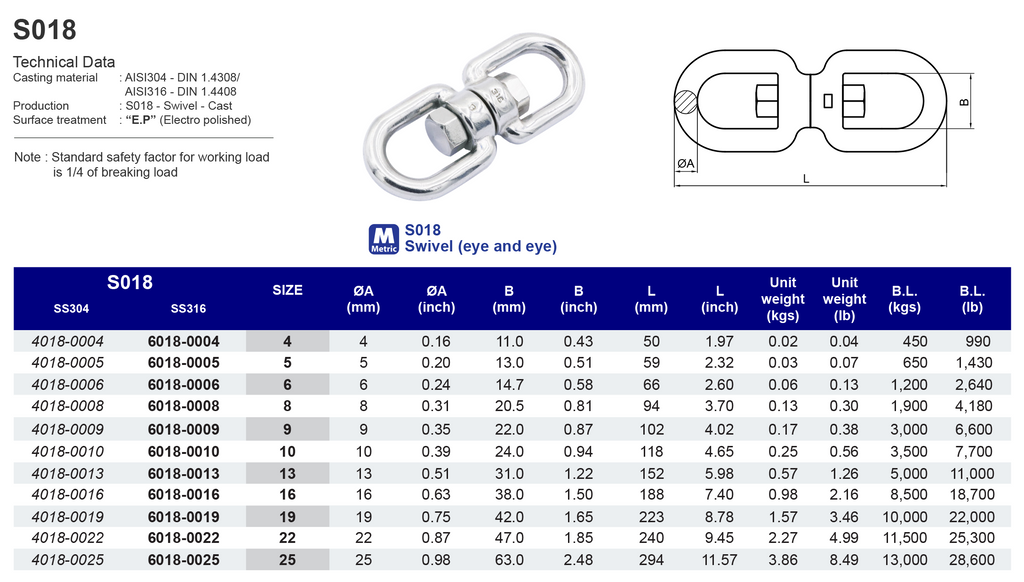

Model
S018
Swivel (eye and eye)
304 ss
| SS304 | Size | ØA (mm) | B (mm) | L (mm) | Unit weight (kgs) | B.L. (kgs) |
|---|---|---|---|---|---|---|
| 40180004 | 4 | 4 | 11 | 50 | 0.02 | 450 |
| 40180005 | 5 | 5 | 13 | 59 | 0.03 | 650 |
| 40180006 | 6 | 6 | 14.7 | 66 | 0.06 | 1,200 |
| 40180008 | 8 | 8 | 20.5 | 94 | 0.13 | 1,900 |
| 40180009 | 9 | 9 | 22 | 102 | 0.17 | 3,000 |
| 40180010 | 10 | 10 | 24 | 118 | 0.25 | 3,500 |
| 40180013 | 13 | 13 | 31 | 152 | 0.57 | 5,000 |
| 40180016 | 16 | 16 | 38 | 188 | 0.98 | 8,500 |
| 40180019 | 19 | 19 | 42 | 223 | 1.57 | 10,000 |
| 40180022 | 22 | 22 | 47 | 240 | 2.27 | 11,500 |
| 40180025 | 25 | 25 | 63 | 294 | 3.86 | 13,000 |
| SS304 | Size | ØA (inch) | B (inch) | L (inch) | Unit weight (lb) | B.L. (lb) |
|---|---|---|---|---|---|---|
| 40180004 | 5/32" | 0.16 | 0.43 | 1.97 | 0.04 | 990 |
| 40180005 | 3/16" | 0.20 | 0.51 | 2.32 | 0.07 | 1,430 |
| 40180006 | 1/4" | 0.24 | 0.58 | 2.60 | 0.13 | 2,640 |
| 40180008 | 5/16" | 0.31 | 0.81 | 3.70 | 0.30 | 4,180 |
| 40180009 | 11/32" | 0.35 | 0.87 | 4.02 | 0.38 | 6,600 |
| 40180010 | 3/8" | 0.39 | 0.94 | 4.65 | 0.56 | 7,700 |
| 40180013 | 1/2" | 0.51 | 1.22 | 5.98 | 1.26 | 11,000 |
| 40180016 | 5/8" | 0.63 | 1.50 | 7.40 | 2.16 | 18,700 |
| 40180019 | 3/4" | 0.75 | 1.65 | 8.78 | 3.46 | 22,000 |
| 40180022 | 7/8" | 0.87 | 1.85 | 9.45 | 4.99 | 25,300 |
| 40180025 | 1" | 0.98 | 2.48 | 11.57 | 8.49 | 28,600 |
