Description
Technical Data
Casting Material : AISI304 - DIN 1.4308
Forging Material : AISI304 - DIN 1.4301
Production : S0182 - 0840N - Swivel - Cast Pin - Forged
Surface Treatment : “E.P” (Electro polished)
DATA SHEET DOWNLOAD

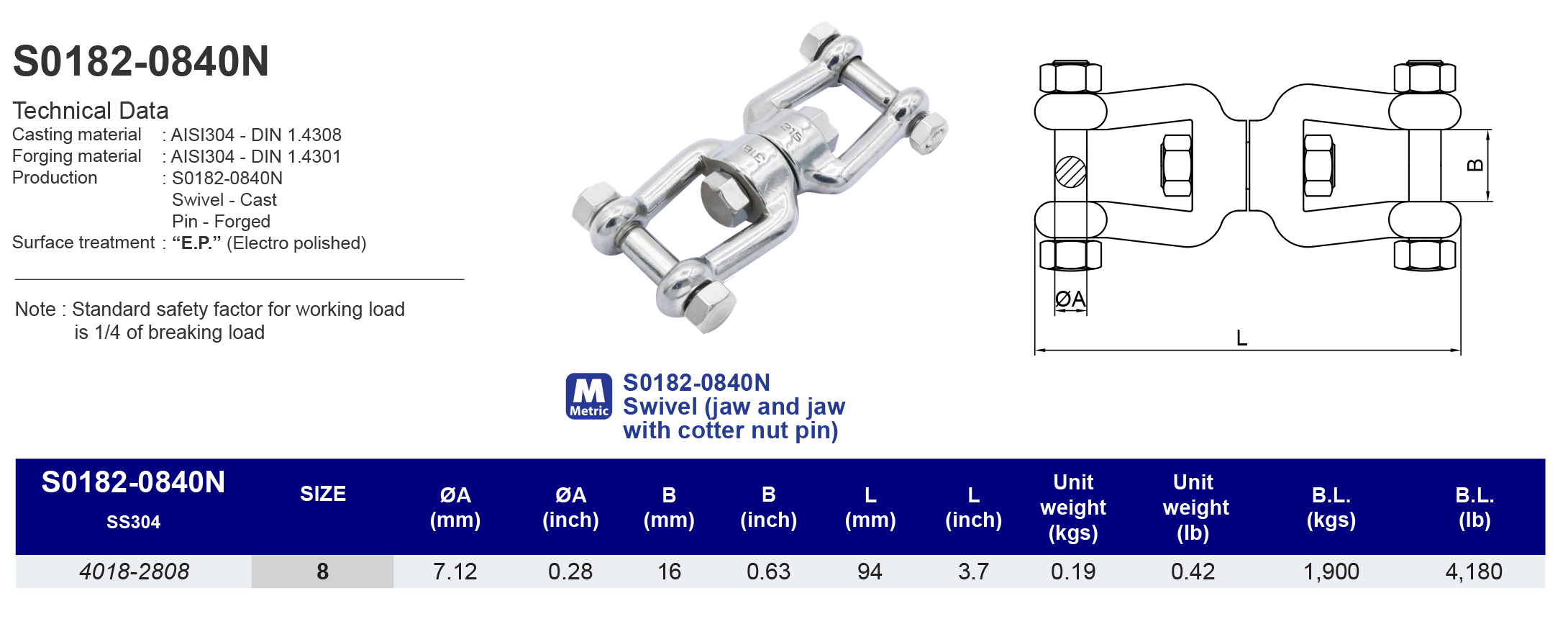

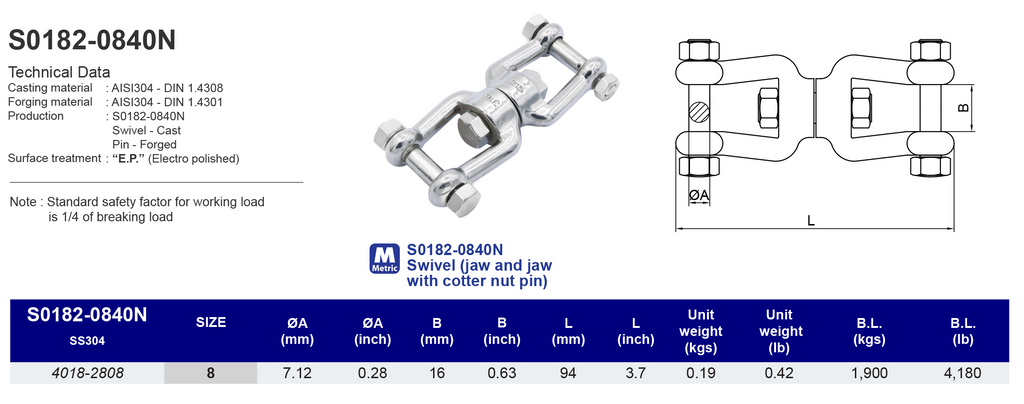

Model
S0182-0840N

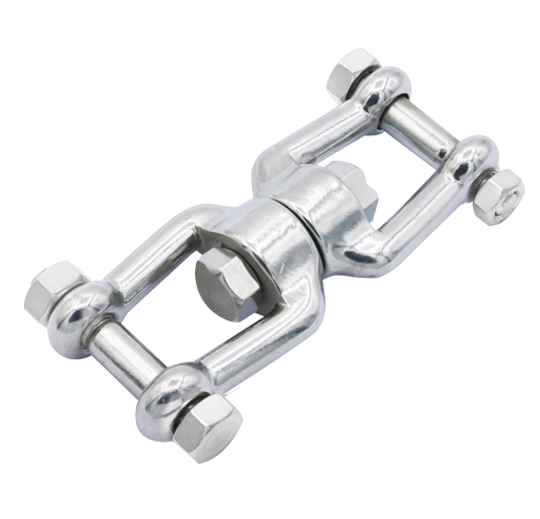

Swivel (jaw and jaw with cotter nut pin)
304 ss
| SS304 | Size | ØA (mm) | B (mm) | L (mm) | Unit weight (kgs) | B.L.(kgs) |
|---|---|---|---|---|---|---|
| 40182808 | 8 | 7.12 | 16 | 94 | 0.19 | 1,900 |
| SS304 | Size | ØA (inch) | B (inch) | L (inch) | Unit weight (lb) | B.L. (lb) |
|---|---|---|---|---|---|---|
| 40182808 | 5/16" | 0.28 | 0.63 | 3.7 | 0.42 | 4,180 |
