Description
Technical Data:
Casting Material:
AISI304 - DIN 1.4308/
AISI316 - DIN 1.4408
Production:
S10 - Link - Cast
Surface Treatment:
“E.P.” (Electro polished) Note : Standard safety factor for working load
is 1/4 of breaking load.

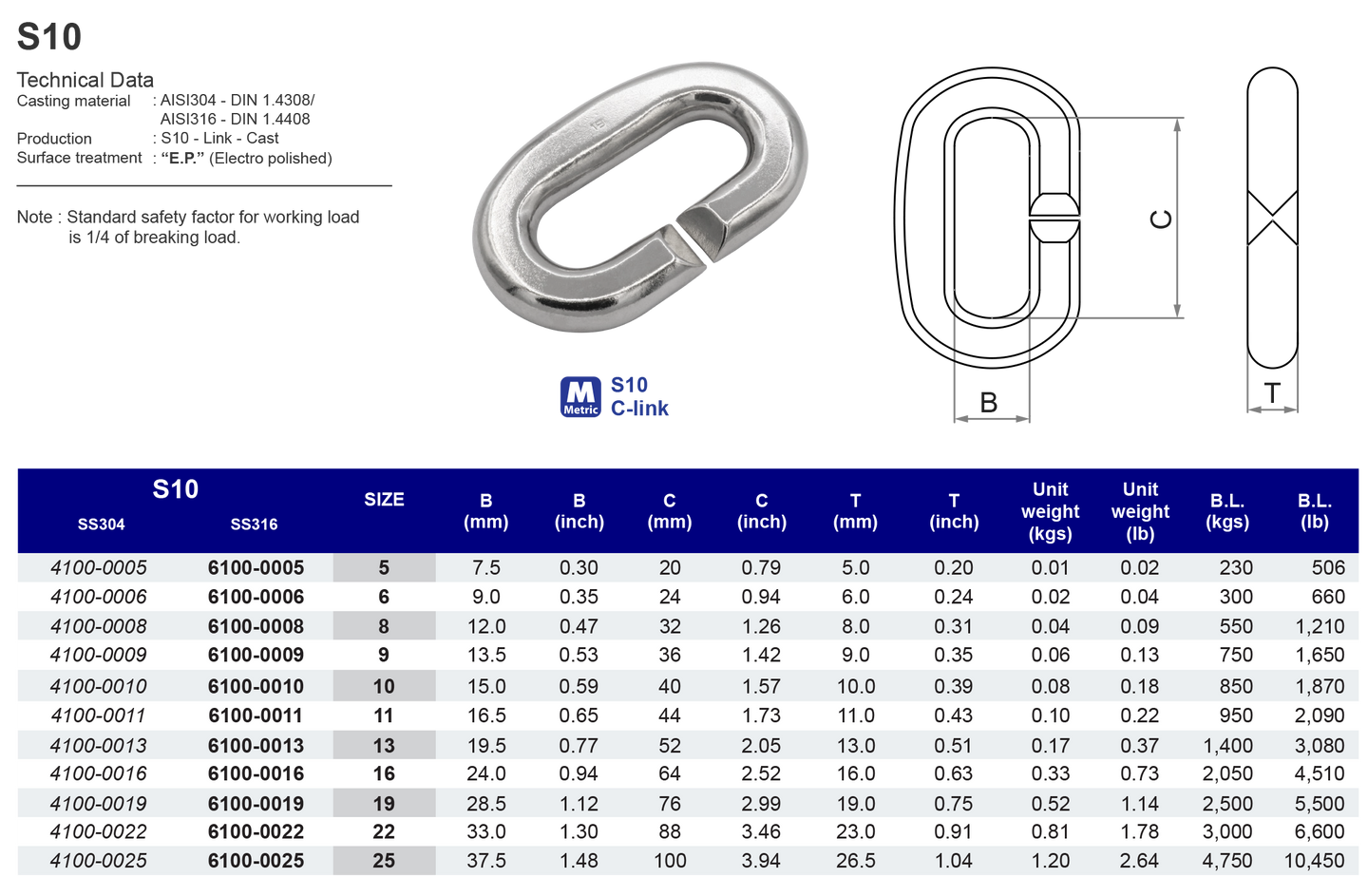

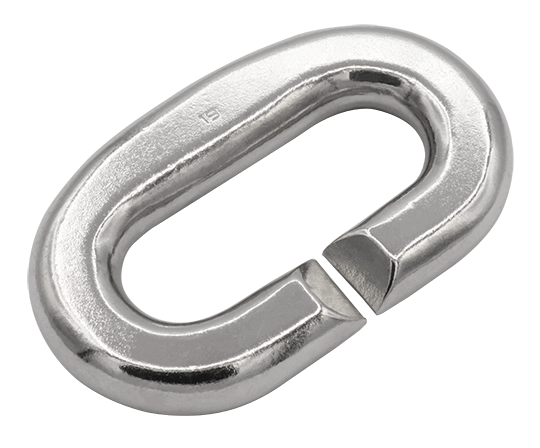

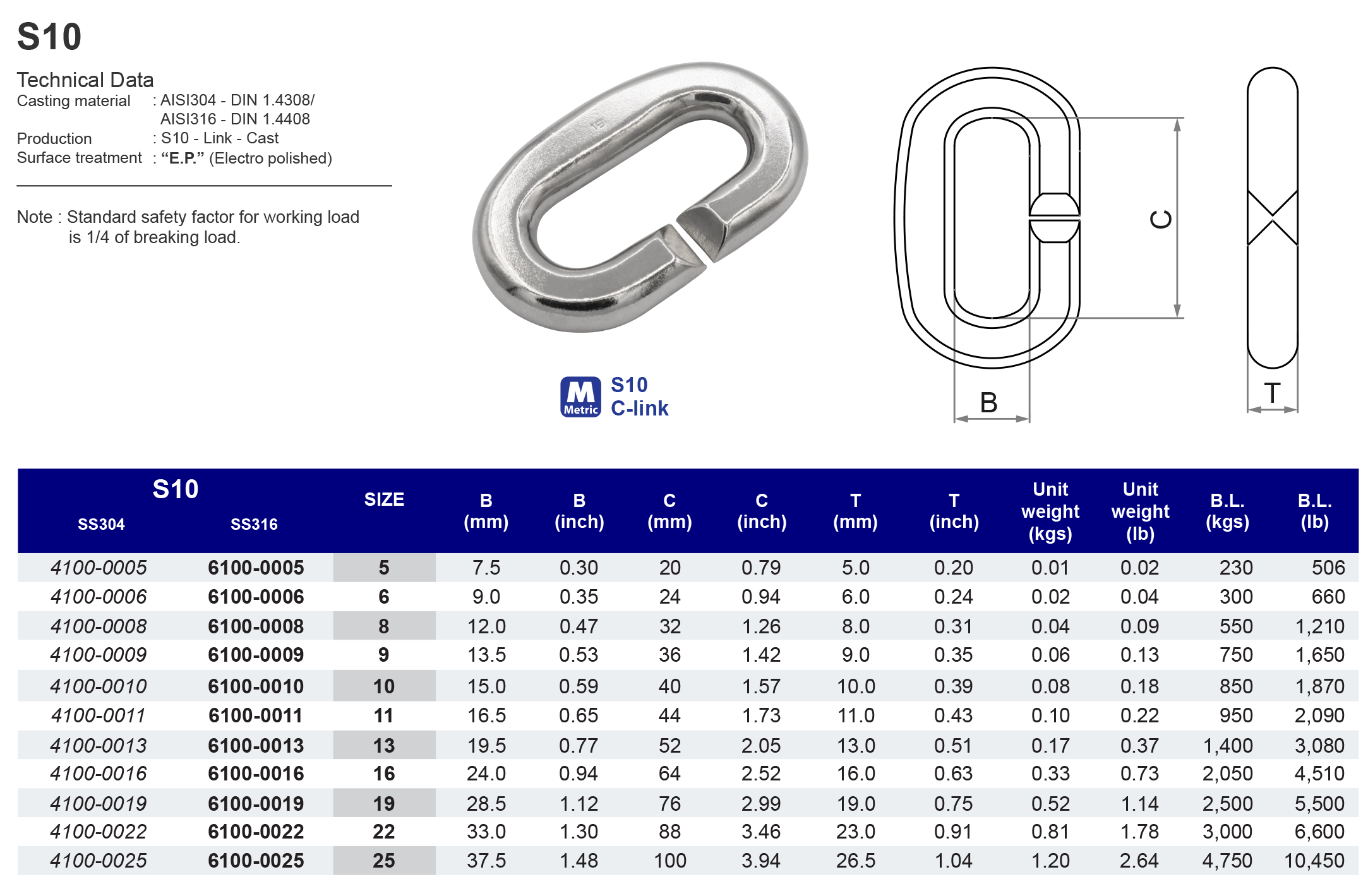

Model
S10
C - link
316 ss
| SS316 | SIZE | B (mm) | C (mm) | T (mm) | Unit weight (kgs) | B.L. (kgs) |
|---|---|---|---|---|---|---|
| 61000005 | 5 | 7.5 | 20 | 5 | 0.01 | 230 |
| 61000006 | 6 | 9 | 24 | 6 | 0.02 | 300 |
| 61000008 | 8 | 12 | 32 | 8 | 0.04 | 550 |
| 61000009 | 9 | 13.5 | 36 | 9 | 0.06 | 750 |
| 61000010 | 10 | 15 | 40 | 10 | 0.08 | 850 |
| 61000011 | 11 | 16.5 | 44 | 11 | 0.10 | 950 |
| 61000013 | 13 | 19.5 | 52 | 13 | 0.17 | 1,400 |
| 61000016 | 16 | 24 | 64 | 16 | 0.33 | 2,050 |
| 61000019 | 19 | 28.5 | 76 | 19 | 0.52 | 2,500 |
| 61000022 | 22 | 33 | 88 | 23 | 0.81 | 3,000 |
| 61000025 | 25 | 37.5 | 100 | 26.5 | 1.20 | 4,750 |
| SS316 | SIZE | B (inch) | C (inch) | T (inch) | Unit weight (lb) | B.L. (lb) |
|---|---|---|---|---|---|---|
| 61000005 | 3/16" | 0.30 | 0.79 | 0.20 | 0.02 | 506 |
| 61000006 | 1/4" | 0.35 | 0.94 | 0.24 | 0.04 | 660 |
| 61000008 | 5/16" | 0.47 | 1.26 | 0.31 | 0.09 | 1,210 |
| 61000009 | 11/32" | 0.53 | 1.42 | 0.35 | 0.13 | 1,650 |
| 61000010 | 3/8" | 0.59 | 1.57 | 0.39 | 0.18 | 1,870 |
| 61000011 | 7/16" | 0.65 | 1.73 | 0.43 | 0.22 | 2,090 |
| 61000013 | 1/2" | 0.77 | 2.05 | 0.51 | 0.37 | 3,080 |
| 61000016 | 5/8" | 0.94 | 2.52 | 0.63 | 0.73 | 4,510 |
| 61000019 | 3/4" | 1.12 | 2.99 | 0.75 | 1.14 | 5,500 |
| 61000022 | 7/8" | 1.30 | 3.46 | 0.91 | 1.78 | 6,600 |
| 61000025 | 1" | 1.48 | 3.94 | 1.04 | 2.64 | 10,450 |
