Description
Technical Data
Casting Material : AISI316 - DIN 1.4408
Production : Snap - Cast
Surface Treatment : “E.P.” (Electro polished)
Note : Standard safety factor for working load is 1/4 of breaking load
DATA SHEET DOWNLOAD
Model
S161, S162, S163

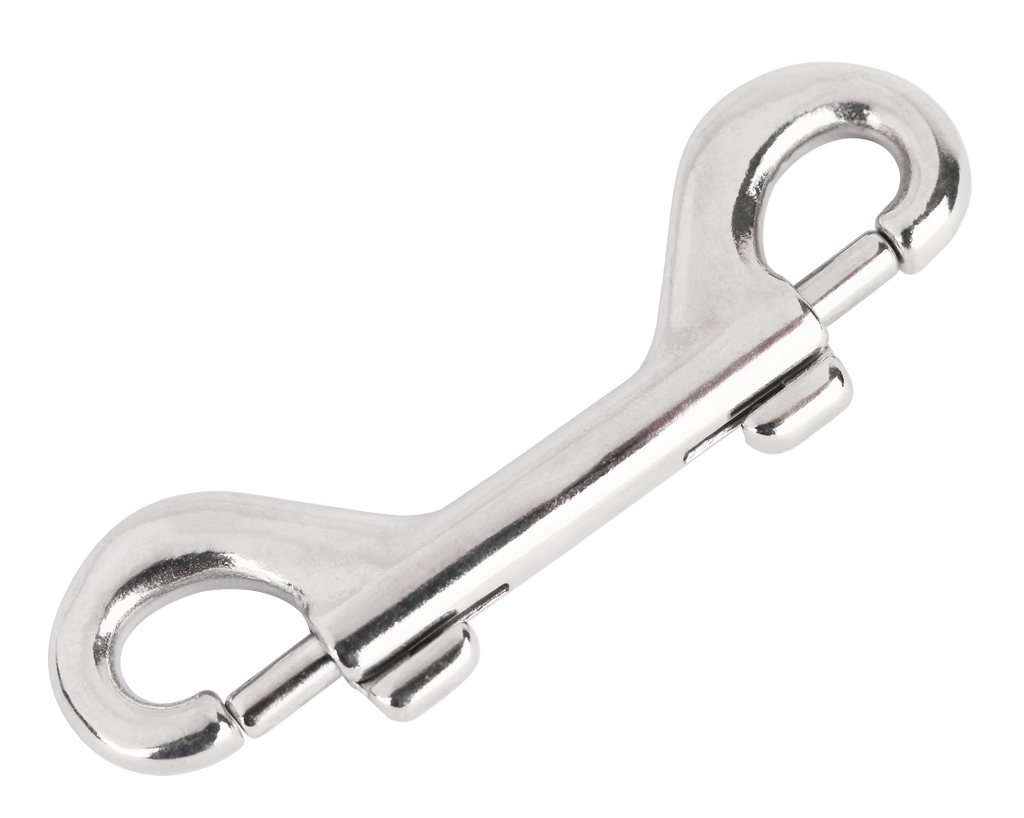

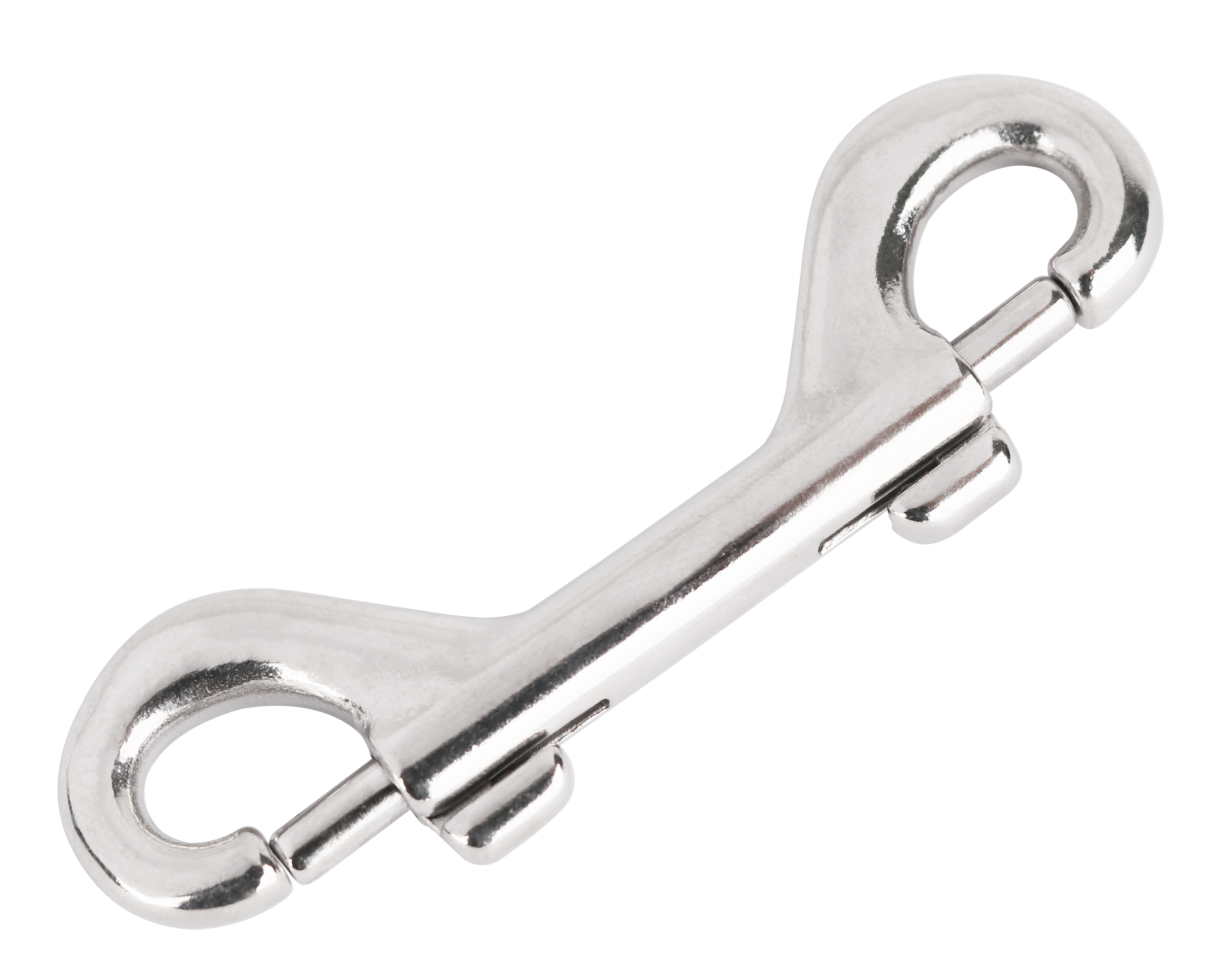

Bolt snap (double snap end)
316 ss
| SS316 | Size | L (mm) | O (mm) | Unit weight (kgs) | B.L. (kgs) |
|---|---|---|---|---|---|
| 61610312 | 3.1/2" | 90 | 6.5 | 0.04 | 180 |
| 61620004 | 4" | 100 | 10 | 0.07 | 350 |
| 61630434 | 4.3/4" | 120 | 11.5 | 0.08 | 360 |
| SS316 | Size | L (inch) | O (inch) | Unit weight (lb) | B.L. (lb) |
|---|---|---|---|---|---|
| 61610312 | 3.1/2" | 3.54 | 0.26 | 0.09 | 396 |
| 61620004 | 4" | 3.94 | 0.39 | 0.15 | 770 |
| 61630434 | 4.3/4" | 4.72 | 0.45 | 0.18 | 792 |
