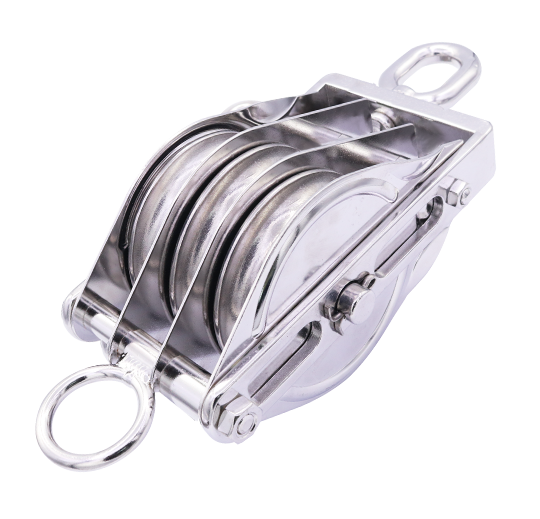

S210-E3 Triple Heavy Block (eye top) - 304
S210-E3 Triple Heavy Block (eye top) - 304
S210-E3 Triple Heavy Block (eye top) - 304
Roll over image to zoom in Click on image to zoom
S210-E3 Triple Heavy Block (eye top) - 304S210-E3 Triple Heavy Block (eye top) - 304S210-E3 Triple Heavy Block (eye top) - 304

S210-E3 Triple Heavy Block (eye top) - 304

SKU: 42101310
Size: 75mm
Price:
$158.76

Looking for B2B pricing? Apply for a B2B account

Stock:
Sold out (Available to manufacture)
Log in to Add to Cart

Description

Technical Data:
Casting Material: AISI304 - DIN 1.4308
Welding Material: AISI304 - DIN 1.4301
Production:
S210 - E3 - Swivel eye - Cast
Sheave - Cast
Block (sheet) - Stamped
Block (frame) - Cast
Eye end (Rod) - Cast
Surface Treatment:"E.P." (Electro polished) Note : Standard safety factor for working load
is 1/4 of breaking load. DATA SHEET DOWNLOAD

Model

S210-E3

Triple Heavy Block (eye top)
304 ss

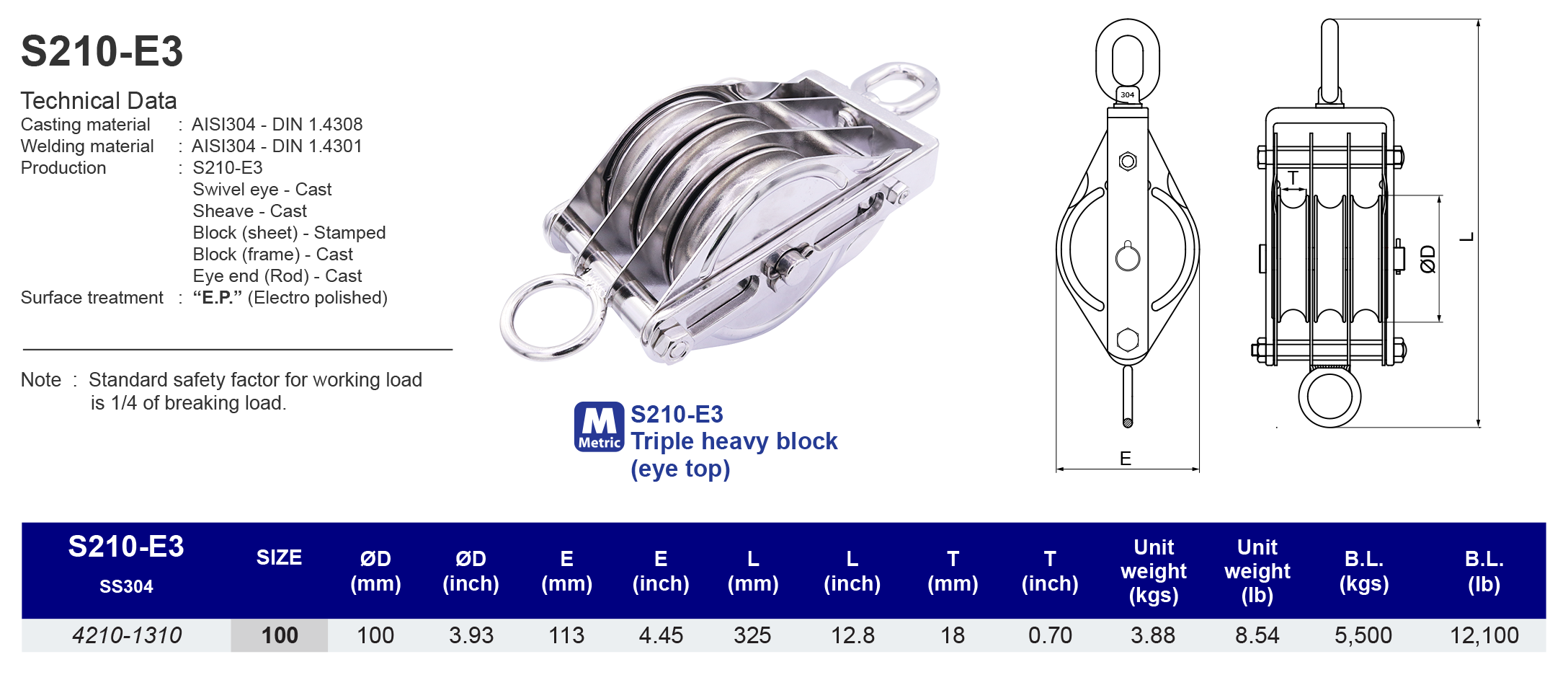

S210-E3 drawing
S210-E3 image
SS304SIZEƘD (mm)E (mm)L (mm)T (mm)Unit weight (kgs)B.L. (kgs)
42101310100100113325183.885,500
SS304SIZEƘD (inch)E (inch)L (inch)T (inch)Unit weight (lb)B.L. (lb)
421013104"3.934.4512.80.708.5412,100
