Description
Technical Data:
Casting material: AISI304 - DIN 1.4308 Stamping material: AISI304 - DIN 1.4301
Production: S212 - E1 - 50 Swivel eye / Hook - Cast
Sheave - Cast
Block - Cast
Surface Treatment: “E.P.” (Electro polished)
Note : Standard safety factor for working load
is 1/4 of breaking load.

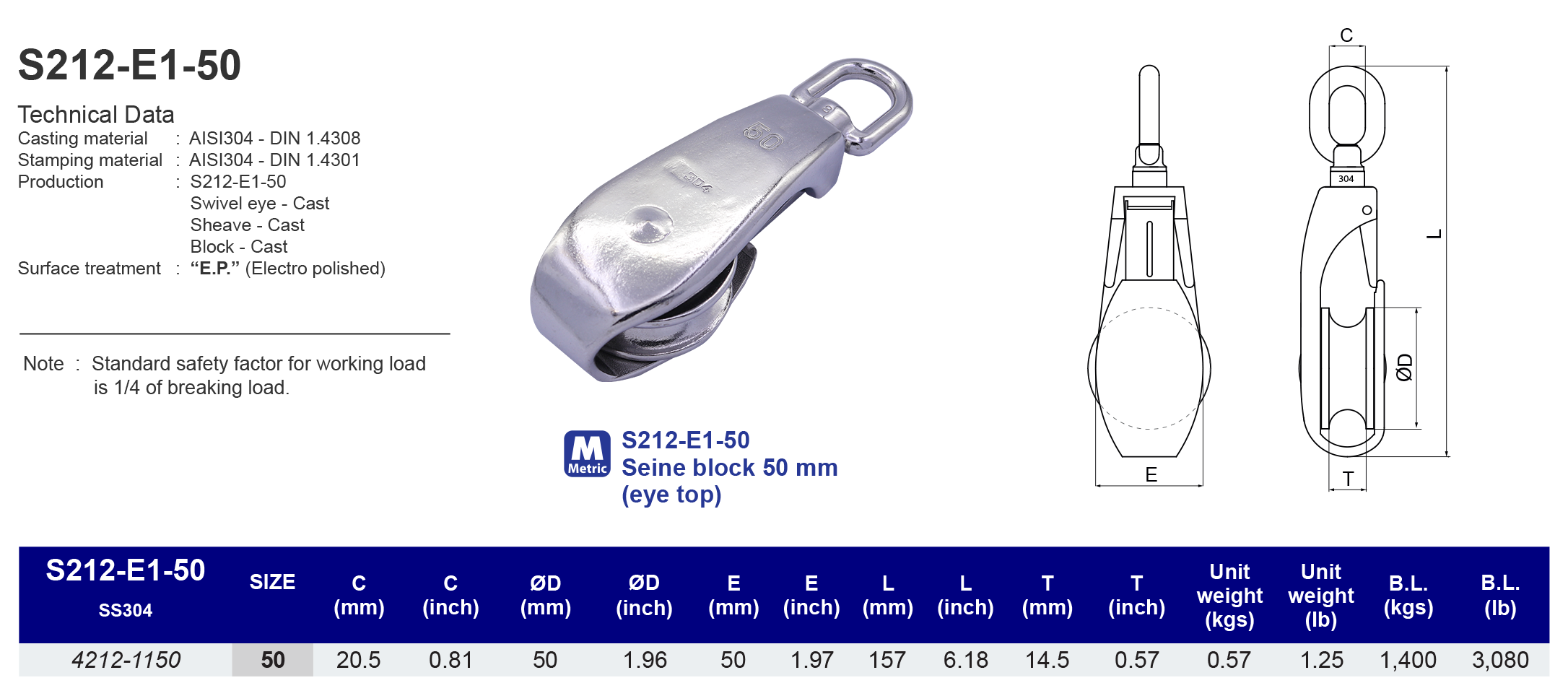

Model
S212-E1-50

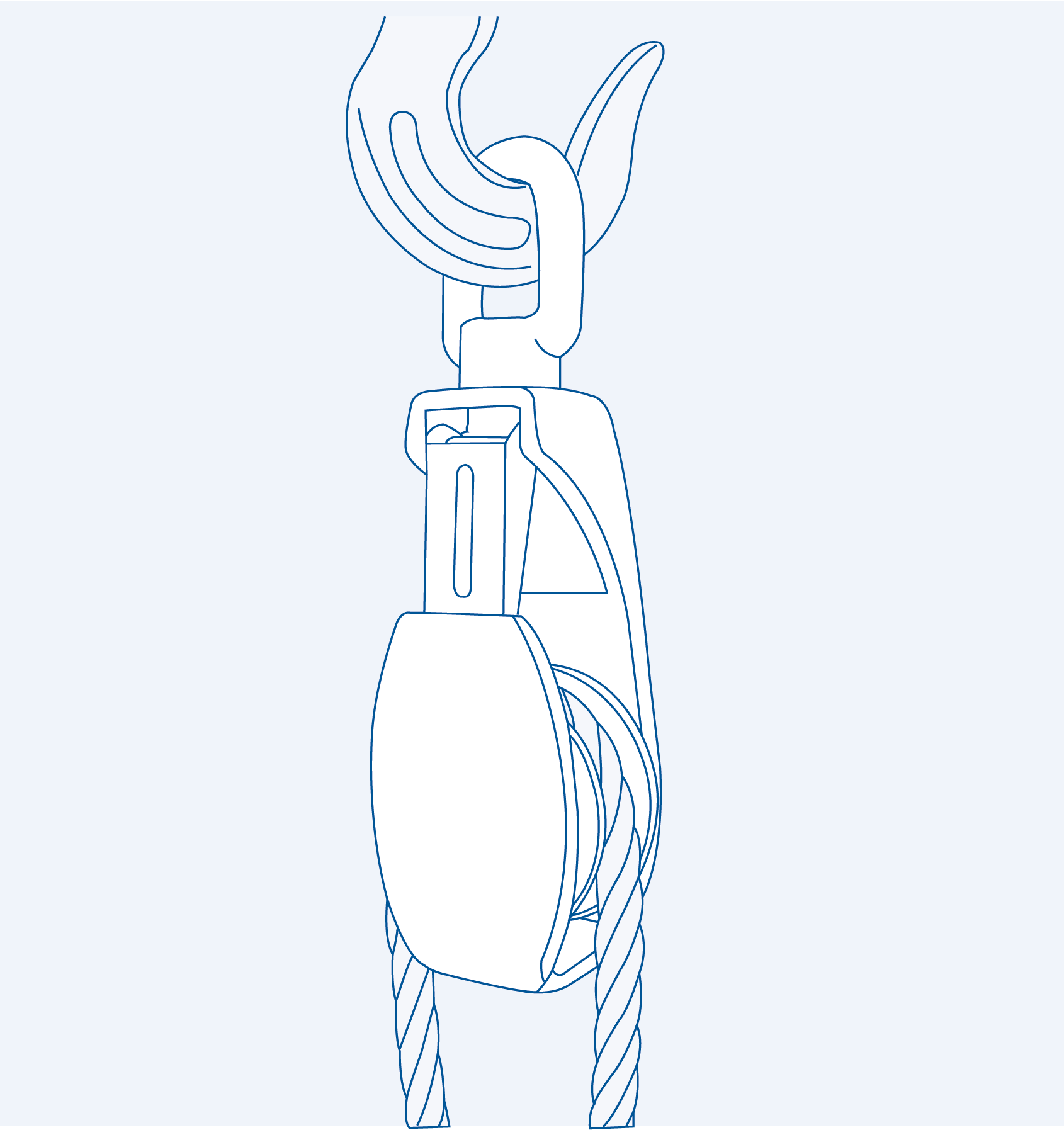

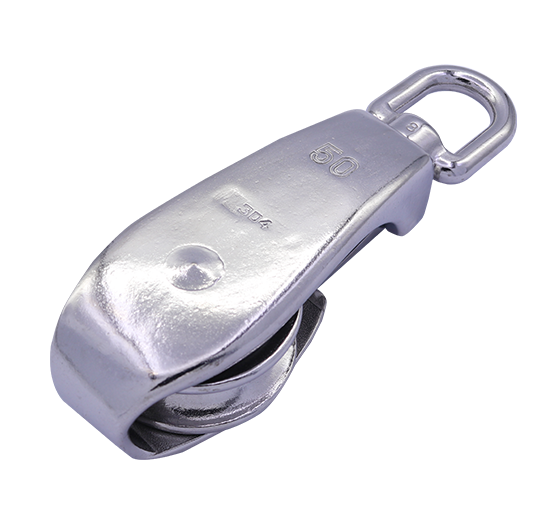

Seine block 50 mm (eye top)
304 ss
| SS304 | SIZE | C (mm) | ØD (mm) | E (mm) | L (mm) | T (mm) | Unit weight (kgs) | B.L. (kgs) |
|---|---|---|---|---|---|---|---|---|
| 42121150 | 50 | 20.5 | 50 | 50 | 157 | 14.5 | 0.57 | 1,400 |
| SS304 | SIZE | C (inch) | ØD (inch) | E (inch) | L (inch) | T (inch) | Unit weight (lb) | B.L. (lb) |
|---|---|---|---|---|---|---|---|---|
| 42121150 | 2" | 0.81 | 1.96 | 1.97 | 6.18 | 0.57 | 1.25 | 3,080 |
