Description
Technical Data:
Casting Material:
AISI304 - DIN 1.4308
Production:
S212 - H1 - 100 - Swivel eye / Hook - Cast
Sheave - Cast
Block - Cast
Surface Treatment:
Electro polished / Passivated
Model
S212-H1-100

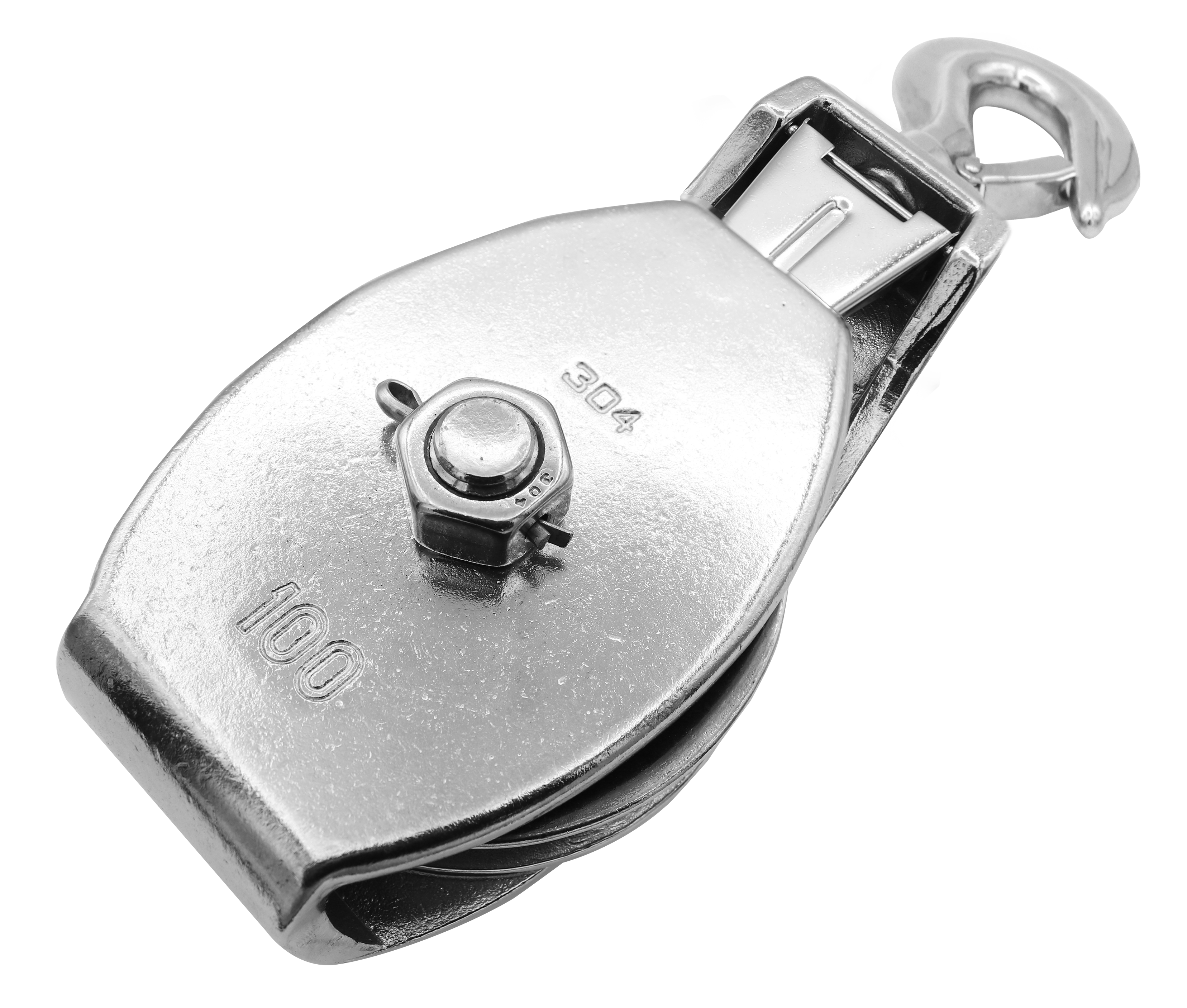

Seine Block (hook top)
304 ss

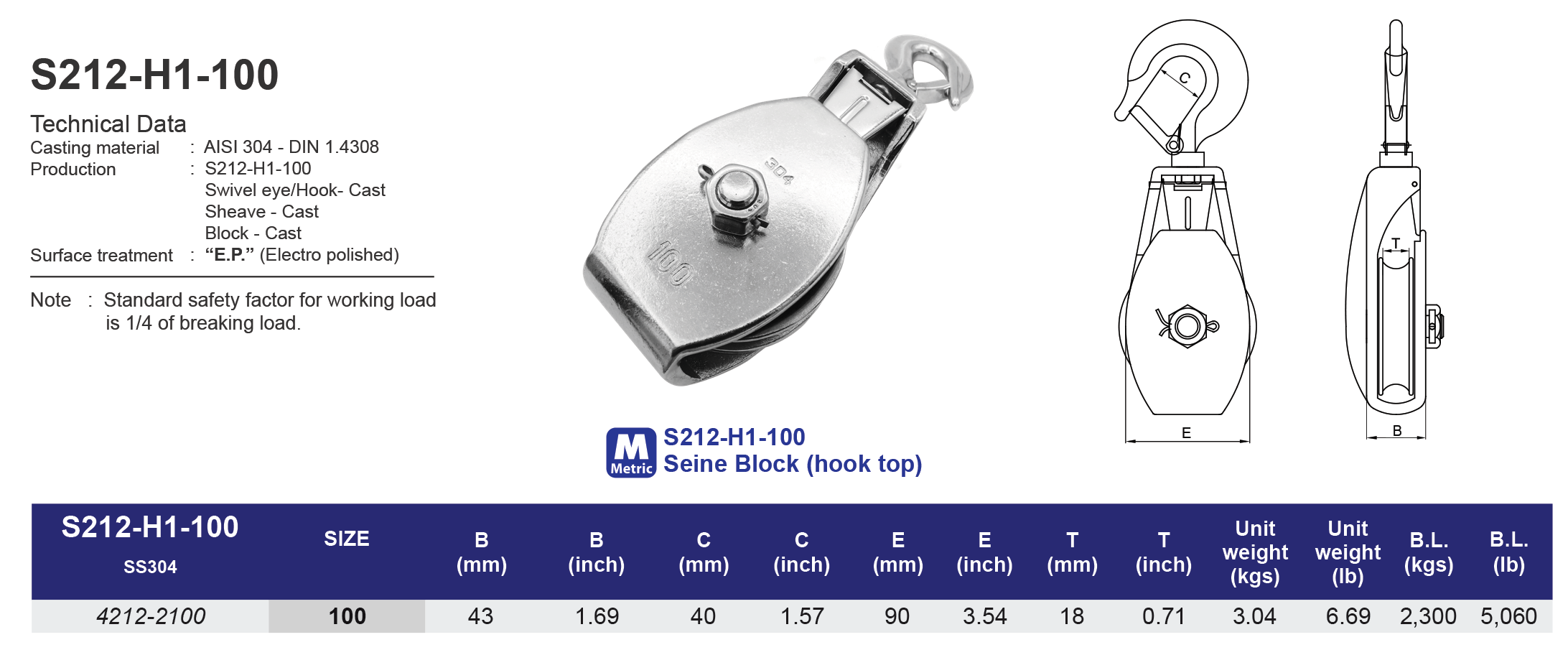

| SS304 | Size | B(mm) | C(mm) | E(mm) | T(mm) | Weight (kgs) | B.L.(kgs) |
|---|---|---|---|---|---|---|---|
| 42122100 | 100 | 43 | 25 | 100 | 17 | 3.04 | 2,300 |
| SS304 | Size | B(inch) | C(inch) | E(inch) | T(inch) | Weight(Ib) | B.L.(lb) |
|---|---|---|---|---|---|---|---|
| 42122100 | 100 | 1.69 | 0.98 | 3.94 | 0.67 | 6.69 | 1,265 |
