Description
Technical Data:
Casting Material:
AISI304 - DIN 1.4308
Production:
S212 - H1 - 50 - Swivel eye / Hook - Cast
Sheave - Cast
Block - Cast
Surface Treatment:
Electro polished / Passivated

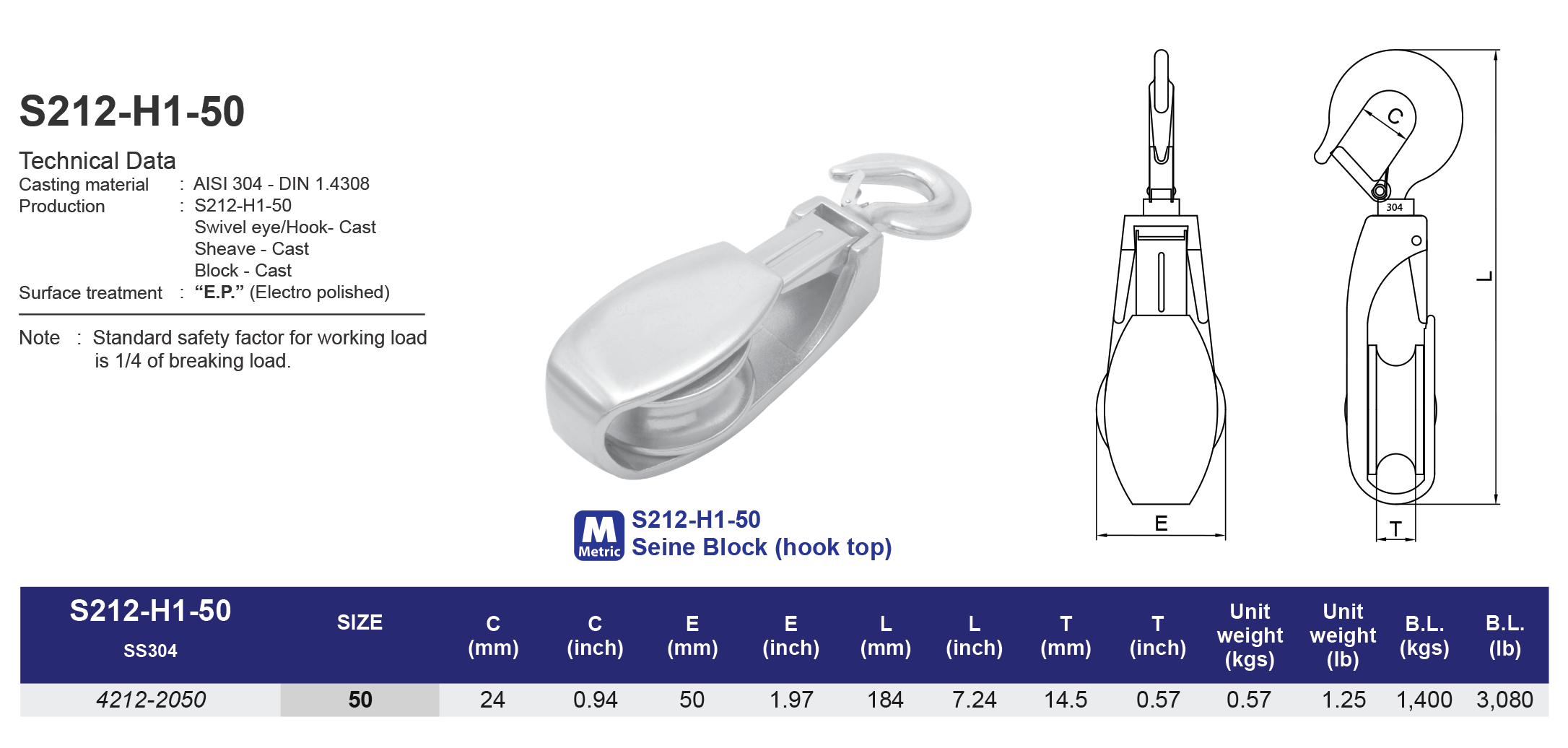

Model
S212-H1-50

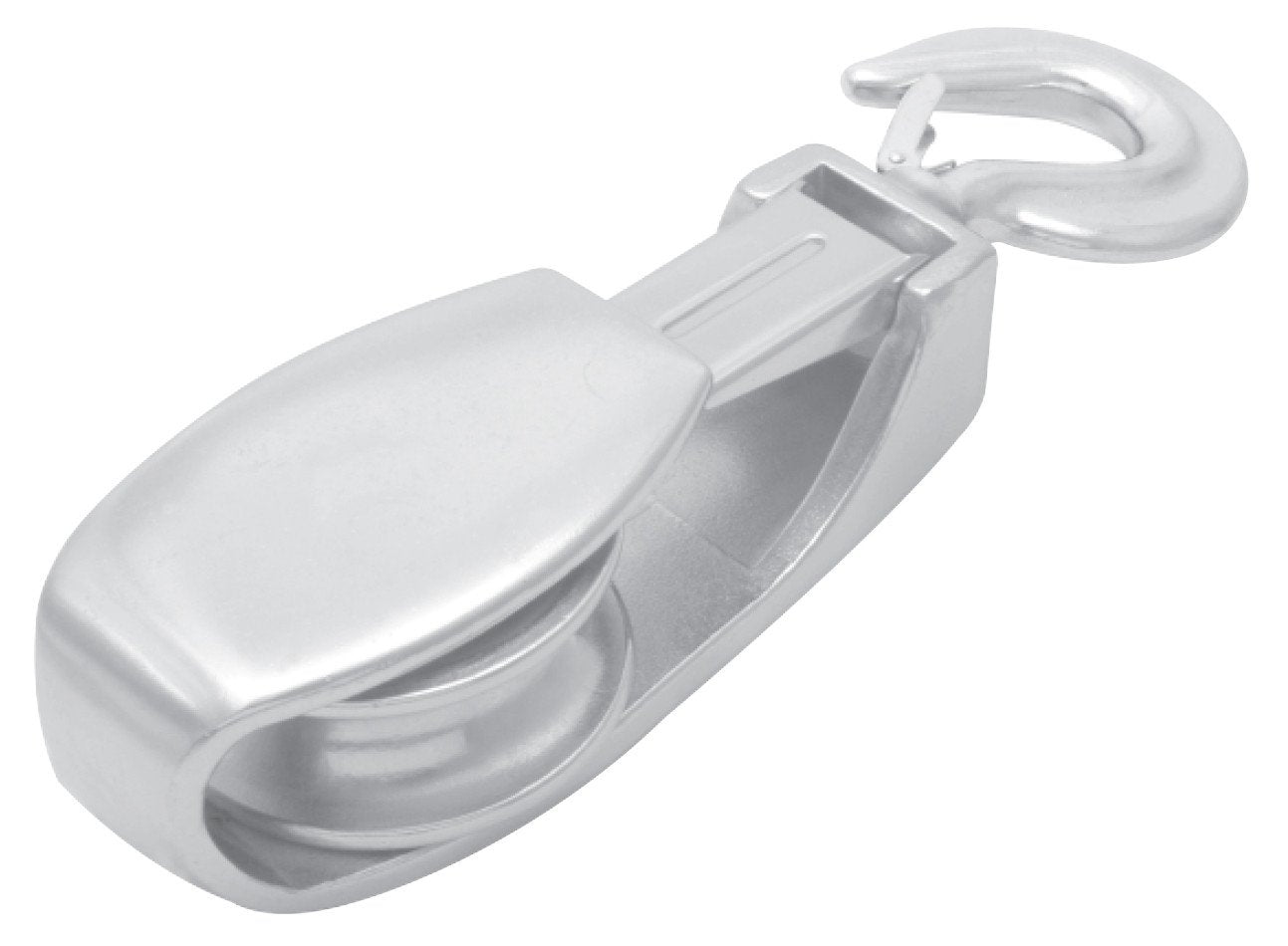

Seine Block (hook top)
304 ss
| SS304 | Size | C(mm) | E(mm) | L(mm) | T(mm) | Unit weight (kgs) | B.L.(kgs) |
|---|---|---|---|---|---|---|---|
| 42122050 | 50 | 24 | 50 | 184 | 14.5 | 0.57 | 1,400 |
| SS304 | Size | C(inch) | E(inch) | L(inch) | T(inch) | Unit weight (Ib) | B.L.(lb) |
|---|---|---|---|---|---|---|---|
| 42122050 | 50 | 0.94 | 1.97 | 7.24 | 0.57 | 1.25 | 770 |
