Description

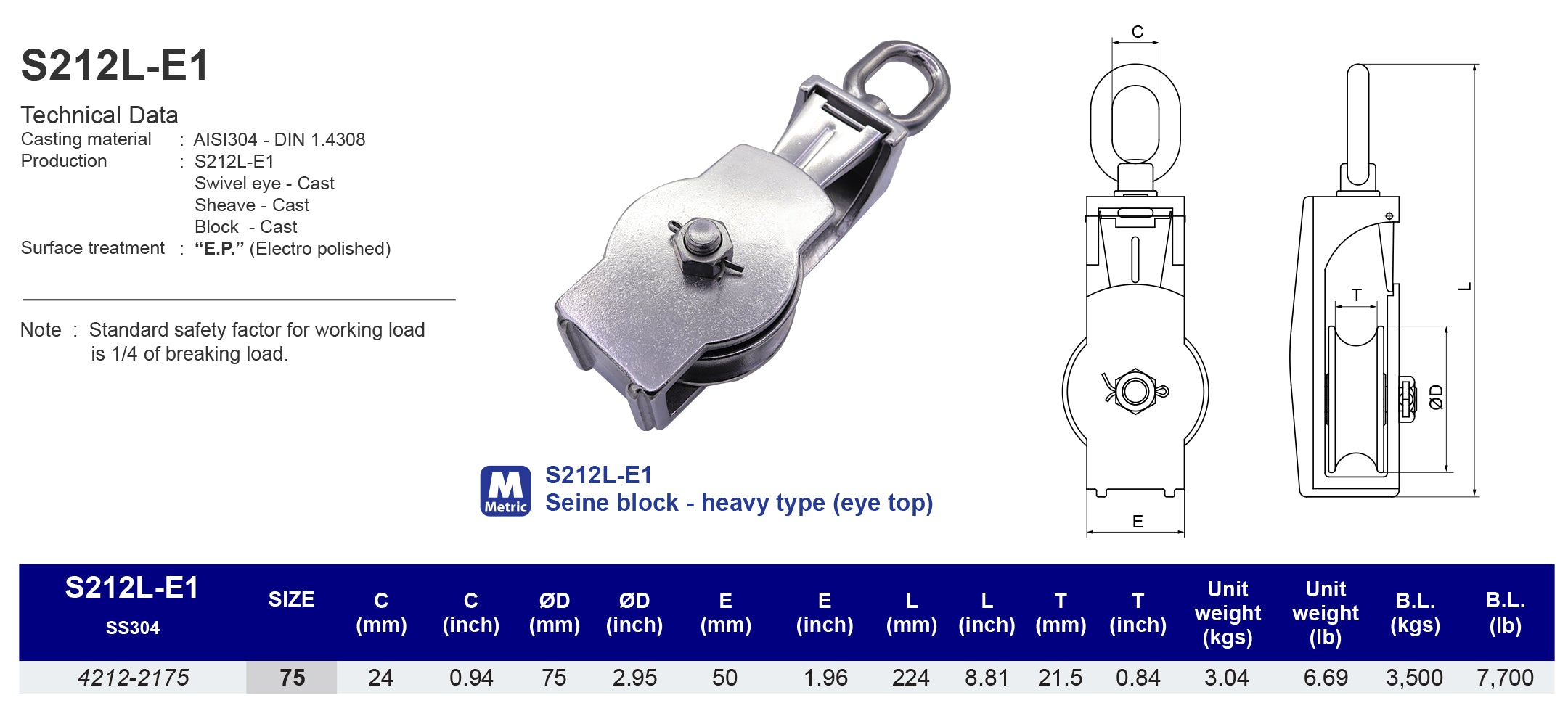

Technical Data:
Casting Material:
AISI304 - DIN 1.4308
Production:
S212L - E1 - Swivel eye - Cast
Sheave - Cast
Block - Cast
Surface Treatment : “E.P.” (Electro polished) Note : Standard safety factor for working load
is 1/4 of breaking load.
Model
S212L-E1

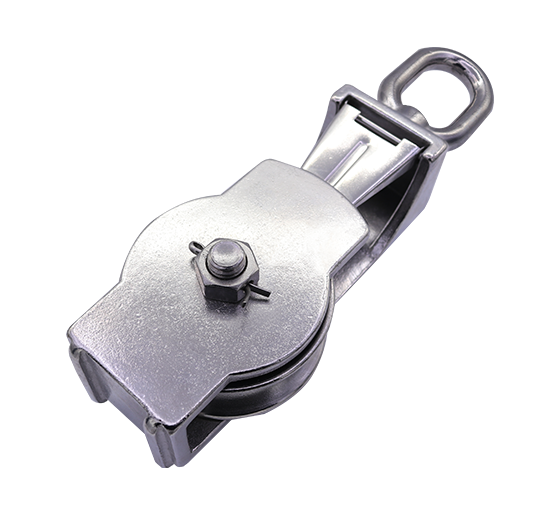

Seine block - Heavy type (eye top)
304 ss
| SS304 | SIZE | C (mm) | ØD (mm) | E (mm) | L (mm) | T (mm) | Unit weight (kgs) | B.L. (kgs) |
|---|---|---|---|---|---|---|---|---|
| 42122175 | 75 | 24 | 75 | 50 | 224 | 21.5 | 3.04 | 3,500 |
| SS304 | SIZE | C (inch) | ØD (inch) | E (inch) | L (inch) | T (inch) | Unit weight (lb) | B.L. (lb) |
|---|---|---|---|---|---|---|---|---|
| 42122175 | 3" | 0.94 | 2.95 | 1.96 | 8.81 | 0.84 | 6.69 | 7,700 |
