Description

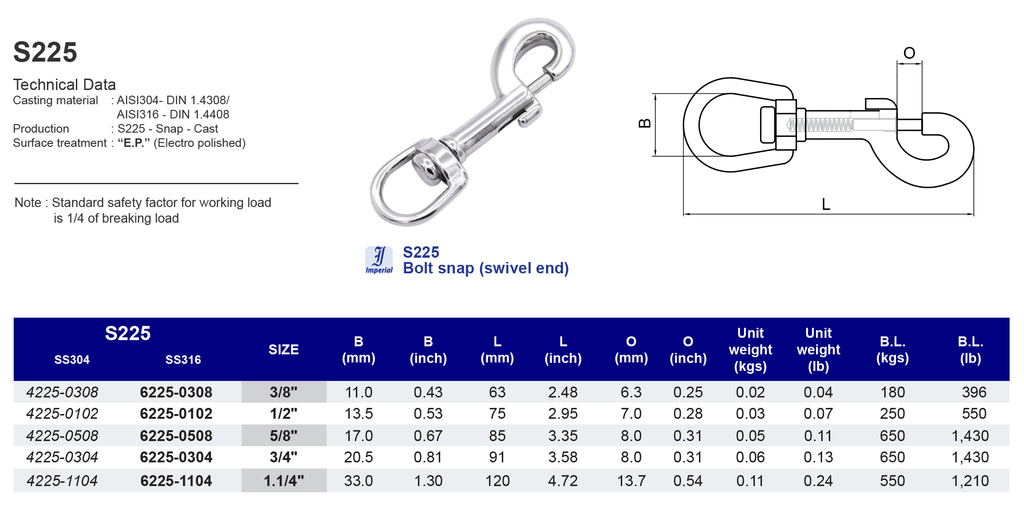

Technical Data
Casting Material : AISI316 - DIN 1.4408
Production : Snap - Cast
Surface Treatment : “E.P.” (Electro polished)
Note : Standard safety factor for working load is 1/4 of breaking load
DATA SHEET DOWNLOAD
Model
S225

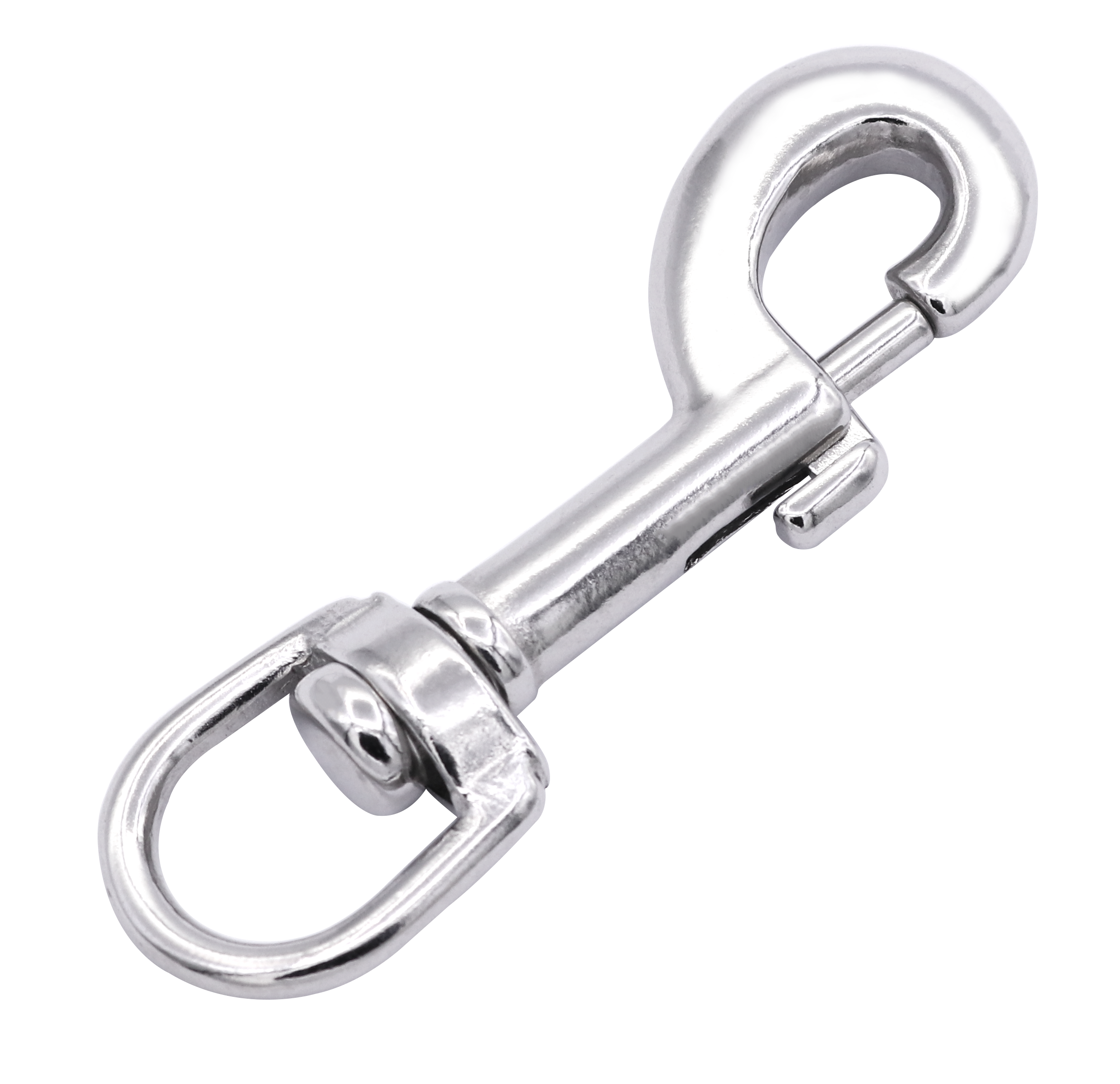

Bolt snap (swivel end)
316 ss
| SS316 | Size | B (mm) | L (mm) | O (mm) | Unit weight (kgs) | B.L. (kgs) |
|---|---|---|---|---|---|---|
| 62250308 | 3/8" | 11.0 | 63 | 6.3 | 0.02 | 180 |
| 62250102 | 1/2" | 13.5 | 75 | 7.0 | 0.03 | 250 |
| 62250508 | 5/8" | 17.0 | 85 | 8.0 | 0.05 | 650 |
| 62250304 | 3/4" | 20.5 | 91 | 8.0 | 0.06 | 650 |
| 62251104 | 1.1/4" | 33.0 | 120 | 13.7 | 0.11 | 550 |
| SS316 | Size | B (inch) | L (inch) | O (inch) | Unit weight (lb) | B.L. (lb) |
|---|---|---|---|---|---|---|
| 62250308 | 3/8" | 0.43 | 2.48 | 0.25 | 0.04 | 396 |
| 62250102 | 1/2" | 0.53 | 2.95 | 0.28 | 0.07 | 550 |
| 62250508 | 5/8" | 0.67 | 3.35 | 0.31 | 0.11 | 1,430 |
| 62250304 | 3/4" | 0.81 | 3.58 | 0.31 | 0.13 | 1,430 |
| 62251104 | 1.1/4" | 1.30 | 4.72 | 0.54 | 0.24 | 1,210 |
