Description
Technical Data
Casting Material : AISI316 - DIN 1.4408
Production : Snap - Cast
Surface Treatment : “E.P.” (Electro polished)
Note : Standard safety factor for working load is 1/4 of breaking load

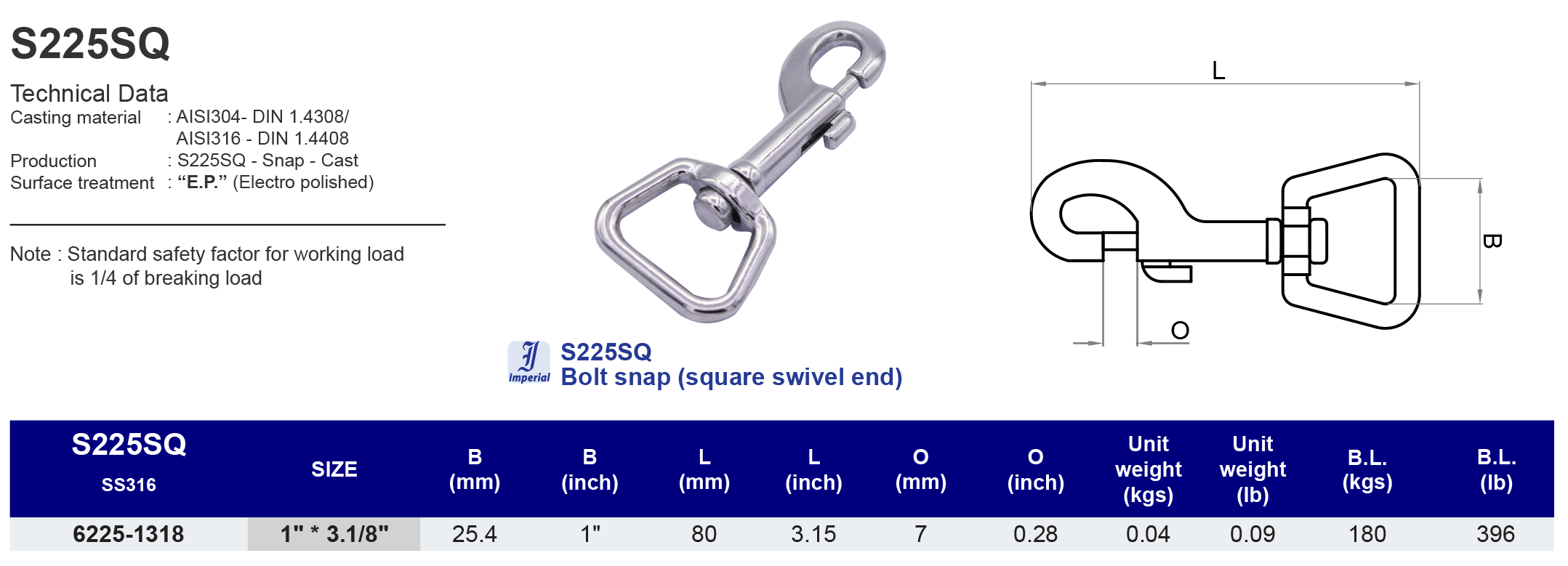

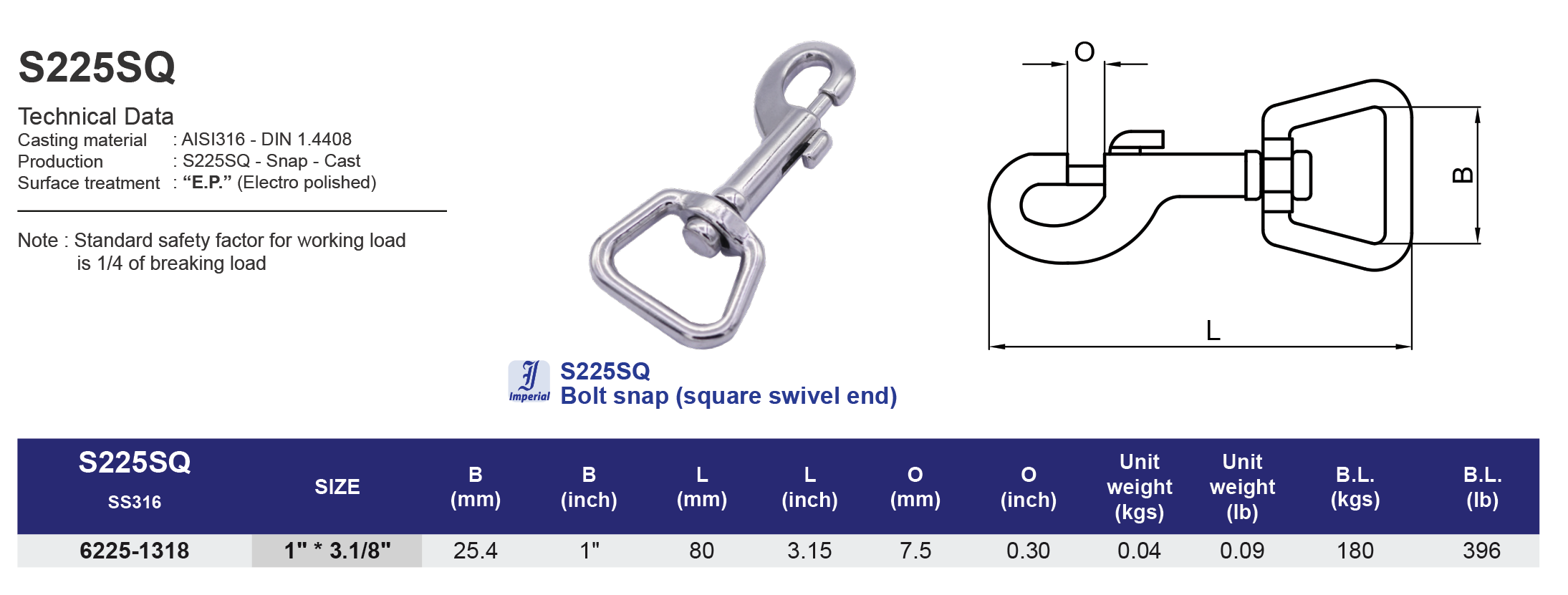

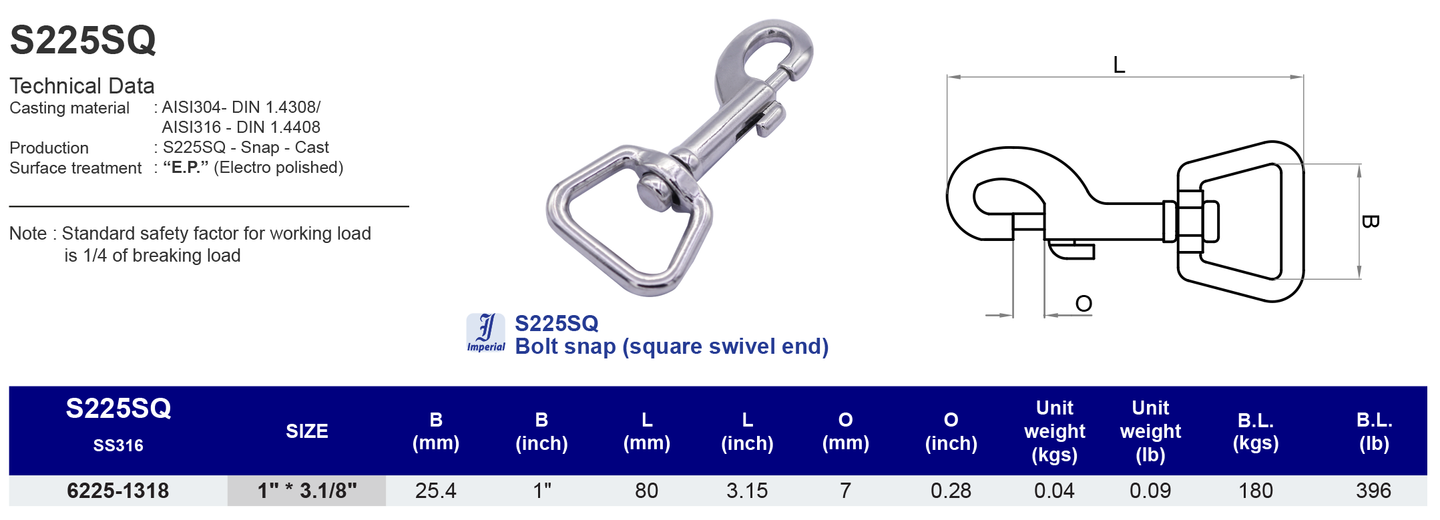

DATA SHEET DOWNLOAD
Model
S225SQ

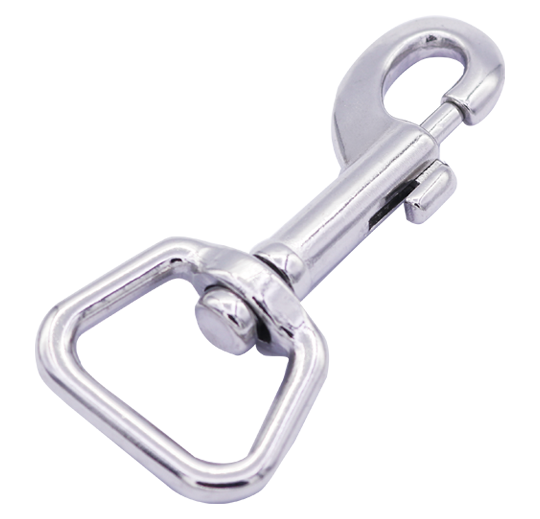

Bolt snap (square swivel end)
316 ss
| SS316 | Size | B (mm) | L (mm) | O (mm) | Unit weight (kgs) | B.L. (kgs) |
|---|---|---|---|---|---|---|
| 62251318 | 1" * 3.1/8" | 25.4 | 80 | 7 | 0.04 | 180 |
| SS316 | Size | B (inch) | L (inch) | O (inch) | Unit weight (lb) | B.L. (lb) |
|---|---|---|---|---|---|---|
| 62251318 | 1" * 3.1/8" | 1" | 3.15 | 0.28 | 0.09 | 396 |
