Description
Technical Data
Casting Material : AISI316 - DIN 1.4408
Production : Snap - Cast
Surface Treatment : “E.P.” (Electro polished)
Note : Standard safety factor for working load is 1/4 of breaking load
DATA SHEET DOWNLOAD

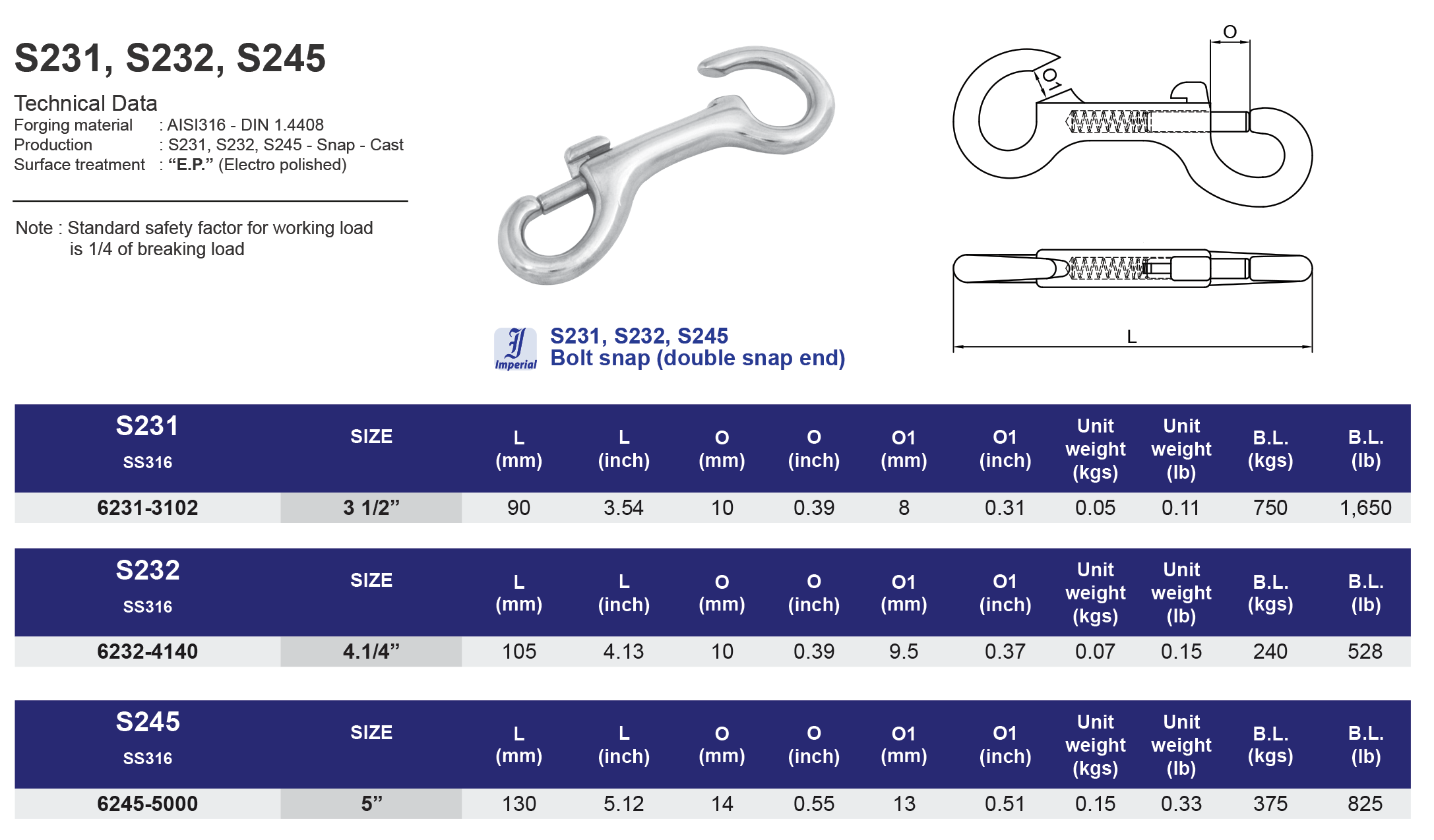

Model
S231, S232, S245

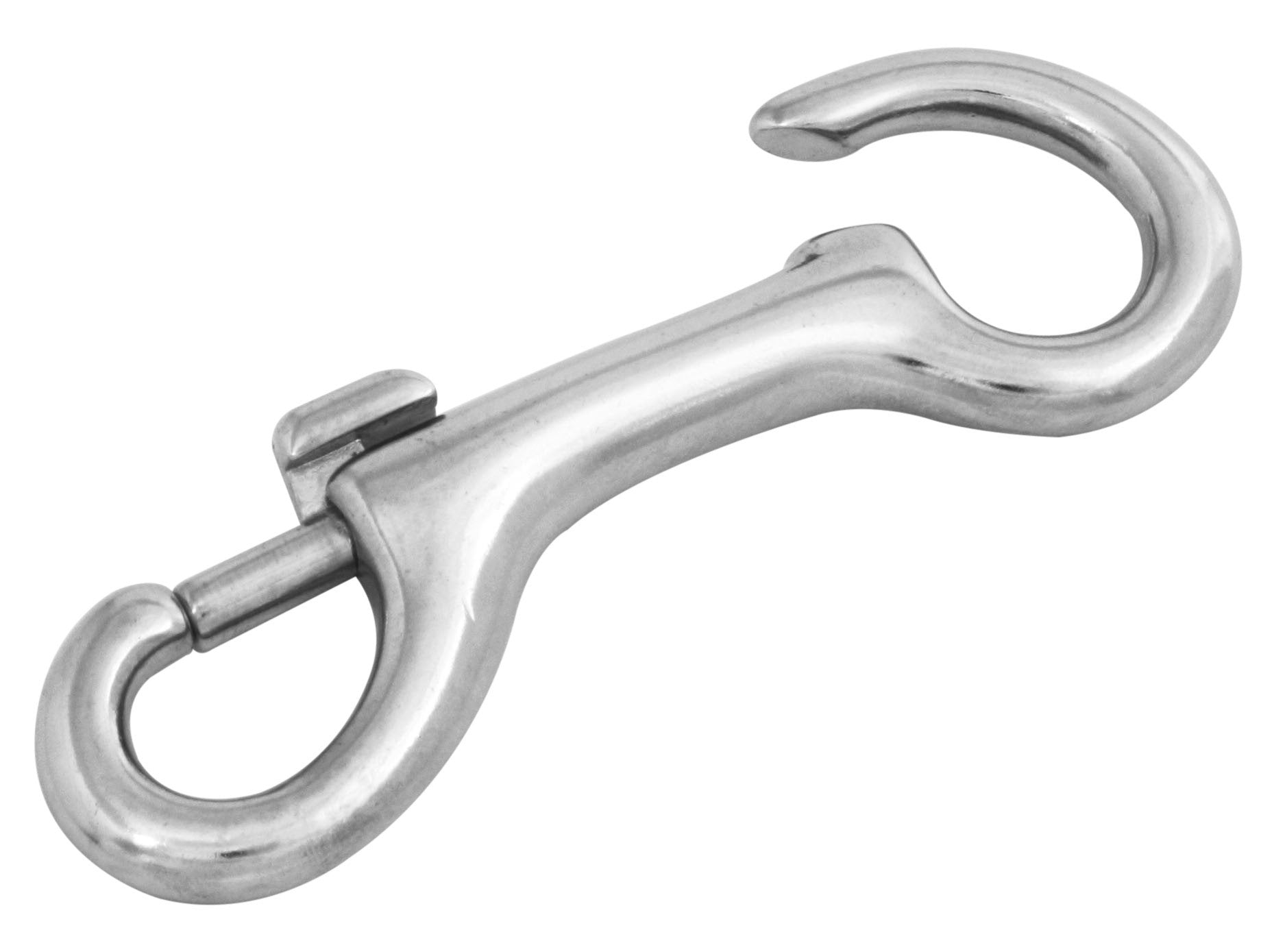

Bolt Snap (hook end)
316 ss
| SS316 | Size | L(mm) | O(mm) | O1(mm) | Weight(kgs) | B.L.(kgs) |
|---|---|---|---|---|---|---|
| 62313102 | 3 1/2" | 90 | 10 | 8 | 0.05 | 190 |
| 62324140 | 4.1/4" | 105 | 10 | 9.5 | 0.07 | 240 |
| 62455000 | 5" | 130 | 14 | 13 | 0.15 | 375 |
| SS316 | Size | L(inch) | O(inch) | O1(inch) | Weight(Ib) | B.L.(lb) |
|---|---|---|---|---|---|---|
| 62313102 | 3 1/2" | 3.54 | 0.39 | 0.31 | 0.11 | 105 |
| 62324140 | 4.1/4" | 4.13 | 0.39 | 0.37 | 0.15 | 132 |
| 62455000 | 5" | 5.12 | 0.55 | 0.51 | 0.33 | 94 |
