Description
Technical Data
Forging Material : AISI316 - DIN 1.4408
Production : Snap - Forged
Surface Treatment :“E.P.” (Electro polished)
Note : Standard safety factor for working load is 1/4 of breaking load
DATA SHEET DOWNLOAD

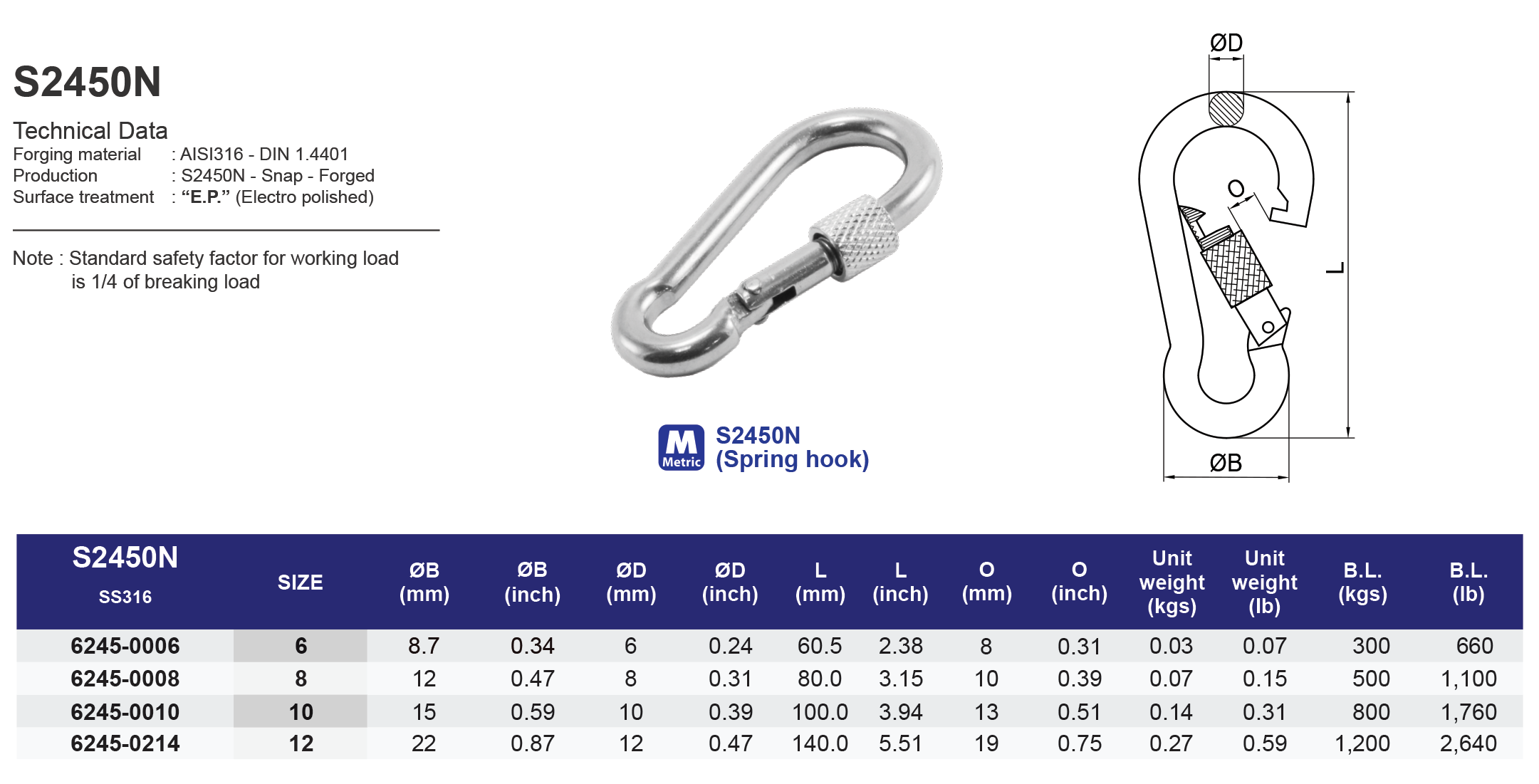

Model
S2450N

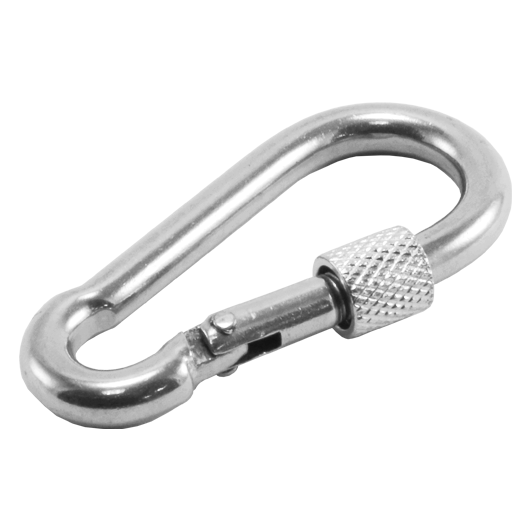

Spring hook
316 ss
| SS316 | Size | ØB (mm) | ØD (mm) | L (mm) | O (mm) | Unit weight (kgs) | B.L. (kgs) |
|---|---|---|---|---|---|---|---|
| 62450006 | 6 | 8.7 | 6 | 60.5 | 29 | 0.03 | 300 |
| 62450008 | 8 | 12 | 8 | 80 | 40 | 0.07 | 500 |
| 62450010 | 10 | 15 | 10 | 100 | 50 | 0.14 | 800 |
| 62450214 | 12 | 22 | 12 | 140 | 66.5 | 0.27 | 1,200 |
| SS316 | Size | ØB (inch) | ØD (inch) | L (inch) | O (inch) | Unit weight (lb) | B.L. (lb) |
|---|---|---|---|---|---|---|---|
| 62450006 | 1/4" | 0.34 | 0.24 | 2.38 | 1.14 | 0.07 | 660 |
| 62450008 | 5/16" | 0.47 | 0.31 | 3.15 | 1.57 | 0.15 | 1,100 |
| 62450010 | 3/8" | 0.59 | 0.39 | 3.94 | 1.97 | 0.31 | 1,760 |
| 62450214 | 1/2" | 0.87 | 0.47 | 5.51 | 2.62 | 0.59 | 2,640 |
