S2470 Spring snap hook (eye end) - 316

SKU: 62470032

Size (mm): 32mm
Price:

Login to view the price.

Stock:
Login to view stock.

Description

Technical Data
Casting Material : AISI316 - DIN 1.4408
Production : Snap - Cast
Surface Treatment : “E.P.” (Electro polished)
Note : Standard safety factor for working load is 1/4 of breaking load

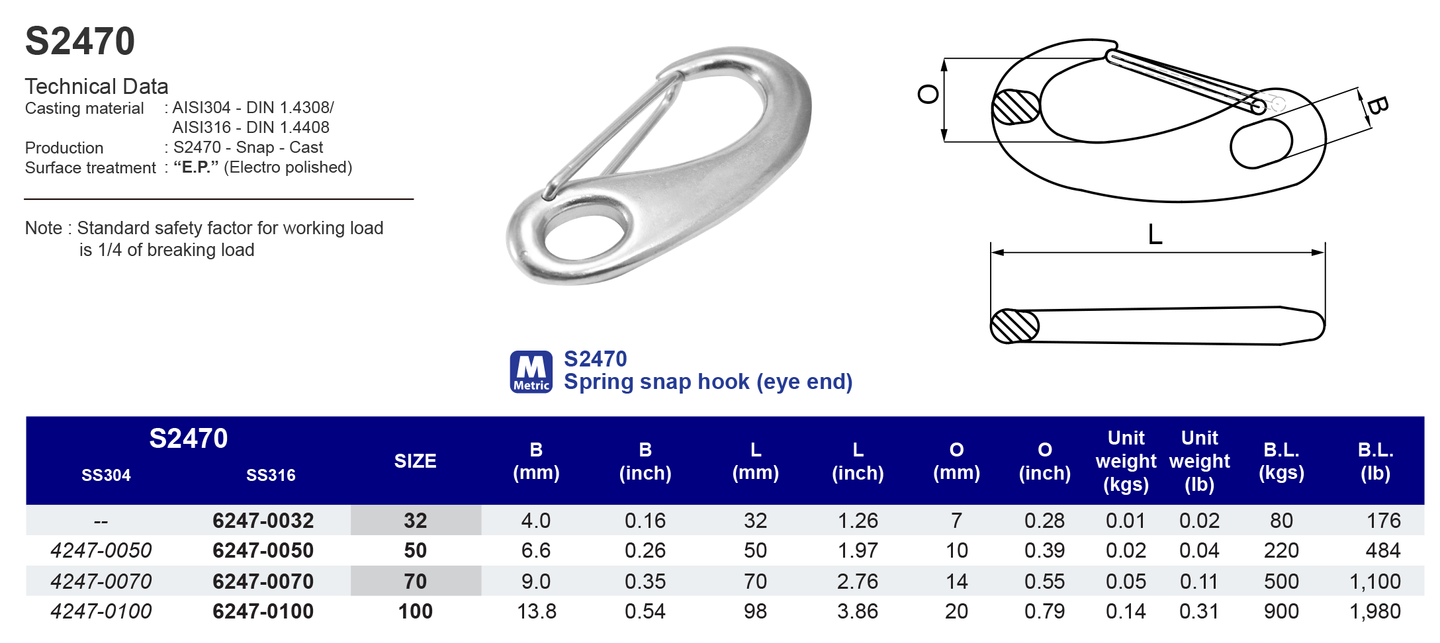

DATA SHEET DOWNLOAD

Model

S2470

Spring snaps (eye end)
316 ss

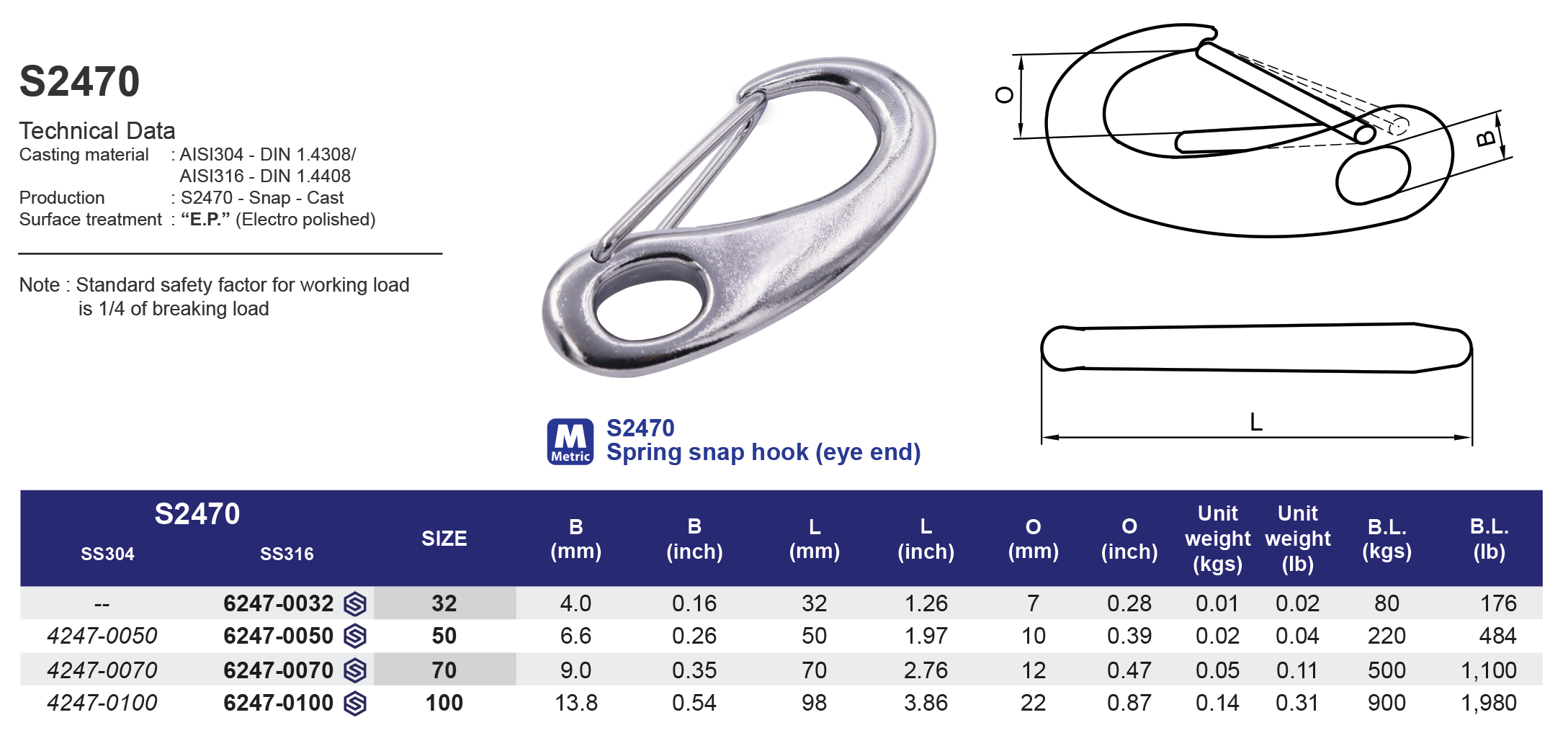

S2470 drawing

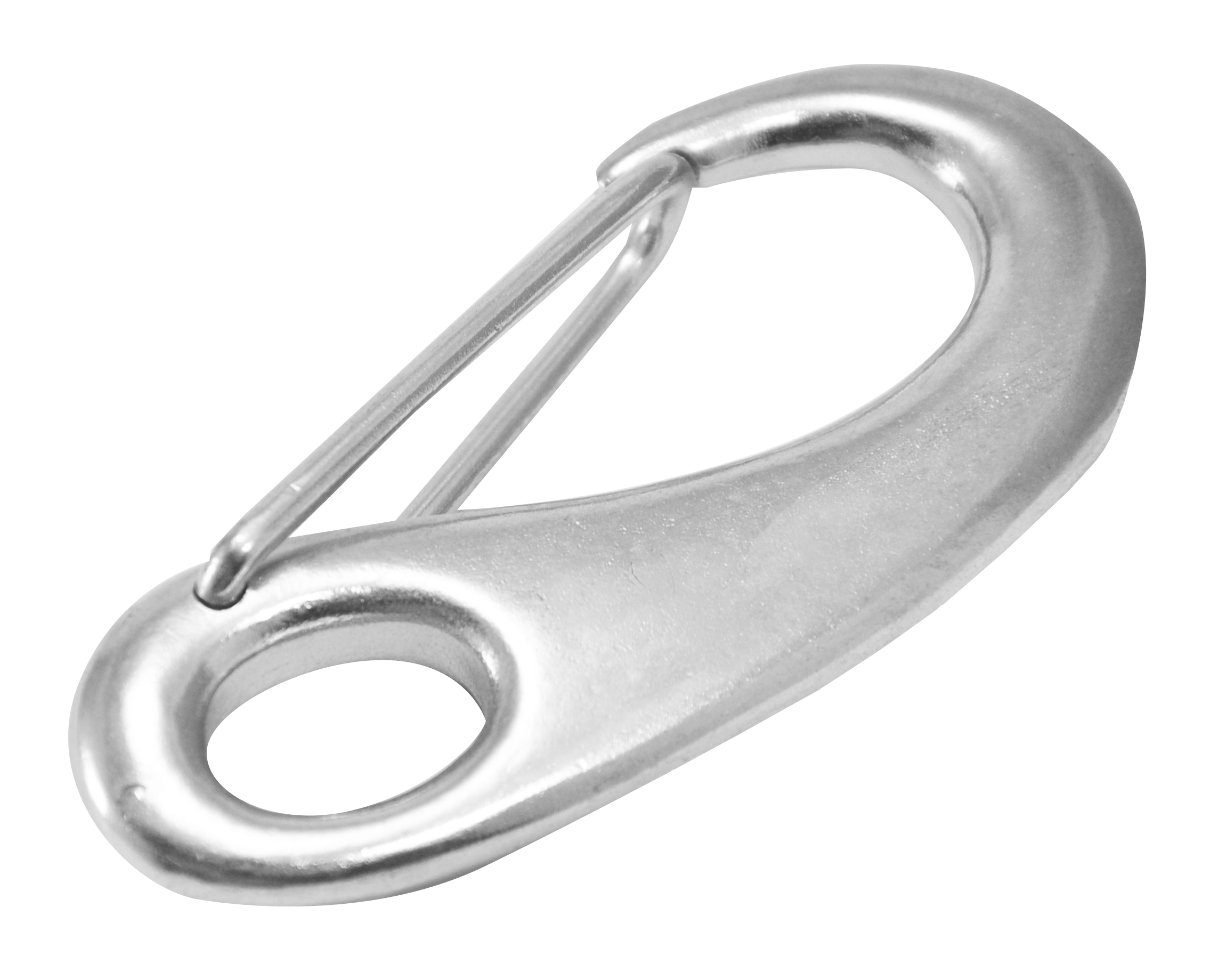

S2470 image
SS316SizeB (mm)L (mm)O (mm)Unit weight (kgs)B.L. (kgs)
62470032324.03270.0180
62470050506.650100.02220
62470070709.070140.05500
6247010010013.898200.14900
SS316SizeB (inch)L (inch)O (inch)Unit weight (lb)B.L. (lb)
624700321/8"0.161.260.280.02176
624700501/4"0.261.970.390.04484
624700703/8"0.352.760.550.111,100
624701001/2"0.543.860.790.311,980
