Description

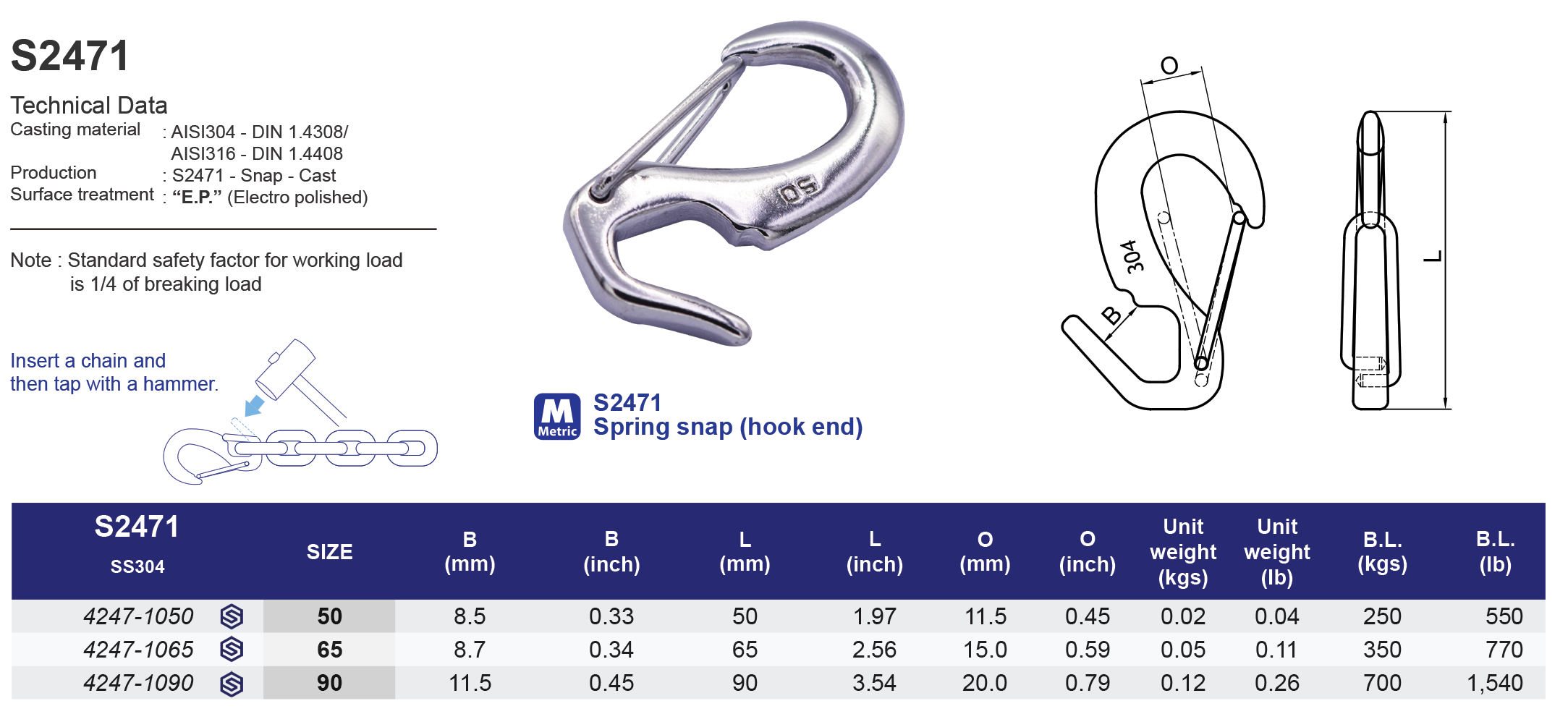

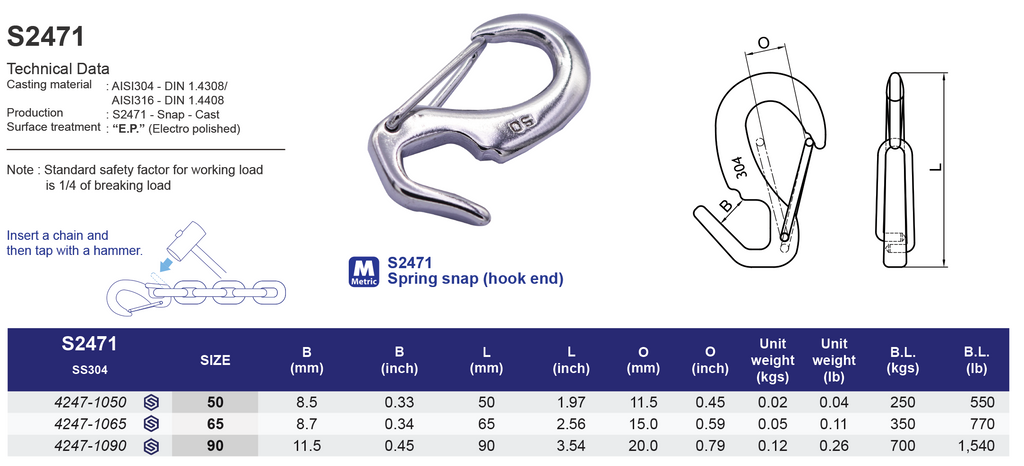

Technical Data
Casting Material : AISI304 - DIN 1.4308
Production : Snap - Cast
Surface Treatment : “E.P.” (Electro polished)
Note : Standard safety factor for working load is 1/4 of breaking load
DATA SHEET DOWNLOAD

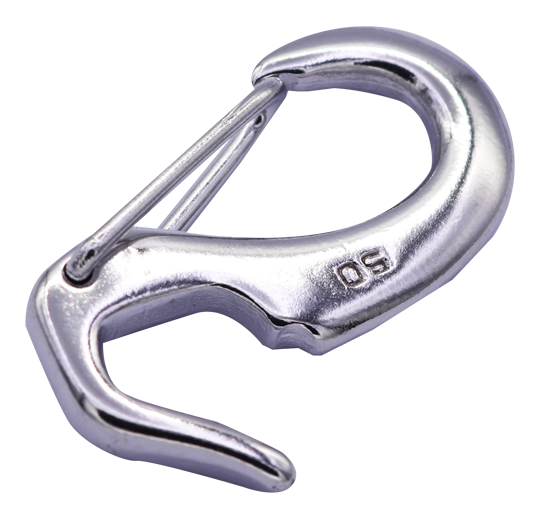

Model
S2471
Spring snaps (hook end)
304 ss
| SS304 | Size | B (mm) | L (mm) | O (mm) | Unit weight (kgs) | B.L. (kgs) |
|---|---|---|---|---|---|---|
| 42471050 | 50 | 8.5 | 50 | 12.8 | 0.02 | 250 |
| 42471065 | 65 | 8.7 | 65 | 16.6 | 0.05 | 350 |
| 42471090 | 90 | 11.5 | 90 | 22.8 | 0.12 | 700 |
| SS304 | Size | B (inch) | L (inch) | O (inch) | Unit weight (lb) | B.L. (lb) |
|---|---|---|---|---|---|---|
| 42471050 | 1/4" | 0.33 | 1.97 | 0.50 | 0.04 | 550 |
| 42471065 | 5/16" | 0.34 | 2.56 | 0.65 | 0.11 | 770 |
| 42471090 | 3/8" | 0.45 | 3.54 | 0.90 | 0.26 | 1,540 |
