Description
Technical Data
Casting Material : AISI304 - DIN 1.4308
Forging Material : AISI304 - DIN 1.4301
Production : Snap - Cast
Surface Treatment : “E.P.” (Electro polished)
Note : Standard safety factor for working load is 1/4 of breaking load
DATA SHEET DOWNLOAD

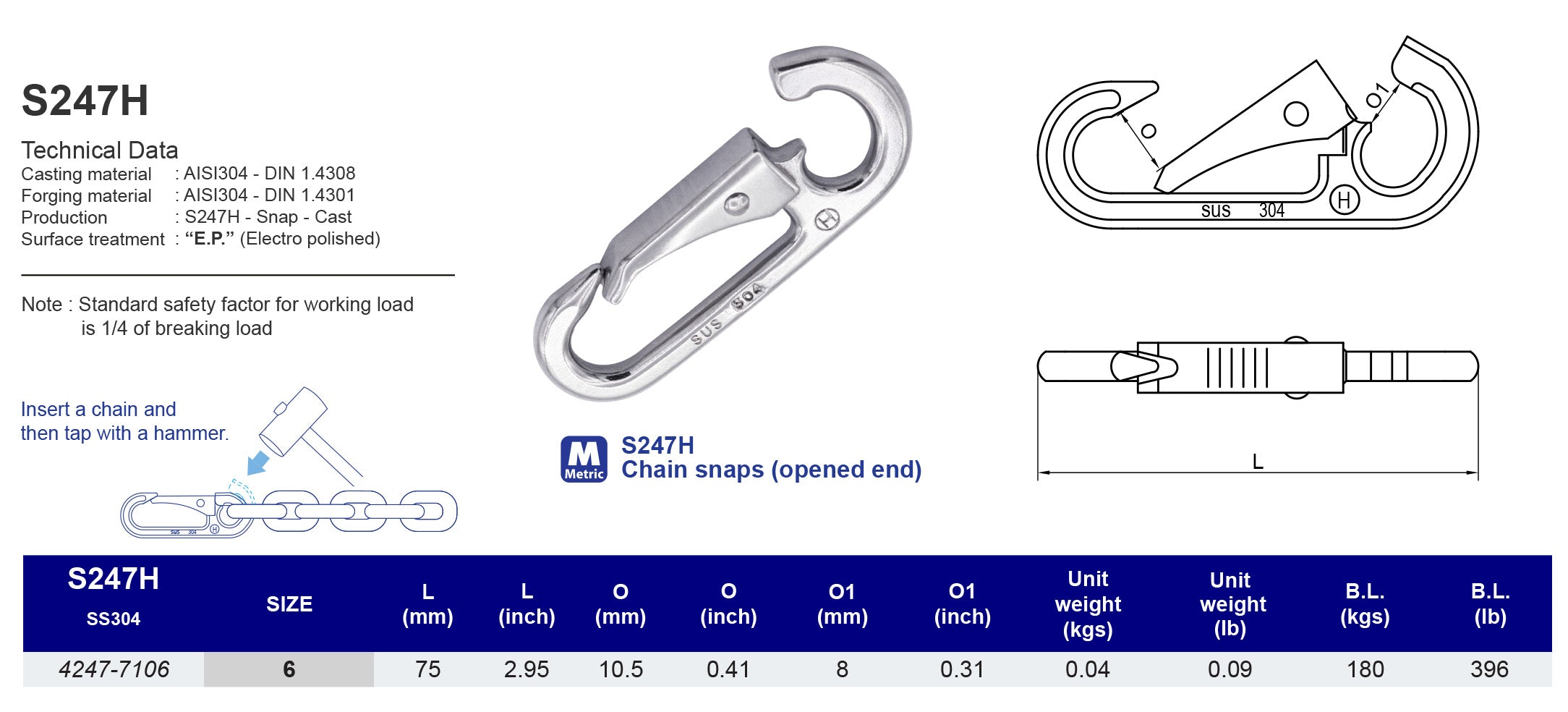

Model

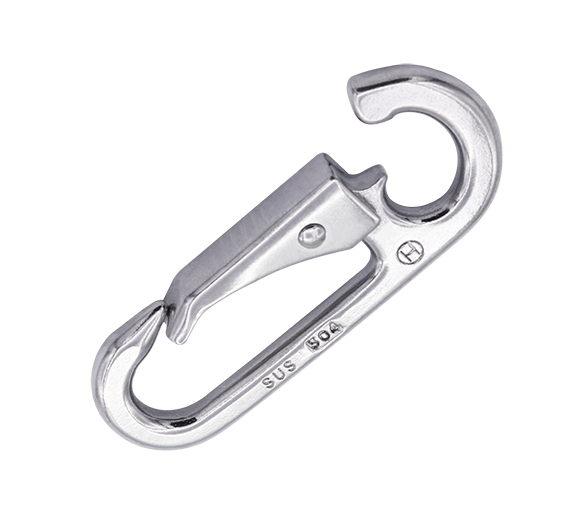

S247H
Chain snaps (opened end)
304 ss
| SS304 | Size | L (mm) | O (mm) | O1 (mm) | Unit weight (kgs) | B.L. (kgs) |
|---|---|---|---|---|---|---|
| 42477106 | 6 | 75 | 10.3 | 8 | 0.04 | 180 |
| SS304 | Size | L (inch) | O (inch) | O1 (inch) | Unit weight (lb) | B.L. (lb) |
|---|---|---|---|---|---|---|
| 42477106 | 1/4" | 2.95 | 0.41 | 0.31 | 0.09 | 396 |
