Description
Technical Data
Casting Material : AISI316 - DIN 1.4408
Forging Material : AISI316 - DIN 1.4401
Production : Shackle - Cast , Pin - Forged
Surface Treatment : “E.P.” (Electro polished)
Note : Standard safety factor for working load is 1/4 of breaking load
DATA SHEET DOWNLOAD

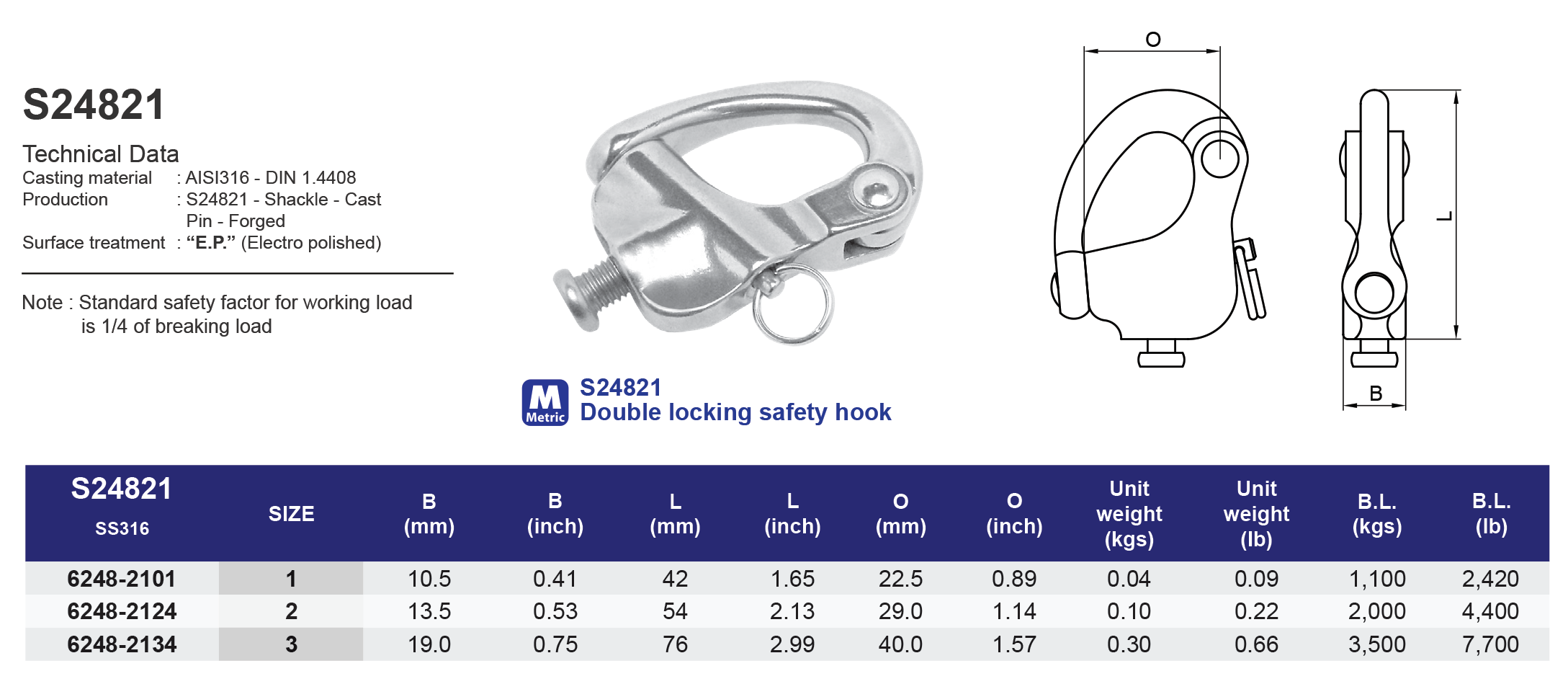

Model
S24821

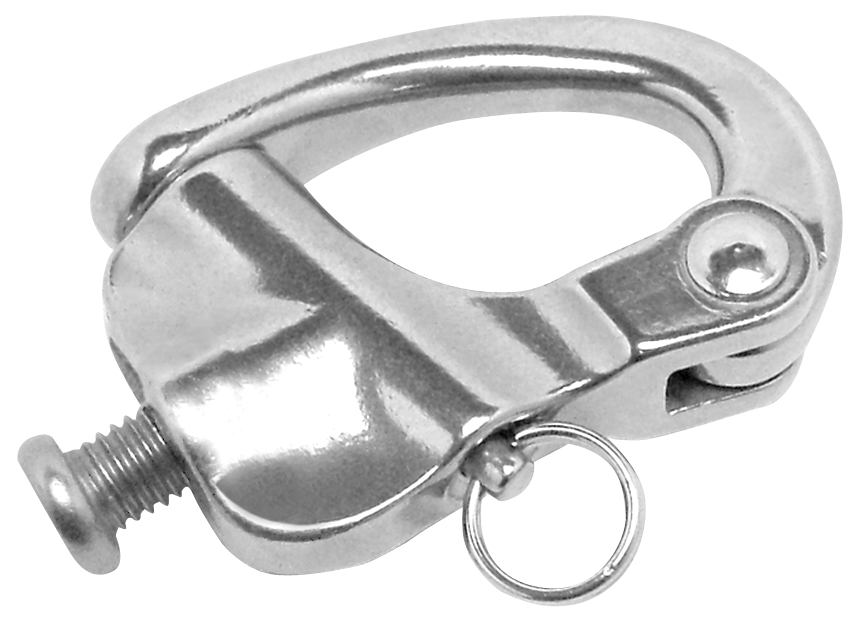

Snap Shackle Head
316 ss
| SS316 | Size | B(mm) | L(mm) | O(mm) | Weight(kgs) | B.L.(kgs) |
|---|---|---|---|---|---|---|
| 62482101 | 1 | 10 | 42 | 14 | 0.04 | 1,100 |
| 62482124 | 2 | 12 | 54 | 20 | 0.10 | 2,000 |
| 62482134 | 3 | 15 | 76 | 27 | 0.30 | 3,500 |
| SS316 | Size | B(inch) | L(inch) | O(inch) | Weight(Ib) | B.L.(lb) |
|---|---|---|---|---|---|---|
| 62482101 | 1 | 0.39 | 1.65 | 0.55 | 0.09 | 605 |
| 62482124 | 2 | 0.47 | 2.13 | 0.79 | 0.22 | 1,100 |
| 62482134 | 3 | 0.59 | 2.99 | 1.06 | 0.66 | 7,700 |
