Description
Technical Data
Casting Material : AISI316 - DIN 1.4408
Forging Material : AISI316 - DIN 1.4401
Production : Shackle - Cast , Pin - Forged
Surface Treatment : “E.P.” (Electro polished)
Note : Standard safety factor for working load is 1/4 of breaking load
DATA SHEET DOWNLOAD
Model
S2483

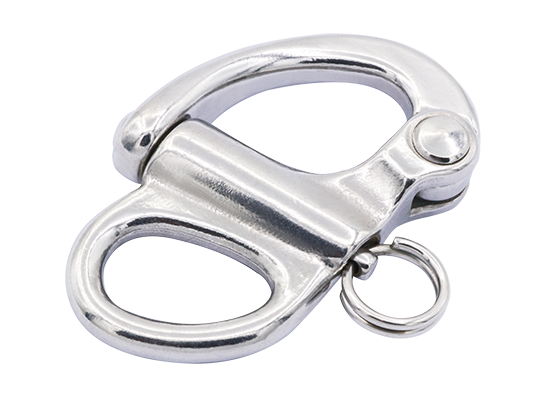

Fixed snap shackle
316 ss
| SS316 | Size | B (mm) | L (mm) | O (mm) | Unit weight (kgs) | B.L. (kgs) |
|---|---|---|---|---|---|---|
| 62483000 | 0 | 6.5 | 32 | 9 | 0.01 | 400 |
| 62483001 | 1 | 16 | 56 | 12 | 0.04 | 1,100 |
| 62483322 | 2 | 21 | 70 | 19 | 0.10 | 2,000 |
| 62483333 | 3 | 21 | 102 | 25 | 0.24 | 3,500 |
| SS316 | Size | B (inch) | L (inch) | O (inch) | Unit weight (lb) | B.L. (lb) |
|---|---|---|---|---|---|---|
| 62483000 | 1/4" | 0.26 | 1.26 | 0.35 | 0.02 | 880 |
| 62483001 | 5/16" | 0.63 | 2.20 | 0.47 | 0.09 | 2,420 |
| 62483322 | 1/2" | 0.83 | 2.76 | 0.75 | 0.22 | 4,400 |
| 62483333 | 5/8" | 0.83 | 4.02 | 0.98 | 0.53 | 7,700 |
