Technical Data
Casting Material : AISI304 - DIN 1.4308
Production : Snap - Cast
Surface Treatment : “E.P.” (Electro polished)
Note : Standard safety factor for working load is 1/4 of breaking load
DATA SHEET DOWNLOAD

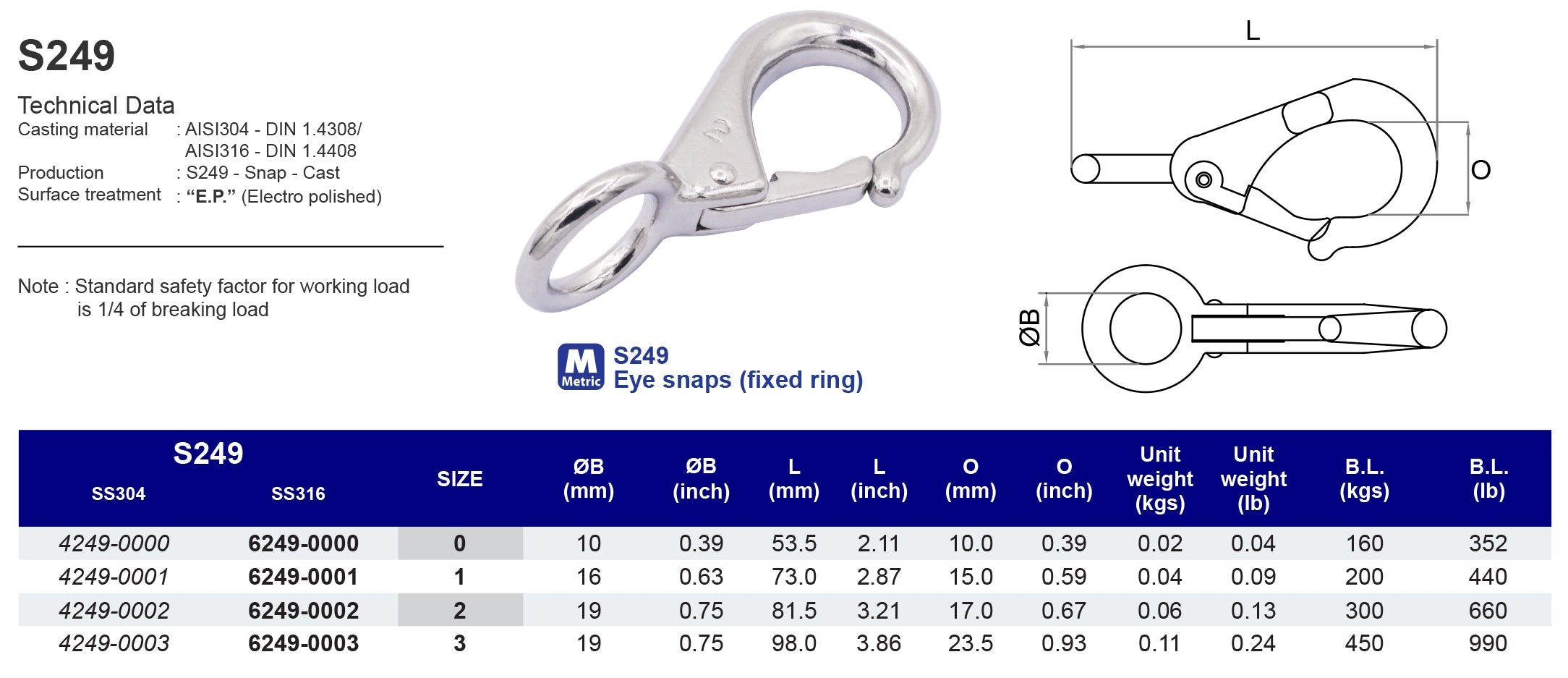

Model
S249
Eye snaps (fixed ring)
304 ss
| SS304 | Size | ØB (mm) | L (mm) | O (mm) | Unit weight (kgs) | B.L. (kgs) |
|---|---|---|---|---|---|---|
| 42490000 | 0 | 10 | 53.5 | 10 | 0.02 | 160 |
| 42490001 | 1 | 16 | 73 | 15 | 0.04 | 200 |
| 42490002 | 2 | 19 | 81.5 | 17 | 0.06 | 300 |
| 42490003 | 3 | 19 | 98 | 23.5 | 0.11 | 450 |
| SS304 | Size | ØB (inch) | L (inch) | O (inch) | Unit weight (lb) | B.L. (lb) |
|---|---|---|---|---|---|---|
| 42490000 | 3/8" | 0.39 | 2.11 | 0.39 | 0.04 | 352 |
| 42490001 | 5/8" | 0.63 | 2.87 | 0.59 | 0.09 | 440 |
| 42490002 | 3/4" | 0.75 | 3.21 | 0.67 | 0.13 | 660 |
| 42490003 | 7/8" | 0.75 | 3.86 | 0.93 | 0.24 | 990 |
