Description

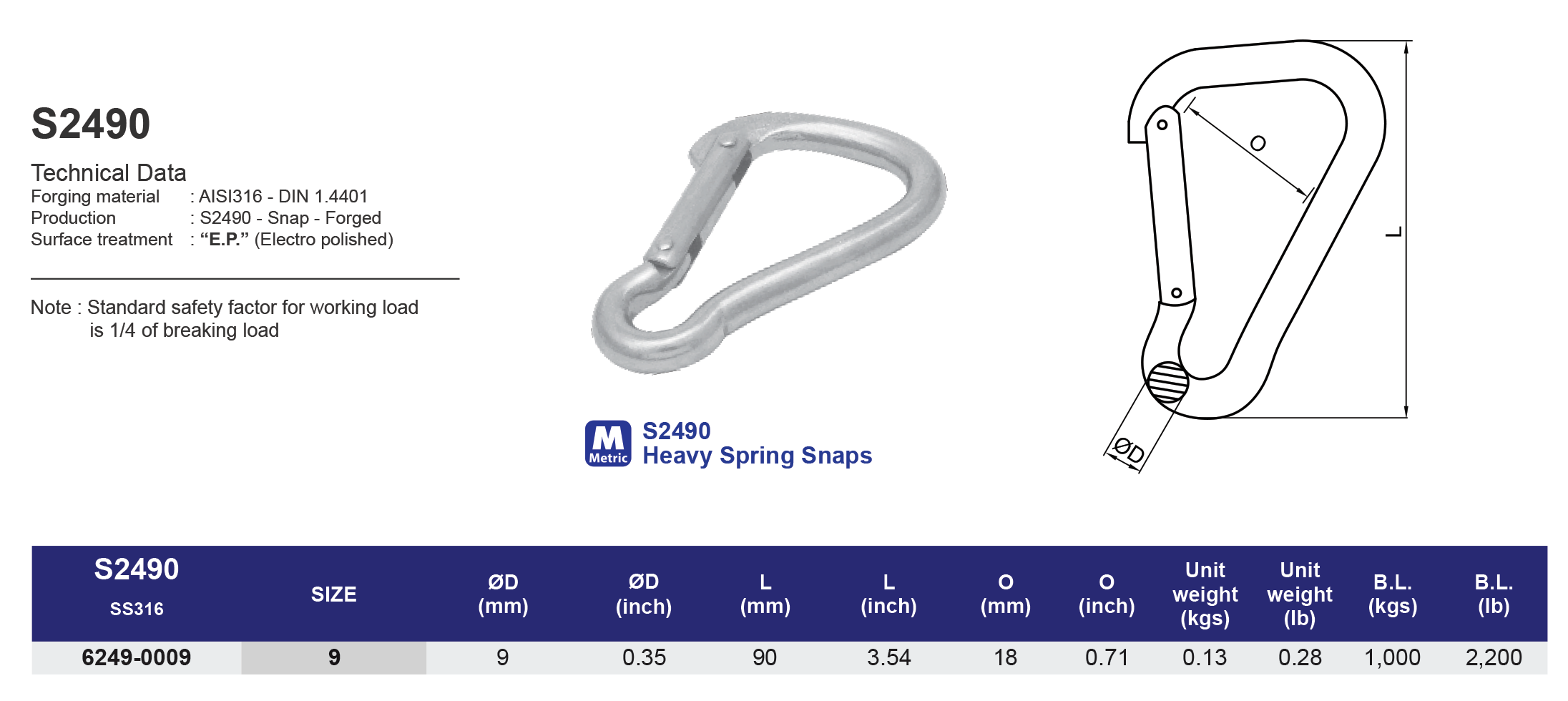

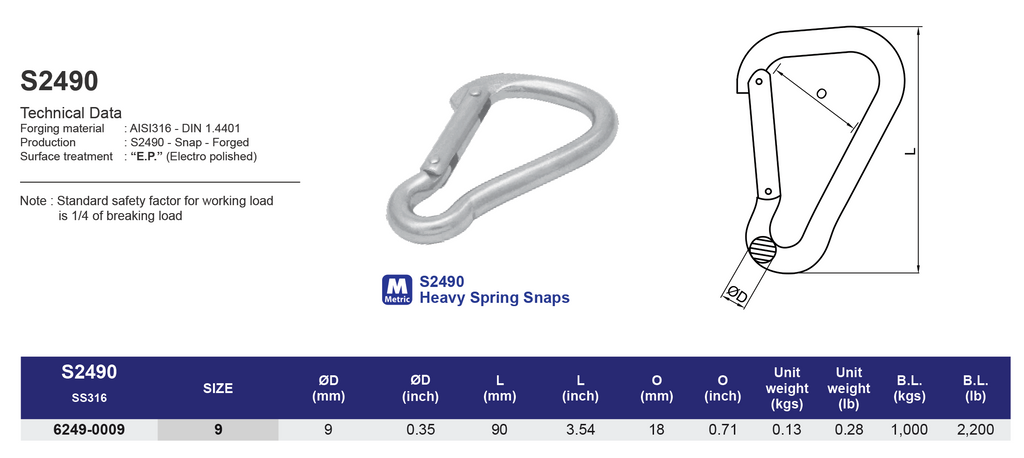

Technical Data
Casting Material : AISI316 - DIN 1.4401
Production : Snap - Forged
Surface Treatment : “E.P.” (Electro polished)
Note : Standard safety factor for working load is 1/4 of breaking load
DATA SHEET DOWNLOAD
Model
S2490

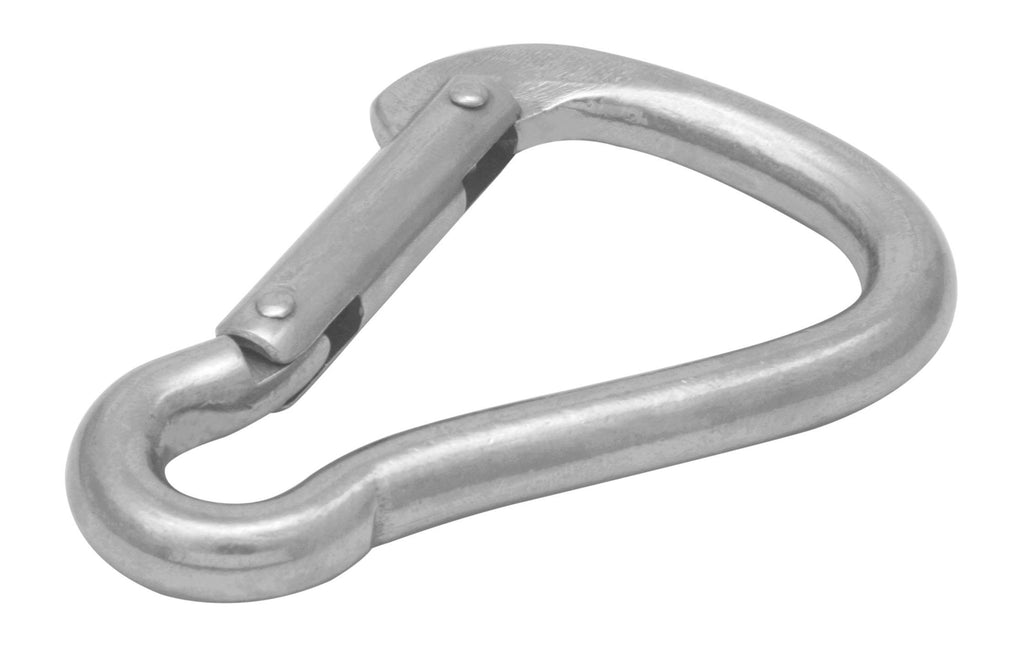

Heavy Spring Snaps
316 ss
| SS316 | Size | ØD(mm) | L(mm) | O(mm) | Weight(kgs) | B.L.(kgs) |
|---|---|---|---|---|---|---|
| 62490009 | 9 | 9 | 90 | 18 | 0.13 | 1,000 |
| SS316 | Size | ØD(inch) | L(inch) | O(inch) | Weight(Ib) | B.L.(lb) |
|---|---|---|---|---|---|---|
| 62490009 | 9 | 0.35 | 3.54 | 0.71 | 0.28 | 550 |
