Description
Technical Data
Casting Material : AISI316 - DIN 1.4408
Production : Snap - Cast
Surface Treatment : “E.P.” (Electro polished)
Note : Standard safety factor for working load is 1/4 of breaking load
DATA SHEET DOWNLOAD

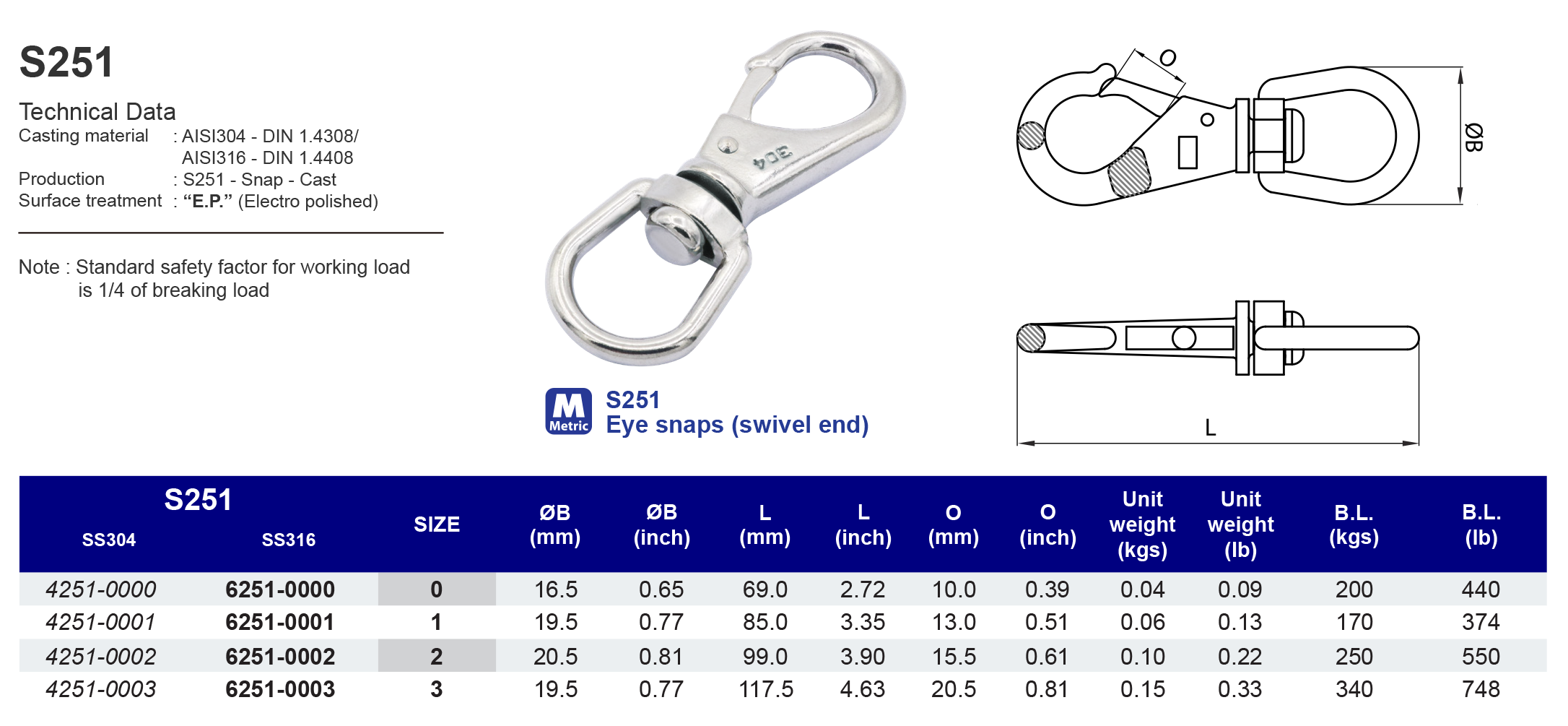

Model
S251

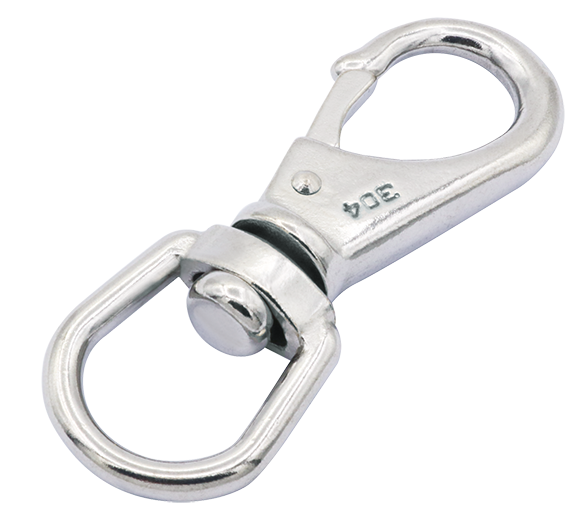

Bolt snap (swivel end)
316 ss
| SS316 | Size | ØB (mm) | L (mm) | O (mm) | Unit weight (kgs) | B.L. (kgs) |
|---|---|---|---|---|---|---|
| 62510000 | 0 | 16.5 | 69 | 10.0 | 0.04 | 200 |
| 62510001 | 1 | 19.5 | 85 | 13.0 | 0.06 | 170 |
| 62510002 | 2 | 20.5 | 99 | 15.5 | 0.10 | 250 |
| 62510003 | 3 | 19.5 | 117.5 | 20.5 | 0.15 | 340 |
| SS316 | Size | ØB (inch) | L (inch) | O (inch) | Unit weight (lb) | B.L. (lb) |
|---|---|---|---|---|---|---|
| 62510000 | 1/2" | 0.65 | 2.72 | 0.39 | 0.09 | 440 |
| 62510001 | 5/8" | 0.77 | 3.35 | 0.51 | 0.13 | 374 |
| 62510002 | 3/4" | 0.81 | 3.90 | 0.61 | 0.22 | 550 |
| 62510003 | 7/8" | 0.77 | 4.63 | 0.81 | 0.33 | 748 |
