Description
Technical Data
Casting Material : AISI316 - DIN 1.4408
Production : Hook - Cast , Swivel - Cast
Surface Treatment : “E.P.” (Electro polished)
Note : Standard safety factor for working load is 1/4 of breaking load
DATA SHEET DOWNLOAD

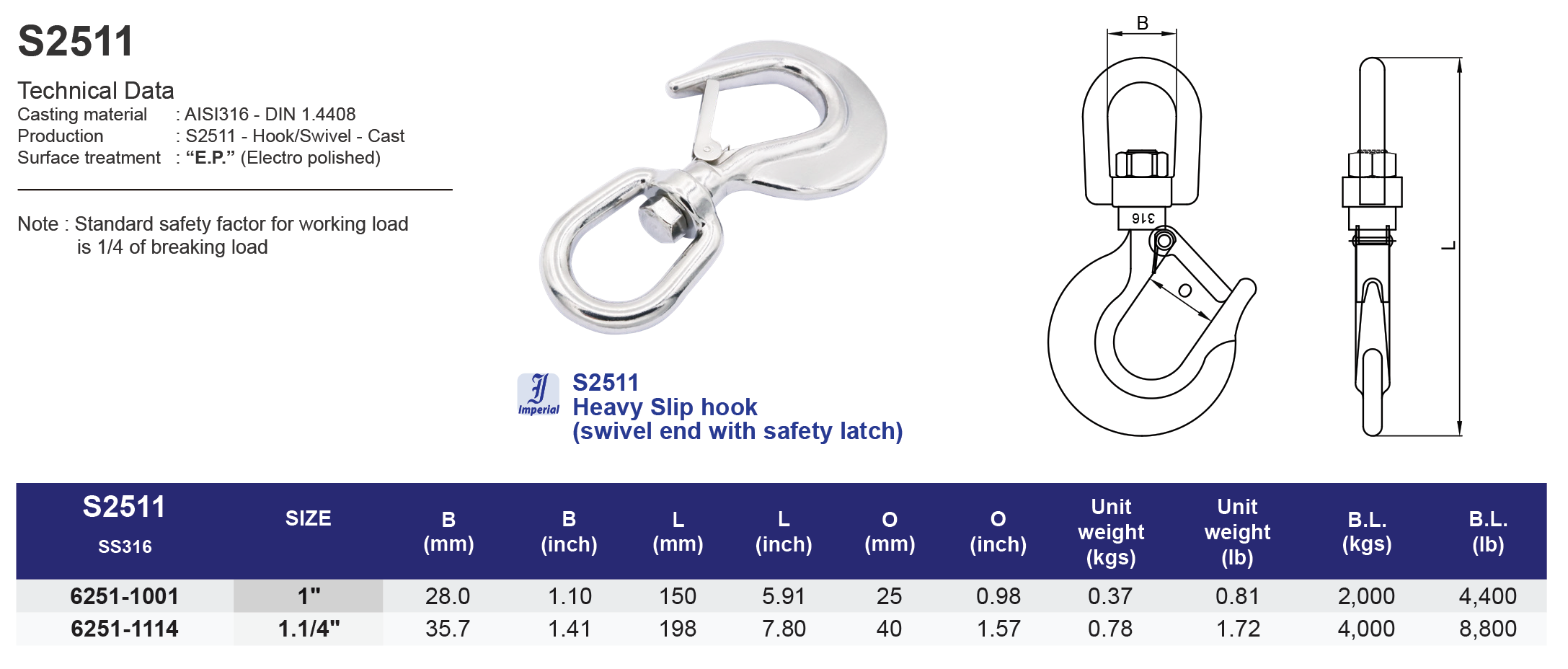

Model
S2511

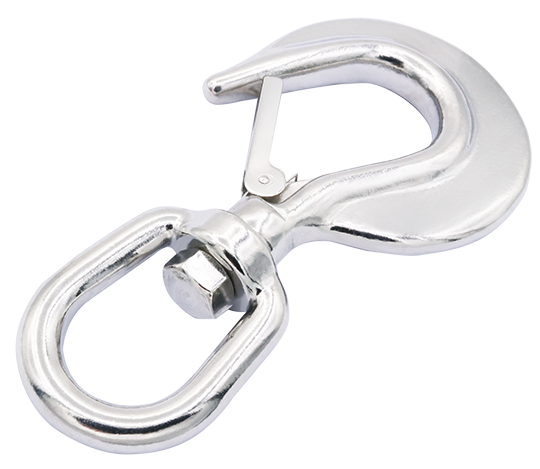

Heavy slip hook (swivel end with safety latch)
316 ss
| SS316 | Size | B (mm) | L (mm) | O (mm) | Unit weight (kgs) | B.L. (kgs) |
|---|---|---|---|---|---|---|
| 62511001 | 1" | 28 | 150 | 23.5 | 0.37 | 2,000 |
| 62511114 | 1.1/4" | 35.7 | 198 | 29.5 | 0.78 | 4,000 |
| SS316 | Size | B (inch) | L (inch) | O (inch) | Unit weight (lb) | B.L. (lb) |
|---|---|---|---|---|---|---|
| 62511001 | 1" | 1.1 | 5.91 | 0.93 | 0.81 | 4,400 |
| 62511114 | 1.1/4" | 1.41 | 7.80 | 1.16 | 1.72 | 8,800 |
