Description
Technical Data
Casting Material : AISI316 - DIN 1.4408
Forging Material : AISI316 - DIN 1.4401
Production : S260 Clip - Cast U-bolt - Forged
Surface Treatment : “E.P.” (Electro polished)
DATA SHEET DOWNLOAD

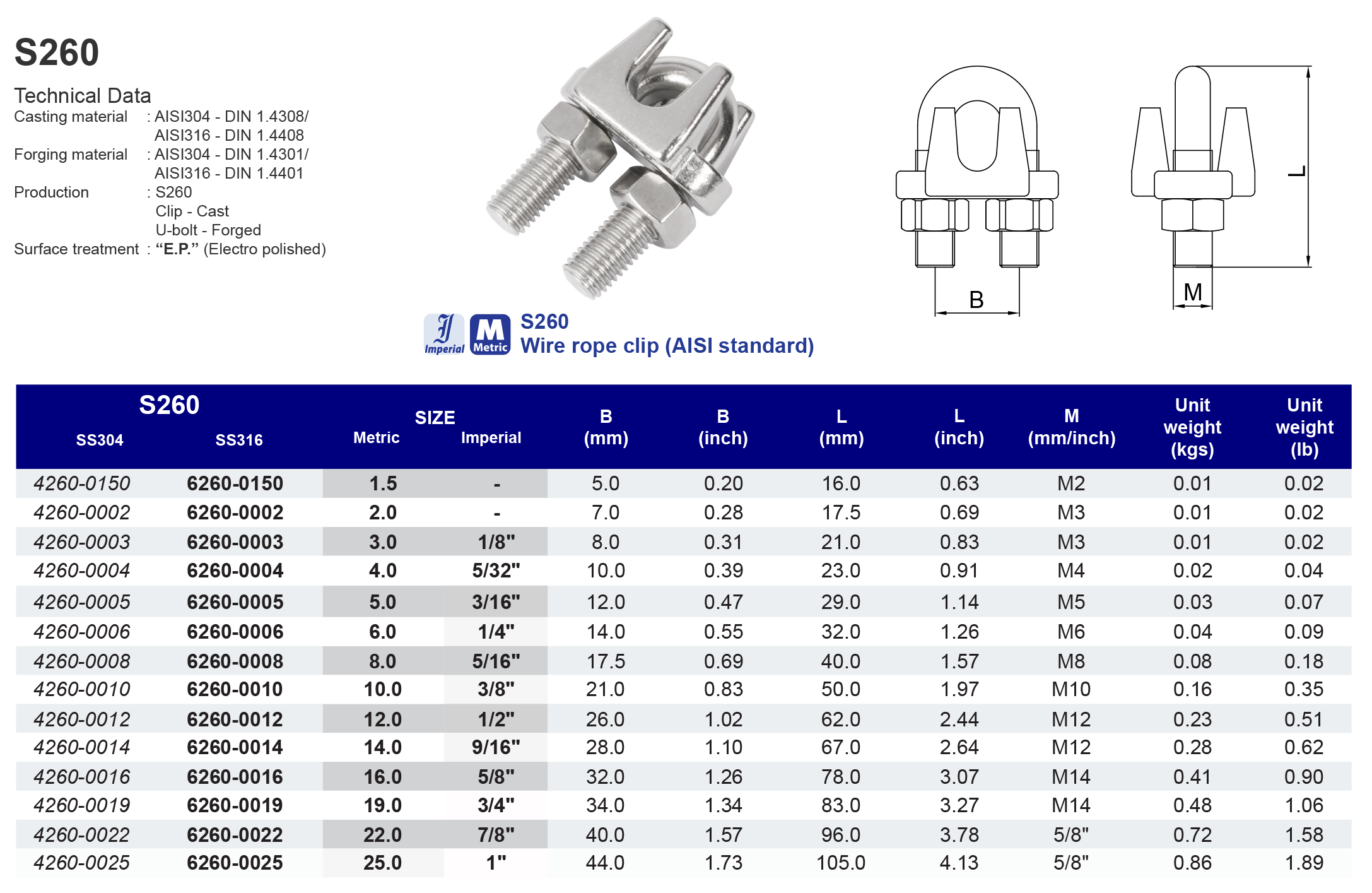

Model
S260

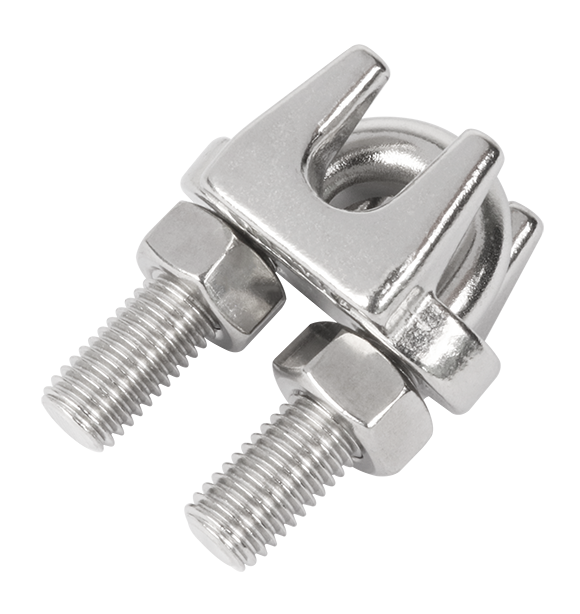

Wire rope clip (AISI standard)
316 ss
| SS316 | Size (Metric) | Size (Imperial) | B (mm) | L (mm) | M (mm/inch) | Unit weight (kgs) |
|---|---|---|---|---|---|---|
| 62600150 | 1.5 | 1/16" | 5 | 16 | M2 | 0.01 |
| 62600002 | 2 | 3/32" | 7 | 17.5 | M3 | 0.01 |
| 62600003 | 3 | 1/8" | 8 | 21 | M3 | 0.01 |
| 62600004 | 4 | 5/32" | 10 | 23 | M4 | 0.02 |
| 62600005 | 5 | 3/16" | 12 | 29 | M5 | 0.03 |
| 62600006 | 6 | 1/4" | 14 | 32 | M6 | 0.04 |
| 62600008 | 8 | 5/16" | 17.5 | 40 | M8 | 0.08 |
| 62600010 | 10 | 3/8" | 21 | 50 | M10 | 0.16 |
| 62600012 | 12 | 1/2" | 26 | 62 | M12 | 0.23 |
| 62600014 | 14 | 9/16" | 28 | 67 | M12 | 0.28 |
| 62600016 | 16 | 5/8" | 32 | 78 | M14 | 0.41 |
| 62600019 | 19 | 3/4" | 34 | 83 | M14 | 0.48 |
| 62600022 | 22 | 7/8" | 40 | 96 | 5/8" | 0.72 |
| 62600025 | 25 | 1" | 44 | 105 | 5/8" | 0.86 |
| SS316 | Size (Metric) | Size (Imperial) | B (inch) | L (inch) | M (mm/inch) | Unit weight (lb) |
|---|---|---|---|---|---|---|
| 62600150 | 1.5 | 1/16" | 0.2 | 0.63 | M2 | 0.02 |
| 62600002 | 2 | 3/32" | 0.28 | 0.69 | M3 | 0.02 |
| 62600003 | 3 | 1/8" | 0.31 | 0.83 | M3 | 0.02 |
| 62600004 | 4 | 5/32" | 0.39 | 0.91 | M4 | 0.04 |
| 62600005 | 5 | 3/16" | 0.47 | 1.14 | M5 | 0.07 |
| 62600006 | 6 | 1/4" | 0.55 | 1.26 | M6 | 0.09 |
| 62600008 | 8 | 5/16" | 0.69 | 1.57 | M8 | 0.18 |
| 62600010 | 10 | 3/8" | 0.83 | 1.97 | M10 | 0.35 |
| 62600012 | 12 | 1/2" | 1.02 | 2.44 | M12 | 0.51 |
| 62600014 | 14 | 9/16" | 1.10 | 2.64 | M12 | 0.62 |
| 62600016 | 16 | 5/8" | 1.26 | 3.07 | M14 | 0.90 |
| 62600019 | 19 | 3/4" | 1.34 | 3.27 | M14 | 1.06 |
| 62600022 | 22 | 7/8" | 1.57 | 3.78 | 5/8" | 1.58 |
| 62600025 | 25 | 1" | 1.73 | 4.13 | 5/8" | 1.89 |
