Description
Technical Data:
Casting Material: AISI316 - DIN 1.4408
Forging Material: AISI316 - DIN 1.4401
Production: S2831 - Hook - Cast
Surface Treatment: “E.P.” (Electro polished)
RH:Right hand thread
LH:Left hand thread

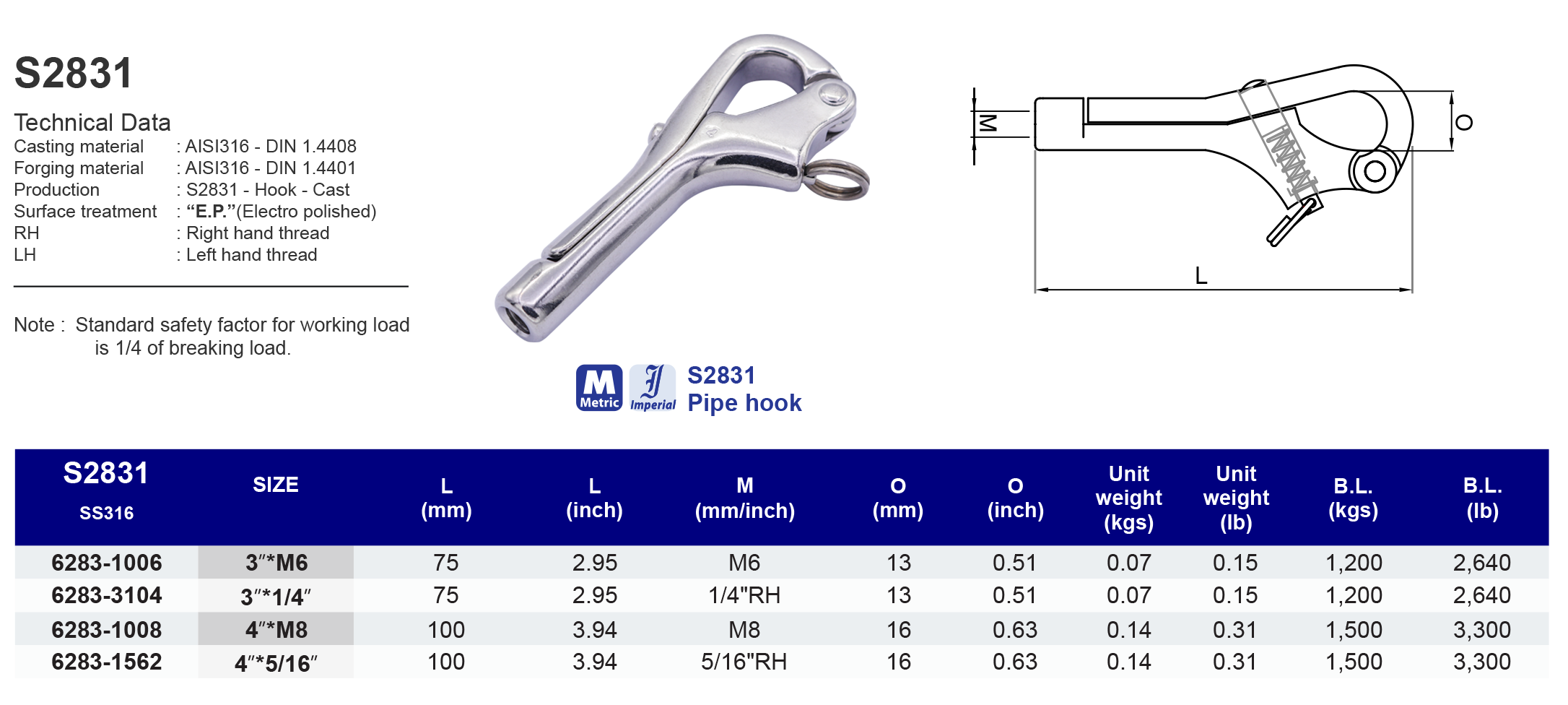

Model
S2831

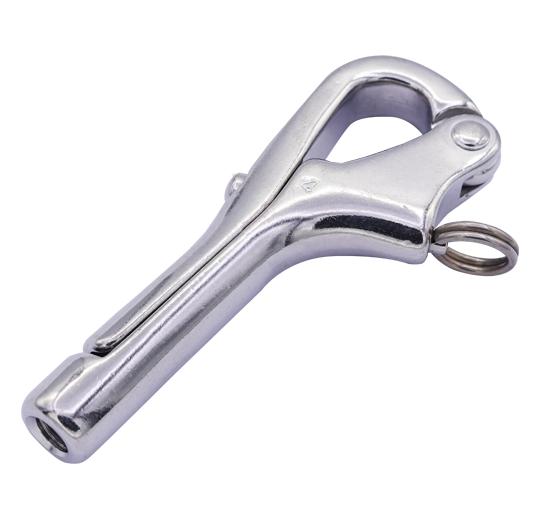

Pelican hook
316 ss
| SS316 | Size | L (mm) | M (mm) | o (mm) | Unit weight (kgs) | B.L. (kgs) |
|---|---|---|---|---|---|---|
| 62831006 | 3"*M6 | 75 | M6 | 13 | 0.07 | 1,200 |
| 62831008 | 4"*M8 | 100 | M8 | 16 | 0.14 | 1,500 |
| SS316 | Size | L (inch) | M (inch) | o (inch) | Unit weight (lb) | B.L. (lb) |
|---|---|---|---|---|---|---|
| 62833104 | 3"*1/4" | 2.95 | 1/4"RH | 0.51 | 0.15 | 2,640 |
| 62831562 | 4"*5/16" | 3.94 | 5/16"RH | 0.63 | 0.31 | 3,300 |
