Description
Technical Data:
Casting Material: AISI316 - DIN 1.4408
Forging Material: AISI316 - DIN 1.4401
Production: S311US / JE Frame - Forged
Hook / Eye - Cast
Surface Treatment: “M.F.” (Matte finished) Note : Standard safety factor for working load
is 1/4 of breaking load.

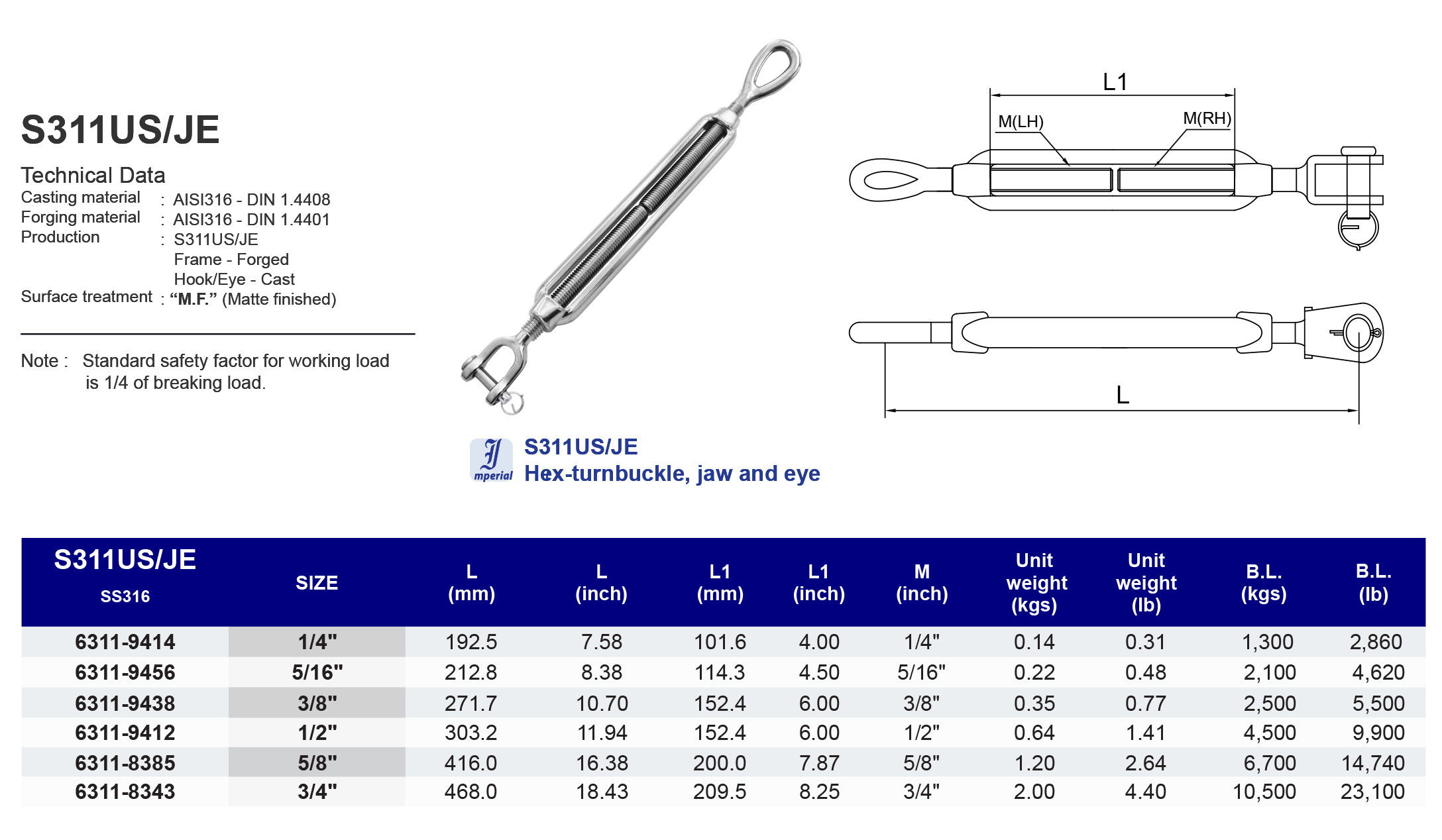

Model
S311US/JE

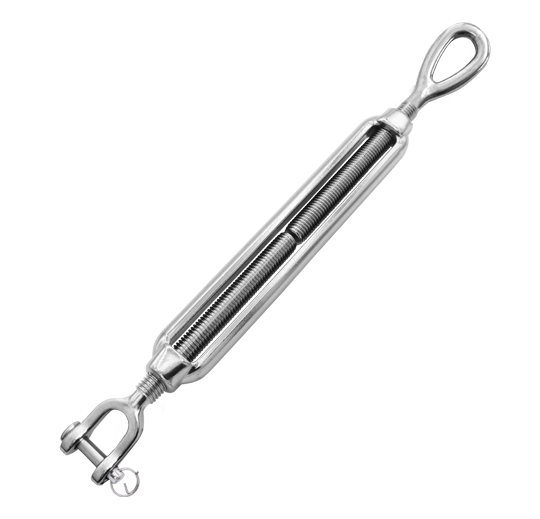

Hex turnbuckle, jaw and eye
316 ss
| SS316 | Size | L (mm) | L1 (mm) | M (inch) | Unit weight (kgs) | B.L. (kgs) |
|---|---|---|---|---|---|---|
| 63119414 | 1/4" | 192.5 | 101.6 | 1/4" | 0.14 | 1,300 |
| 63119456 | 5/16" | 212.8 | 114.3 | 5/16" | 0.22 | 2,100 |
| 63119438 | 3/8" | 271.7 | 152.4 | 3/8" | 0.35 | 2,500 |
| 63119412 | 1/2" | 303.2 | 152.4 | 1/2" | 0.64 | 4,500 |
| 63118385 | 5/8" | 416.0 | 200.0 | 5/8" | 1.20 | 6,700 |
| 63118343 | 3/4" | 468.0 | 209.5 | 3/4" | 2.00 | 10,500 |
| SS316 | Size | L (inch) | L1 (inch) | M (inch) | Unit weight (lb) | B.L. (lb) |
|---|---|---|---|---|---|---|
| 63119414 | 1/4" | 7.58 | 4.00 | 1/4" | 0.31 | 2,860 |
| 63119456 | 5/16" | 8.38 | 4.50 | 5/16" | 0.48 | 4,620 |
| 63119438 | 3/8" | 10.70 | 6.00 | 3/8" | 0.77 | 5,500 |
| 63119412 | 1/2" | 11.94 | 6.00 | 1/2" | 1.41 | 9,900 |
| 63118385 | 5/8" | 16.38 | 7.87 | 5/8" | 2.64 | 14,740 |
| 63118343 | 3/4" | 18.43 | 8.25 | 3/4" | 4.40 | 23,100 |
