Description

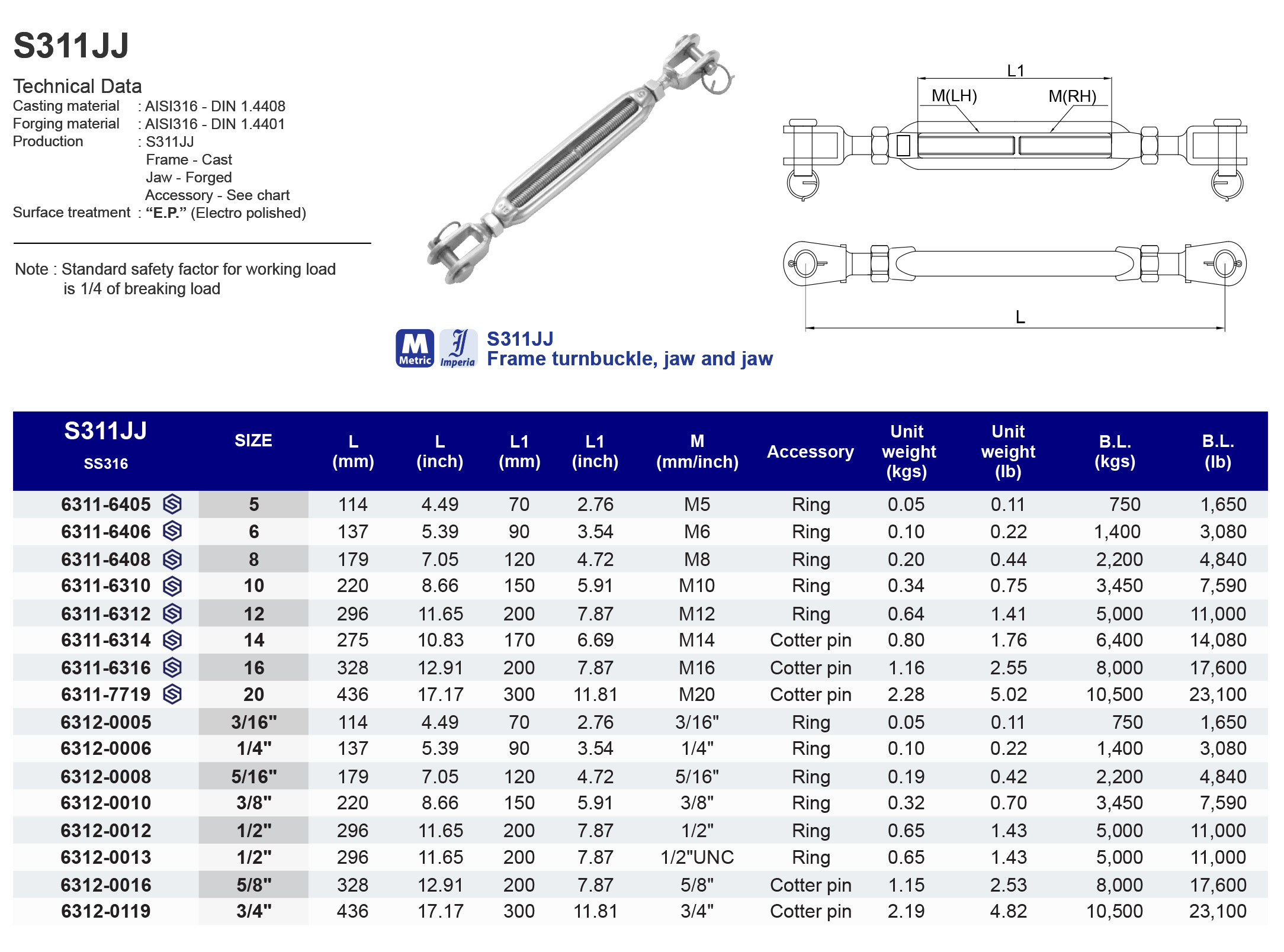

Technical Data:
Casting Material: AISI316 - DIN 1.4408
Forging Material: AISI316 - DIN 1.4401
Production: S311JJ - Frame - Cast
Jaw - Forged
Accessory - See Chart
Surface Treatment: “E.P.” (Electro polished) DATA SHEET DOWNLOAD
Model
S311JJ

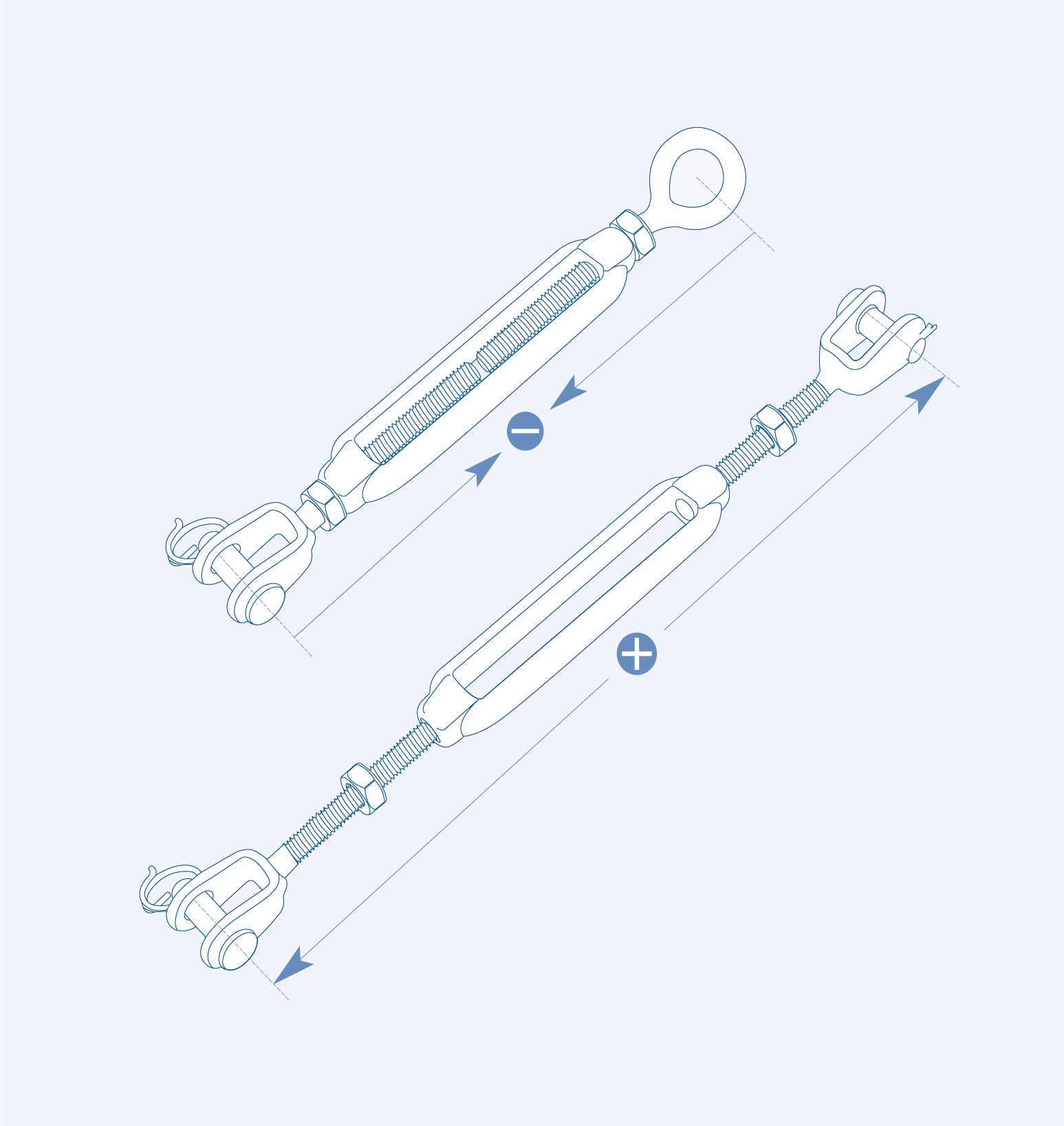

Frame turnbuckle, jaw and eye
316 ss
| SS316 | Size | L (mm) | L1 (mm) | M (mm) | Accessory | Unit weight (kgs) | B.L. (kgs) |
|---|---|---|---|---|---|---|---|
| 63116405 | 5 | 114 | 70 | M5 | Ring | 0.05 | 750 |
| 63116406 | 6 | 137 | 90 | M6 | Ring | 0.10 | 1,400 |
| 63116408 | 8 | 179 | 120 | M8 | Ring | 0.20 | 2,200 |
| 63116310 | 10 | 220 | 150 | M10 | Ring | 0.34 | 3,450 |
| 63116312 | 12 | 296 | 200 | M12 | Ring | 0.64 | 5,000 |
| 63116314 | 14 | 275 | 170 | M14 | Cotter pin | 0.80 | 6,400 |
| 63116316 | 16 | 328 | 200 | M16 | Cotter pin | 1.16 | 8,000 |
| 63117719 | 20 | 436 | 300 | M20 | Cotter pin | 2.28 | 10,500 |
| SS316 | Size | L (inch) | L1 (inch) | M (inch) | Accessory | Unit weight (lb) | B.L. (lb) |
|---|---|---|---|---|---|---|---|
| 63120005 | 3/16" | 4.49 | 2.76 | 3/16" | Ring | 0.11 | 1,650 |
| 63120006 | 1/4" | 5.39 | 3.54 | 1/4" | Ring | 0.22 | 3,080 |
| 63120008 | 5/16" | 7.05 | 4.72 | 5/16" | Ring | 0.42 | 4,840 |
| 63120010 | 3/8" | 8.66 | 5.91 | 3/8" | Ring | 0.70 | 7,590 |
| 63120012 | 1/2" | 11.65 | 7.87 | 1/2" | Ring | 1.43 | 11,000 |
| 63120013 | 1/2" | 11.65 | 7.87 | 1/2"UNC | Ring | 1.43 | 11,000 |
| 63120016 | 5/8" | 12.91 | 7.87 | 5/8" | Cotter pin | 2.53 | 17,600 |
| 63120119 | 3/4" | 17.17 | 11.81 | 3/4" | Cotter pin | 4.82 | 23,100 |
