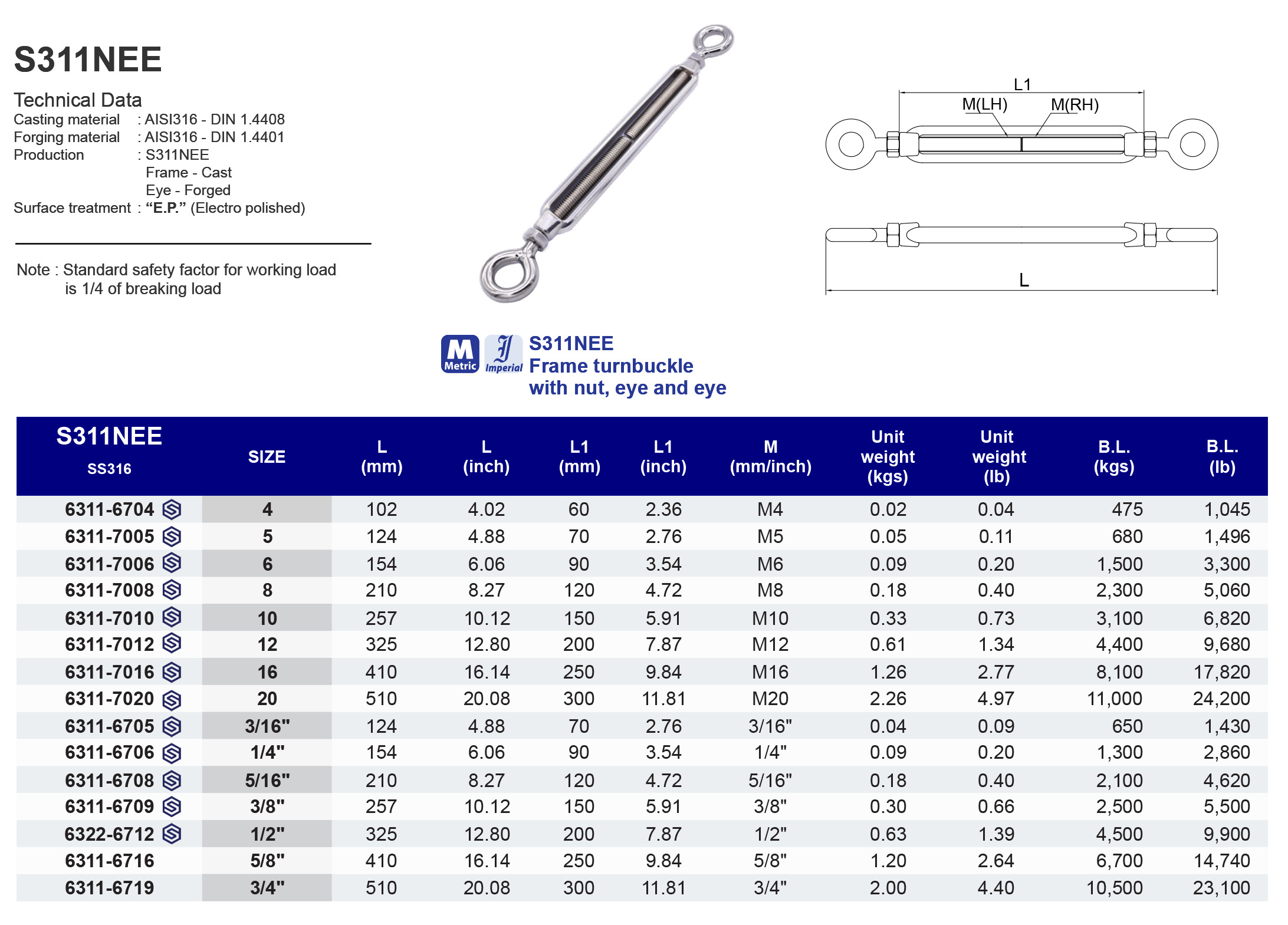

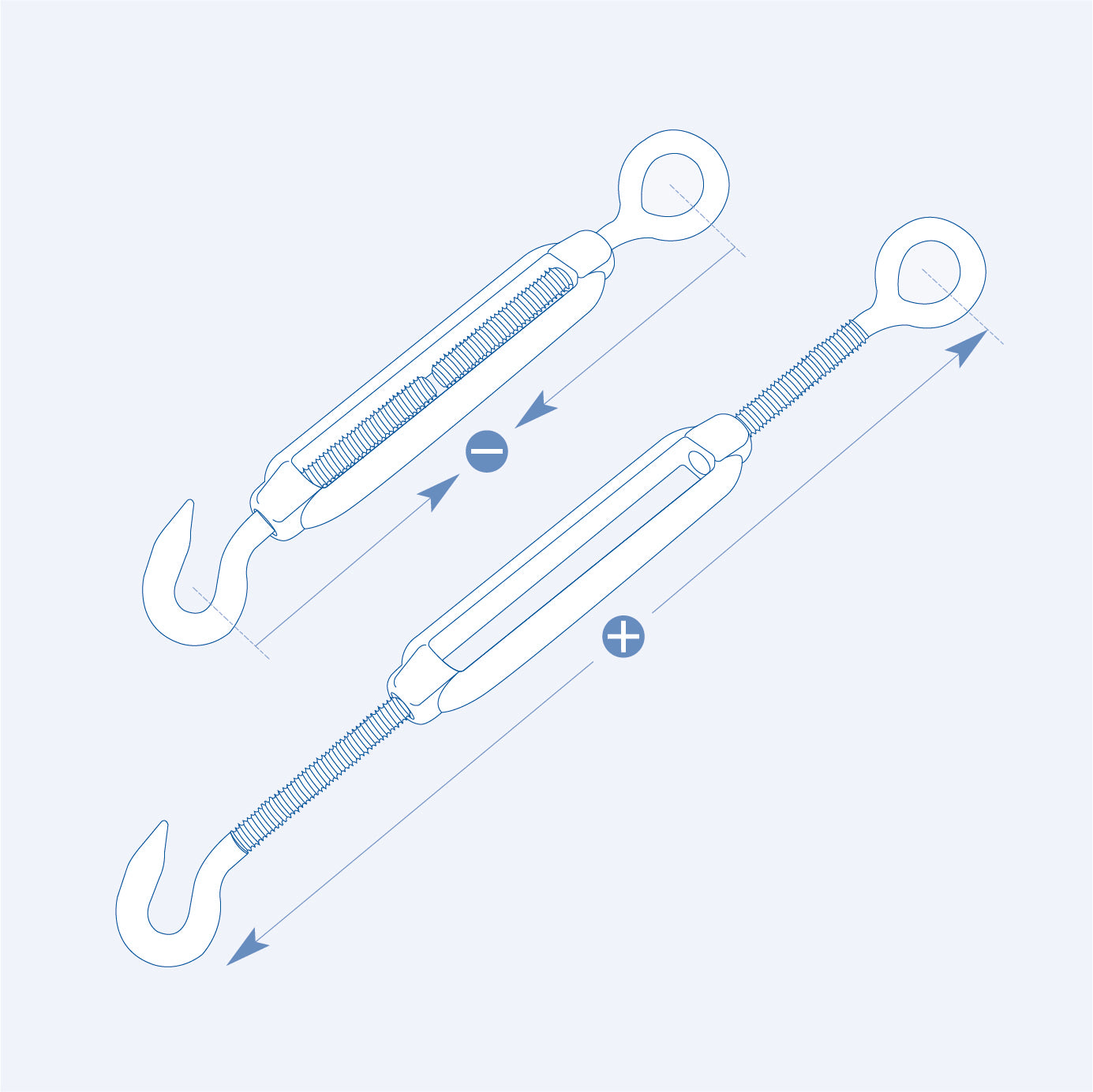

Description
Technical Data:
Casting Material: AISI316 - DIN 1.4408
Forging Material: AISI316 - DIN 1.4401
Production: S311NEE - Frame - Cast
Eye - Forged
Surface Treatment: “E.P.” (Electro polished) Note : Standard safety factor for working load
is 1/4 of breaking load
Model
S311NEE

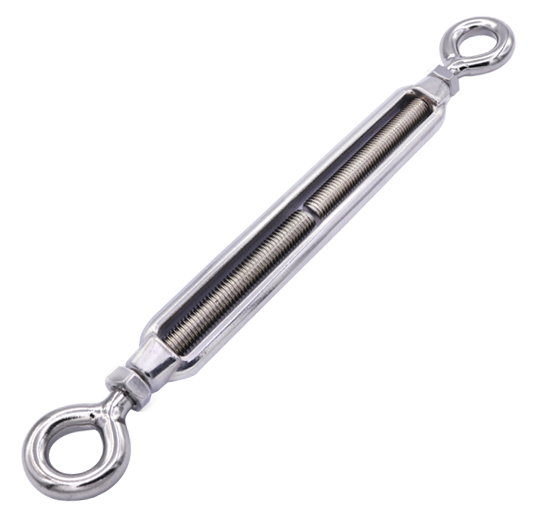

Frame turnbuckle with nut eye and eye
316 ss
| SS316 | Size | L (mm) | L1 (mm) | M (mm) | Unit weight (kgs) | B.L. (kgs) |
|---|---|---|---|---|---|---|
| 63116704 | 4 | 102 | 60 | M4 | 0.02 | 475 |
| 63117005 | 5 | 124 | 70 | M5 | 0.05 | 680 |
| 63117006 | 6 | 154 | 90 | M6 | 0.09 | 1,500 |
| 63117008 | 8 | 210 | 120 | M8 | 0.18 | 2,300 |
| 63117010 | 10 | 257 | 150 | M10 | 0.33 | 3,100 |
| 63117012 | 12 | 325 | 200 | M12 | 0.61 | 4,400 |
| 63117016 | 16 | 410 | 250 | M16 | 1.26 | 8,100 |
| 63117020 | 20 | 510 | 300 | M20 | 2.26 | 11,000 |
| SS316 | Size | L (inch) | L1 (inch) | M (inch) | Unit weight (lb) | B.L. (lb) |
|---|---|---|---|---|---|---|
| 63116705 | 3/16" | 4.88 | 2.76 | 3/16" | 0.09 | 1,430 |
| 63116706 | 1/4" | 6.06 | 3.54 | 1/4" | 0.20 | 2,860 |
| 63116708 | 5/16" | 8.27 | 4.72 | 5/16" | 0.40 | 4,620 |
| 63116709 | 3/8" | 10.12 | 5.91 | 3/8" | 0.66 | 5,500 |
| 63226712 | 1/2" | 12.80 | 7.87 | 1/2" | 1.39 | 9,900 |
| 63116716 | 5/8" | 16.14 | 9.84 | 5/8" | 2.64 | 14,740 |
| 63116719 | 3/4" | 20.08 | 11.81 | 3/4" | 4.40 | 23,100 |
