Description

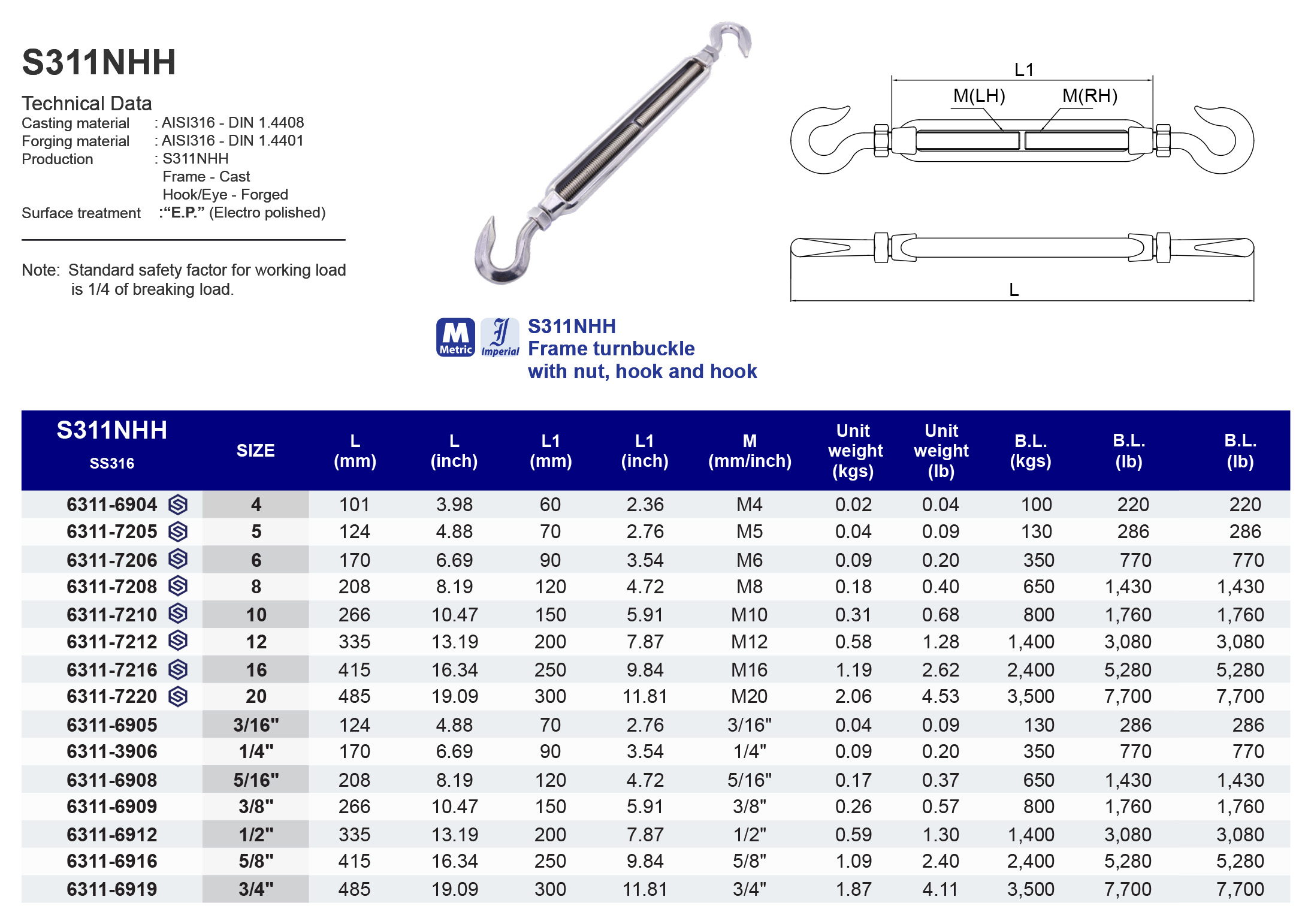

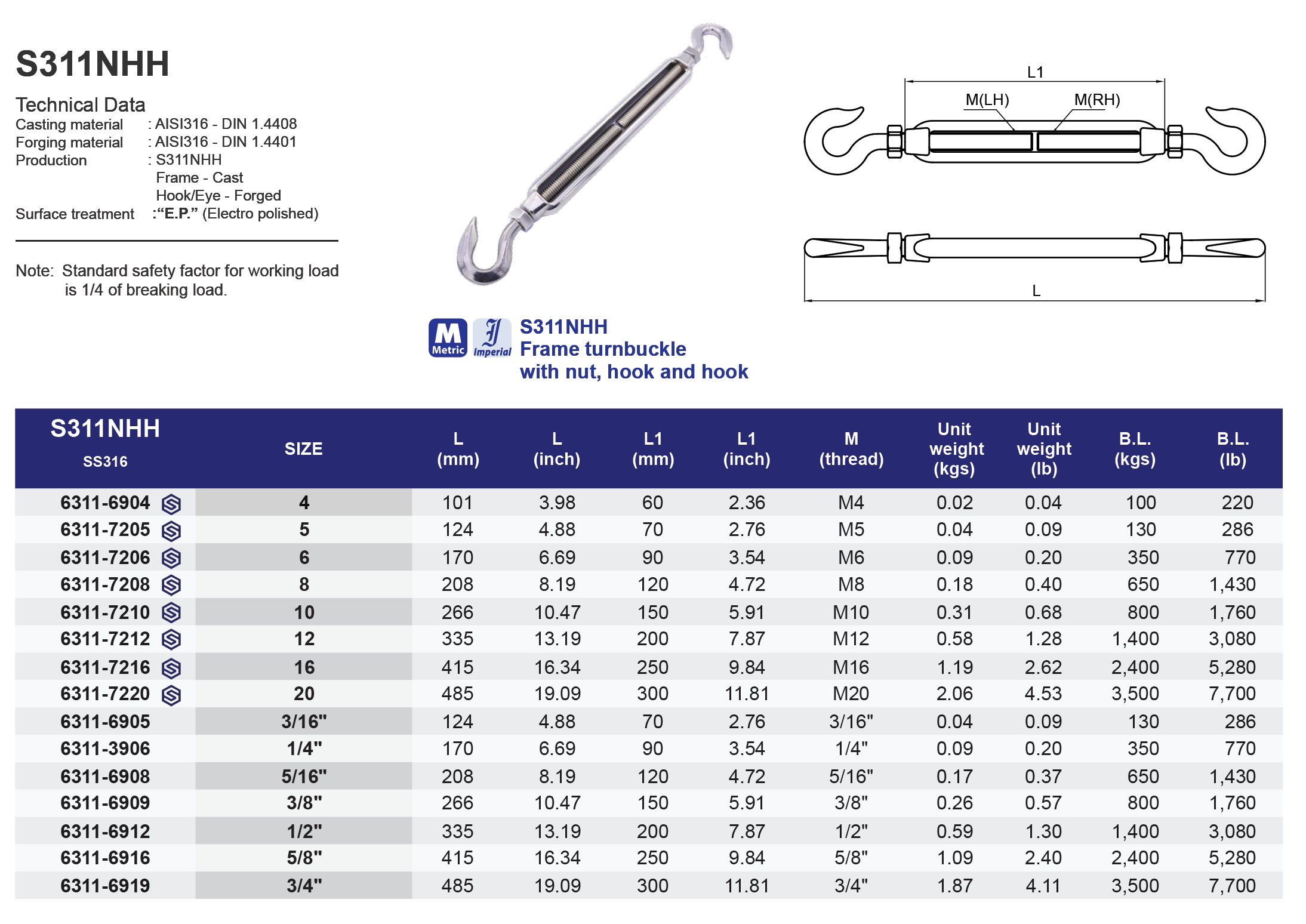

Technical Data:
Casting Material: AISI316 - DIN 1.4408
Forging Material: AISI316 - DIN 1.4401
Production: S311NHH - Frame - Cast
Hook - Forged
Surface Treatment: “E.P.” (Electro polished) Note: Standard safety factor for working load
is 1/4 of breaking load.
Model
S311NHH

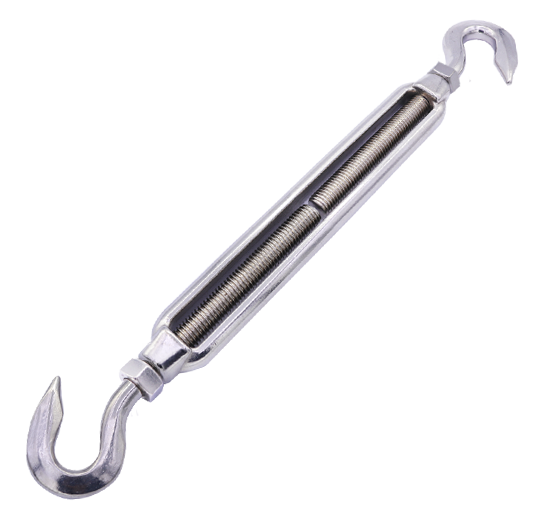

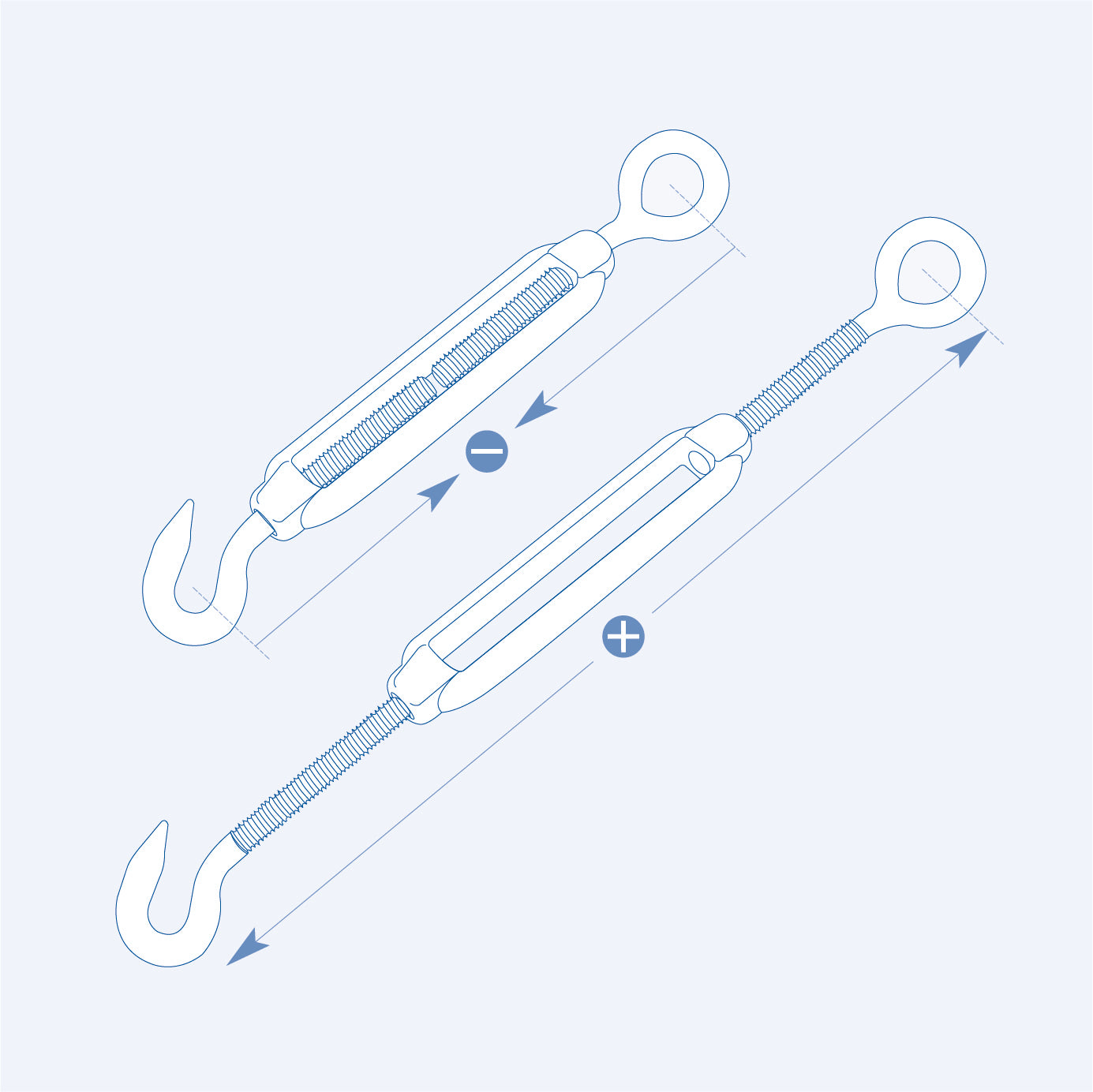

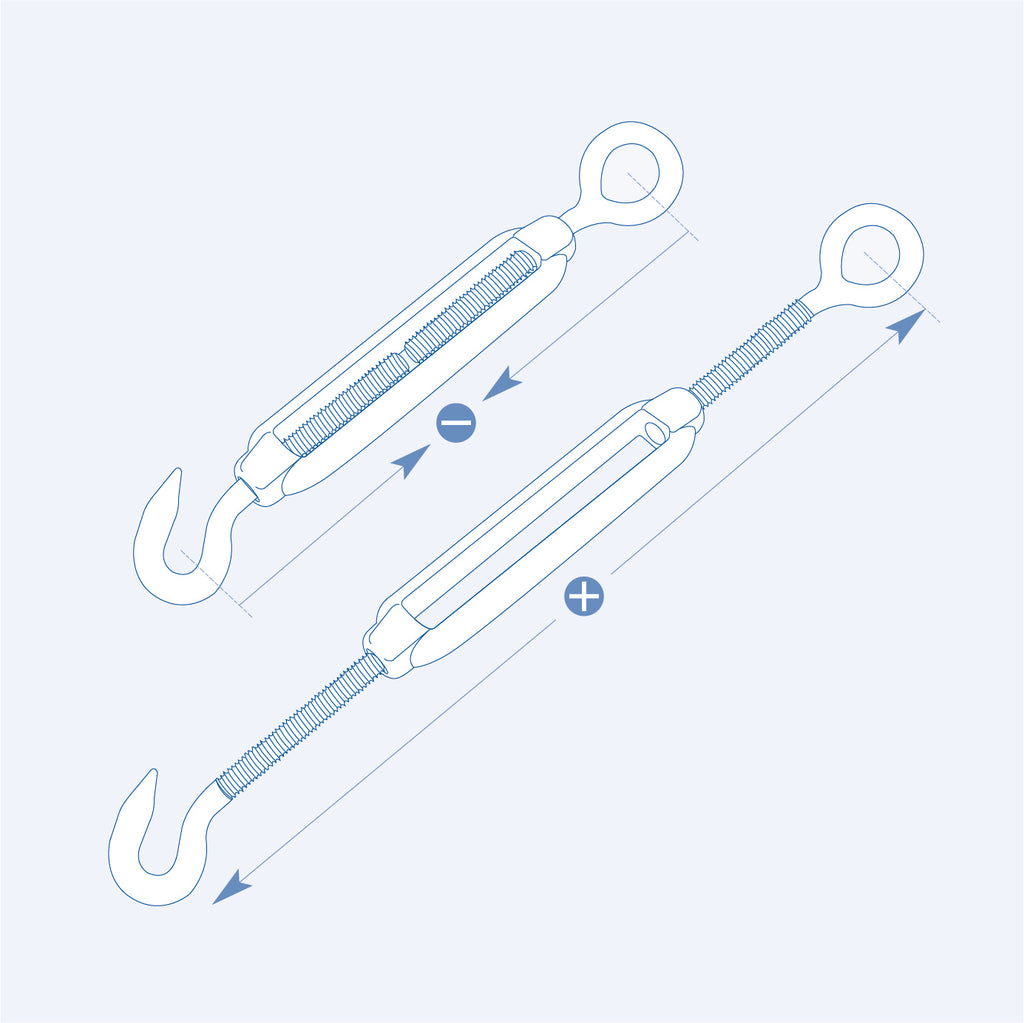

Frame turnbuckle with nut hook and hook
316 ss
| SS316 | Size | L (mm) | L1 (mm) | M (mm) | Unit weight (kgs) | B.L. (kgs) |
|---|---|---|---|---|---|---|
| 63116904 | 4 | 101 | 60 | M4 | 0.02 | 100 |
| 63117205 | 5 | 124 | 70 | M5 | 0.04 | 130 |
| 63117206 | 6 | 170 | 90 | M6 | 0.09 | 350 |
| 63117208 | 8 | 208 | 120 | M8 | 0.18 | 650 |
| 63117210 | 10 | 266 | 150 | M10 | 0.31 | 800 |
| 63117212 | 12 | 335 | 200 | M12 | 0.58 | 1,400 |
| 63117216 | 16 | 415 | 250 | M16 | 1.19 | 2,400 |
| 63117220 | 20 | 485 | 300 | M20 | 2.06 | 3,500 |
| SS316 | Size | L (inch) | L1 (inch) | M (inch) | Unit weight (lb) | B.L. (lb) |
|---|---|---|---|---|---|---|
| 63116905 | 3/16" | 4.88 | 2.76 | 3/16" | 0.09 | 286 |
| 63113906 | 1/4" | 6.69 | 3.54 | 1/4" | 0.20 | 770 |
| 63116908 | 5/16" | 8.19 | 4.72 | 5/16" | 0.37 | 1,430 |
| 63116909 | 3/8" | 10.47 | 5.91 | 3/8" | 0.57 | 1,760 |
| 63116912 | 1/2" | 13.19 | 7.87 | 1/2" | 1.30 | 3,080 |
| 63116916 | 5/8" | 16.34 | 9.84 | 5/8" | 2.40 | 5,280 |
| 63116919 | 3/4" | 19.09 | 11.81 | 3/4" | 4.11 | 7,700 |
