Description
Technical Data:
Casting Material:
AISI316 - DIN 1.4408
Forging Material:
AISI316 - DIN 1.4401
Production:
S312 / 5 - Swivel Toggle - Cast
Jaw - Forged
Accessory - See Chart
Surface Treatment:
Matte finished / Passivated
Model
S312-5

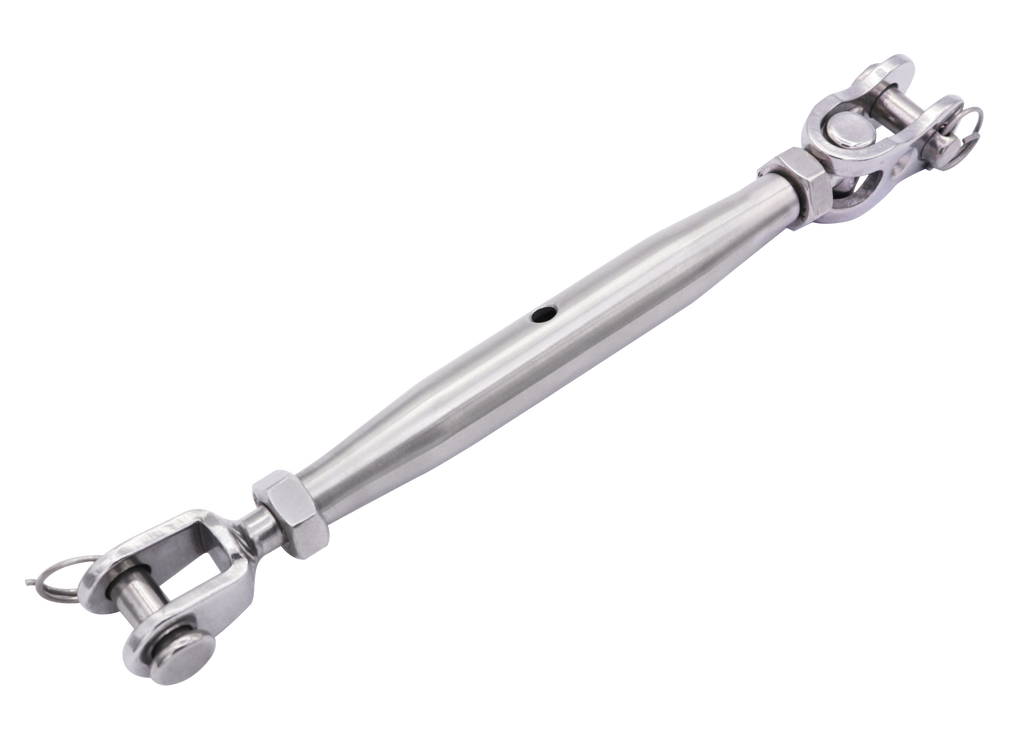

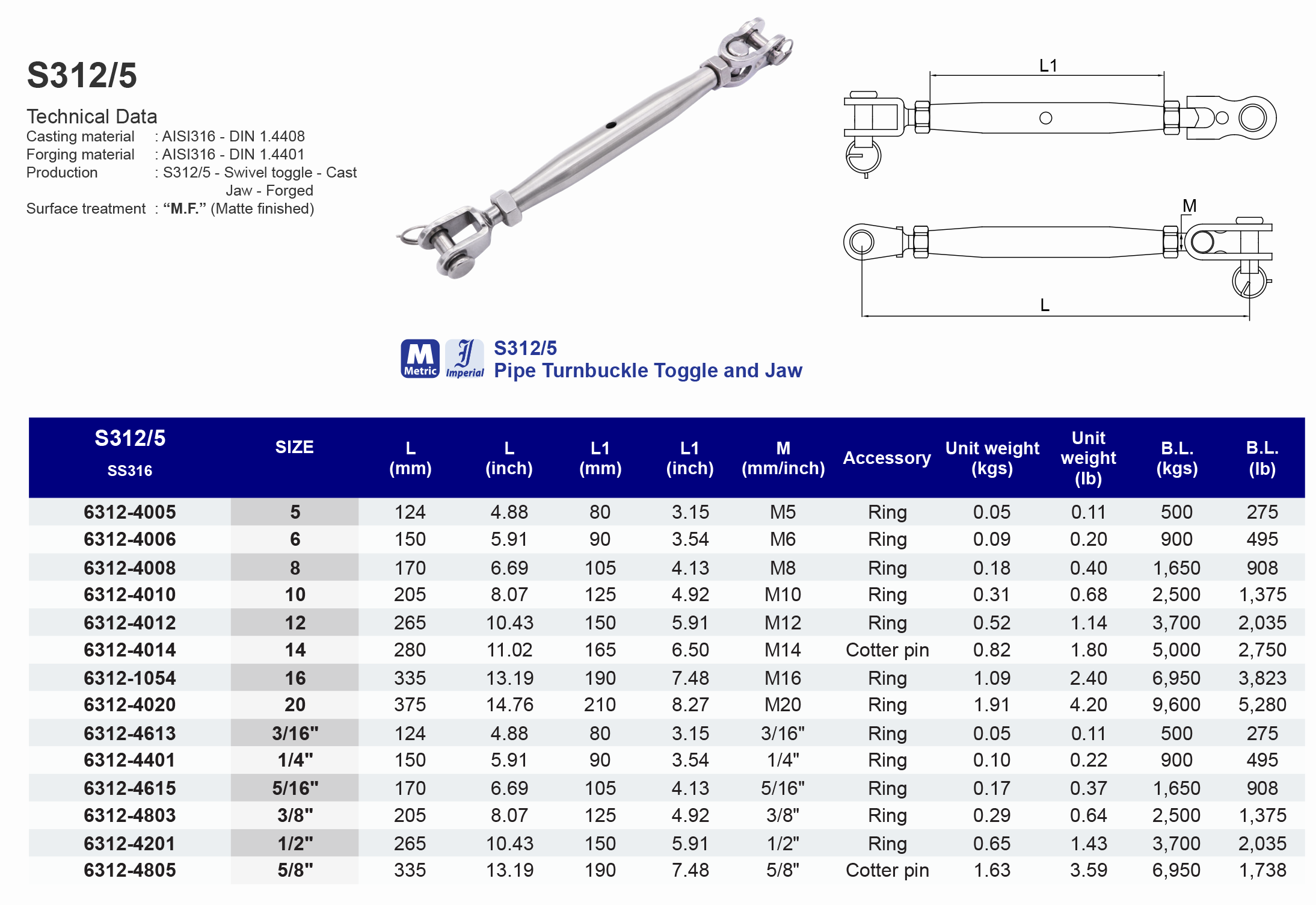

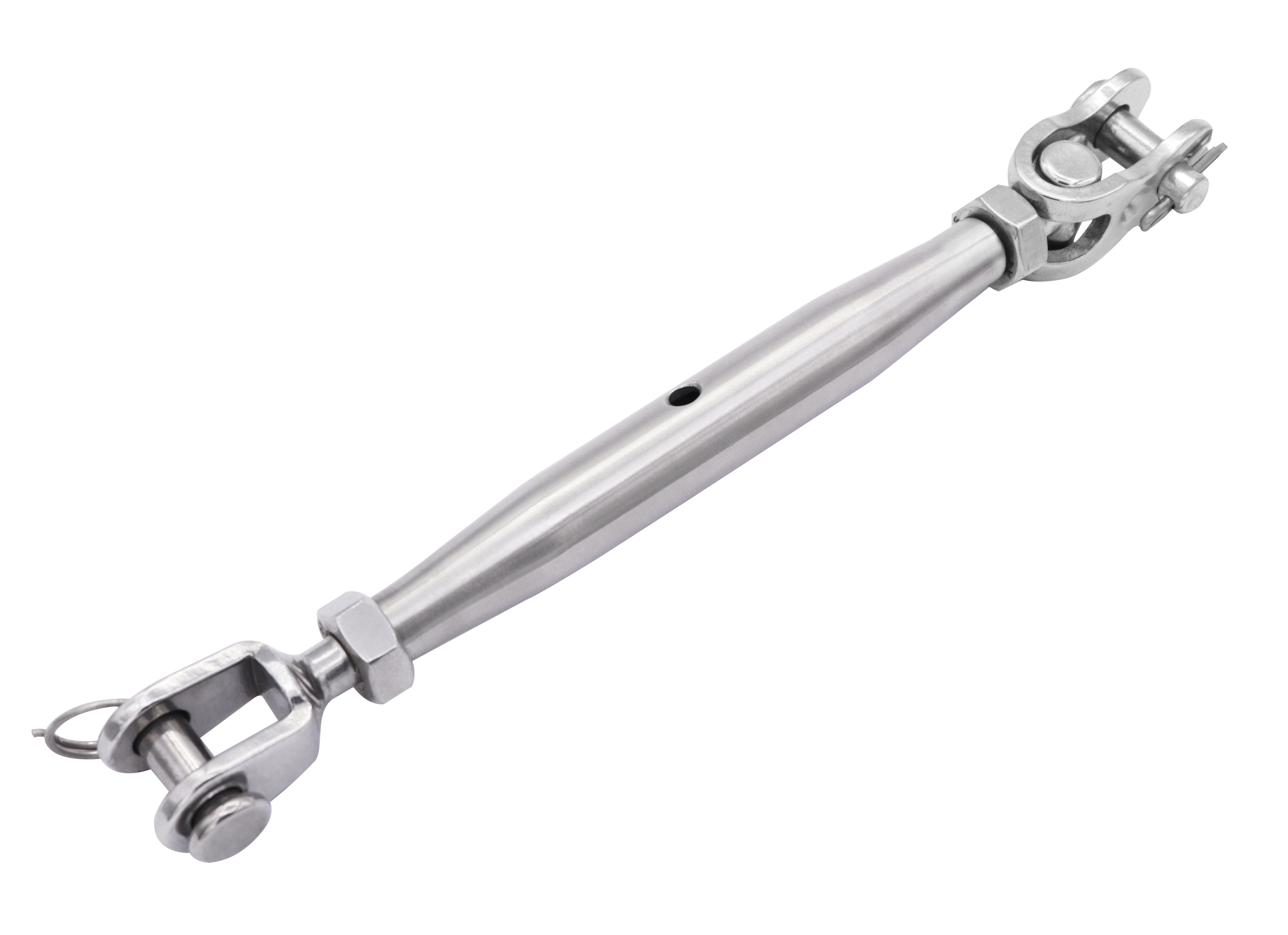

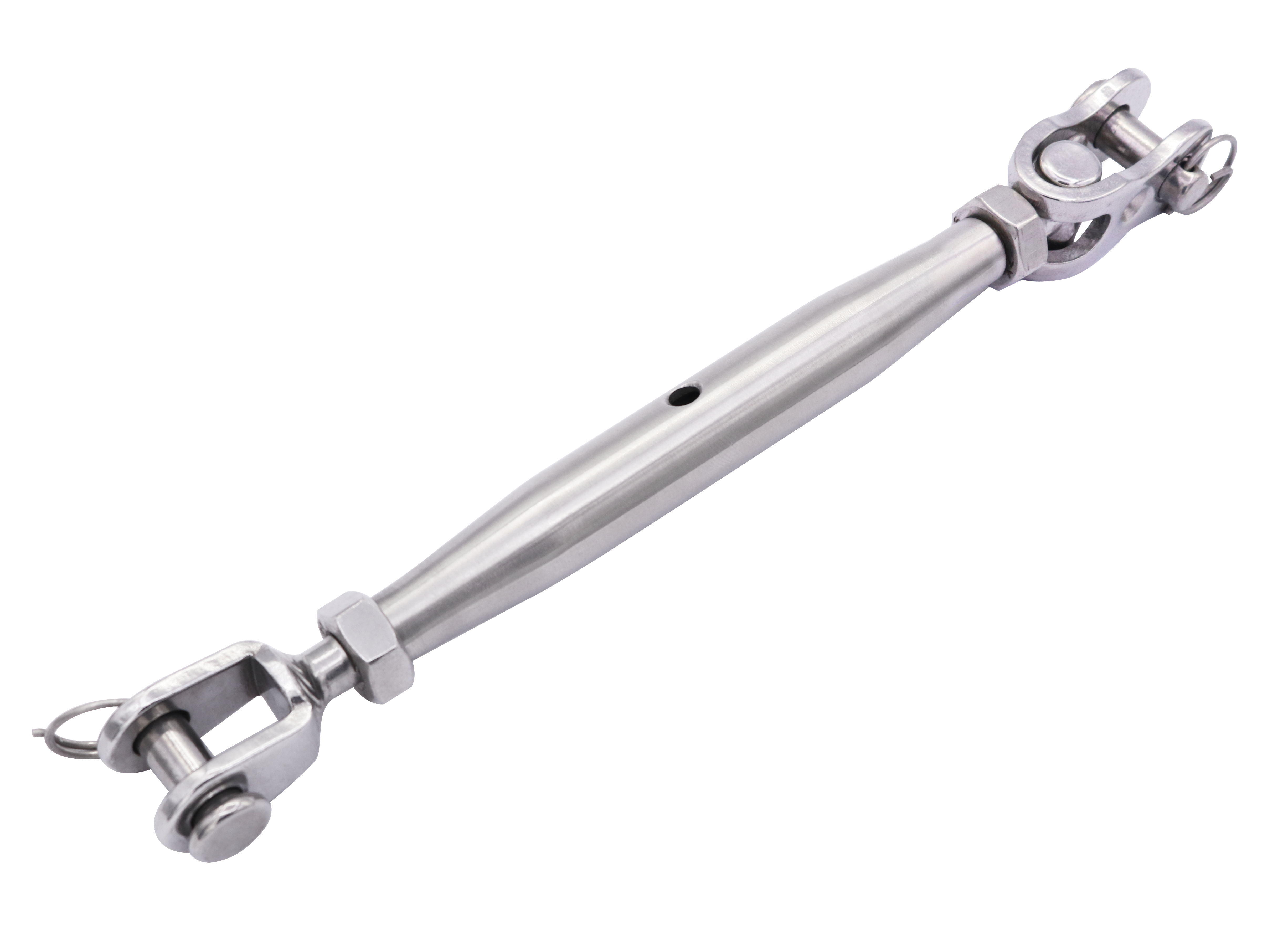

Pipe Turnbuckle Toggle and Jaw
316 ss
| SS316 | Size | L(mm) | L1(mm) | M(mm) | Accessory | Unit weight (kgs) | B.L.(kgs) |
|---|---|---|---|---|---|---|---|
| 63124005 | 5 | 124 | 80 | M5 | Ring | 0.05 | 500 |
| 63124006 | 6 | 150 | 90 | M6 | Ring | 0.09 | 900 |
| 63124008 | 8 | 170 | 105 | M8 | Ring | 0.18 | 1,650 |
| 63124010 | 10 | 205 | 125 | M10 | Ring | 0.31 | 2,500 |
| 63124012 | 12 | 265 | 150 | M12 | Ring | 0.52 | 3,700 |
| 63124014 | 14 | 280 | 165 | M14 | Cotter pin | 0.82 | 5,000 |
| 63121054 | 16 | 335 | 190 | M16 | Cotter pin | 1.09 | 6,950 |
| 63124020 | 20 | 375 | 210 | M20 | Cotter pin | 1.91 | 9,600 |
| SS316 | Size | L(inch) | L1(inch) | M(inch) | Accessory | Unit weight (Ib) | B.L.(lb) |
|---|---|---|---|---|---|---|---|
| 63124613 | 3/16" | 4.88 | 3.15 | 3/16" | Ring | 0.11 | 275 |
| 63124401 | 1/4" | 5.91 | 3.54 | 1/4" | Ring | 0.22 | 495 |
| 63124615 | 5/16" | 6.69 | 4.13 | 5/16" | Ring | 0.37 | 908 |
| 63124803 | 3/8" | 8.07 | 4.92 | 3/8" | Ring | 0.64 | 1,375 |
| 63124201 | 1/2" | 10.43 | 5.91 | 1/2" | Ring | 1.43 | 2,035 |
| 63124805 | 5/8" | 13.19 | 7.48 | 5/8" | Cotter pin | 3.59 | 1,738 |
