Description
Technical Data:
Casting Material: AISI316 - DIN 1.4408
Forging Material: AISI316 - DIN 1.4401
Production: S3121/5 Swivel Toggle - Cast Terminal - Forged
Accessory - See Chart
Surface Treatment: “M.F.” (Matte finished) Note : Standard safety factor for working load is 1/4 of breaking load
Model
S3121_5

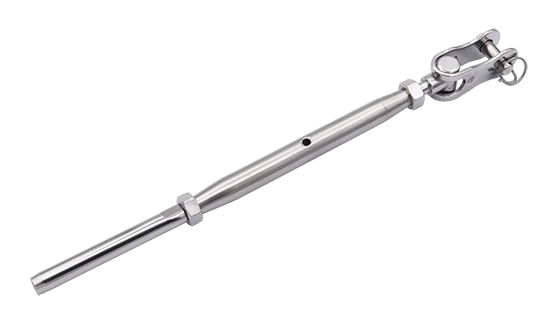

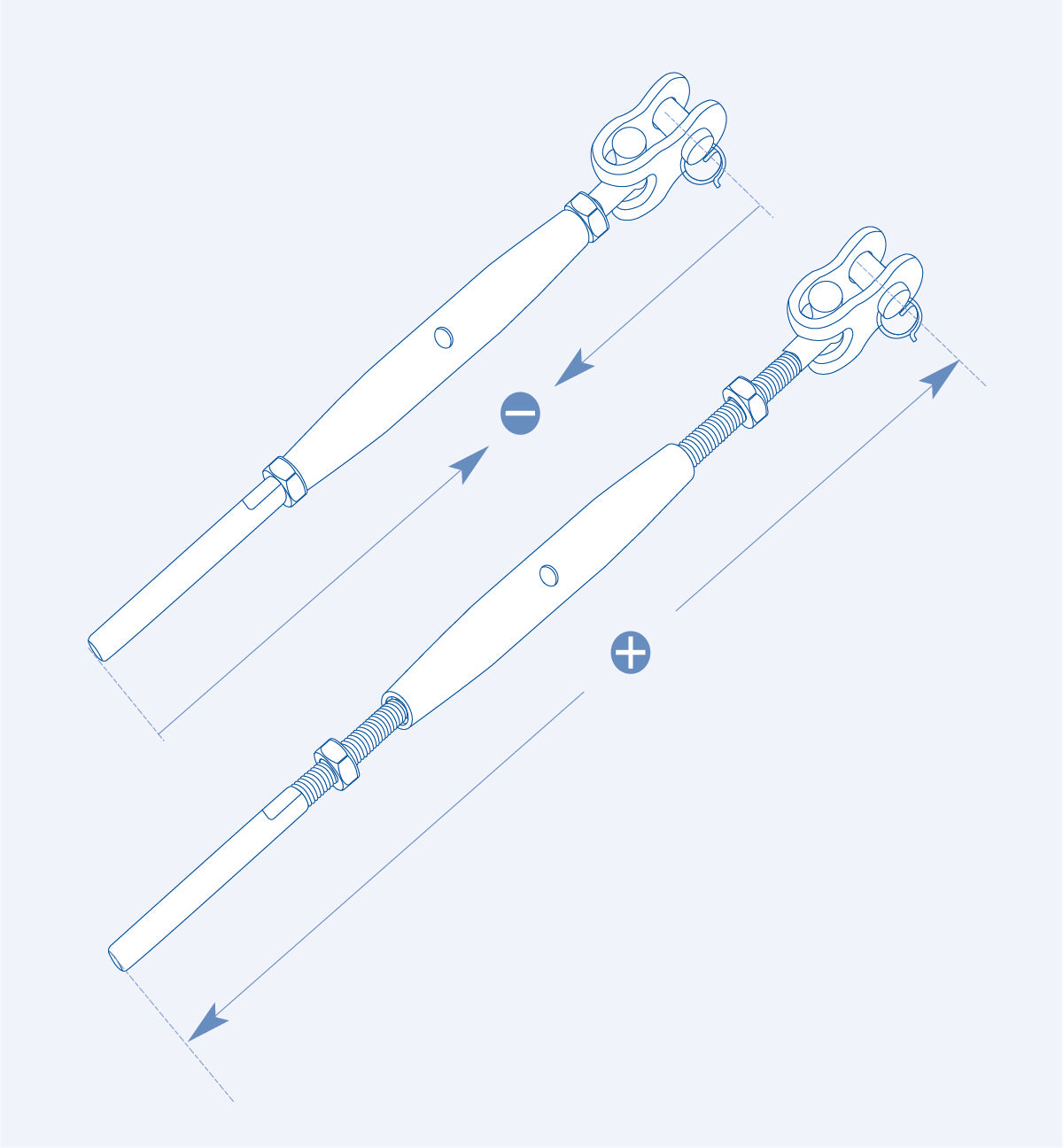

Pipe Turnbuckle toggle and swage stud
316 ss

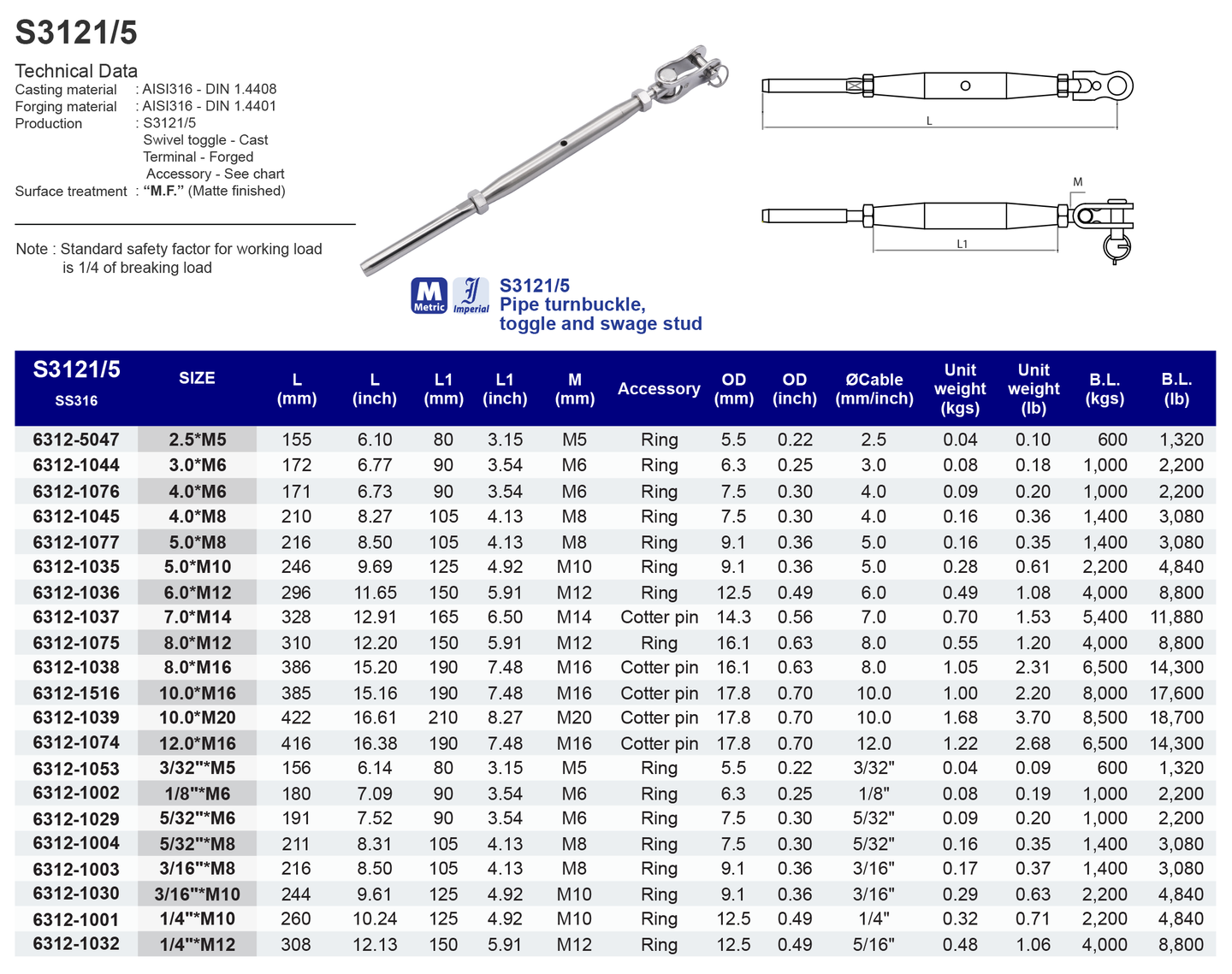

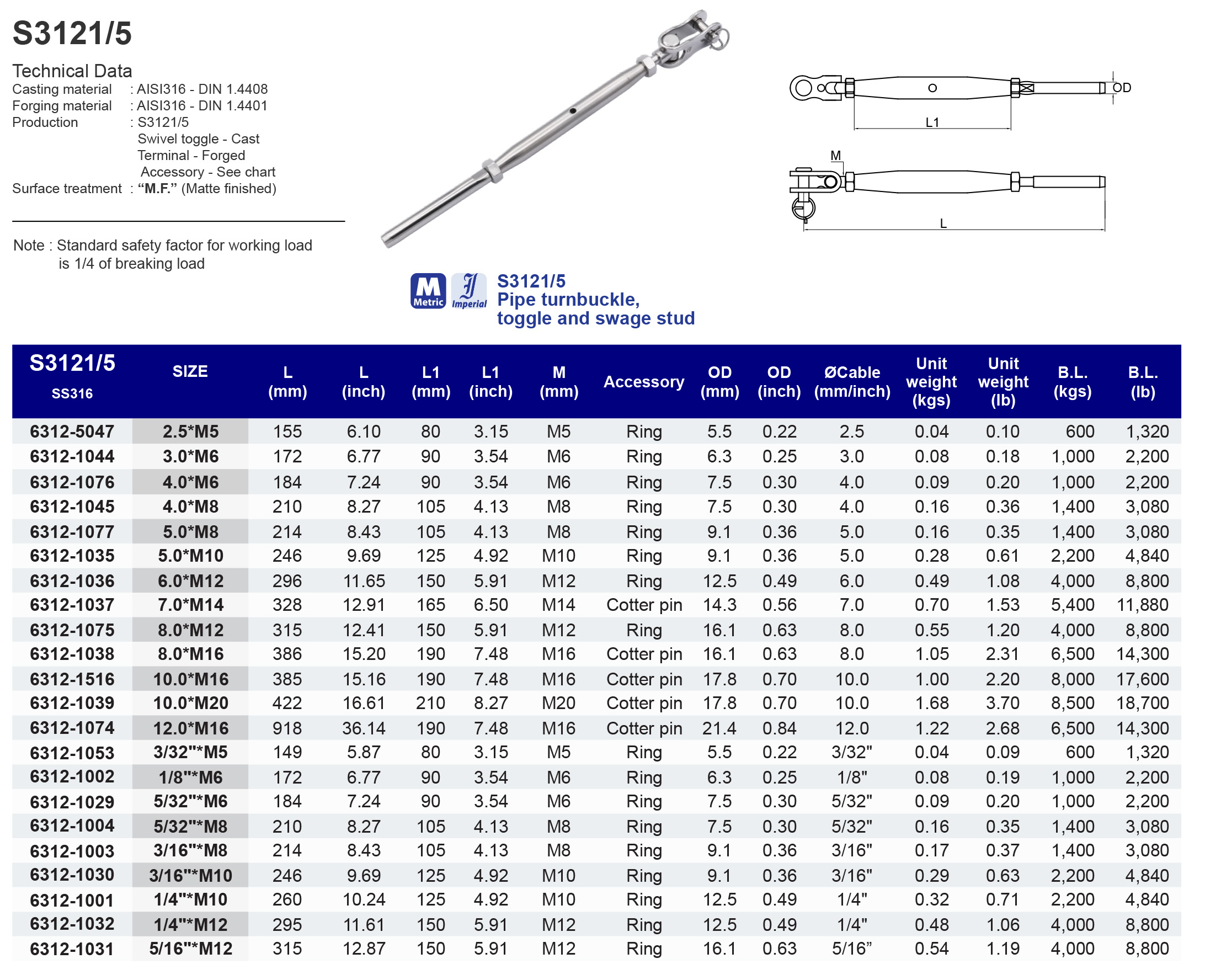

| SS316 | Size | L (mm) | L1 (mm) | M (mm) | Accessory | OD (mm) | ØCable (mm) | Unit weight (kgs) | B.L. (kgs) |
|---|---|---|---|---|---|---|---|---|---|
| 63125047 | 2.5*M5 | 155 | 80 | M5 | Ring | 5.5 | 2.5 | 0.04 | 600 |
| 63121044 | 3.0*M6 | 172 | 90 | M6 | Ring | 6.3 | 3 | 0.08 | 1,000 |
| 63121076 | 4.0*M6 | 184 | 90 | M6 | Ring | 7.5 | 4 | 0.09 | 1,000 |
| 63121045 | 4.0*M8 | 210 | 105 | M8 | Ring | 7.5 | 4 | 0.16 | 1,400 |
| 63121077 | 5.0*M8 | 214 | 105 | M8 | Ring | 9.1 | 5 | 0.16 | 1,400 |
| 63121035 | 5.0*M10 | 246 | 125 | M10 | Ring | 9.1 | 5 | 0.28 | 2,200 |
| 63121036 | 6.0*M12 | 296 | 150 | M12 | Ring | 12.5 | 6 | 0.49 | 4,000 |
| 63121037 | 7.0*M14 | 328 | 165 | M14 | Cotter pin | 14.3 | 7 | 0.70 | 5,400 |
| 63121075 | 8.0*M12 | 315 | 150 | M12 | Ring | 16.1 | 8 | 0.55 | 4,000 |
| 63121038 | 8.0*M16 | 386 | 190 | M16 | Cotter pin | 16.1 | 8 | 1.05 | 6,500 |
| 63121516 | 10.0*M16 | 385 | 190 | M16 | Cotter pin | 17.8 | 10 | 1.00 | 8,000 |
| 63121039 | 10.0*M20 | 422 | 210 | M20 | Cotter pin | 17.8 | 10 | 1.68 | 8,500 |
| 63121074 | 12.0*M16 | 918 | 190 | M16 | Cotter pin | 21.4 | 12 | 1.22 | 6,500 |
| SS316 | Size | L (inch) | L1 (inch) | M (mm) | Accessory | OD (inch) | ØCable (inch) | Unit weight (lb) | B.L. (lb) |
|---|---|---|---|---|---|---|---|---|---|
| 63121053 | 3/32"*M5 | 5.87 | 3.15 | M5 | Ring | 0.22 | 3/32" | 0.09 | 1,320 |
| 63121002 | 1/8"*M6 | 6.77 | 3.54 | M6 | Ring | 0.25 | 1/8" | 0.19 | 2,200 |
| 63121029 | 5/32"*M6 | 7.24 | 3.54 | M6 | Ring | 0.30 | 5/32" | 0.20 | 2,200 |
| 63121004 | 5/32"*M8 | 8.27 | 4.13 | M8 | Ring | 0.30 | 5/32" | 0.35 | 3,080 |
| 63121003 | 3/16"*M8 | 8.43 | 4.13 | M8 | Ring | 0.36 | 3/16" | 0.37 | 3,080 |
| 63121030 | 3/16"*M10 | 9.69 | 4.92 | M10 | Ring | 0.36 | 3/16" | 0.63 | 4,840 |
| 63121001 | 1/4"*M10 | 10.24 | 4.92 | M10 | Ring | 0.49 | 1/4" | 0.71 | 4,840 |
| 63121032 | 1/4"*M12 | 11.61 | 5.91 | M12 | Ring | 0.49 | 5/16" | 1.06 | 8,800 |
| 63121031 | 5/16"*M12 | 12.87 | 5.91 | M12 | Ring | 0.63 | 1/4" | 1.19 | 8,800 |
