Description
Technical Data:
Threaded Fork : Casting Material
AISI316 , EN 1.4408
Swage Terminal : Forging Material
AISI316 , EN 1.4401
Nut: Casting Material
AISI316 , EN 1.4408
Surface Treatment: Matt finish / Passivated
MBL: Minimum Breaking Load before cable assembly
Limit Tension: Recommended maximum load for a tension member.
All other applications should consider 1/4 of MBL
TAP: 19.1
DATA SHEET DOWNLOAD
Model
S3121_B3

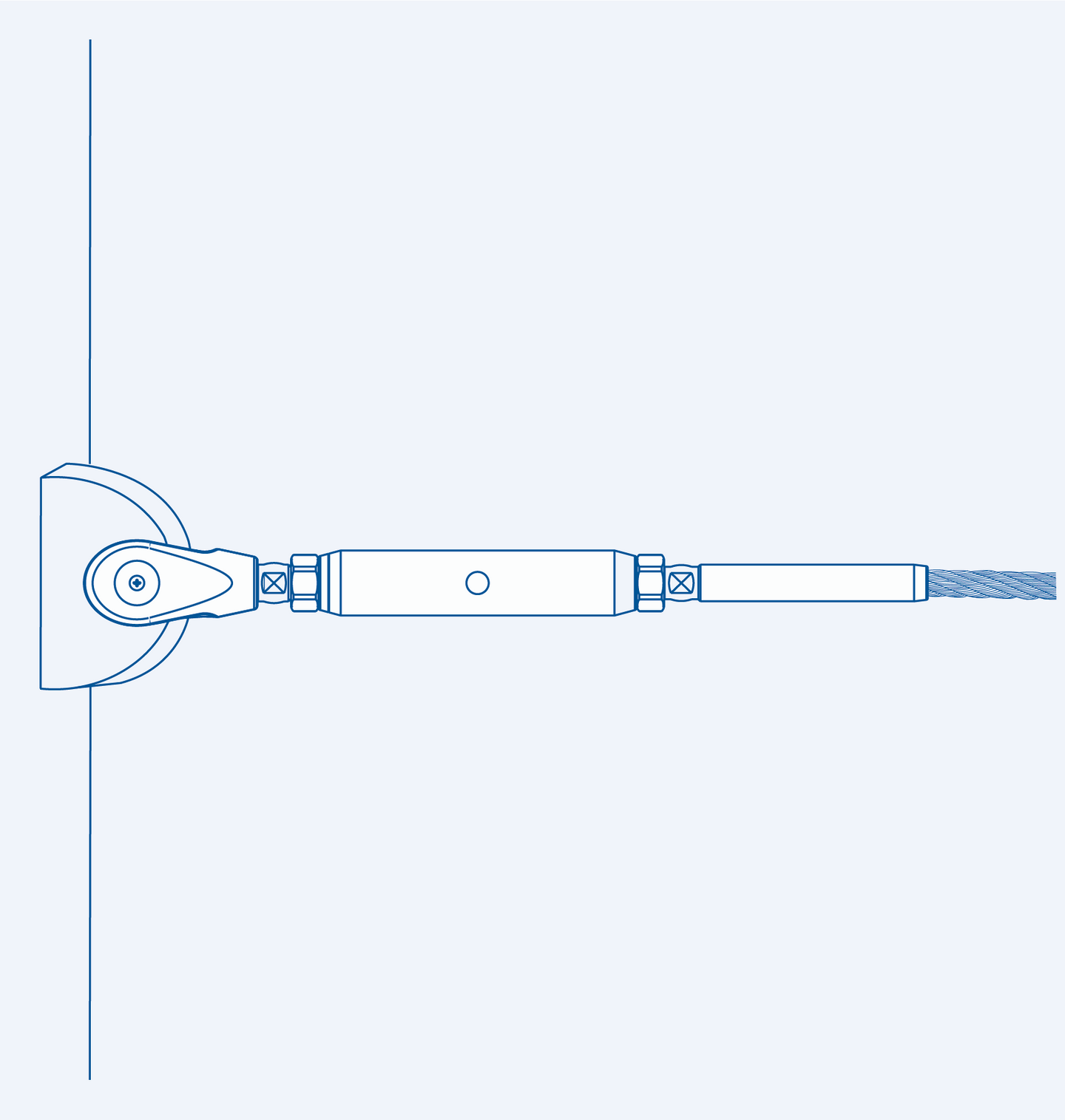

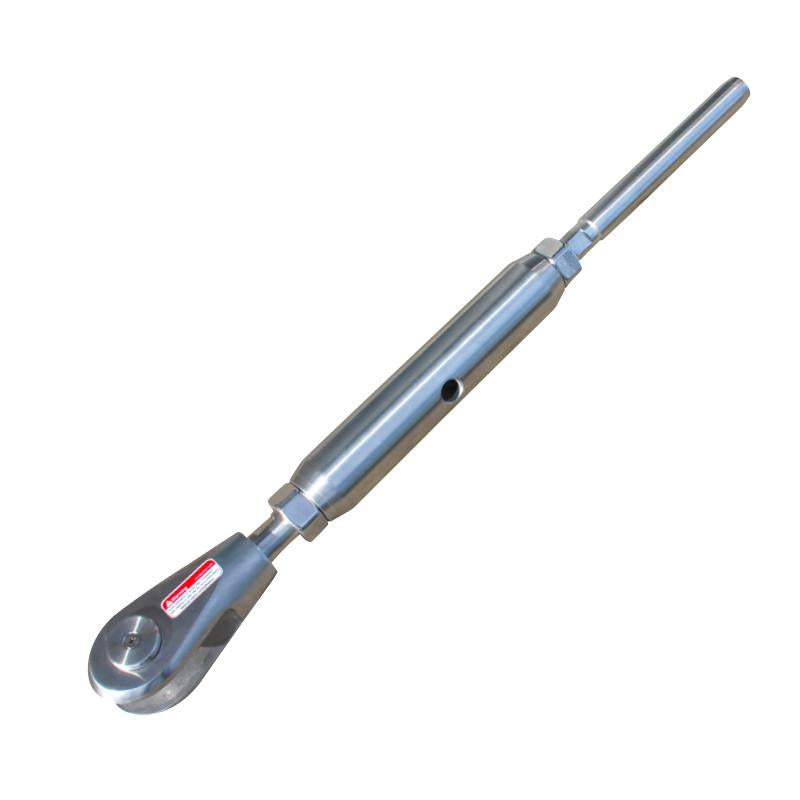

Turnbuckle with Fork & Swage stud B3
316 ss
| SS316 | SIZE M (mm) | Ø Cable (mm) | ØA (mm) | B(mm) | C (mm) | E (mm) | L (mm) | ØOD (mm) | Unit weight (kgs) | Limit Tension (kN) |
|---|---|---|---|---|---|---|---|---|---|---|
| 63121350 | M20 | 10 | 20 | 20 | 42 | 50 | 462 | 21.4 | 2.47 | 64 |
| 63121337 | M22 | 12 | 22 | 22 | 48 | 52 | 531 | 21.4 | 3.28 | 79 |
| 63121338 | M24 | 14 | 25 | 24 | 55 | 58 | 590 | 25.0 | 4.42 | 92 |
| 63121339 | M27 | 16 | 27 | 26 | 60 | 64 | 652 | 28.1 | 6.12 | 120 |
| 63121340 | M33 | 19 | 33 | 30 | 70 | 78 | 782 | 34.5 | 10.88 | 181 |
| 63121341 | M33 | 20 | 33 | 30 | 70 | 78 | 794 | 34.5 | 11.15 | 181 |
| 63121342 | M36 | 22 | 36 | 34 | 75 | 85 | 885 | 40.4 | 14.36 | 213 |
| 63121343 | M39 | 24 | 39 | 36 | 80 | 92 | 945 | 46.0 | 18.64 | 255 |
| 63121344 | M45 | 28 | 45 | 42 | 90 | 105 | 1,110 | 50.0 | 30.42 | 342 |
| 63121345 | M52 | 30 | 52 | 50 | 100 | 128 | 1,234 | 58.0 | 46.00 | 460 |
| 63121346 | M56 | 34 | 56 | 50 | 110 | 136 | 1,341 | 65.0 | 56.50 | 531 |
| 63121347 | M60 | 36 | 60 | 55 | 115 | 148 | 1,436 | 65.0 | 69.00 | 618 |
| SS316 | SIZE M (mm) | Ø Cable (mm) | ØA (inch) | B (inch) | C (inch) | E (inch) | L (inch) | ØOD (inch) | Unit weight (lb) | Limit Tension (kN) |
|---|---|---|---|---|---|---|---|---|---|---|
| 63121350 | M20 | 10 | 0.79 | 0.79 | 1.65 | 1.97 | 18.19 | 0.84 | 5.43 | 64 |
| 63121337 | M22 | 12 | 0.87 | 0.87 | 1.89 | 2.05 | 20.91 | 0.84 | 7.22 | 79 |
| 63121338 | M24 | 14 | 0.98 | 0.94 | 2.17 | 2.28 | 23.23 | 0.98 | 9.72 | 92 |
| 63121339 | M27 | 16 | 1.06 | 1.02 | 2.36 | 2.52 | 25.67 | 1.11 | 13.46 | 120 |
| 63121340 | M33 | 19 | 1.3 | 1.18 | 2.76 | 3.07 | 30.79 | 1.36 | 23.94 | 181 |
| 63121341 | M33 | 20 | 1.3 | 1.18 | 2.76 | 3.07 | 31.26 | 1.36 | 24.53 | 181 |
| 63121342 | M36 | 22 | 1.42 | 1.34 | 2.95 | 3.35 | 34.84 | 1.59 | 31.59 | 213 |
| 63121343 | M39 | 24 | 1.54 | 1.42 | 3.15 | 3.62 | 37.20 | 1.81 | 41.01 | 255 |
| 63121344 | M45 | 28 | 1.77 | 1.65 | 3.54 | 4.13 | 43.70 | 1.97 | 66.92 | 342 |
| 63121345 | M52 | 30 | 2.05 | 1.97 | 3.94 | 5.04 | 48.58 | 2.28 | 101.2 | 460 |
| 63121346 | M56 | 34 | 2.2 | 1.97 | 4.33 | 5.35 | 52.80 | 2.56 | 124.3 | 531 |
| 63121347 | M60 | 36 | 2.36 | 2.17 | 4.53 | 5.83 | 56.54 | 2.56 | 151.8 | 618 |
