Description
Technical Data:
Forging Material: AISI316 - DIN 1.4401
Production: S3121P - Jaw/Nut - Forged
Terminal - Forged
Accessory - See Chart
Surface Treatment: “M.F.” (Matte finished) Note : Standard safety factor for working load is 1/4 of breaking load.
Model
SF3121P

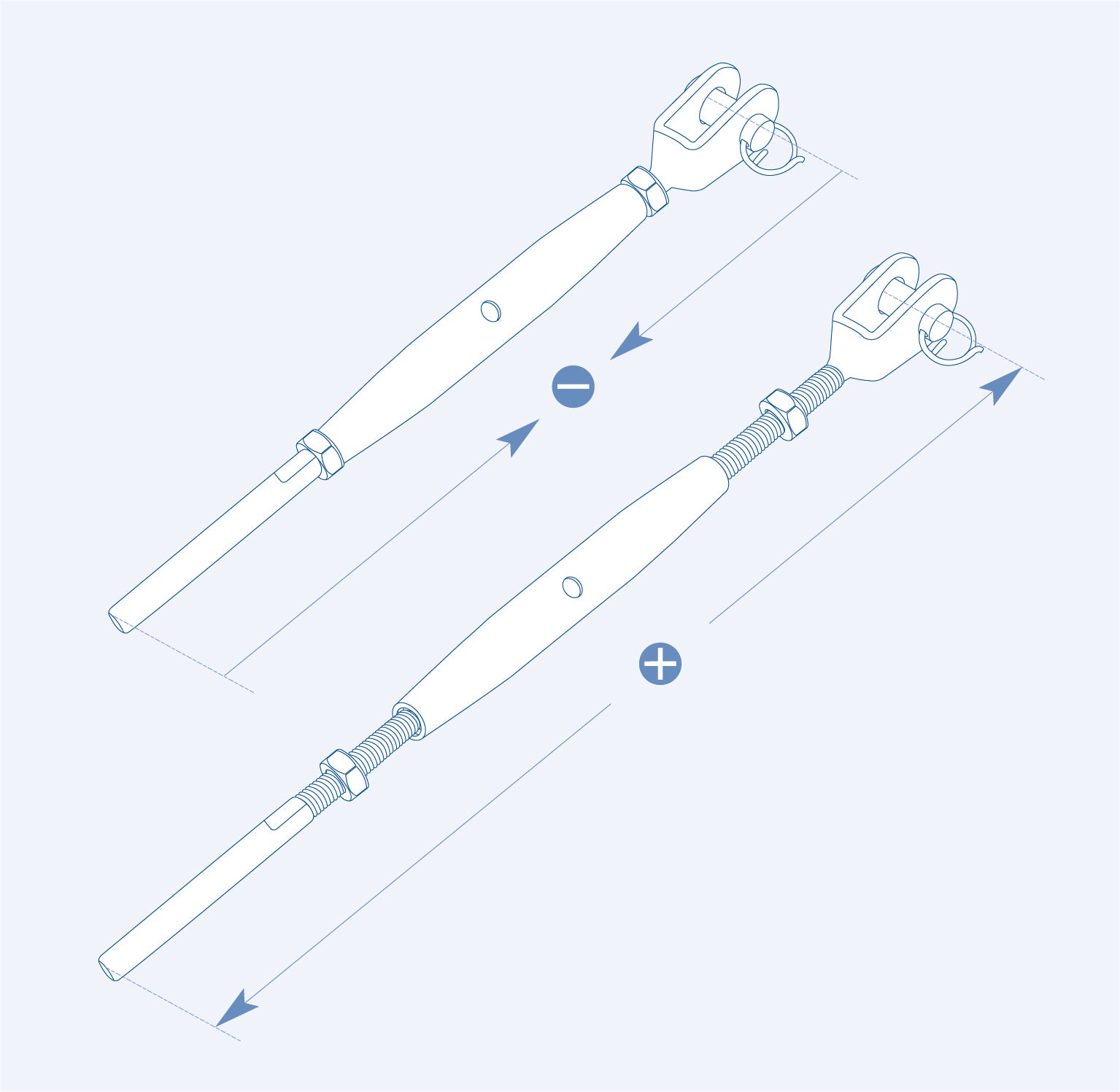

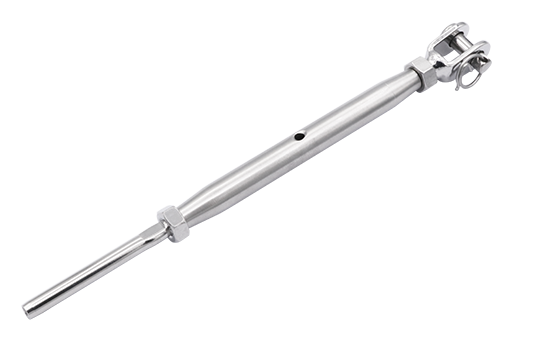

Jaw and swage stud
316 ss

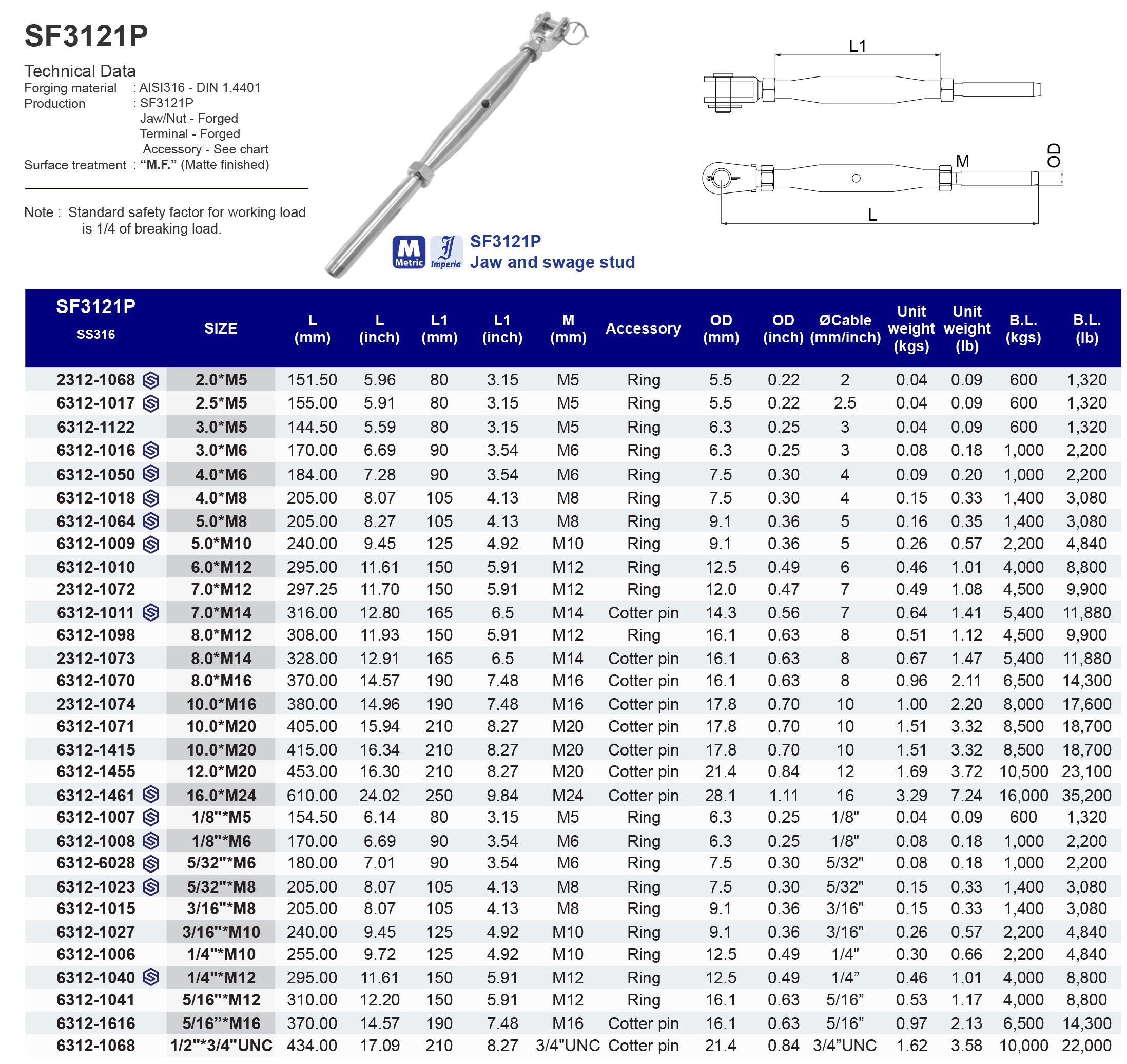

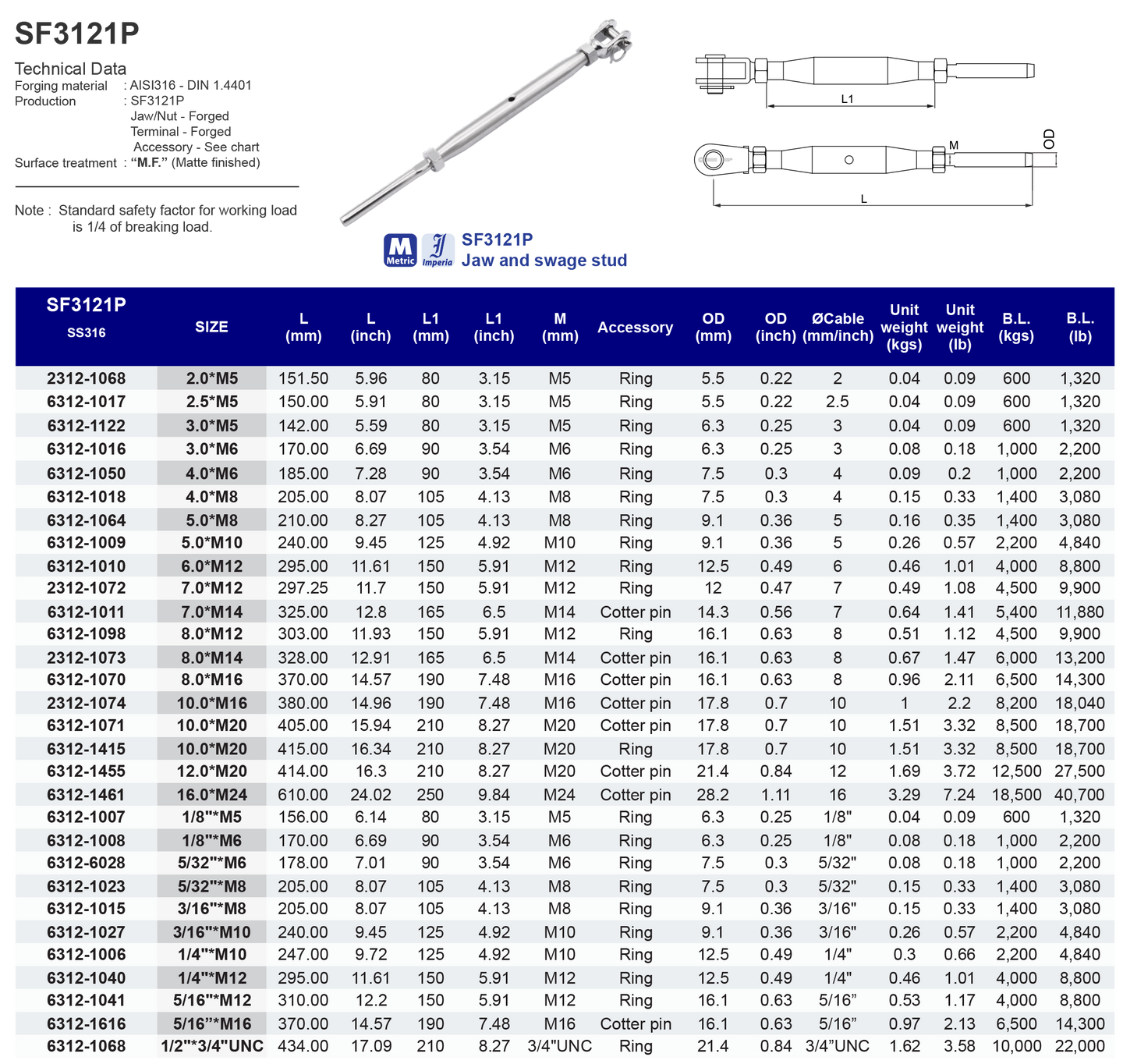

SS316 | Size | L (mm) | L1 (mm) | M (mm) | Accessory | OD (mm) | ØCable (mm) | Unit weight (kgs) | B.L. (kgs) |
---|---|---|---|---|---|---|---|---|---|
23121068 | 2.0*M5 | 151.50 | 80 | M5 | Ring | 5.5 | 2 | 0.04 | 600 |
63121017 | 2.5*M5 | 155.00 | 80 | M5 | Ring | 5.5 | 2.5 | 0.04 | 600 |
63121122 | 3.0*M5 | 144.50 | 80 | M5 | Ring | 6.3 | 3 | 0.04 | 600 |
63121016 | 3.0*M6 | 170.00 | 90 | M6 | Ring | 6.3 | 3 | 0.08 | 1,000 |
63121050 | 4.0*M6 | 184.00 | 90 | M6 | Ring | 7.5 | 4 | 0.09 | 1,000 |
63121018 | 4.0*M8 | 205.00 | 105 | M8 | Ring | 7.5 | 4 | 0.15 | 1,400 |
63121064 | 5.0*M8 | 205.00 | 105 | M8 | Ring | 9.1 | 5 | 0.16 | 1,400 |
63121009 | 5.0*M10 | 240.00 | 125 | M10 | Ring | 9.1 | 5 | 0.26 | 2,200 |
63121010 | 6.0*M12 | 295.00 | 150 | M12 | Ring | 12.5 | 6 | 0.46 | 4,000 |
23121072 | 7.0*M12 | 297.25 | 150 | M12 | Ring | 12.0 | 7 | 0.49 | 4,500 |
63121011 | 7.0*M14 | 316.00 | 165 | M14 | Cotter pin | 14.3 | 7 | 0.64 | 5,400 |
63121098 | 8.0*M12 | 308.00 | 150 | M12 | Ring | 16.1 | 8 | 0.51 | 4,500 |
23121073 | 8.0*M14 | 328.00 | 165 | M14 | Cotter pin | 16.1 | 8 | 0.67 | 5,400 |
63121070 | 8.0*M16 | 370.00 | 190 | M16 | Cotter pin | 16.1 | 8 | 0.96 | 6,500 |
23121074 | 10.0*M16 | 380.00 | 190 | M16 | Cotter pin | 17.8 | 10 | 1.00 | 8,000 |
63121071 | 10.0*M20 | 405.00 | 210 | M20 | Cotter pin | 17.8 | 10 | 1.51 | 8,500 |
63121415 | 10.0*M20 | 415.00 | 210 | M20 | Cotter pin | 17.8 | 10 | 1.51 | 10,500 |
63121455 | 12.0*M20 | 453.00 | 210 | M20 | Cotter pin | 21.4 | 12 | 1.69 | 10,500 |
63121461 | 16.0*M24 | 610.00 | 250 | M24 | Cotter pin | 28.1 | 16 | 3.29 | 16,000 |
SS316 | Size | L (inch) | L1 (inch) | M (mm) | Accessory | OD (inch) | ØCable (inch) | Unit weight (lb) | B.L. (lb) |
---|---|---|---|---|---|---|---|---|---|
63121007 | 1/8"*M5 | 6.08 | 3.15 | M5 | Ring | 0.25 | 1/8" | 0.09 | 1,320 |
63121008 | 1/8"*M6 | 6.69 | 3.54 | M6 | Ring | 0.25 | 1/8" | 0.18 | 2,200 |
63126028 | 5/32"*M6 | 7.09 | 3.54 | M6 | Ring | 0.30 | 5/32" | 0.18 | 2,200 |
63121023 | 5/32"*M8 | 8.07 | 4.13 | M8 | Ring | 0.30 | 5/32" | 0.33 | 3,080 |
63121015 | 3/16"*M8 | 8.07 | 4.13 | M8 | Ring | 0.36 | 3/16" | 0.33 | 3,080 |
63121027 | 3/16"*M10 | 9.45 | 4.92 | M10 | Ring | 0.36 | 3/16" | 0.57 | 4,840 |
63121006 | 1/4"*M10 | 10.04 | 4.92 | M10 | Ring | 0.49 | 1/4" | 0.66 | 4,840 |
63121040 | 1/4"*M12 | 11.61 | 5.91 | M12 | Ring | 0.49 | 1/4" | 1.01 | 8,800 |
63121041 | 5/16"*M12 | 12.20 | 5.91 | M12 | Ring | 0.63 | 5/16" | 1.17 | 8,800 |
63121616 | 5/16"*M16 | 14.57 | 7.48 | M16 | Cotter pin | 0.63 | 5/16" | 2.13 | 14,300 |
63121068 | 1/2"*3/4"UNC | 17.09 | 8.27 | 3/4"UNC | Cotter pin | 0.84 | 3/4"UNC | 3.58 | 22,000 |
