Description
Technical Data:
Turnbuckly Body: Casting Material
AISI316 , EN 1.4408
Surface Treatment: "M.F.” (Matte finished)
MBL: Minimum Breaking Load before cable assembly
Limit Tension:
Recommended maximum load for a tension member.
All other applications should consider 1/4 of MBL
TAP: 22.1

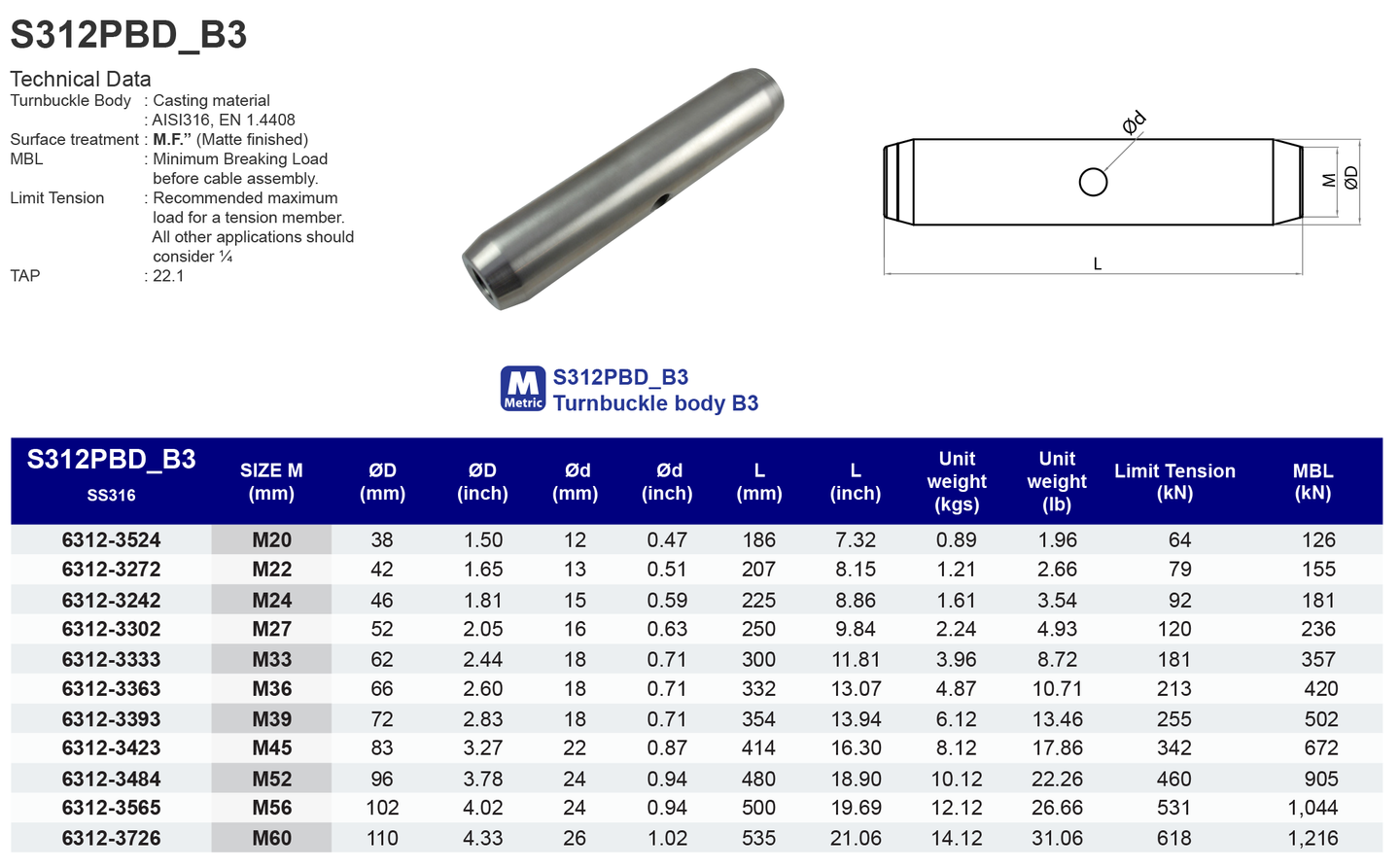

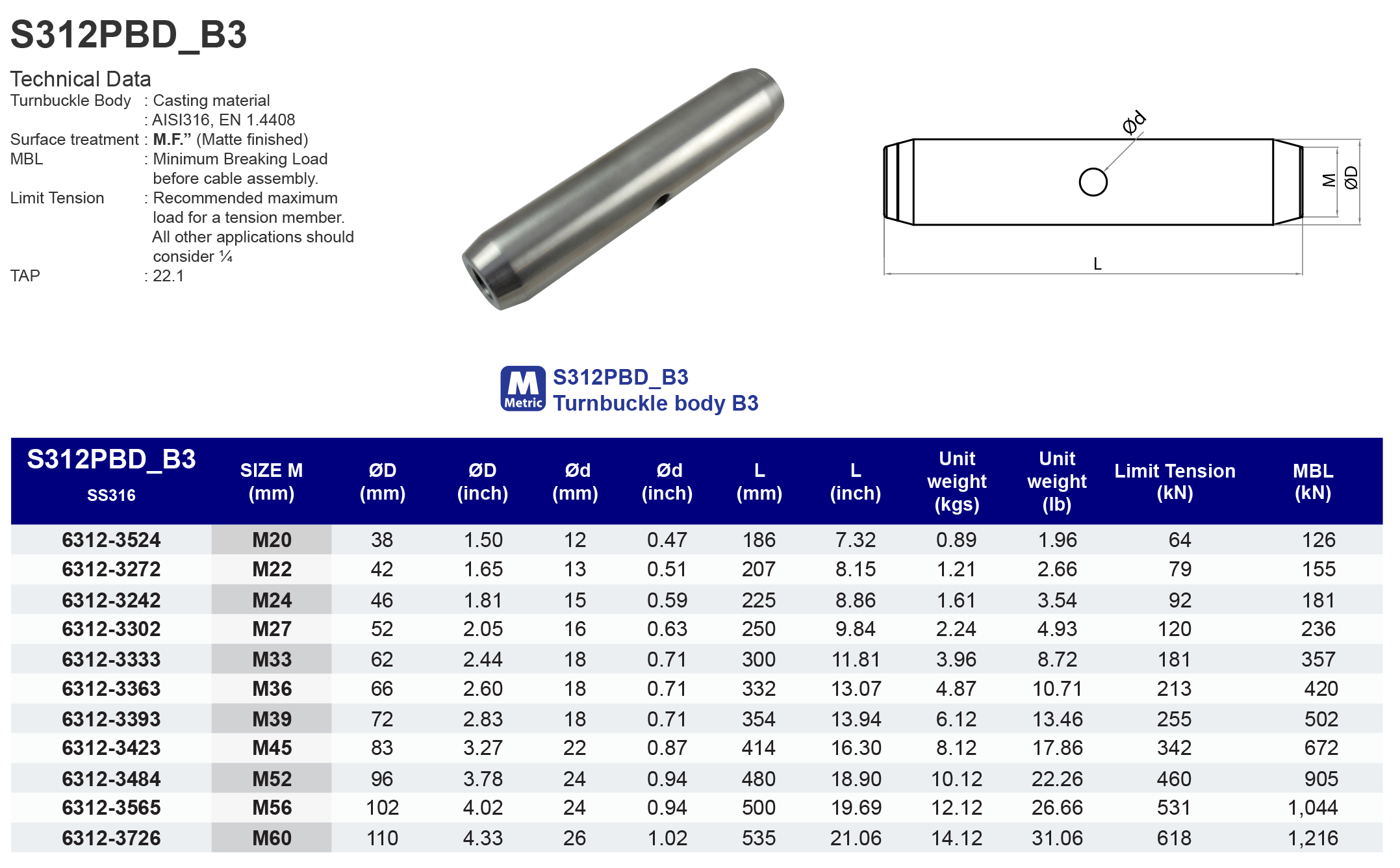

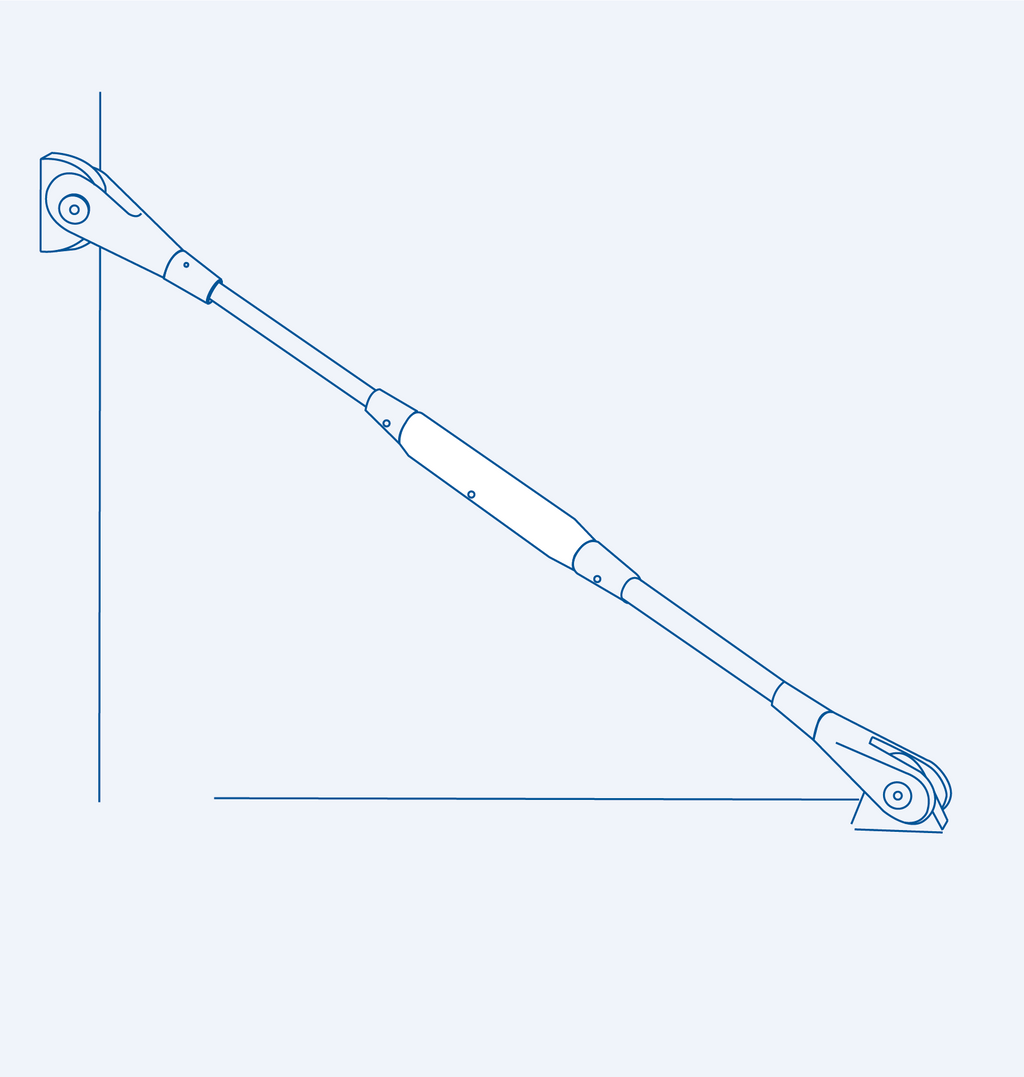

Model
S312PBD_B3

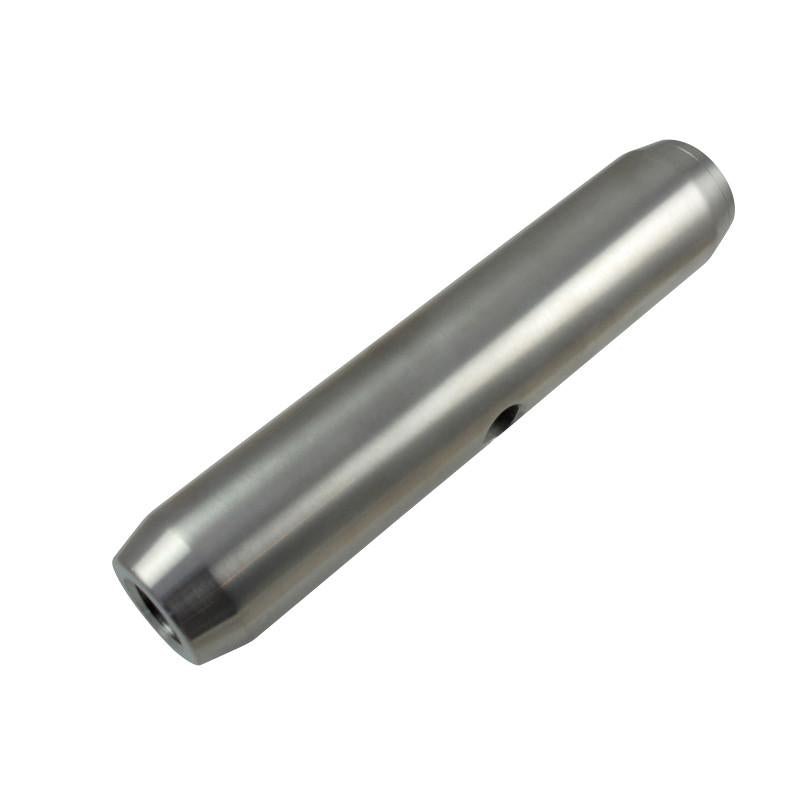

Turnbuckle body B3
316 ss
| SS316 | SIZE M (mm) | ØD (mm) | Ød (mm) | L (mm) | Unit weight (kgs) | Limit Tension (kN) | MBL (kN) |
|---|---|---|---|---|---|---|---|
| 63123524 | M20 | 38 | 12 | 186 | 0.89 | 64 | 126 |
| 63123272 | M22 | 42 | 13 | 207 | 1.21 | 79 | 155 |
| 63123242 | M24 | 46 | 15 | 225 | 1.61 | 92 | 181 |
| 63123302 | M27 | 52 | 16 | 250 | 2.24 | 120 | 236 |
| 63123333 | M33 | 62 | 18 | 300 | 3.96 | 181 | 357 |
| 63123363 | M36 | 66 | 18 | 332 | 4.87 | 213 | 420 |
| 63123393 | M39 | 72 | 18 | 354 | 6.12 | 255 | 502 |
| 63123423 | M45 | 83 | 22 | 414 | 8.12 | 342 | 672 |
| 63123484 | M52 | 96 | 24 | 480 | 10.12 | 460 | 905 |
| 63123565 | M56 | 102 | 24 | 500 | 12.12 | 531 | 1,044 |
| 63123726 | M60 | 110 | 26 | 535 | 14.12 | 618 | 1,216 |
| SS316 | SIZE M (mm) | ØD (inch) | Ød (inch) | L (inch) | Unit weight (lb) | Limit Tension (kN) | MBL (kN) |
|---|---|---|---|---|---|---|---|
| 63123524 | M20 | 1.5 | 0.47 | 7.32 | 1.96 | 64 | 126 |
| 63123272 | M22 | 1.65 | 0.51 | 8.15 | 2.66 | 79 | 155 |
| 63123242 | M24 | 1.81 | 0.59 | 8.86 | 3.54 | 92 | 181 |
| 63123302 | M27 | 2.05 | 0.63 | 9.84 | 4.93 | 120 | 236 |
| 63123333 | M33 | 2.44 | 0.71 | 11.81 | 8.72 | 181 | 357 |
| 63123363 | M36 | 2.6 | 0.71 | 13.07 | 10.71 | 213 | 420 |
| 63123393 | M39 | 2.83 | 0.71 | 13.94 | 13.46 | 255 | 502 |
| 63123423 | M45 | 3.27 | 0.87 | 16.3 | 17.86 | 342 | 672 |
| 63123484 | M52 | 3.78 | 0.94 | 18.9 | 22.26 | 460 | 905 |
| 63123565 | M56 | 4.02 | 0.94 | 19.69 | 26.66 | 531 | 1,044 |
| 63123726 | M60 | 4.33 | 1.02 | 21.06 | 31.06 | 618 | 1,216 |
