Description
Technical Data:
Casting Material:
AISI304 - DIN 1.4308
Forging Material:
AISI304 - DIN 1.4301
Production:
S313NL - E1 - Swivel eye - Cast
Sheave - Nylon
Block (sheet) - Stamped
Surface Treatment:
Electro polished / Passivated

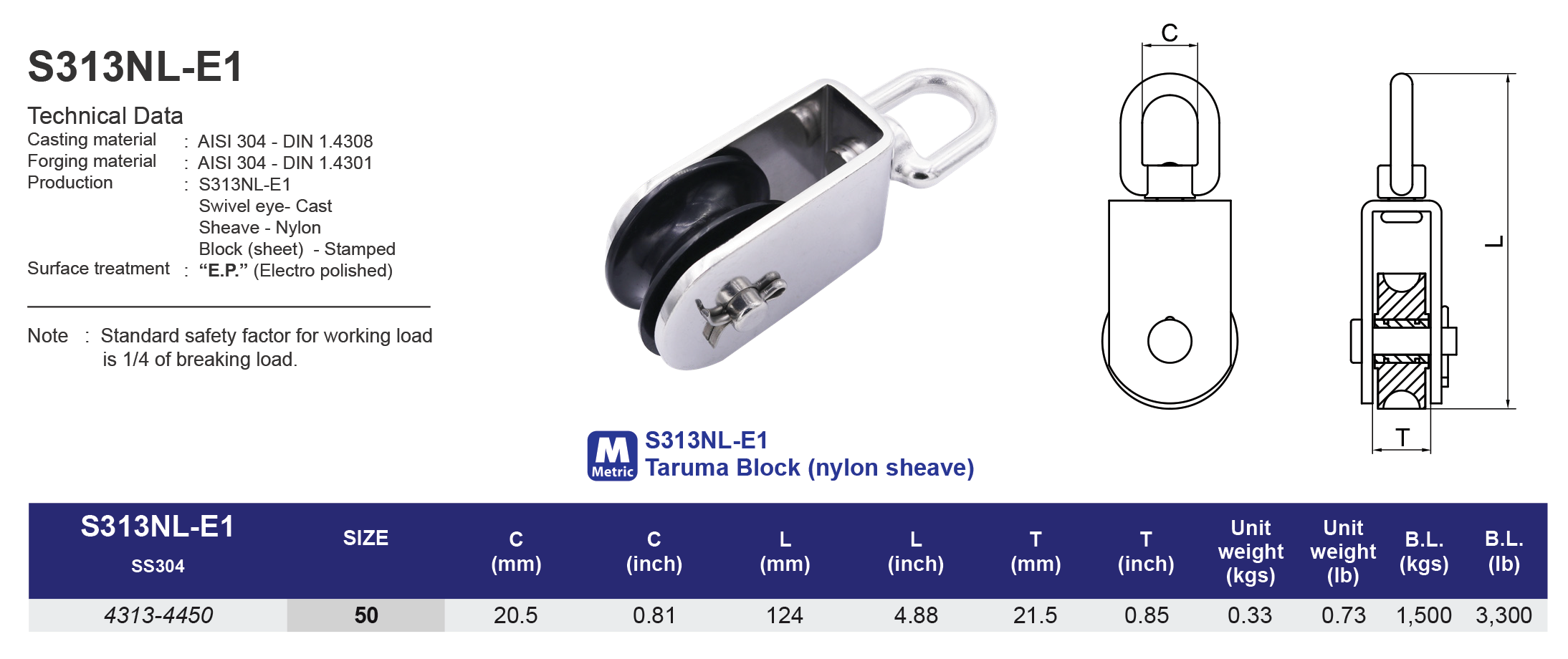

Model
S313NL-E1
Taruma Block (nylon sheave)
304 ss
| SS304 | Size | C(mm) | L(mm) | T(mm) | Unit Weight (kgs) | B.L.(kgs) |
|---|---|---|---|---|---|---|
| 43134450 | 50 | 20.5 | 124 | 21.5 | 0.33 | 1,500 |
| SS304 | Size | Cinch) | L(inch) | T(inch) | Unit Weight (Ib) | B.L.(lb) |
|---|---|---|---|---|---|---|
| 43134450 | 50 | 0.81 | 4.88 | 0.85 | 0.73 | 825 |
