Description
Technical Data:
Casting Material:
AISI304 - DIN 1.4308
Forging Material:
AISI304 - DIN 1.4301
Stamping Material:
AISI304 - DIN 1.4301
Production:
S314 - H1 - Hook - Forged
Sheave - Cast
Block (sheet) - Stamped
Surface Treatment:
Electro polished / Passivated
Model
S314-H1

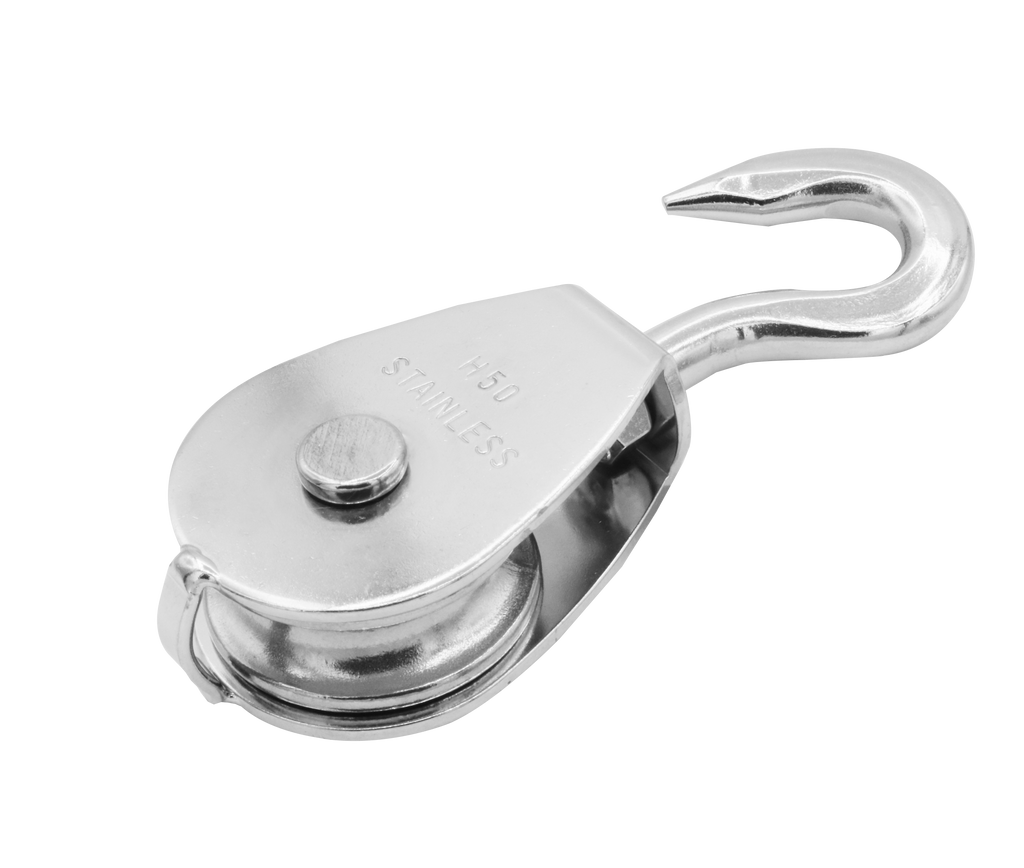

Mame Block (cast sheave)
304 ss
| SS304 | Size | B(mm) | E(mm) | L(mm) | T(mm) | Unit weight (kgs) | B.L.(kgs) |
|---|---|---|---|---|---|---|---|
| 43150150 | 50 | 18 | 45 | 84.75 | 14.5 | 0.40 | 1,200 |
| SS304 | Size | B(inch) | E(inch) | L(inch) | T(inch) | Unit weight (Ib) | B.L.(lb) |
|---|---|---|---|---|---|---|---|
| 43150150 | 50 | 0.71 | 1.77 | 3.34 | 0.57 | 0.88 | 660 |
