Description
Technical Data:
Casting Material:
AISI304 - DIN 1.4308
Stamping Material:
AISI304 - DIN 1.4301
Production:
S3141 / B - Swivel eye - Cast
Sheave - Cast
Block (sheet) - Stamped
Surface Treatment:
Electro polished / Passivated

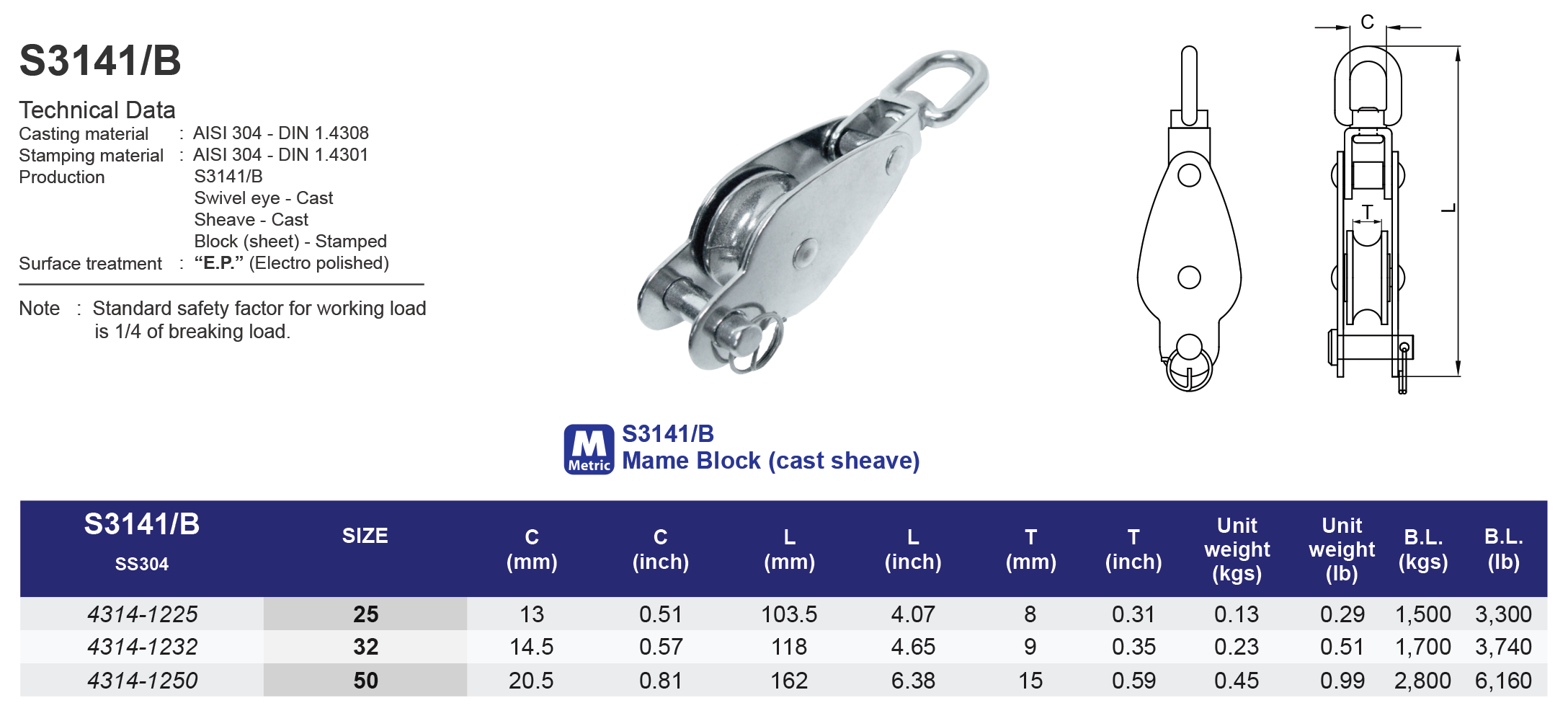

Model
S3141_B

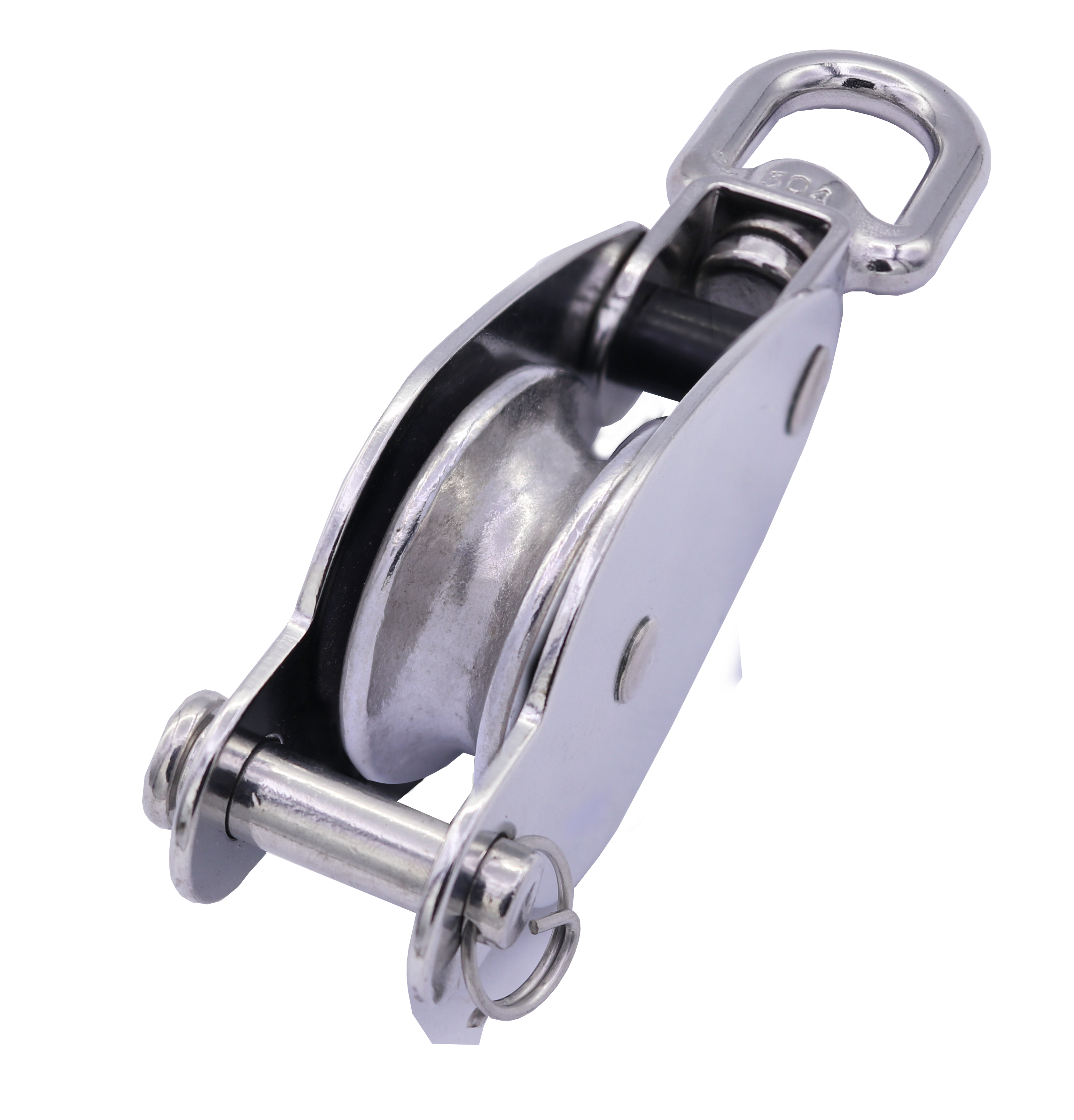

Mame Block (cast sheave)
304 ss
| SS304 | Size | C(mm) | L(mm) | T(mm) | Unit weight (kgs) | B.L.(kgs) |
|---|---|---|---|---|---|---|
| 43141225 | 25 | 13.0 | 103.5 | 8 | 0.13 | 1,500 |
| 43141232 | 32 | 14.5 | 118 | 9 | 0.23 | 1,700 |
| 43141250 | 50 | 20.5 | 162 | 15 | 0.45 | 2,800 |
| SS304 | Size | C(inch) | L(inch) | T(inch) | Unit weight (Ib) | B.L.(lb) |
|---|---|---|---|---|---|---|
| 43141225 | 25 | 0.51 | 4.07 | 0.31 | 0.29 | 825 |
| 43141232 | 32 | 0.57 | 4.65 | 0.35 | 0.51 | 935 |
| 43141250 | 50 | 0.81 | 6.38 | 0.59 | 0.99 | 1,540 |
