Description
Technical Data:
Casting Material: AISI304 - DIN 1.4308
Stamping Material: AISI304 - DIN 1.4301
Welding Material: AISI304 - DIN 1.4301
Production: S314NL - Swivel eye - Cast
Sheave - Nylon
Block (sheet) - Stamped
Eye end - Bar
Surface Treatment: “M.F.” (Matte finished) Note : Standard safety factor for working load is 1/4 of breaking load.

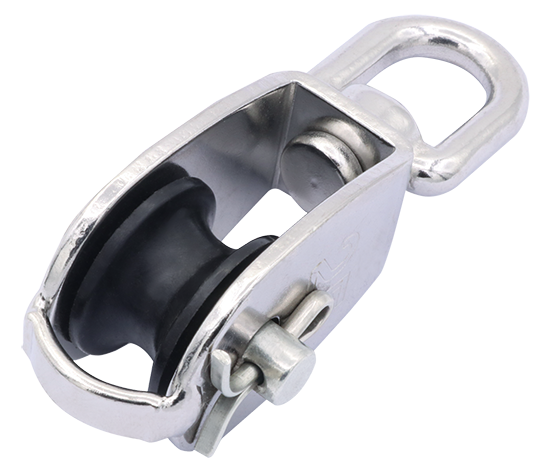

Model
S314NL

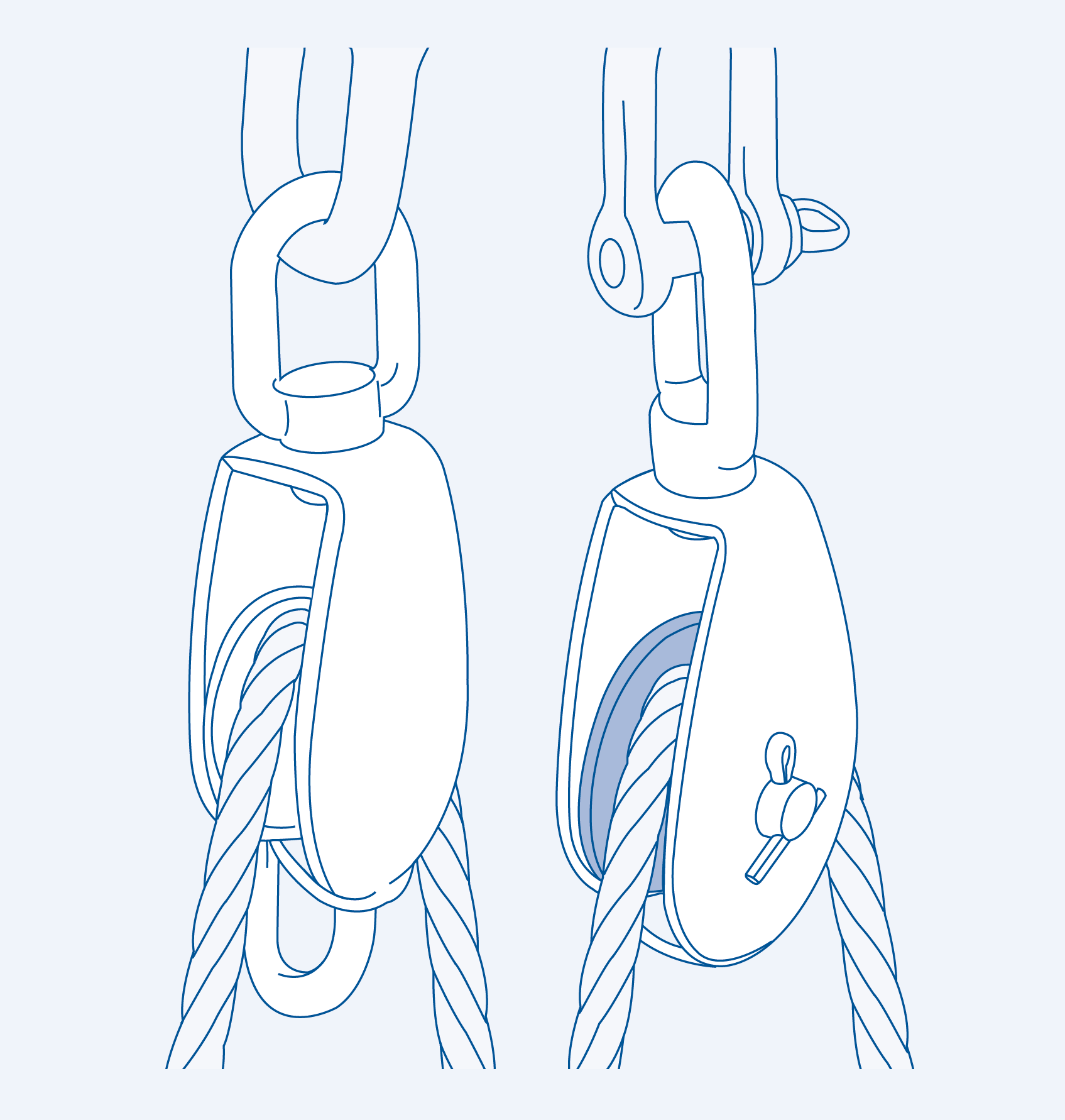

Mame block (nylon sheave)
304 ss
| SS304 | SIZE | ØD (mm) | E (mm) | L (mm) | T (mm) | Unit weight (kgs) | B.L. (kgs) |
|---|---|---|---|---|---|---|---|
| 43140325 | 25 | 25 | 30 | 80.5 | 10 | 0.11 | 1,500 |
| 43140332 | 32 | 32 | 36 | 93 | 10 | 0.15 | 1,700 |
| 43140350 | 50 | 50 | 54 | 124 | 13.5 | 0.29 | 2,800 |
| SS304 | SIZE | ØD (inch) | E (inch) | L (inch) | T (inch) | Unit weight (lb) | B.L. (lb) |
|---|---|---|---|---|---|---|---|
| 43140325 | 1" | 0.98 | 1.18 | 3.17 | 0.39 | 0.24 | 3,300 |
| 43140332 | 1"-1/4" | 1.26 | 1.41 | 3.66 | 0.39 | 0.33 | 3,740 |
| 43140350 | 2" | 1.97 | 2.12 | 4.88 | 0.53 | 0.64 | 6,160 |
