Description
Technical Data:
Casting Material: AISI304 - DIN 1.4308 ,AISI316 - DIN 1.4408
Production: S31501 - Nut - Cast
Surface Treatment: “E.P.” (Electro polished)
Model
S31501

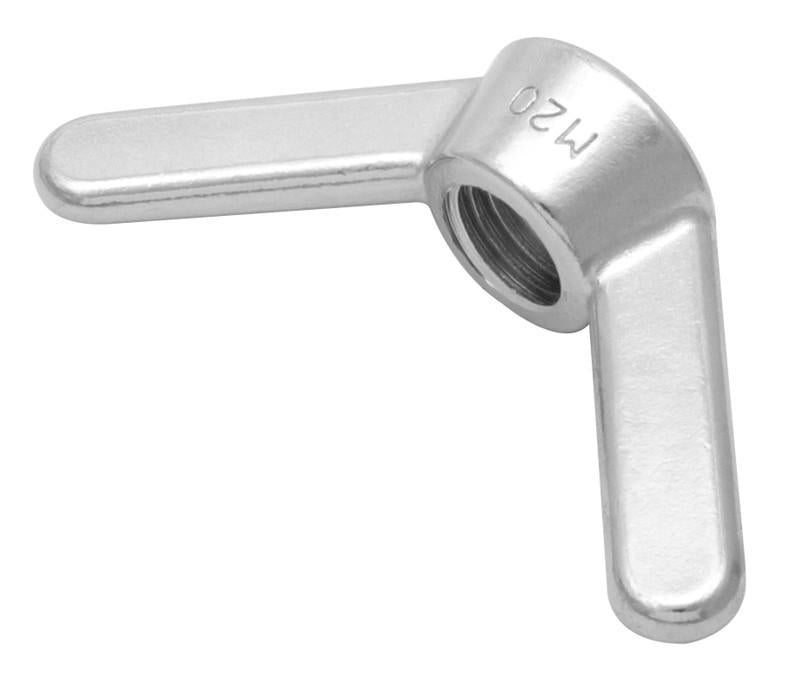

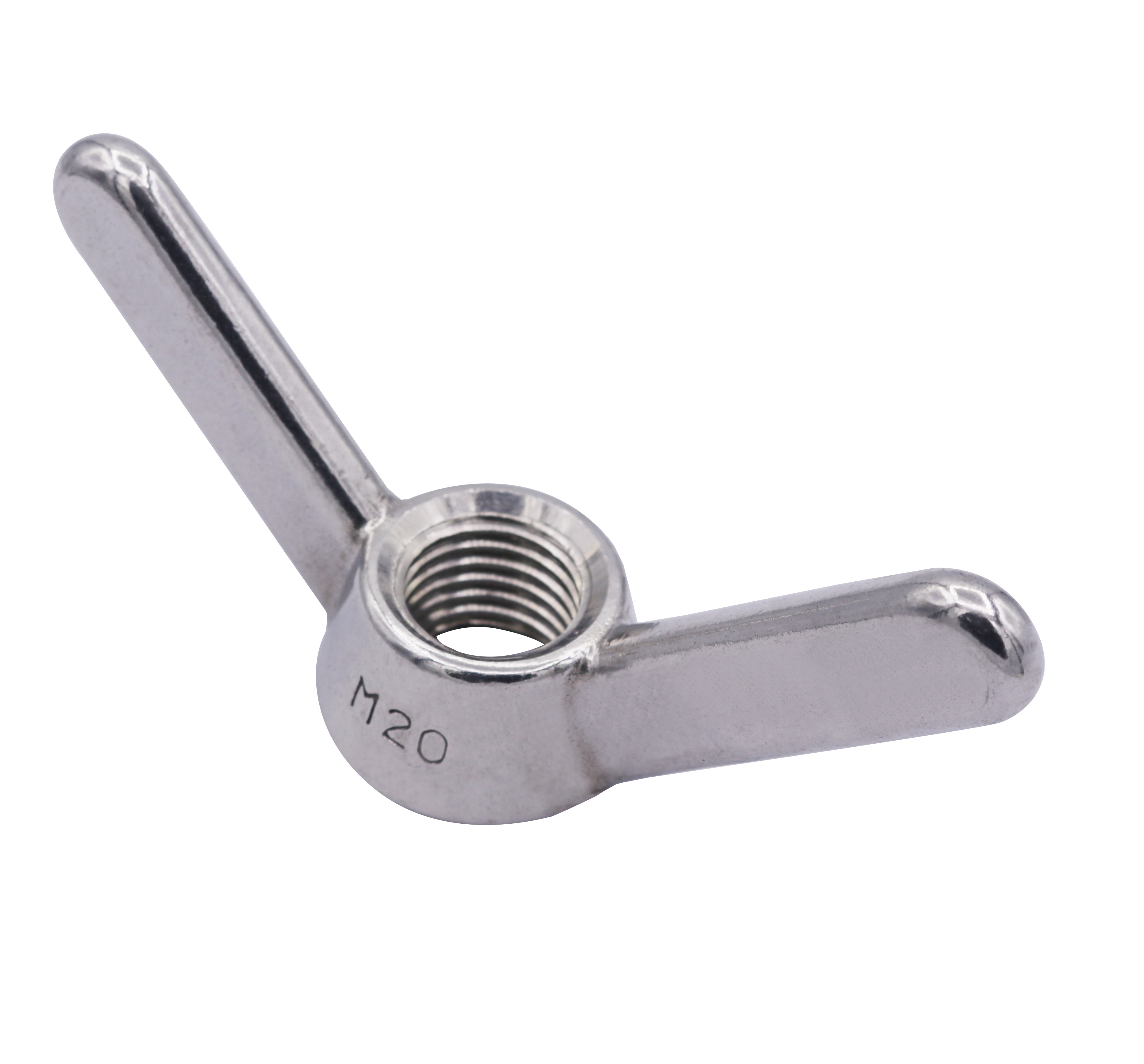

Wide wing nut (long type)
316 ss
![Kinzi 316 Kinzi 316](https://cdn.shopify.com/s/files/1/0084/2475/1151/files/316-ss.png)

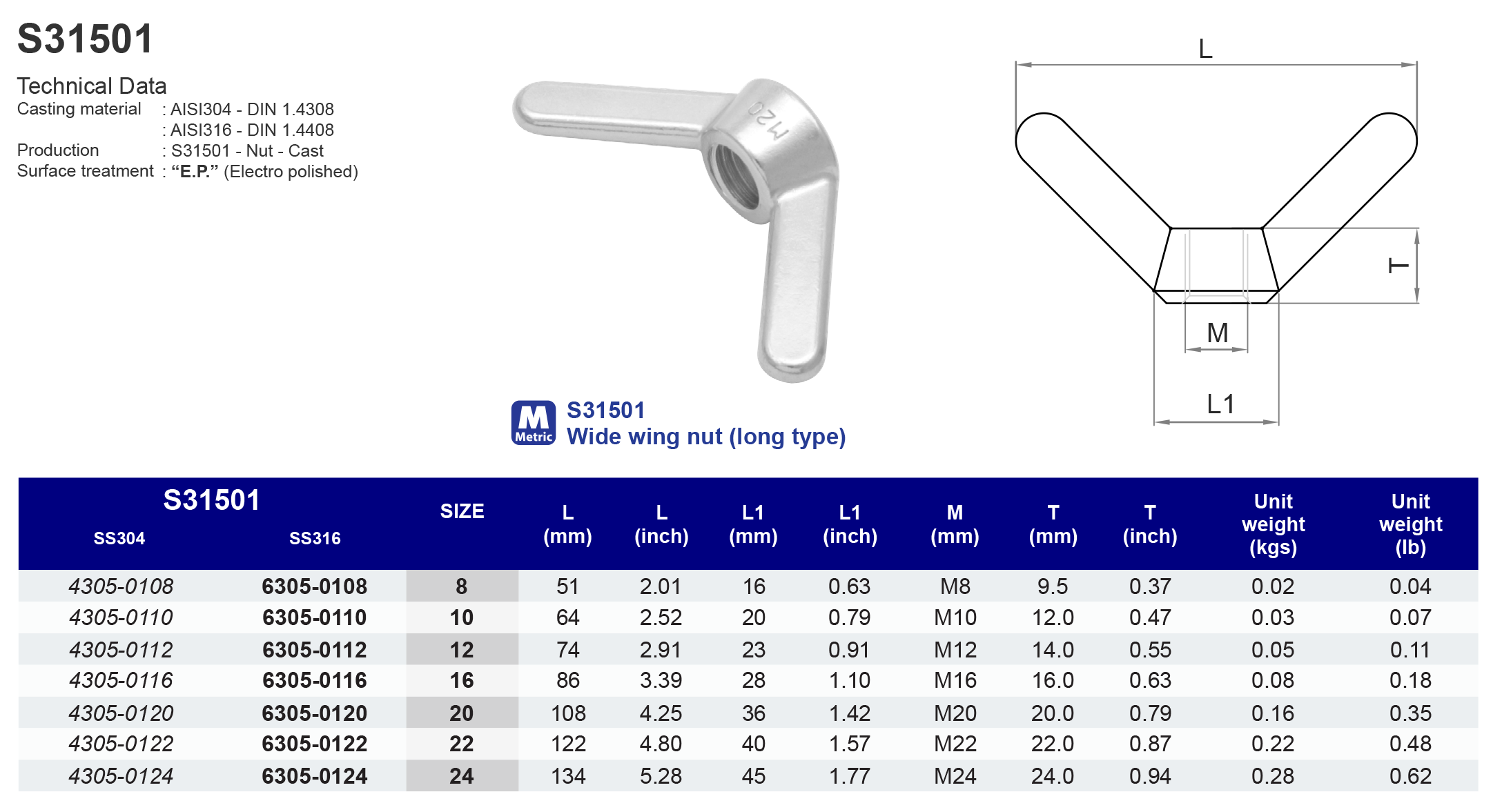

![S31501 S31501drawing](https://cdn.shopify.com/s/files/1/0084/2475/1151/files/S31501.png)
![S31501 image S31501 image](https://cdn.shopify.com/s/files/1/0084/2475/1151/files/S31501_ImageV1.png)

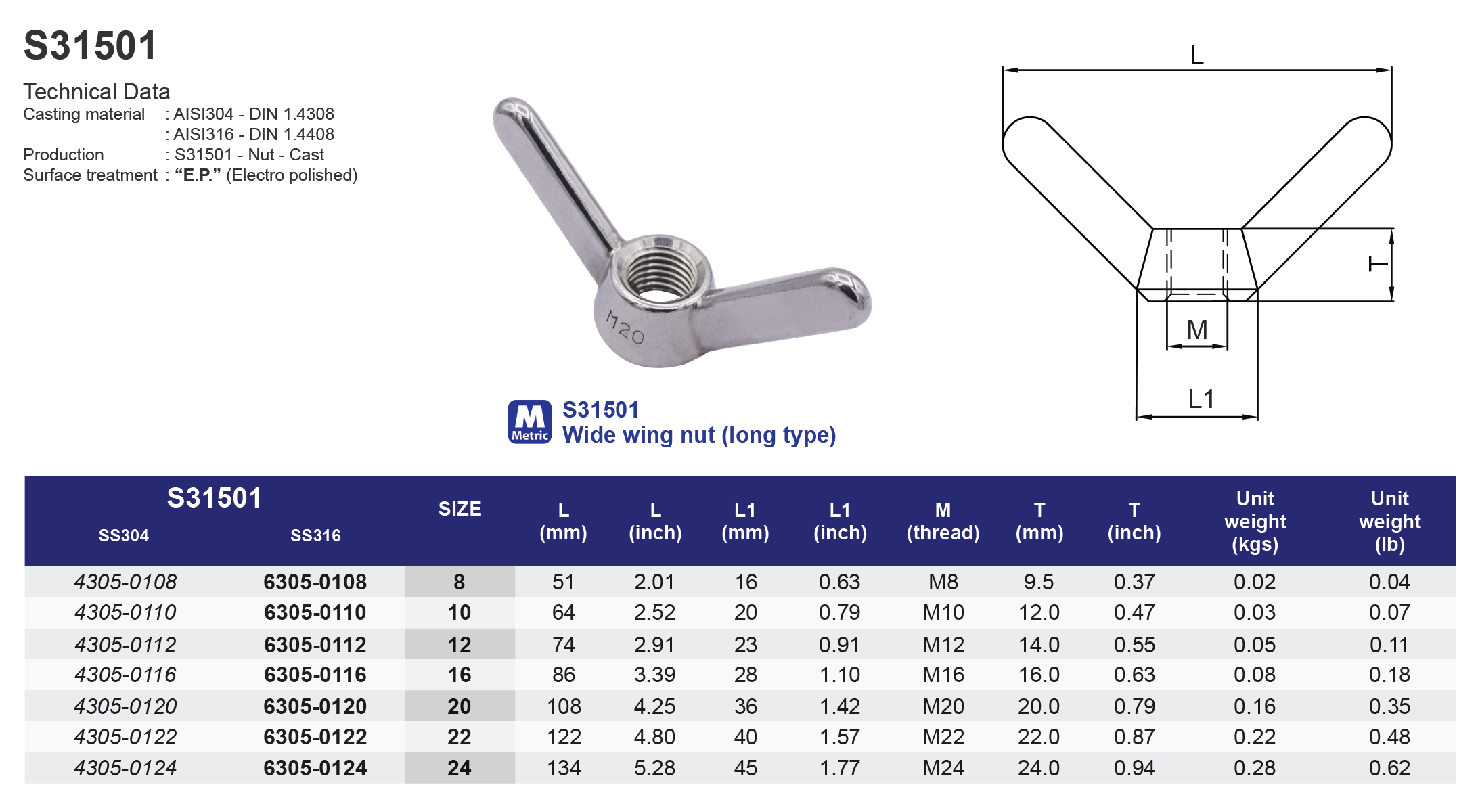

SS316 | Size | L (mm) | L1 (mm) | M (mm) | T (mm) | Unit weight (kgs) |
---|---|---|---|---|---|---|
63050108 | 8 | 51 | 16 | M8 | 9.5 | 0.02 |
63050110 | 10 | 64 | 20 | M10 | 12 | 0.03 |
63050112 | 12 | 74 | 23 | M12 | 14 | 0.05 |
63050116 | 16 | 86 | 28 | M16 | 16 | 0.08 |
63050120 | 20 | 108 | 36 | M20 | 20 | 0.16 |
63050122 | 22 | 122 | 40 | M22 | 22 | 0.22 |
63050124 | 24 | 134 | 45 | M24 | 24 | 0.28 |
SS316 | Size | L (inch) | L1 (inch) | M (mm) | T (inch) | Unit weight (lb) |
---|---|---|---|---|---|---|
63050108 | 8 | 2.01 | 0.63 | M8 | 0.37 | 0.04 |
63050110 | 10 | 2.52 | 0.79 | M10 | 0.47 | 0.07 |
63050112 | 12 | 2.91 | 0.91 | M12 | 0.55 | 0.11 |
63050116 | 16 | 3.39 | 1.10 | M16 | 0.63 | 0.18 |
63050120 | 20 | 4.25 | 1.42 | M20 | 0.79 | 0.35 |
63050122 | 22 | 4.80 | 1.57 | M22 | 0.87 | 0.48 |
63050124 | 24 | 5.28 | 1.77 | M24 | 0.94 | 0.62 |
