Description
Technical Data:
Casting Material:
AISI304 - DIN 1.4308
Stamping Material:
AISI304 - DIN 1.4301
Production:
S3151 / A - Swivel eye - Cast
Sheave - Cast
Block (sheet) - Stamped
Surface Treatment:
Electro polished / Passivated

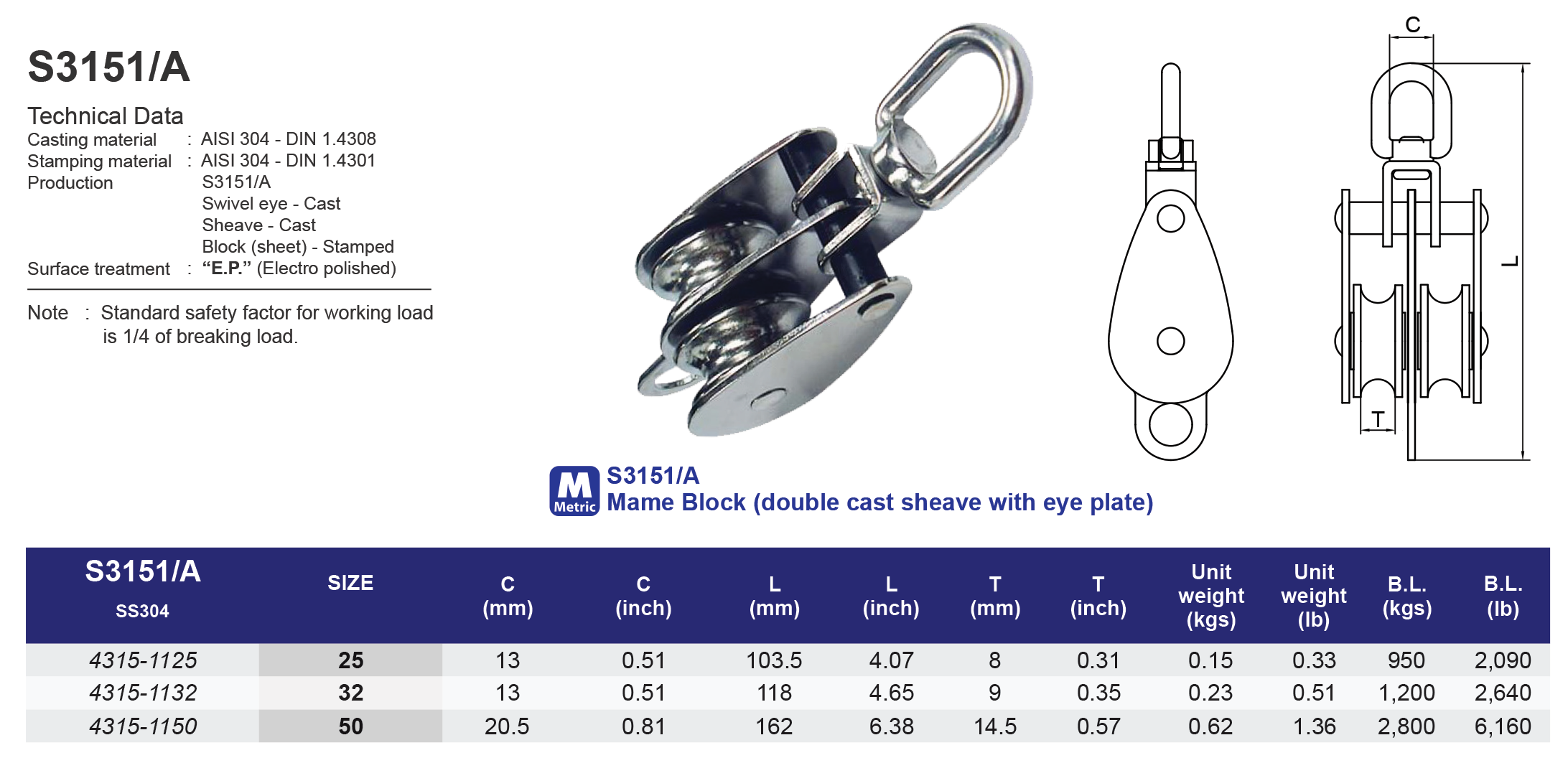

Model
S3151_A

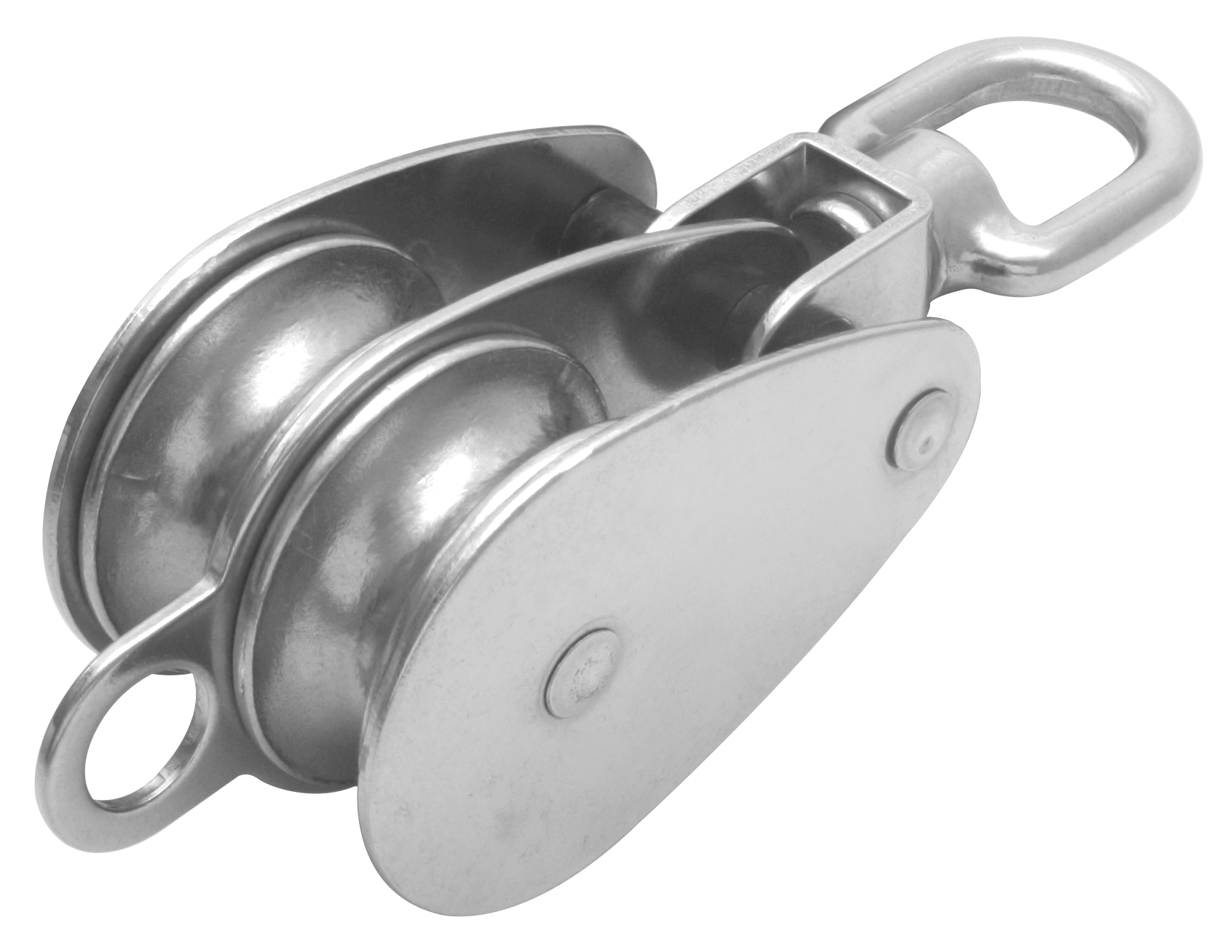

Mame Block (double cast sheave with eye plate)
304 ss
| SS304 | Size | C(mm) | L(mm) | T(mm) | Weight(kgs) | B.L.(kgs) |
|---|---|---|---|---|---|---|
| 43141125 | 25 | 13.0 | 103.5 | 8.0 | 0.15 | 950 |
| 43141132 | 32 | 13.0 | 118.0 | 9.0 | 0.23 | 1,200 |
| 43141150 | 50 | 20.5 | 162.0 | 14.5 | 0.62 | 2,800 |
| SS304 | Size | Cinch) | L(inch) | T(inch) | Weight(Ib) | B.L.(lb) |
|---|---|---|---|---|---|---|
| 43141125 | 25 | 0.51 | 4.07 | 0.31 | 0.33 | 523 |
| 43141132 | 32 | 0.51 | 4.65 | 0.35 | 0.51 | 300 |
| 43141150 | 50 | 0.81 | 6.38 | 0.57 | 1.36 | 700 |
