Description
Technical Data:
Casting Material:
AISI304 - DIN 1.4308
Stamping Material:
AISI304 - DIN 1.4301
Production:
S3151NL / A - Swivel eye - Cast
Sheave - Nylon
Block (sheet) - Stamped
Surface Treatment:
Electro polished / Passivated

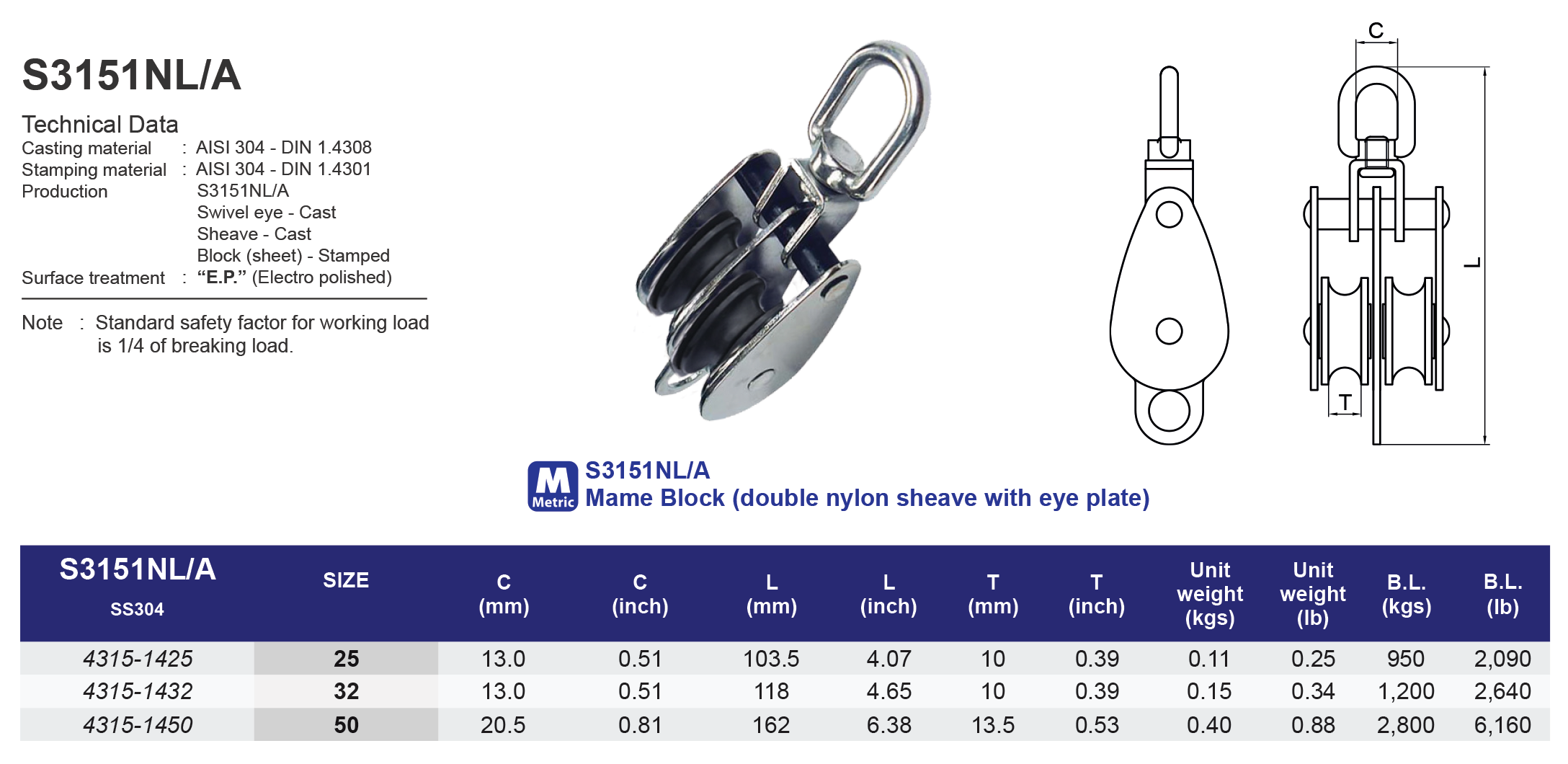

Model
S3151NL_A

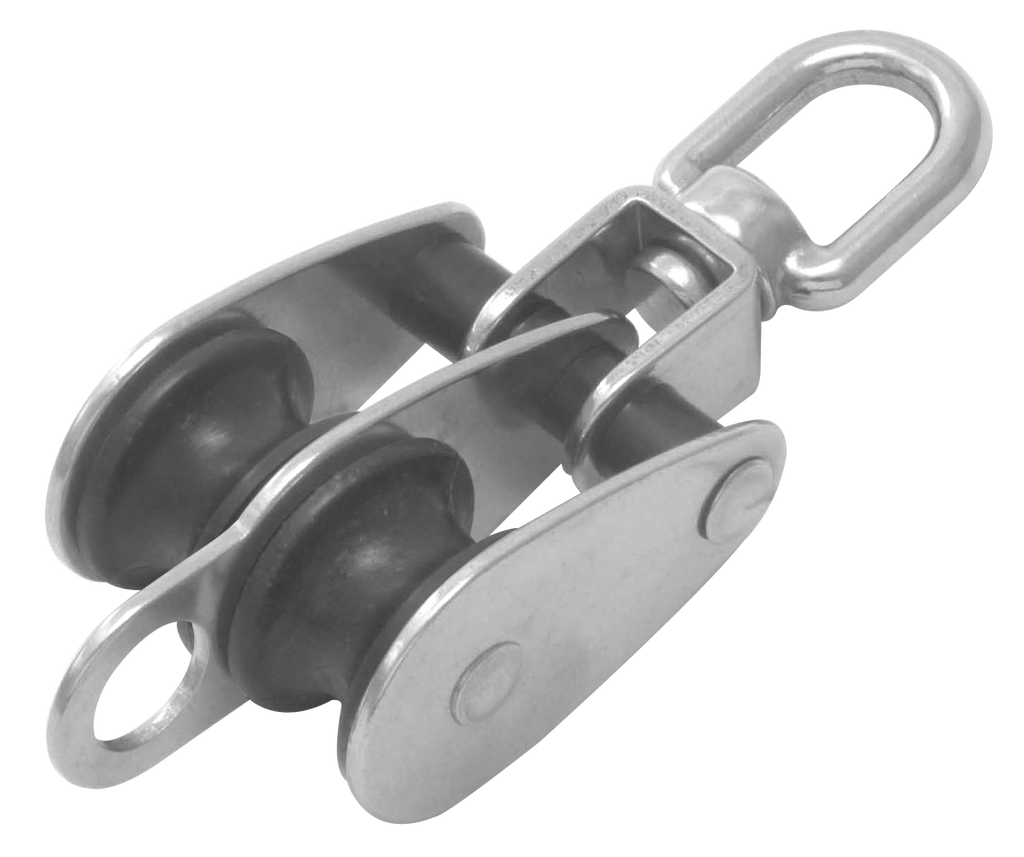

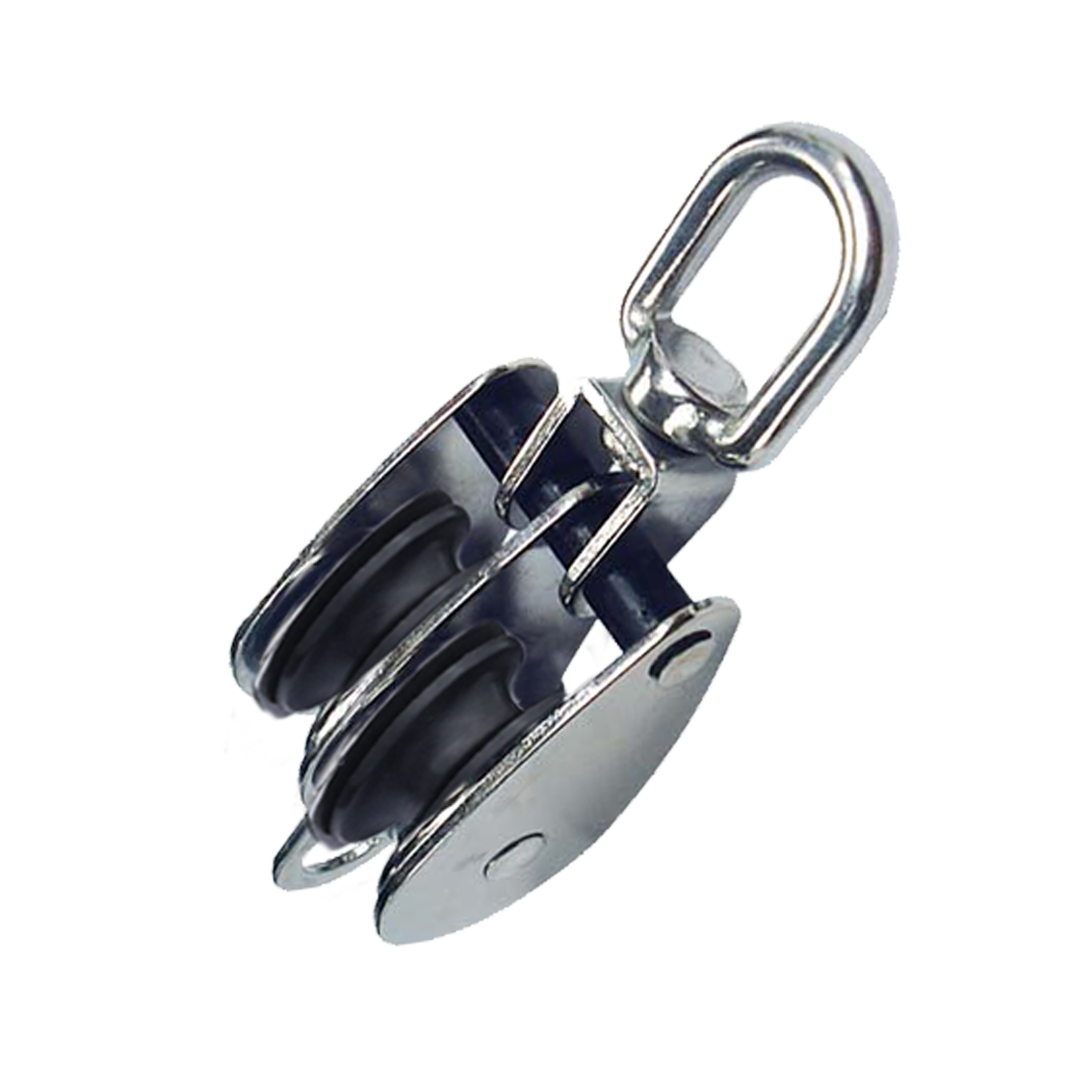

Mame Block (double nylon sheave with eye plate)
304 ss
| SS304 | Size | C(mm) | L(mm) | T(mm) | Weight(kgs) | B.L.(kgs) |
|---|---|---|---|---|---|---|
| 43151425 | 25 | 13.0 | 103.5 | 10.0 | 0.11 | 950 |
| 43151432 | 32 | 13.0 | 118.0 | 10.0 | 0.15 | 1,200 |
| 43151450 | 50 | 20.5 | 162.0 | 13.5 | 0.40 | 2,800 |
| SS304 | Size | Cinch) | L(inch) | T(inch) | Weight(Ib) | B.L.(lb) |
|---|---|---|---|---|---|---|
| 43151425 | 25 | 0.51 | 4.07 | 0.39 | 0.25 | 523 |
| 43151432 | 32 | 0.51 | 4.65 | 0.39 | 0.34 | 660 |
| 43151450 | 50 | 0.81 | 6.38 | 0.53 | 0.88 | 1,540 |
