Description
Technical Data:
Casting Material: AISI304 - DIN 1.4308
Stamping Material: AISI304 - DIN 1.4301
Welding Material: AISI304 - DIN 1.4301
Production: S315A - Swivel eye - Cast
Sheave - Cast
Block (sheet) - Stamped
Eye end (bar) - Welded
Surface Treatment: “E.P.” (Electro polished) Note : Standard safety factor for working load
is 1/4 of breaking load.

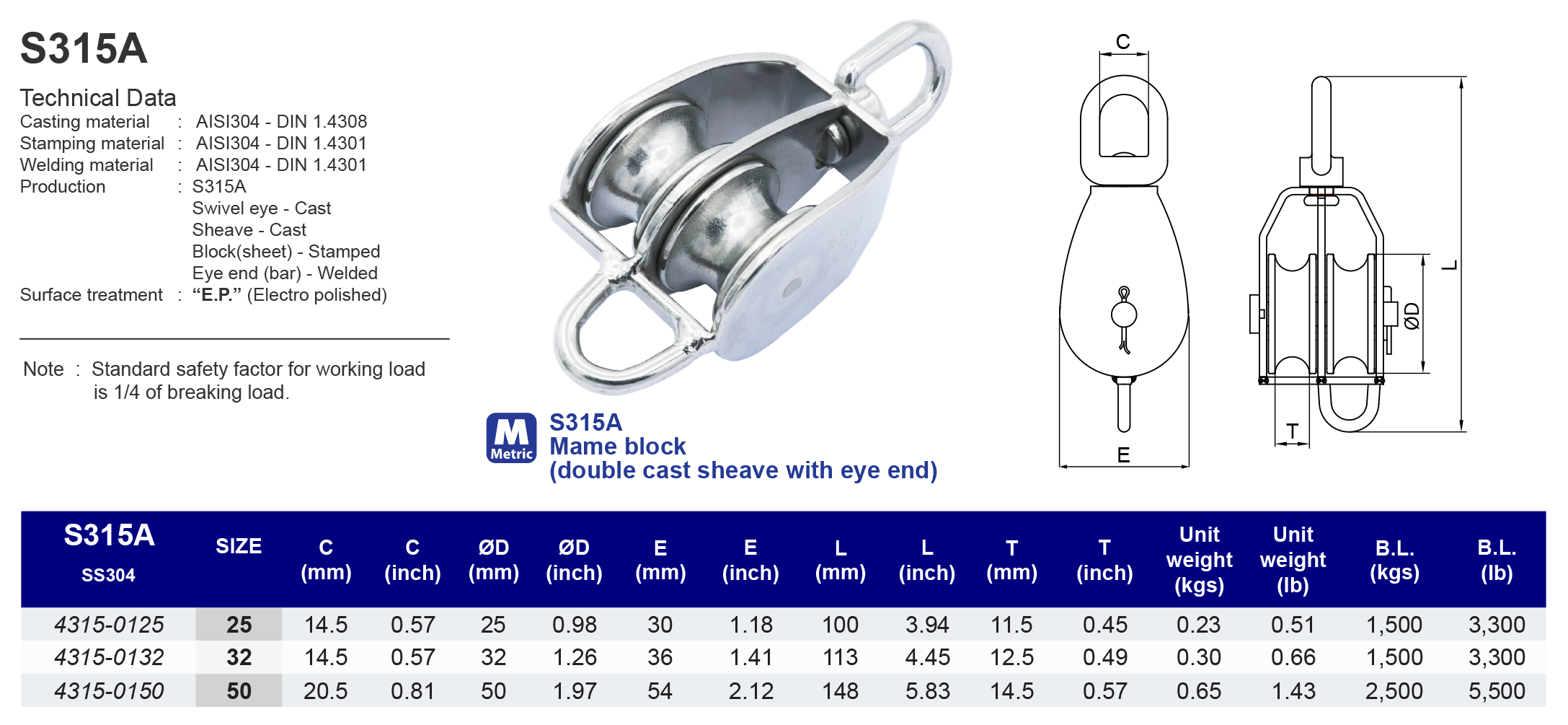

Model
S315A

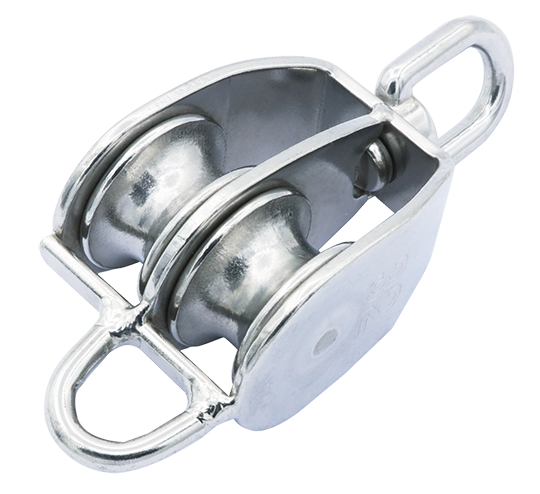

Mame block (double cast sheave with eye end)
304 ss
| SS304 | SIZE | C (mm) | ØD (mm) | E (mm) | L (mm) | T (mm) | Unit weight (kgs) | B.L. (kgs) |
|---|---|---|---|---|---|---|---|---|
| 43150125 | 25 | 14.5 | 25 | 30 | 100 | 11.5 | 0.23 | 1,500 |
| 43150132 | 32 | 14.5 | 32 | 36 | 113 | 12.5 | 0.30 | 1,500 |
| 43150150 | 50 | 20.5 | 50 | 54 | 148 | 14.5 | 0.65 |
| SS304 | SIZE | C (inch) | ØD (inch) | E (inch) | L (inch) | T (inch) | Unit weight (lb) | B.L. (lb) |
|---|---|---|---|---|---|---|---|---|
| 43150125 | 1" | 0.57 | 0.98 | 1.18 | 3.94 | 0.45 | 0.51 | 3,300 |
| 43150132 | 1"-1/4" | 0.57 | 1.26 | 1.41 | 4.45 | 0.49 | 0.66 | 3,300 |
| 43150150 | 2" | 0.81 | 1.97 | 2.12 | 5.83 | 0.57 | 1.43 | 5,500 |
