Description
Technical Data:
Casting Material: AISI304 - DIN 1.4308
Stamping Material: AISI304 - DIN 1.4301
Welding Material: AISI304 - DIN 1.4301
Production: S315ANL
Swivel eye - Cast
Sheave - Nylon
Block (sheet) - Stamped
Eye end (bar) - Welded
Surface Treatment: “E.P.” (Electro polished) Note : Standard safety factor for working load
is 1/4 of breaking load.

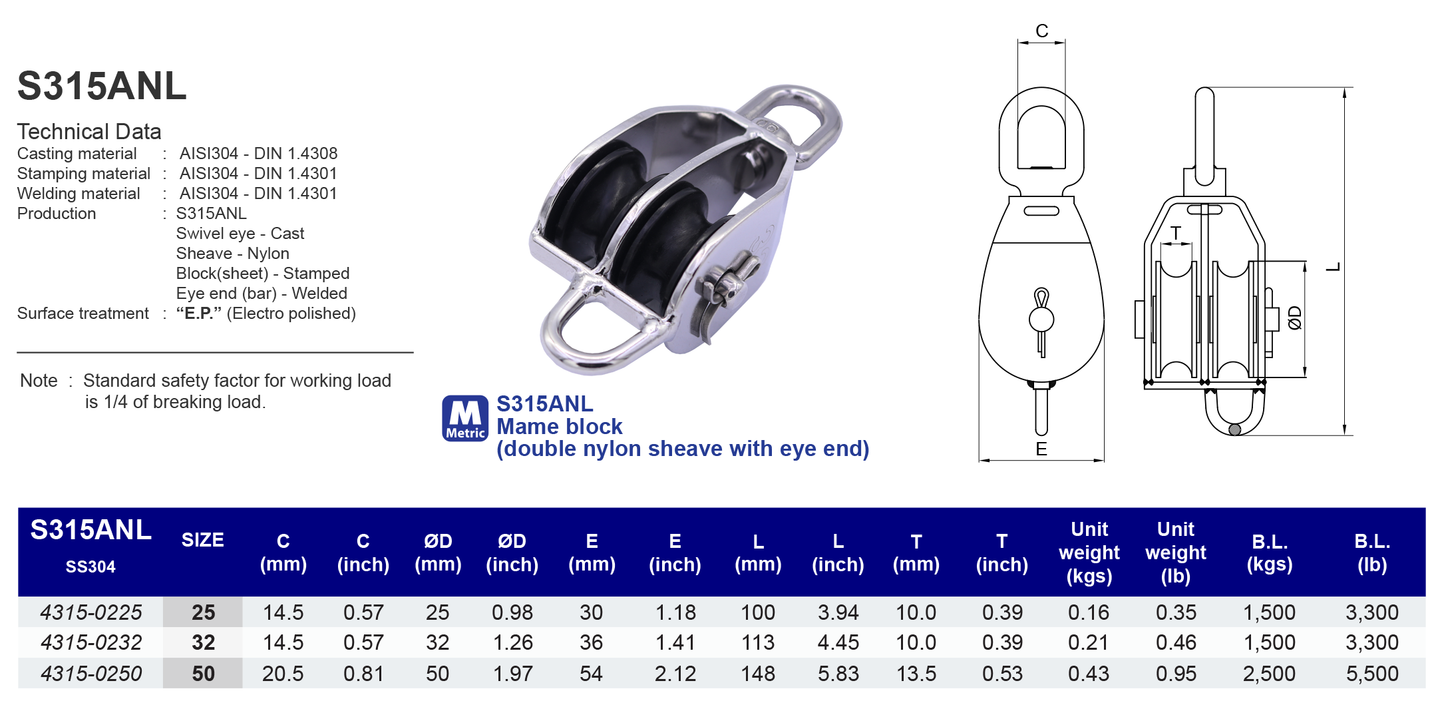

Model
S315ANL

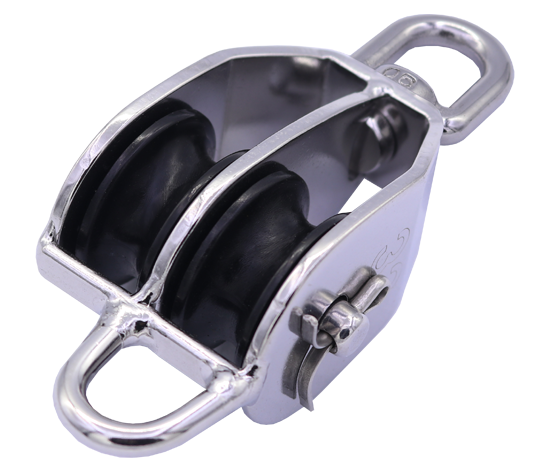

Mame block (double nylon sheave with eye end)
304 ss
| SS304 | SIZE | C (mm) | ØD (mm) | E (mm) | L (mm) | T (mm) | Unit weight (kgs) | B.L. (kgs) |
|---|---|---|---|---|---|---|---|---|
| 43150225 | 25 | 14.5 | 25 | 30 | 100 | 10.0 | 0.16 | 1,500 |
| 43150232 | 32 | 14.5 | 32 | 36 | 113 | 10.0 | 0.21 | 1,500 |
| 43150250 | 50 | 20.5 | 50 | 54 | 148 | 13.5 | 0.43 | 2,500 |
| SS304 | SIZE | C (inch) | ØD (inch) | E (inch) | L (inch) | T (inch) | Unit weight (lb) | B.L. (lb) |
|---|---|---|---|---|---|---|---|---|
| 43150225 | 1" | 0.57 | 0.98 | 1.18 | 3.94 | 0.39 | 0.35 | 3,300 |
| 43150232 | 1"-1/4" | 0.57 | 1.26 | 1.41 | 4.45 | 0.39 | 0.46 | 3,300 |
| 43150250 | 2" | 0.81 | 1.97 | 2.12 | 5.83 | 0.53 | 0.95 | 5,500 |
