Description
Technical Data:
Casting Material: AISI304 - DIN 1.4308
Stamping Material: AISI304 - DIN 1.4301
Welding Material: AISI304 - DIN 1.4301
Production: S315NL - Swivel eye - Cast
Sheave - Nylon
Block (sheet) - Stamped
Surface Treatment: “E.P.” (Electro polished) Note : Standard safety factor for working load
is 1/4 of breaking load.

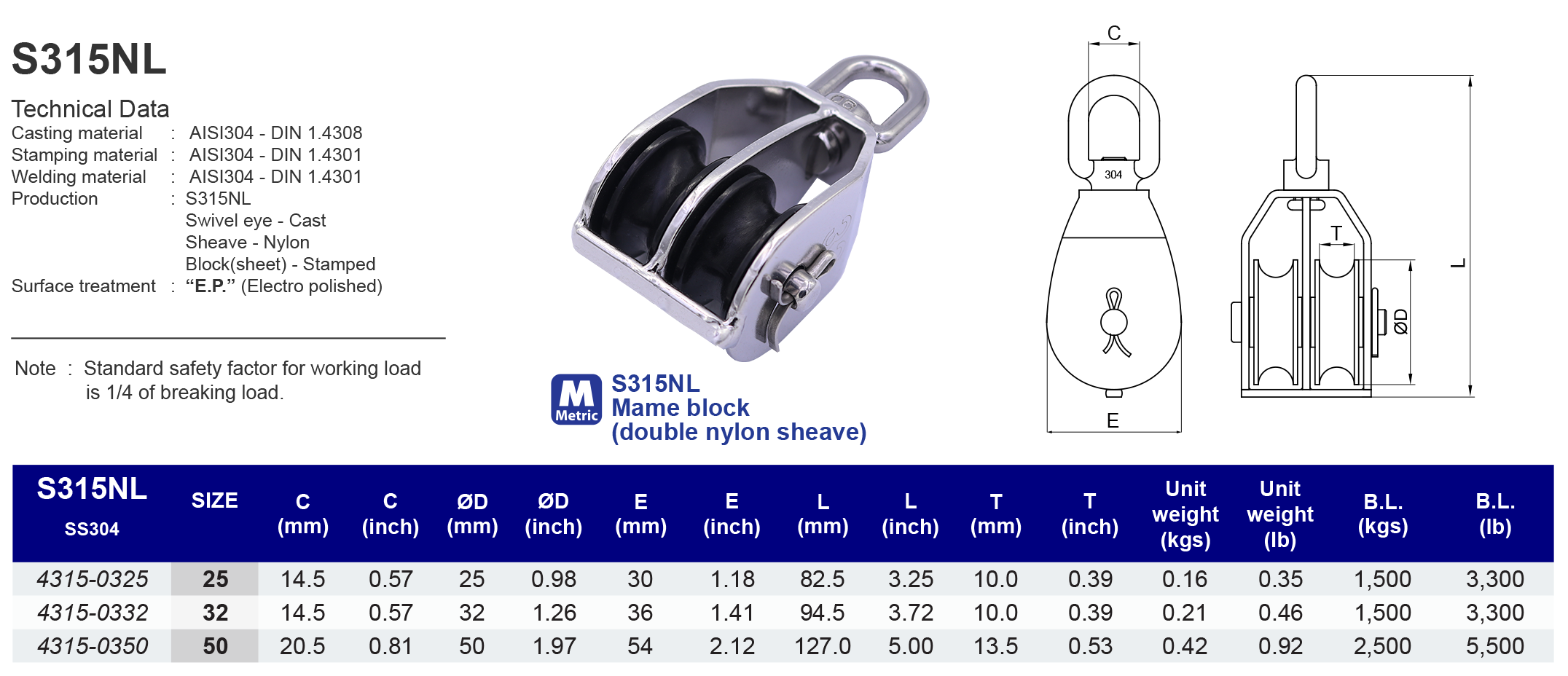

Model
S315NL

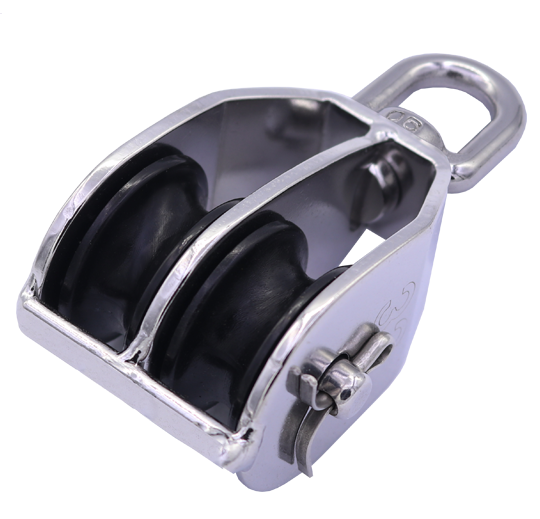

Mame block (double nylon sheave)
304 ss

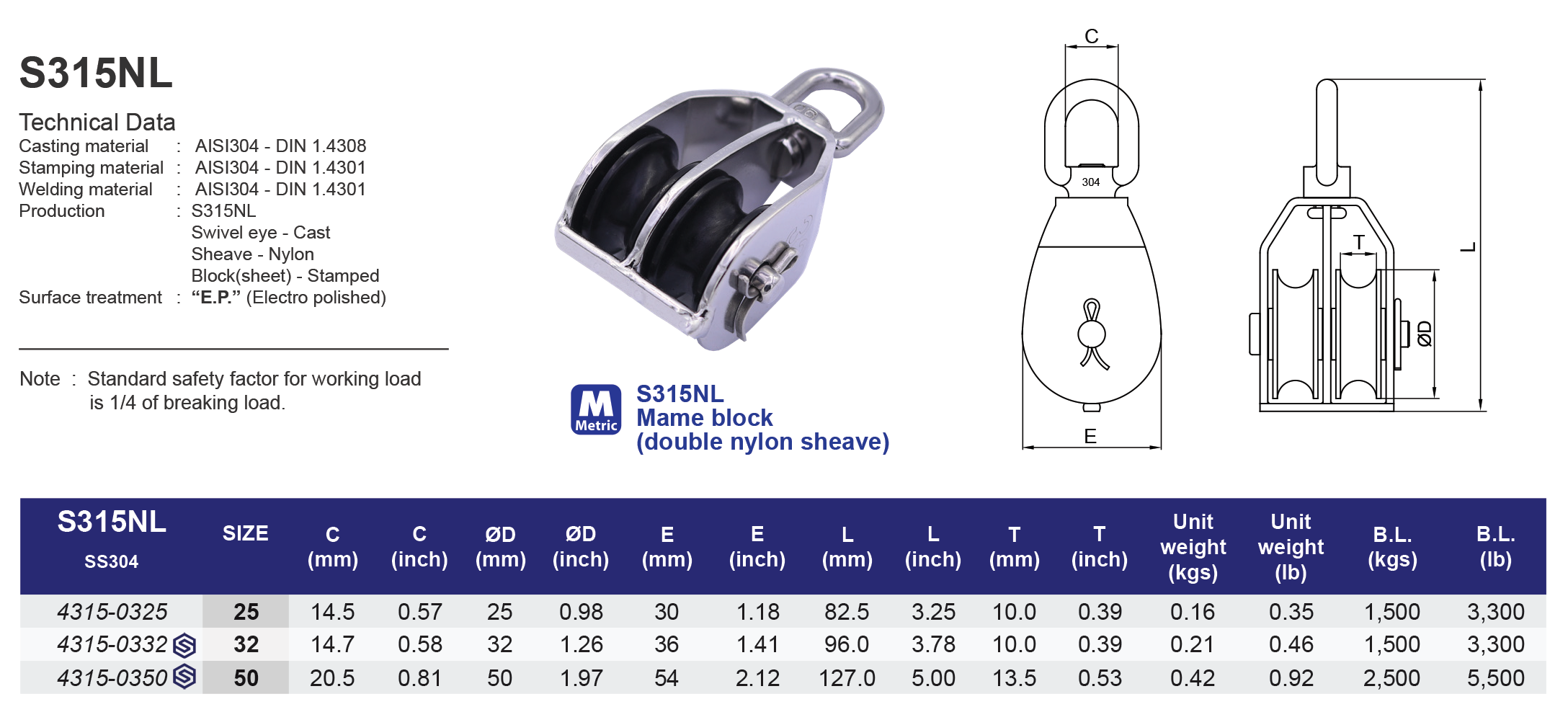

| SS304 | SIZE | C (mm) | ØD (mm) | E (mm) | L (mm) | T (mm) | Unit weight (kgs) | B.L. (kgs) |
|---|---|---|---|---|---|---|---|---|
| 43150325 | 25 | 14.5 | 25 | 30 | 82.5 | 10 | 0.16 | 1,500 |
| 43150332 | 32 | 14.5 | 32 | 36 | 94.5 | 10 | 0.21 | 1,500 |
| 43150350 | 50 | 20.5 | 50 | 54 | 127 | 13.5 | 0.42 | 2,500 |
| SS304 | SIZE | C (inch) | ØD (inch) | E (inch) | L (inch) | T (inch) | Unit weight (lb) | B.L. (lb) |
|---|---|---|---|---|---|---|---|---|
| 43150325 | 1" | 0.57 | 0.98 | 1.18 | 3.25 | 0.39 | 0.35 | 3,300 |
| 43150332 | 1"-1/4" | 0.57 | 1.26 | 1.41 | 3.72 | 0.39 | 0.46 | 3,300 |
| 43150350 | 2" | 0.81 | 1.97 | 2.12 | 5.00 | 0.53 | 0.92 | 5,500 |
