Description
Technical Data:
Casting Material: AISI316 - DIN 1.4408
Production: S31602 - Cap - Cast
Surface Treatment:
“M.P.” (Mirror polished)
“E.P.” (Electro polished)
Model
S31602

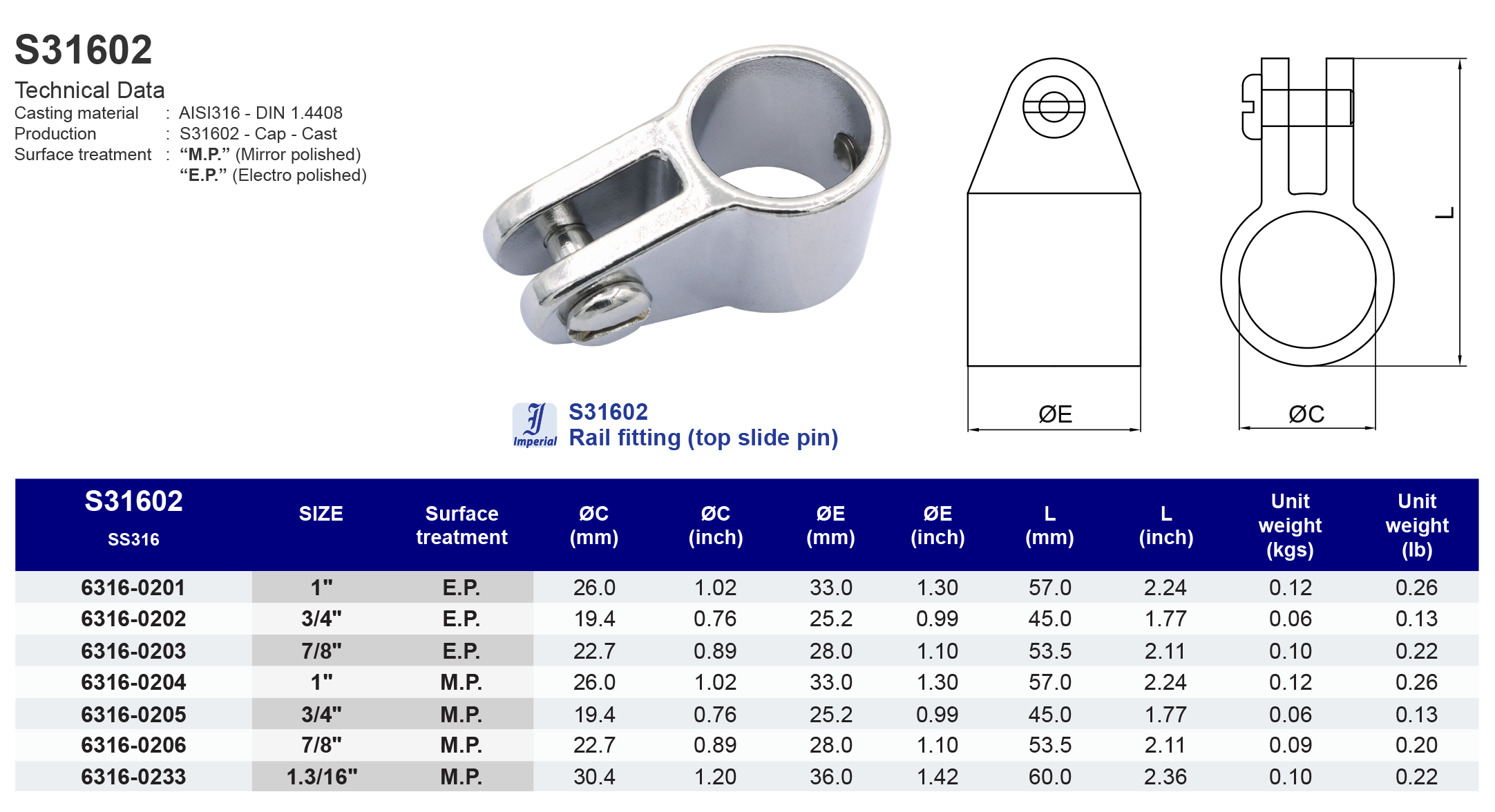

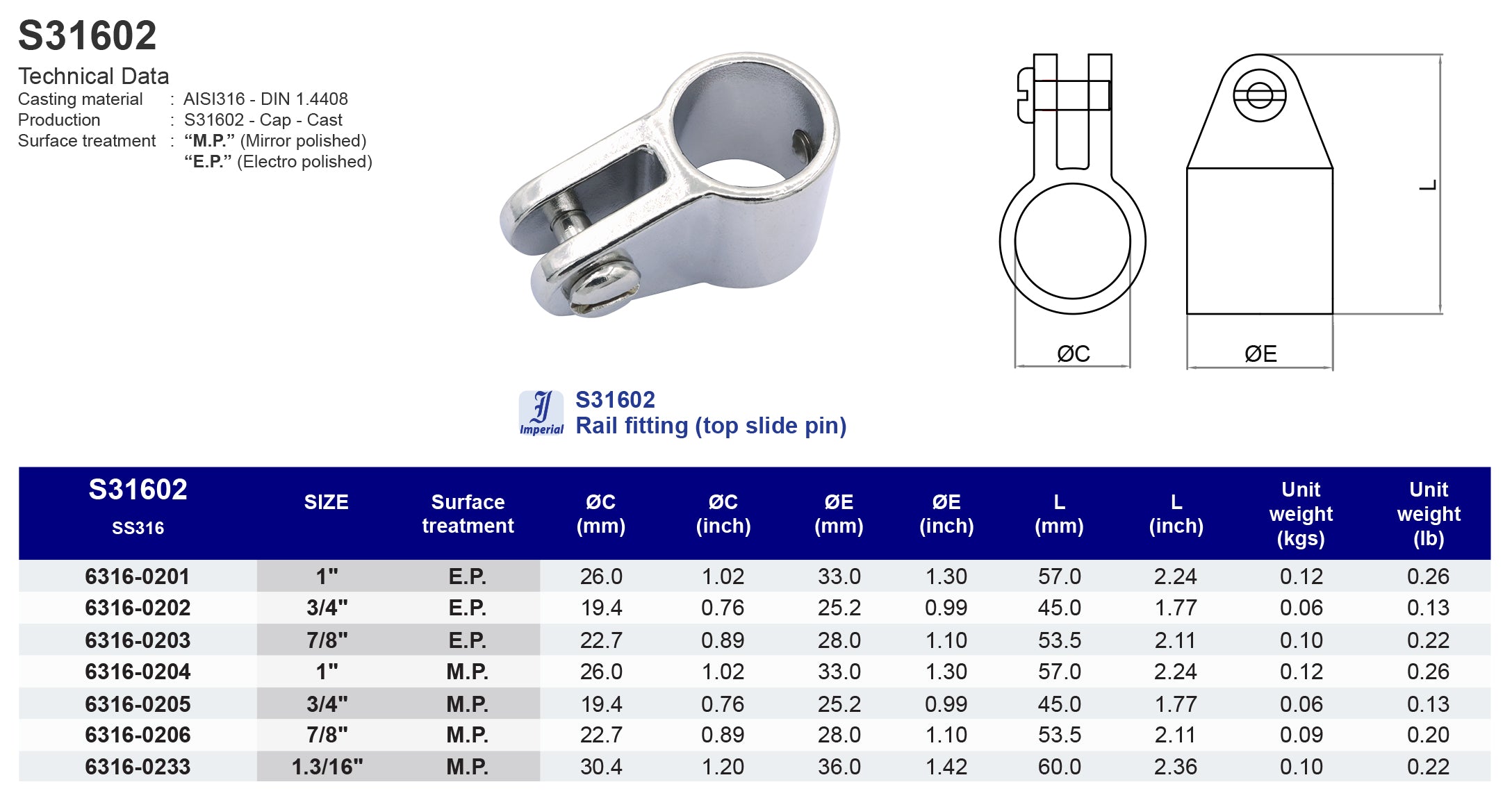

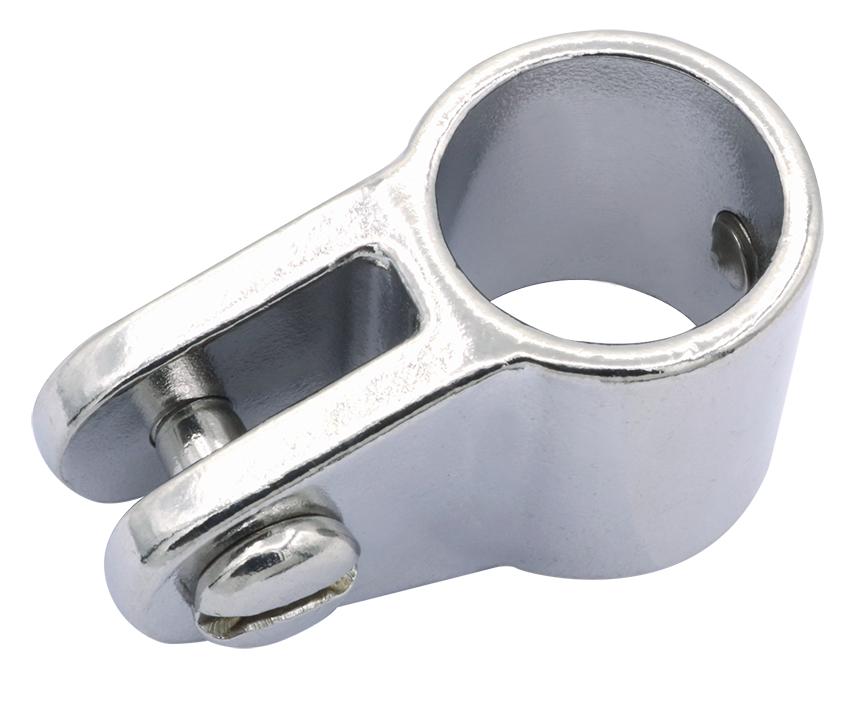

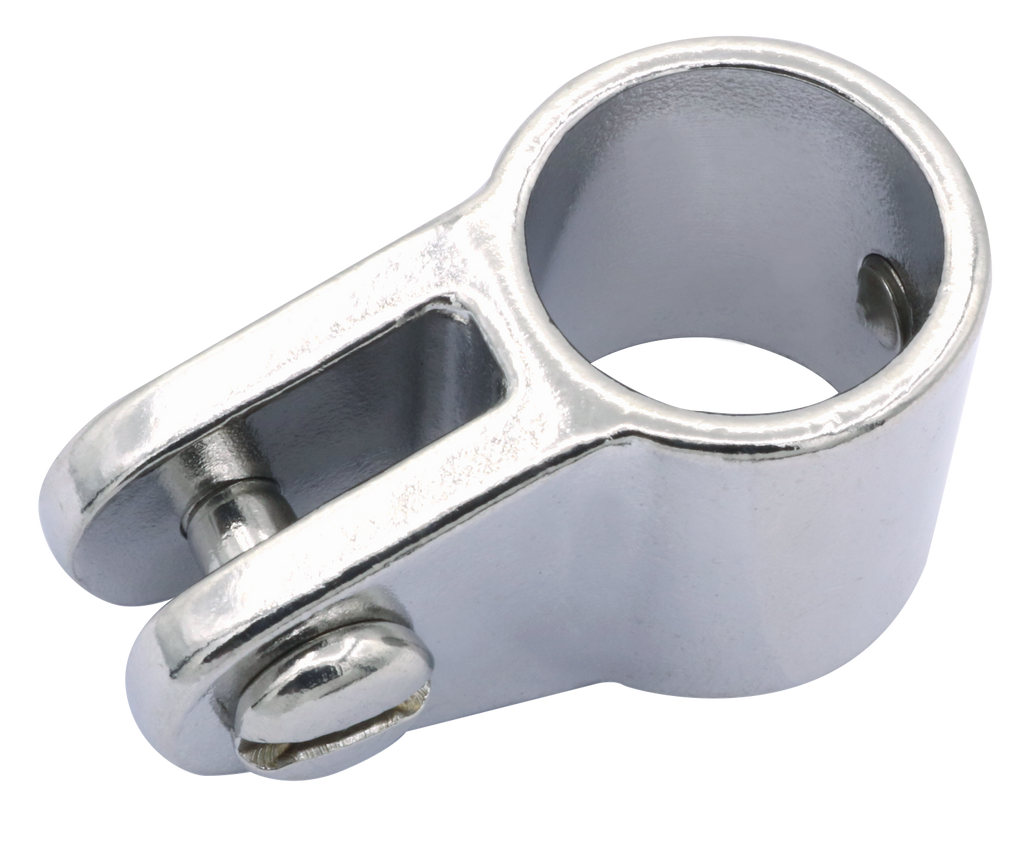

Rail fitting (top slide cap)
316 ss
| SS316 | SIZE | Surface treatment | ØC (mm) | ØE (mm) | L (mm) | Unit weight (kgs) |
|---|---|---|---|---|---|---|
| 63160201 | 1" | E.P. | 26 | 33 | 57 | 0.12 |
| 63160202 | 3/4" | E.P. | 19.4 | 25.2 | 45 | 0.06 |
| 63160203 | 7/8" | E.P. | 22.7 | 28 | 53.5 | 0.10 |
| 63160204 | 1" | M.P. | 26 | 33 | 57 | 0.12 |
| 63160205 | 3/4" | M.P. | 19.4 | 25.2 | 45 | 0.06 |
| 63160206 | 7/8" | M.P. | 22.7 | 28 | 53.5 | 0.09 |
| 63160233 | 1.3/16" | M.P. | 30.4 | 36 | 60 | 0.10 |
| SS316 | SIZE | Surface treatment | ØC (inch) | ØE (inch) | L (inch) | Unit weight (lb) |
|---|---|---|---|---|---|---|
| 63160201 | 1" | E.P. | 1.02 | 1.3 | 2.24 | 0.26 |
| 63160202 | 3/4" | E.P. | 0.76 | 0.99 | 1.77 | 0.13 |
| 63160203 | 7/8" | E.P. | 0.89 | 1.1 | 2.11 | 0.22 |
| 63160204 | 1" | M.P. | 1.02 | 1.3 | 2.24 | 0.26 |
| 63160205 | 3/4" | M.P. | 0.76 | 0.99 | 1.77 | 0.13 |
| 63160206 | 7/8" | M.P. | 0.89 | 1.1 | 2.11 | 0.20 |
| 63160233 | 1.3/16" | M.P. | 1.20 | 1.42 | 2.36 | 0.22 |
