Description
Technical Data:
Casting Material: AISI316 - DIN 1.4408
Production: S31612 - Hinge - Cast
Surface Treatment: “M.P.” (Mirror polished)/
“E.P.” (Electro polished)

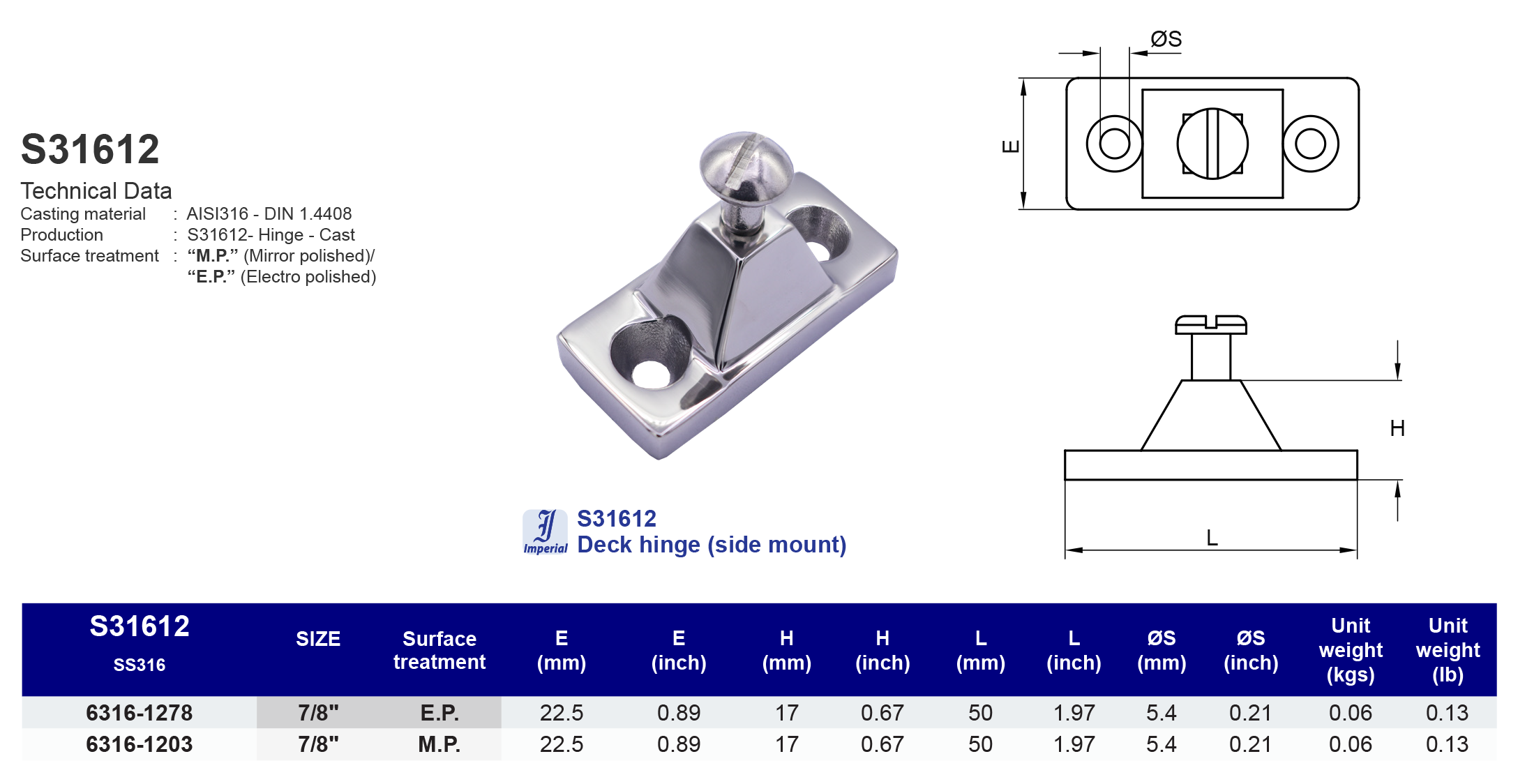

Model
S31612

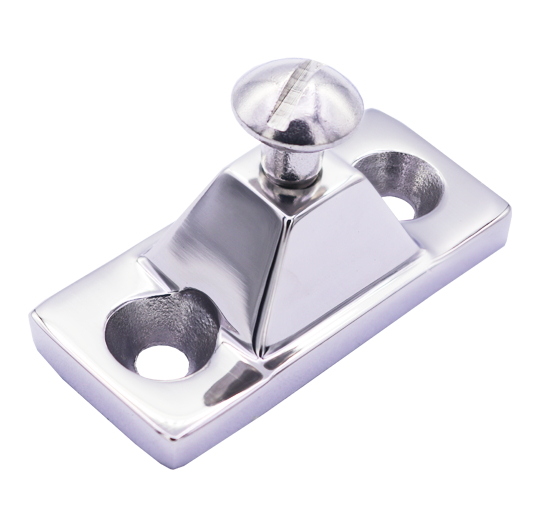

Deck hinge (side mount)
316 ss
| SS316 | SIZE | Surface treatment | B (mm) | E (mm) | L (mm) | ØS (mm) | Unit weight (kgs) |
|---|---|---|---|---|---|---|---|
| 63161278 | 7/8" | E.P. | 10 | 22.5 | 50 | 5.4 | 0.06 |
| 63161203 | 7/8" | M.P. | 10 | 22.5 | 50 | 5.4 | 0.06 |
| SS316 | SIZE | Surface treatment | B (inch) | E (inch) | L (inch) | ØS (inch) | Unit weight (lb) |
|---|---|---|---|---|---|---|---|
| 63161278 | 7/8" | E.P. | 0.39 | 0.89 | 1.97 | 0.21 | 0.13 |
| 63161203 | 7/8" | M.P. | 0.39 | 0.89 | 1.97 | 0.21 | 0.13 |
